Manufacturer ANSI WCB 4 Inch API Standard Z40H 150LB Flange Wedge Carbon Casting Steel Gate Valve with Handwheel
- Category: Valve >>>
- Supplier: Xintai Valve Group Co. Ltd.
Share on (1600301722707):
Product Overview
Description
Products Description

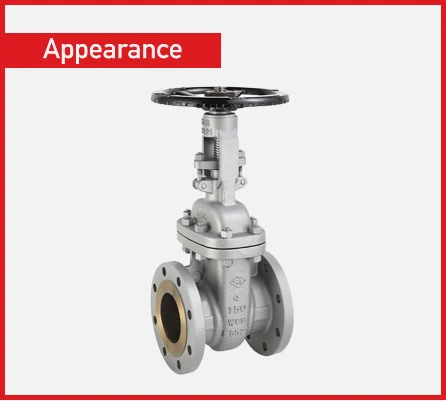

Z40H-150LB 4"
●Gate valve is one of the most commonly used cut-off valves, mainly used to connect or cut off the medium in the pipeline, not suitable for adjusting the flow of the medium. It is suitable for a wide range of pressure, temperature and caliber, especially suitable for medium and large diameter pipelines, and is widely used in pipeline systems such as metallurgy, power stations, oil refineries and petrochemical plants.
●The cast steel gate valve adopts the upper sealing structure, and the forged steel adopts the upper sealing structure of the bonnet surfacing. It is easy to maintain and has good sealing performance. It is widely used in oil field, chemical industry, water treatment and other industries.
Product Name | API gate valve |
Model | Z40H-150LB 4" |
Certification | API6D,CE,ISO9001 |
Brand | XINTAI |
Application | Generally used in engineering |
Customized | OEM/ODM/OBM |
Pressure | 150LB |
Temperature range | Minus 29 degrees to 150 degrees |
Size | 4" |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |

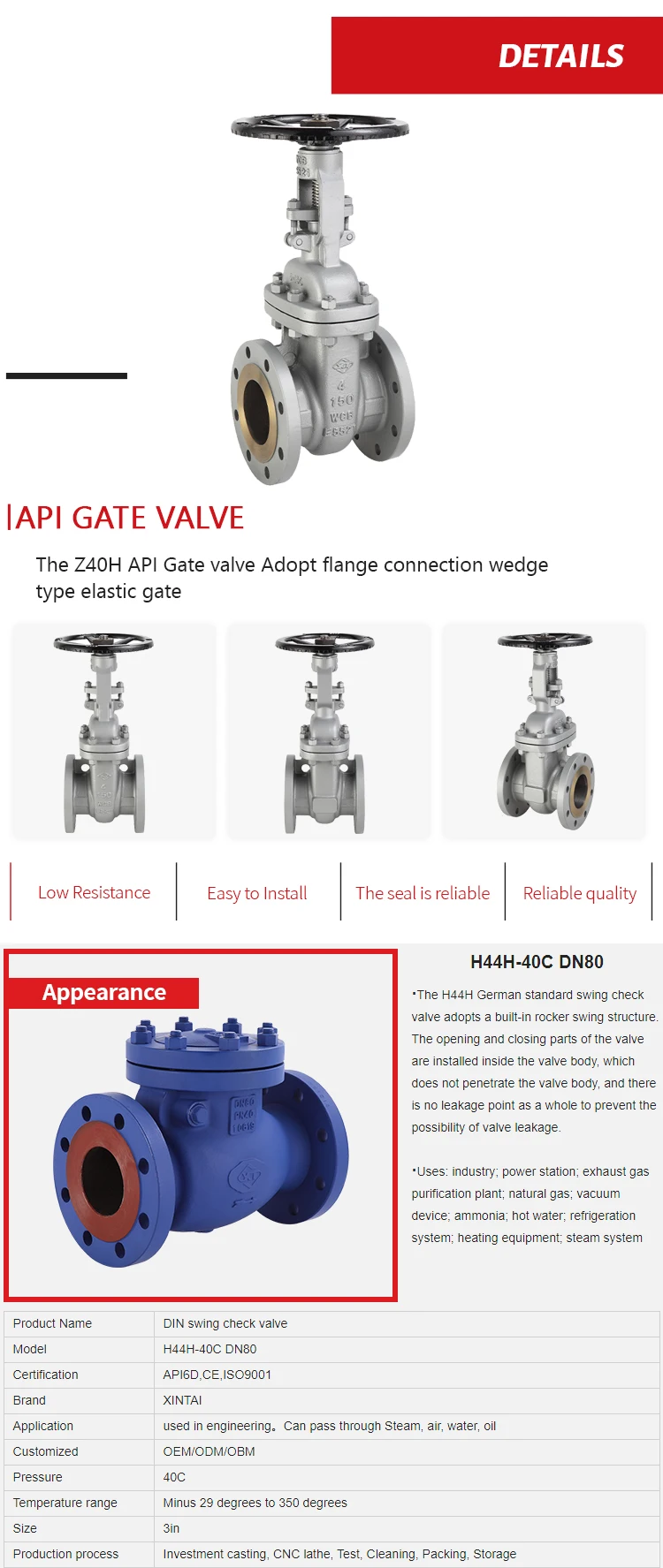

Valve Comparison
Heavy Weight Type Gate Valve
Medium Weight Type Gate Valve
Light Weight Type Gate Valve
Light Weight Type Gate Valve | Medium Weight Type Gate Valve | Heavy Weight Type Gate Valve | |
Valve Cover Weight | 5.2KGS | 7.75KGS | 8.7KGS |
Valve Body Weight | 19KGS | 26.9KGS | 28.1KGS |
Valve Body Wall Thickness | 6.09MM | 13.5MM | 11.79MM |
Flange Thickness Without Raised Part | 22.8MM | 24MM | 26MM |
Gate | 2.5KGS, No polished And No cut, Sealing Surface Welded With STL | 3.0KGS, polished And Cut, Resurfacing Welded With STL | 3.2KGS, polished And Cut, Resurfacing Welded With 13CR |
Valve Stem Diameter | 23.8MM | 26MM | 26MM |
Valve Stem Weight | 1.2KGS, Bars Are Not Processed, Directly Polished Rods From T Slot | 1.55KGS, Bar Forging A Groove, Then Processing | 1.55KGS, Bar Forging A Groove, Then Processing |
Bolt and Nut | 8PCS, A3, Non-standard, No Mark | Graphite+SS304+Graphite, Inner 304 Hemming | Graphite+SS304+Graphite, 304 Hemming Inside And Inner |
Valve Stem Nut | Ductile Iron, Copper Plating | Copper | High Nickel Ductile Iron, No Rust, High Strength And Toughness |
Inner Wall | Rough Inside, No Treatment | Inner Polished, Shot Blast Treatment | Inner Polished, Shot Blast Treatment |
Valve Seat | Body Resurfacing Welding | Sleeve Welding A105 | Sleeve Welding A105 |
Upper Valve Seat | No Back Seal | Back Seal | Back Seal |
Handwheel | Ductile Iron, Hollow, Lightweight, Easy to Break | Ductile Iron, Hollow, API Standard, Durable | Ductile Iron, Solid, Strong And Durable |
Pressure Sleeve | Integrated, Casting WCB | Ductile Iron, Hollow, API Standard, Durable | Ductile Iron, Solid, Strong And Durable |
Company Profile
XINTAI VALVE GROUP CO., LTD
was founded in 1998, is a professional valve maunfacturing company which conjoins R&D, casting,development, production and sale.The Group's headquarters is located in the Longgang Airport New District, Wenzhou, and iscentered on research and manufacturing technology. The factory covers an area of approximately 32000 square meters. The two majorbases for casting were respectively located in the central industrial zone of Longwan District, Wenzhou, with an area of 9,800 square meters. Longwan Airport New Area
Casting Base in Wenzhou, with an area of 28,000 square meters. The existing staff of 578people, including high and mid-level engineering and technical personnel 58 people, mainly in oil, natural gas, chemical, powerstations, metallurgy, national defense, water conservancy projects, pharmaceuticals and other fields.
Our product range:control valve,Cryogenic valve,gate valve,globe valve,check valve,ball valve,butterfly valve,power station
valve,oxygen valve,hydraulic control valve,antibiotic valve,threaded valve.The product can meet GB,BS,API,DN,JIS standard,or according to customer’s request.Material available in:CF8,CF3,CF8C,CF8M,CF3M,CF10M,C4,4A,5A,310S,904L,,WCB,WC1,WC6,WC9,LCB,LCC ,Duplex stainless steel,various titanium,nickel,chromium and other materials.The operation modes including electric actuator,pneumatic actuator,gear and bevel gear.The products have been exported to Europe,America,the middle of East,Southeast Asia,which gained a good reputation for reliable quality and reasonable prices.
valve,oxygen valve,hydraulic control valve,antibiotic valve,threaded valve.The product can meet GB,BS,API,DN,JIS standard,or according to customer’s request.Material available in:CF8,CF3,CF8C,CF8M,CF3M,CF10M,C4,4A,5A,310S,904L,,WCB,WC1,WC6,WC9,LCB,LCC ,Duplex stainless steel,various titanium,nickel,chromium and other materials.The operation modes including electric actuator,pneumatic actuator,gear and bevel gear.The products have been exported to Europe,America,the middle of East,Southeast Asia,which gained a good reputation for reliable quality and reasonable prices.
VR
“Science and technology leading the future”.XINTAI wins the market against our professionalism and better serves global customers at fast speed against our professionalism.
Our Advantages
Recommend Products
Packing and Shipping
FAQ
1. Can I have a sample order for valve?
A:Honestly,it depends on the order quantity and your specific requirements of products.
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
We have our own 6 casting production lines, and products without stock can get samples quickly.
2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available.
3.Q.How are orders packed and shipped ?
A: For custom order, we can design full-color custom packaging to match your brand, if requires.Most products are packed in wooden cases
4. How to proceed an order for valve?
A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
5. Do you offer guarantee for the products?
A: Yes, we offer warranty to our products.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
6.Q:Can you do the design for us?
A:Internal parts of the product can also be customized according to customer needs.
We can open moulds for customers, and our own casting production line improves our customizable ability.
7.Q:When can I get the quotation?
A:We usually quote within 6 hours after we get your inquiry.If you are very urgent to get the price,pls call us or tell us in your email so that we will regard your inquiry priority.
8.Q:What abount the lead time for mass production?
A:Honestly,it depends on the order quantity and your specific requirements of products.
Our casting production line makes our production cycle shorter than the industry average
