3CFM 1/4HP 5PA Refrigerant Rotary Vane Vacuum Pump RS 1
- Category: >>>
- Supplier: Shanghai Youding International Trade Company Limited
Share on (1600301866508):
Product Overview
Description

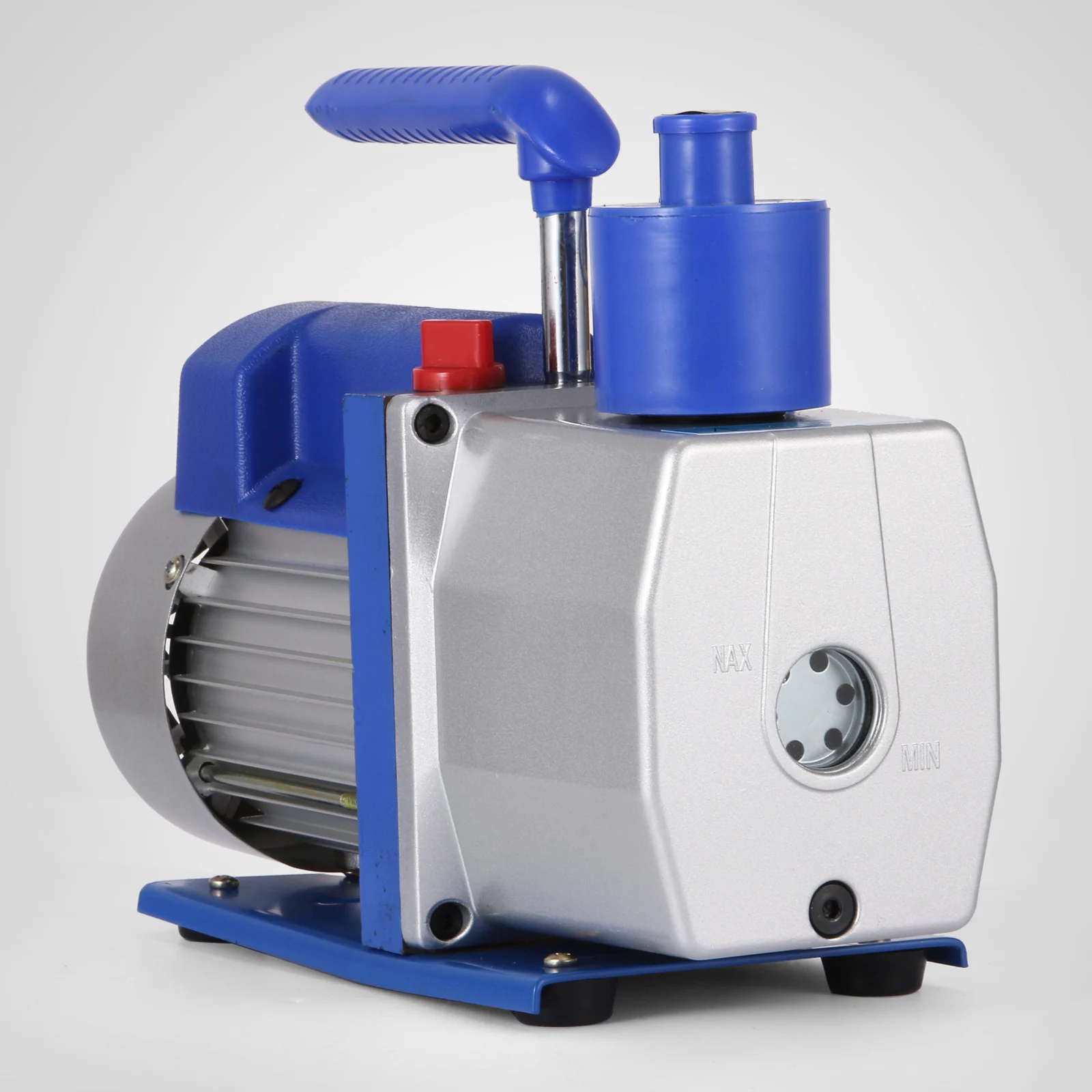

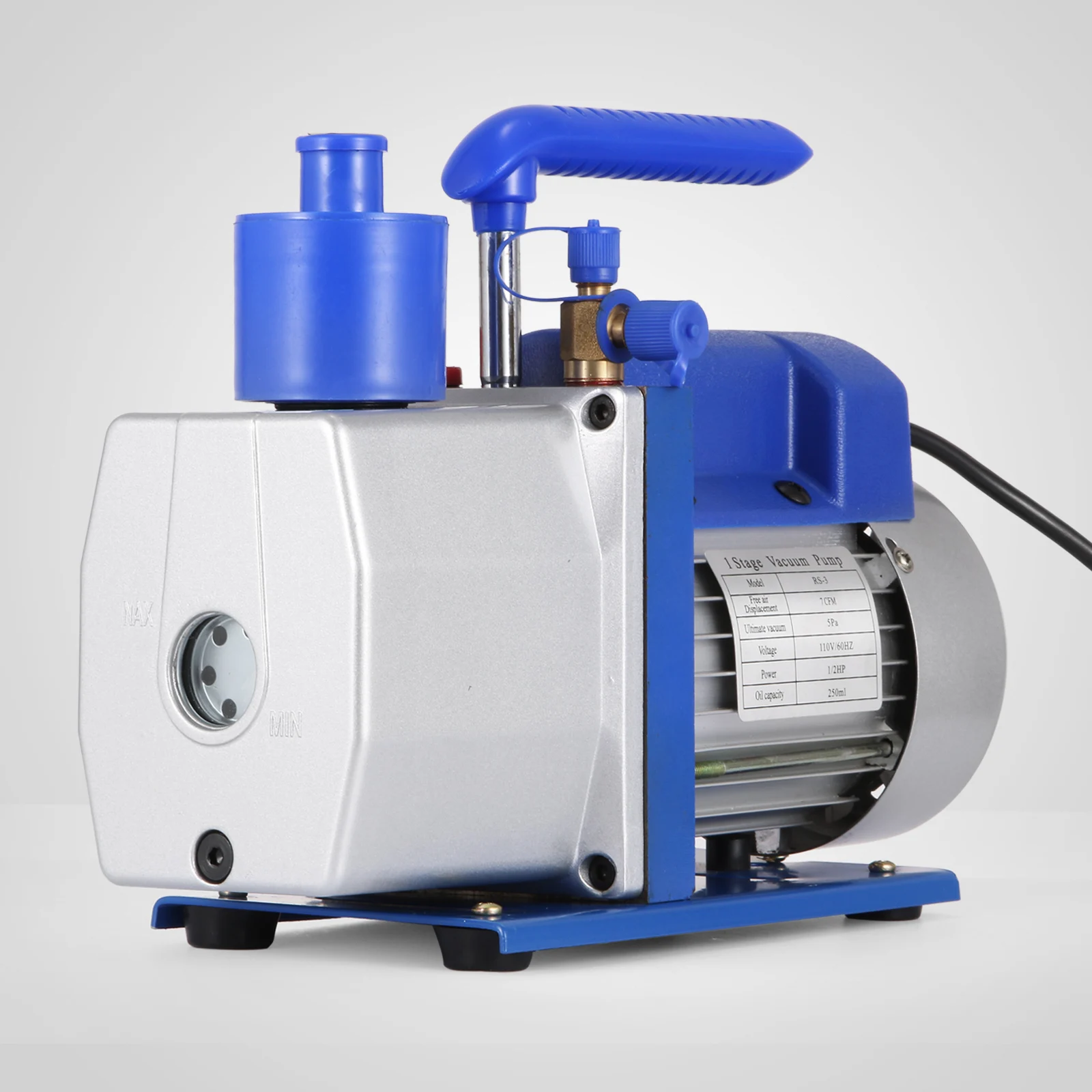

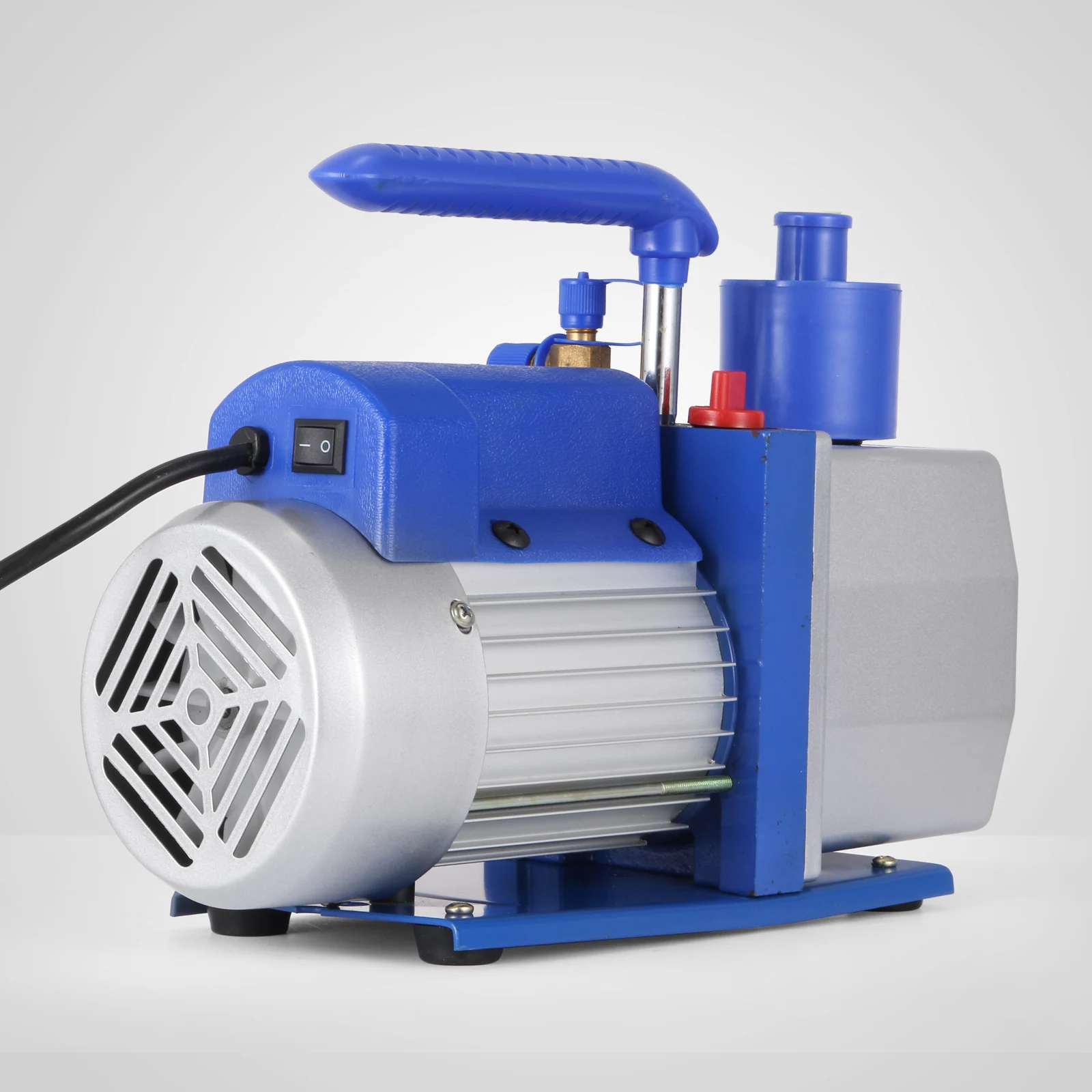

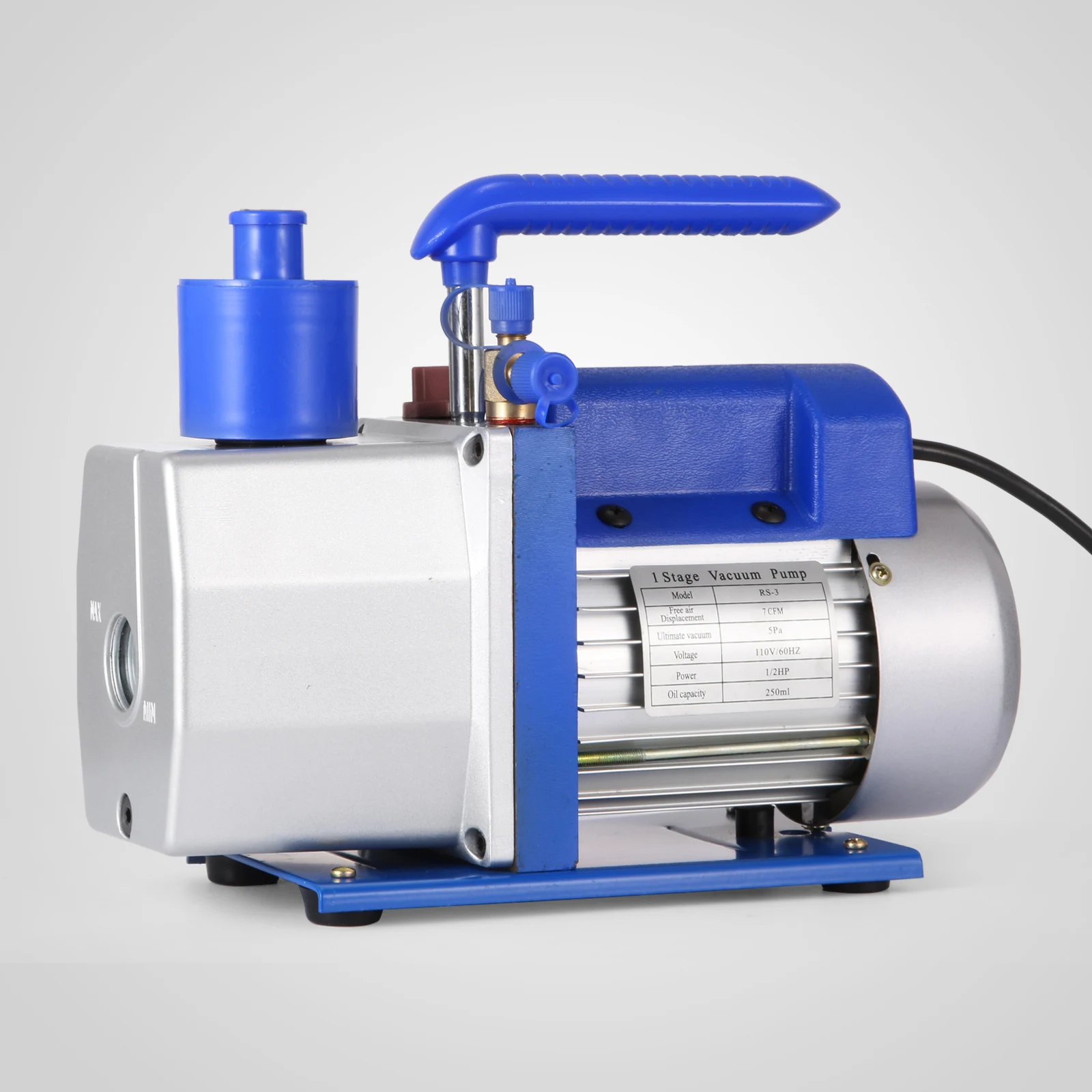

3CFM 1/4HP 5PA Refrigerant Rotary Vane Vacuum Pump RS-1
| Single Stage | HP-1 | RS-1 | RS-1.5 | RS-2 | RS-3 | RS-4 | RS-6 | |
| Flow Rate | 220V 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
| 42L/min | 70L/min | 100L/min | 128L/min | 170L/min | 226L/min | 283L/min | ||
| 110V 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
| 50L/min | 84L/min | 114L/min | 142L/min | 198L/min | 254L/min | 340L/min | ||
| Ultimate Vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | |
| 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | ||
| Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | |
| Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8" | 1/4"&3/8" | 1/4"&3/8" | |
| Oil Capacity | 220ml | 300ml | 350ml | 350ml | 450ml | 700ml | 800ml | |
| Dimensions(mm) | 270x119x216 | 270x119x216 | 278x119x216 | 278x119x216 | 320x134x232 | 370x140x250 | 390x140x250 | |
| Weight | 5.3kg | 5.5kg | 6.5kg | 6.8kg | 10kg | 14kg | 14.5kg | |
