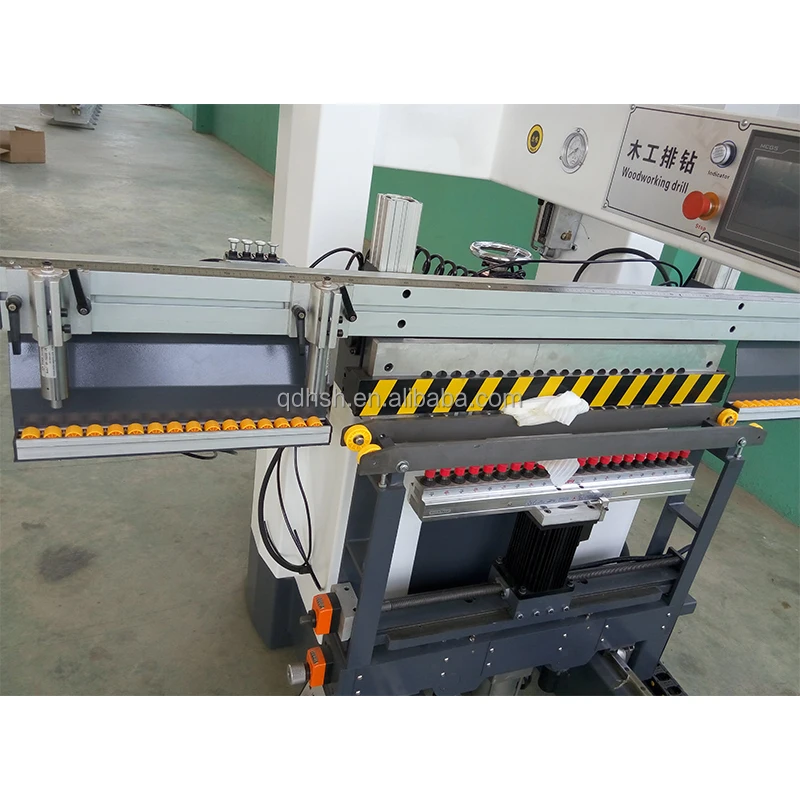

Four Rows Multi Spindle Boring Machine 21*4 Drills Wood Based Panels Machinery
- Category: >>>
- Supplier: Qingdao Hongshenghong Machinery Co. Ltd.
Share on (1600301868604):
Product Overview
Description
Multiple Row Drilling Machine
Features of Multiple Row Drilling Machine:
1. Adopted with famous touch screen, PLC system, highly precious efficiency, lower error.
2. Drills are joined in a high speed, easy operation.
3. Depth and distance of drills’ hole are fast placed by the precise photo-electric sensing switch.
4. Adopted with the originally imported drill row, linear guide, slider.
5. Main body is made by special steel which is dealt with high temperature annealing.
6. High speed motors are available to drill the precise holes.
2. Drills are joined in a high speed, easy operation.
3. Depth and distance of drills’ hole are fast placed by the precise photo-electric sensing switch.
4. Adopted with the originally imported drill row, linear guide, slider.
5. Main body is made by special steel which is dealt with high temperature annealing.
6. High speed motors are available to drill the precise holes.
Product Paramenters
Model | MZ73211B | MZ73214A | MZ73216A |
Max drilling diameter | Φ35mm (single head) Φ13mm (multi-head) | Φ35mm (single head) Φ13mm (multi-head) | Φ35mm (single head) Φ13mm (multi-head) |
The maximum drilling depth | 60mm | 60mm | 60mm |
The total number of drilled shaft | 21*3 | 21*4 | 21*6 |
Drill joint fit-up aperture | 10mm | 10mm | 10mm |
Max.drilling distance | 1750*640mm | 1750*640mm | 2800*640mm |
Min.drilling distance | 135*32mm | 135*32mm | 135*32mm |
Spindle speed | 2840rpm | 2840rpm | 2840rpm |
Air Pressure | 0.6~0.8Mpa | 0.6~0.8Mpa | 0.6~0.8Mpa |
The total power of electric motor | 4.5kW | 6kW | 9kW |
Appearance size | 2700*2500* 1620mm | 3860*2500* 1620mm | 4600*2500* 1620mm |
The weight of the machine | 1100kg | 1500kg | 2500kg |
Details of Drilling Machine

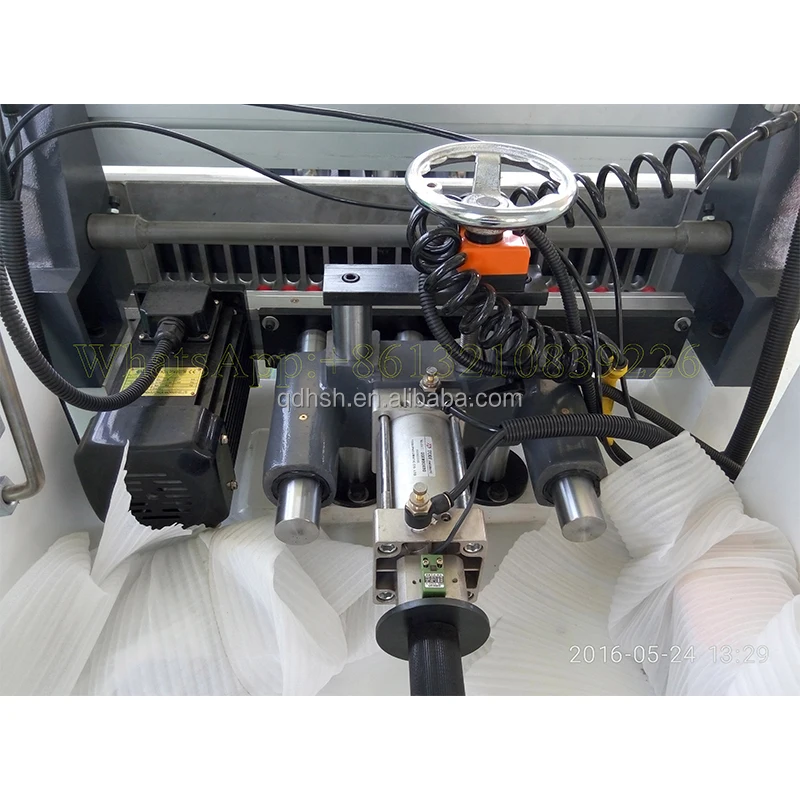

Horizontal and vertical drilling can be adjusted

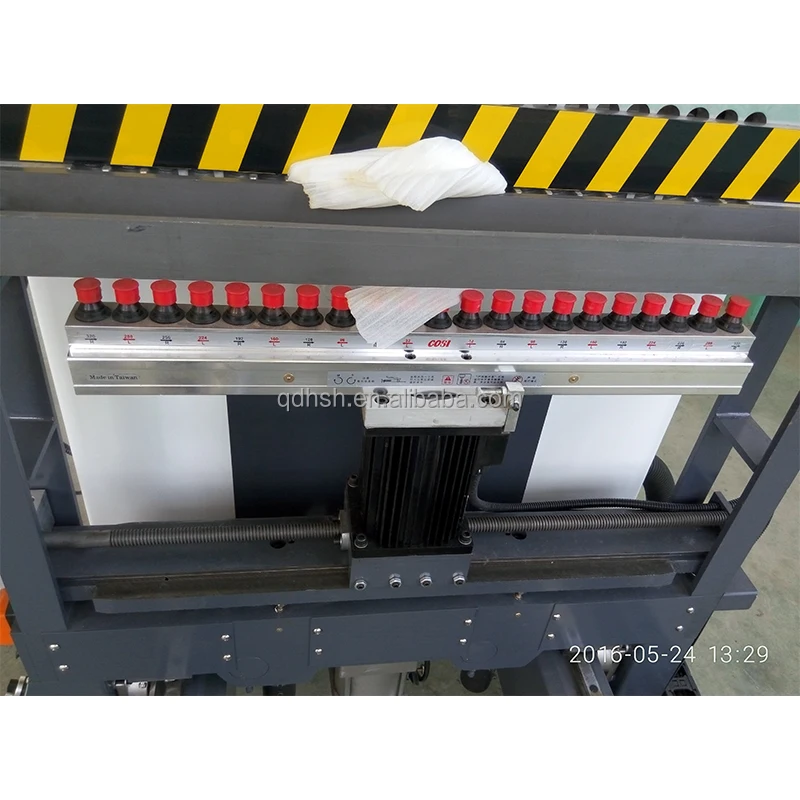

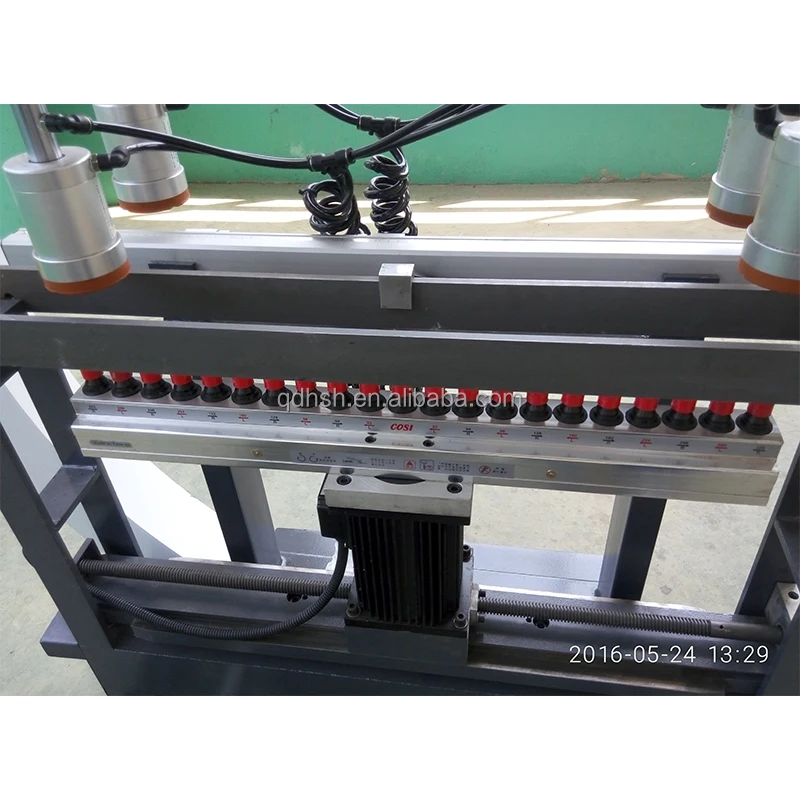

21 drills in each row

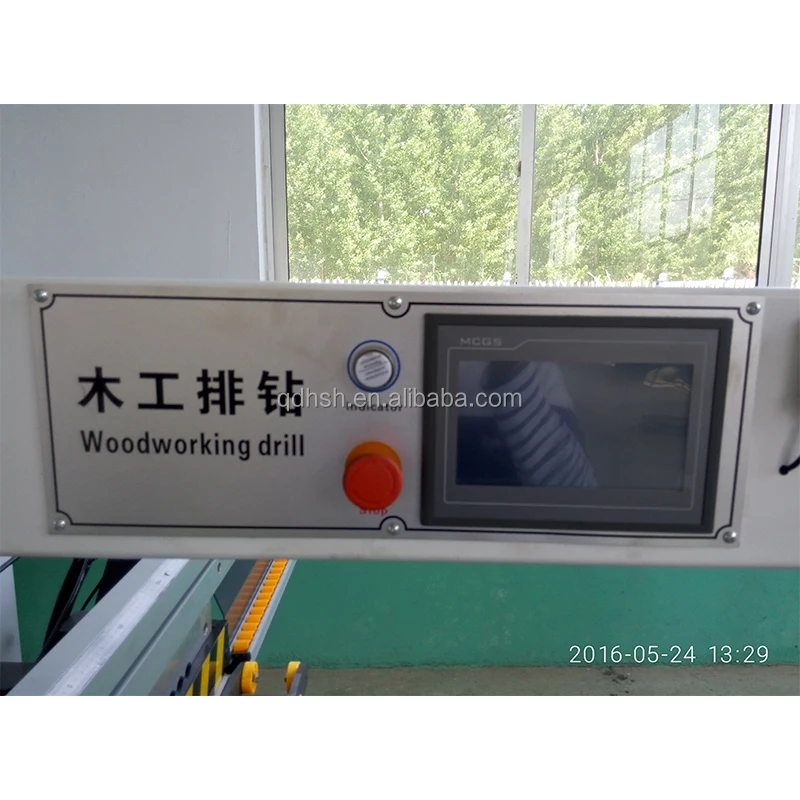

Touch screen and PLC control
Air pressure control
Large table for wider panels
Single 1.5kw motor(double motors for options)
Similar Products

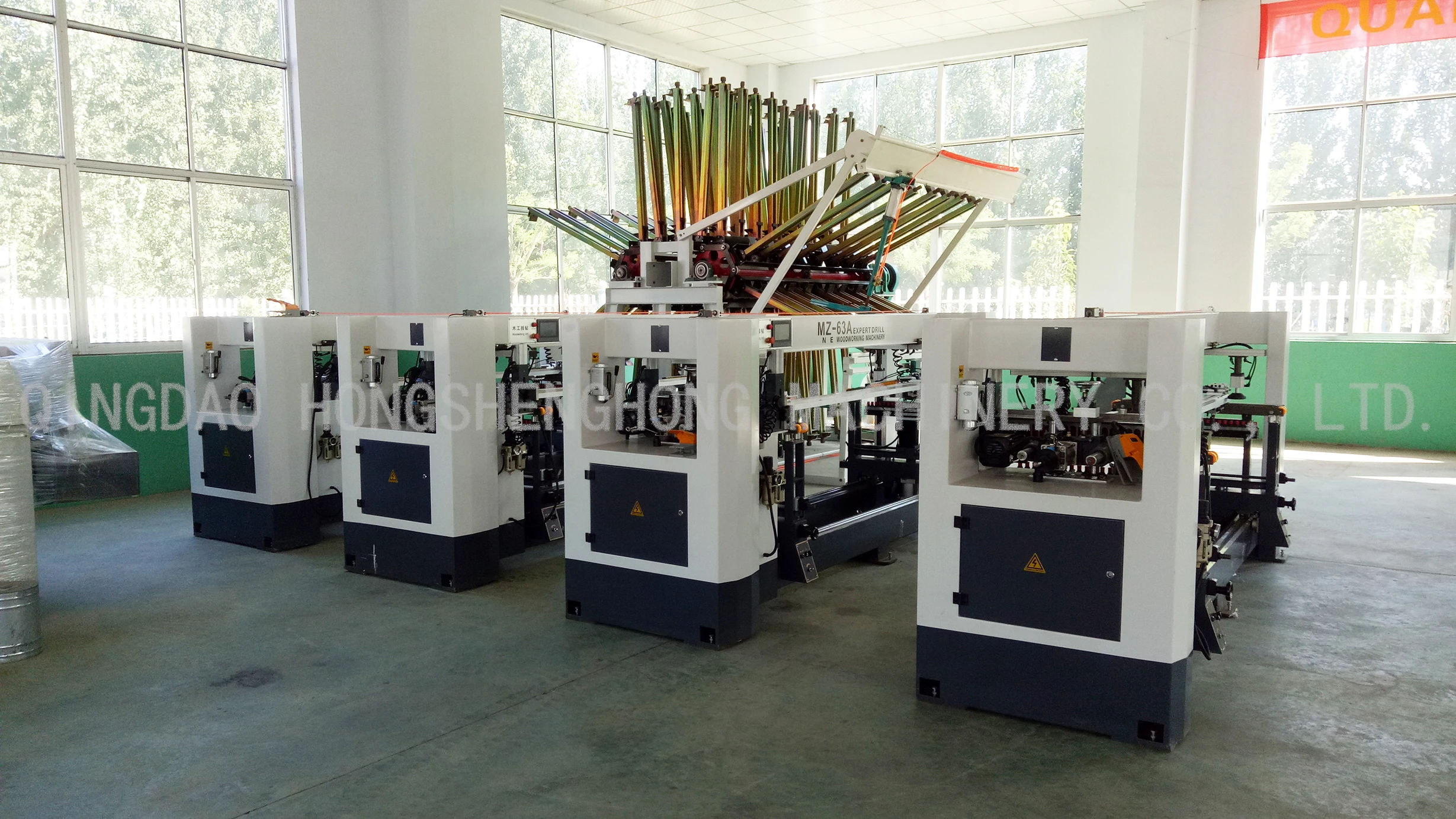

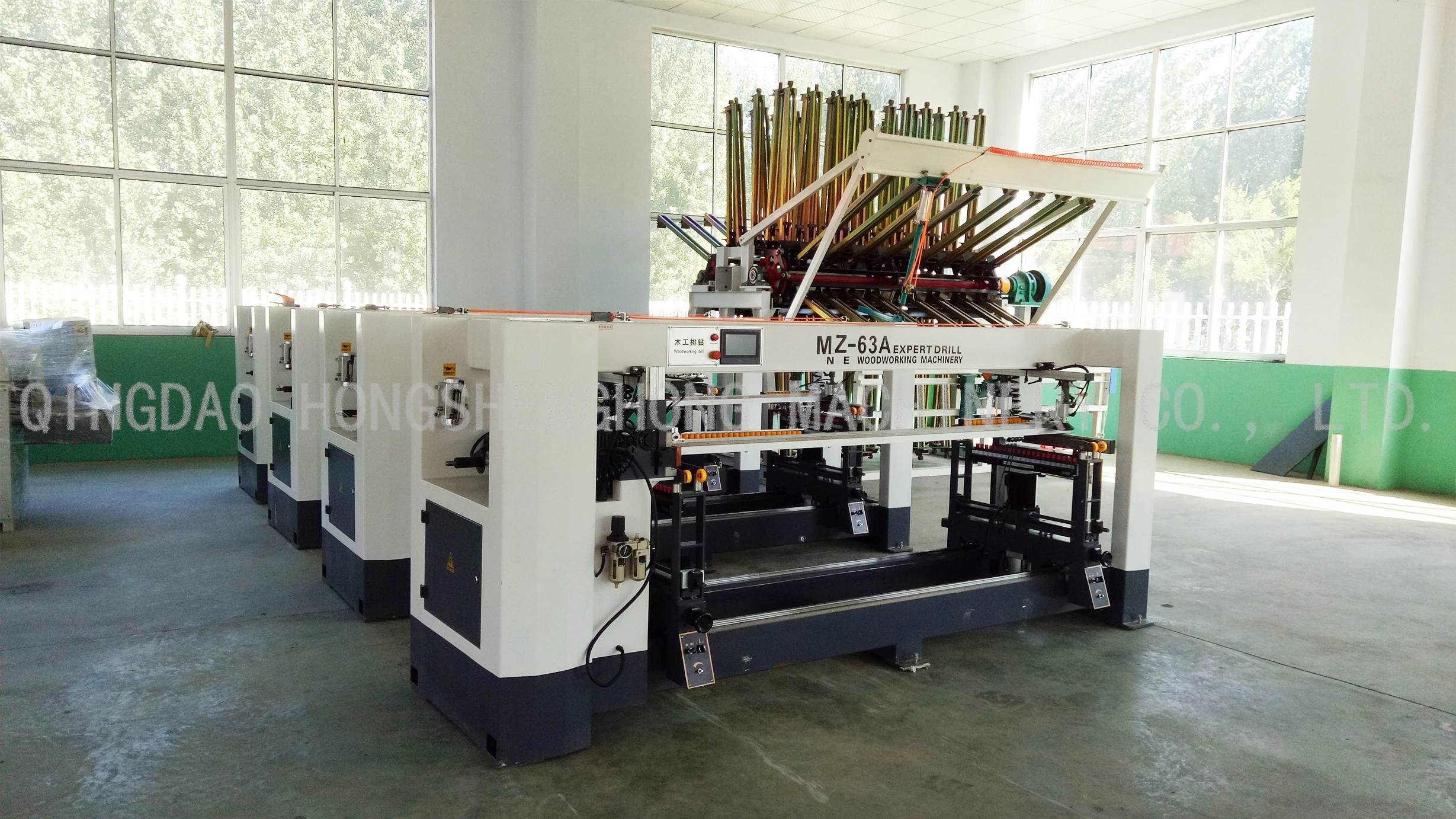

Workshop showing
