Small Chemical Lab Vacuum Ethanol/ Alcohol/Ethonal/Water Distillation 0.5L 1L 2L Rotary Evaporator Rotavapor China Price

Share on (1600301875560):


Price:$450.00 - $500.00

Quantity:


Product Overview

Description



Product Description


Working Principle


An ( Explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is used for purification and distillation test. They rotate and shape a thin film in negative pressure condition by heating, evaporate efficiently, and then condense and recollect solvent to purify and separate.







Application


1. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It is widely applied in such experiments such as concentration, evaporation, distillation, separation of chemical, using the rotating bottle to dry the powder and crystallization and so on.

2. An ( explosion-proof ) rotary evaporator ( also called rotary vacuum evaporator or rotary devaporizer or rotovap or rotavapor or rotavap ) can be used with recirculating water vacuum pump and low temperature cooling liquid circulating pump/ recirculating chiller to form the total system.



Technical Data




Product
Rotary Evaporator
Model
RE-201D
RE-301
RE-501
Evaporating Flask(L)
2
3
5
Receiving Flask(L)
1
1
3
Motor Power(W)
40
40
40
Rotary Speed(rpm)
0-120
0-120
0-120
Vacuum Degree
0.098Mpa
0.098Mpa
0.098Mpa
Power of Oil Bath(KW)
1.5
1.5
2
Draining Valve
-
-
PTFE
Temperature Range
Room Temperature-200℃
Room Temperature-200℃
Room Temperature-200℃
Temperature Stability
±1℃
±1℃
±1℃
Power Supply(V)
220V50HZ
220V50HZ
220V50HZ
Dimension(cm)
700*450*920
680*450*920
820*400*1100

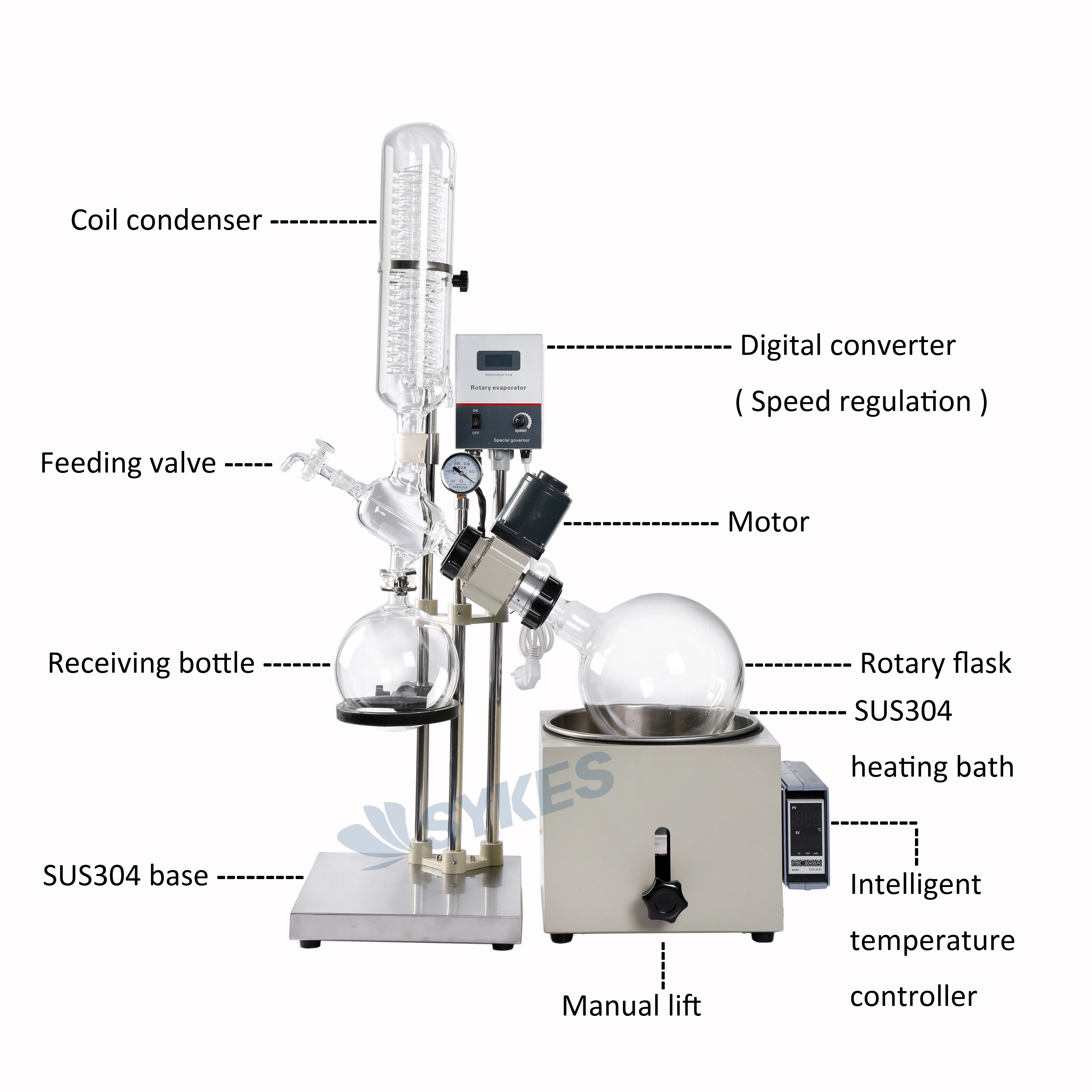

Configuration






Features


1). Reasonable structure with high quality material . High Borosilicate GG3.3 Glass ,Stainless Steel SUS304 and aluminum parts

2). PTFE and rubber compound seal can maintain high vacuum.

3). Double coil Condenser to ensure efficient chilling and recovery.

4). The rotating bottle is connected with nuts for easy handling.

5). A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.


6). Equipped with a vacuum gauge, the best working vacuum is available for different low boiling point materials.

7). Heating Water/Oil Bath with Intelligent Temperature control system

8). PTFE and Rubber seal wearing parts of all the new national standard, user-friendly replacement.

9). Speed controller is stepless ,stable and reliable.

10). Water bath electric lift and manual lift support, easy to use.

11). PTFE draining valve, corrosion resistance, pollution-free.



Detailed Images






* High borosilicate glass 3.3 condenser


* Vertical coil type











* High borosilicate glass 3.3 three-way bottle

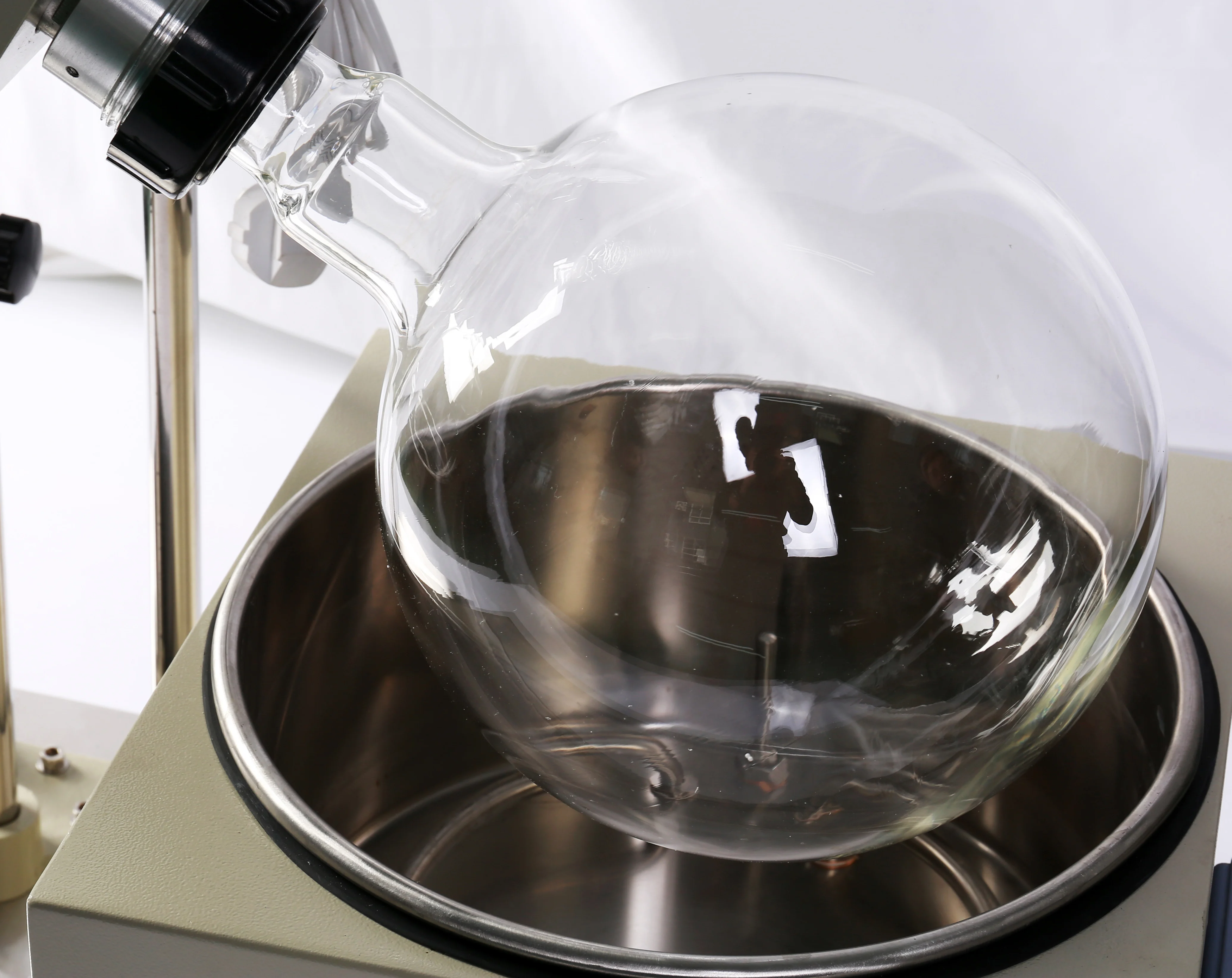

* High borosilicate glass 3.3 evaporation flask


* Capacity 5L








* High borosilicate glass 3.3 receiving bottle


* Capacity 3L

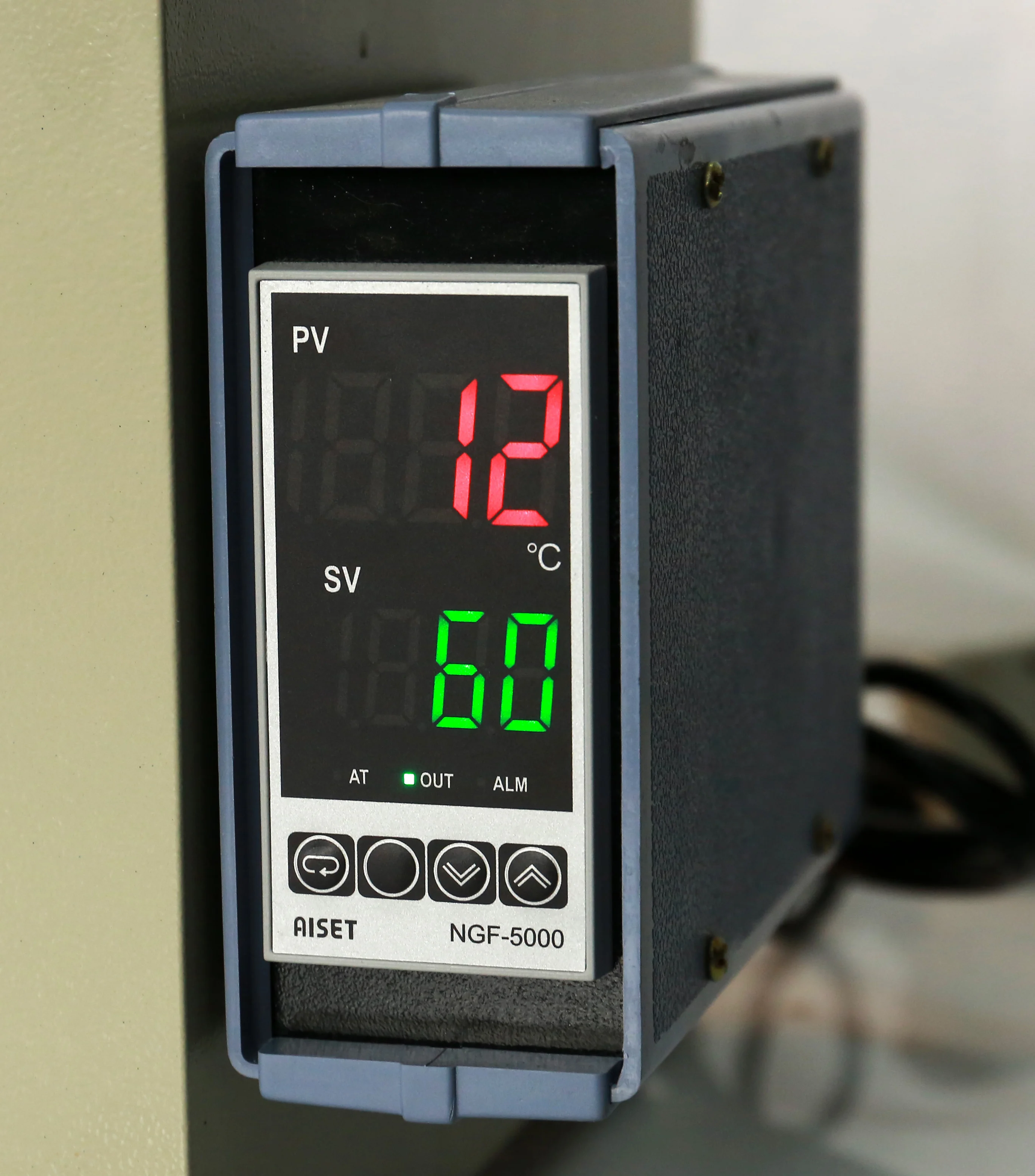

* Operation panel of bath


* Temperature range: room temperature to 99℃

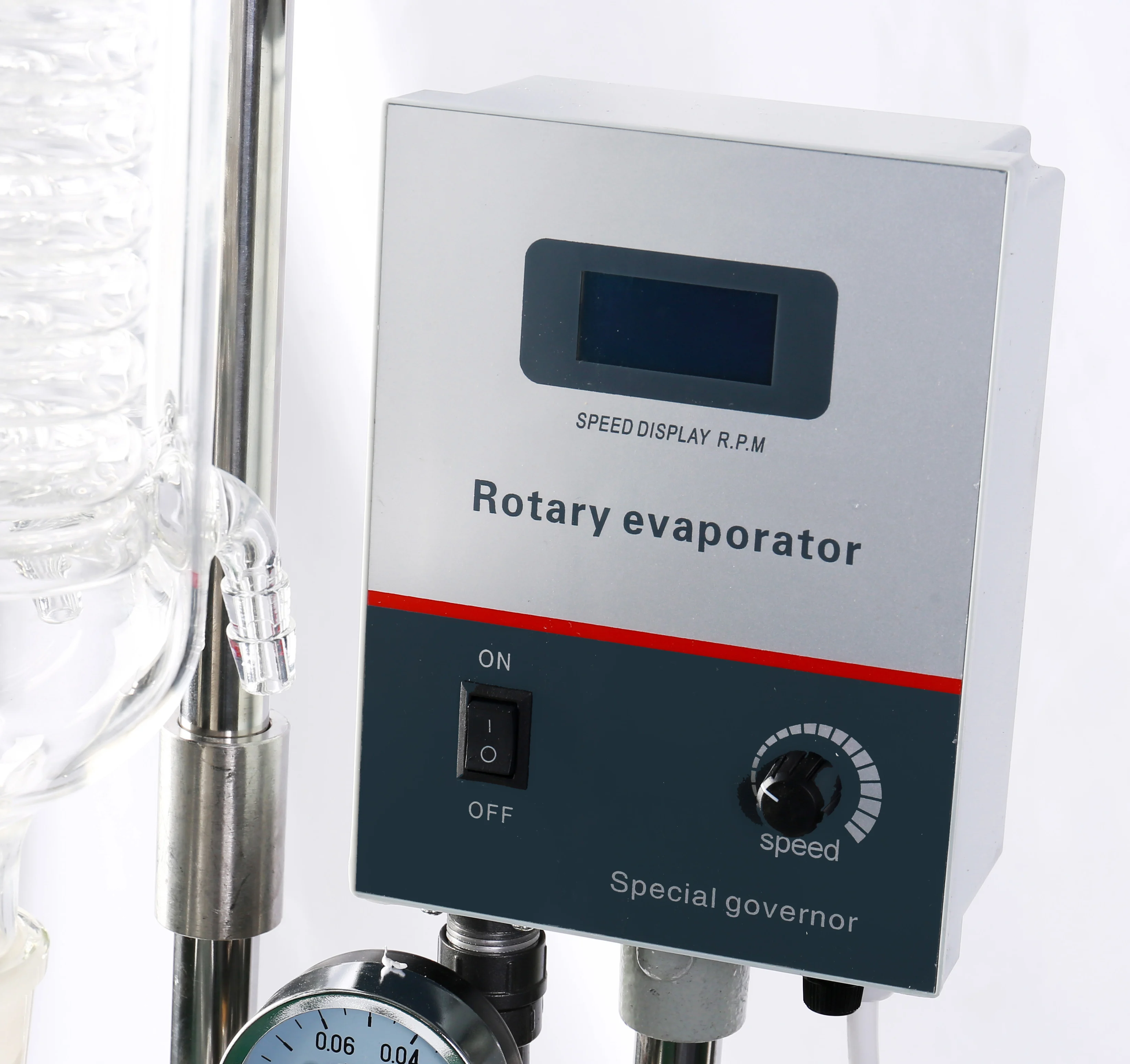

* Rotation speed regulation panel

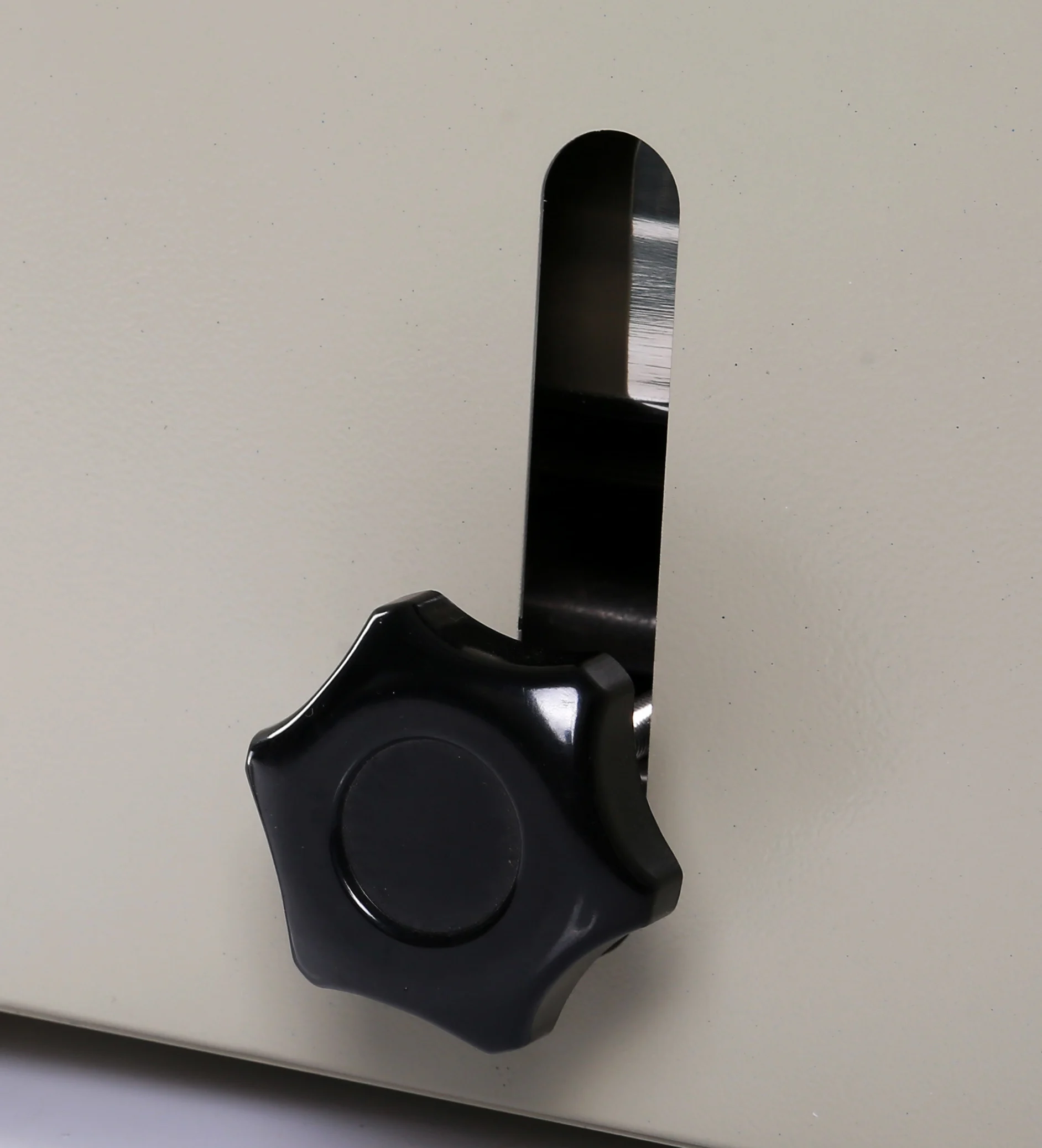

* Hand lift




CE Certificate






Corollary Equipments


Product
Spray Paint Teflon Water Circulating Vacuum Pump SHZ-IIIG
Max. Vacuum
0.098MPa ( 20mbar, 2KPa )
Single Tap Air Sucking Amount
10L/min
Power
180W
Number of Taps
2
Flow
80L/min
Lift
10m
Powersupply

110V, 60Hz or 220 ~ 240V, 50/60Hz


Product
Recirculating Chiller DL-400
Using temperature range (℃)
-15 ~  Room temperature
Temperature stability (℃)
±2
Flow (L/min)
12
Lift (m)
5~7
Refrigerant
R404A
Power Supply
110V, 60Hz or 220 ~ 240V, 50/60Hz


Packing & Delivery




Related Products


Spray Paint Teflon Water Circulating Vacuum Pump SHB-B95T


5~50L Rotary Evaporator R Series


0.5L ~ 2L Rotary Evaporator SK-98-1




Why Choose Us


1.\tZhengzhou Sykes Biotechnology Co., Ltd. is a sub-company of Zhengzhou Sykes Glass Instruments Co., Ltd. Which is a professional manufacturer of laboratory instruments for over 30 years in China.


2.\tProfessional R & D Team can supply customers with perfect solution according to specific requirements.

3.\tLong-term and stable raw material suppliers, and we offer factory price based on high quality products directly, it is more profitable for business.

4.\tProfessional QA/ QC team focus on quality control during raw material purchasing, production line and final inspection.

5.\tODM and OEM are available.

6.\tFlexible payment terms.

7.\tOne year warranty and free lifetime maintenance service

8.\tWe not only guarantee the safe transportation but also save the freight cost for customers.



FAQ


1.\tAre you a trading company or a manufacturer ?

Reply: We are a professional manufacturer of laboratory instrument and we have our own factory.

2.\tDo you provide sample ?

Reply: Absolutely, we provide customers with the sample. Sample is not free because of the material cost of our products, but we shall give you our best price.

3.\tWhat is the payment term ?

Reply: 100% payment before shipment. In order to protect customers' payment security, Trade Assurance Order is highly recommended.

4.\tDo you offer ODM or OEM service ?

Reply: ODM or OEM is available.

5.\tWhat is MOQ ?

Reply: 1 Set.

6.\tHow to place an order ?

Reply: There are two ways to place an order from us. 1st, you can contact us to place an order directly, then we shall offer you PI with our bank info, then we shall arrange the products as soon we get your payment. 2nd, you can place an order on Alibaba directly, and make the payment online, we shall arrange the products as soon as we confirm your payment.

7.\tWhat about shipment way ?

Reply: We shall ship the products to customers by sea, by air, by express ( DHL, TNT, FedEx, etc. ).
