Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

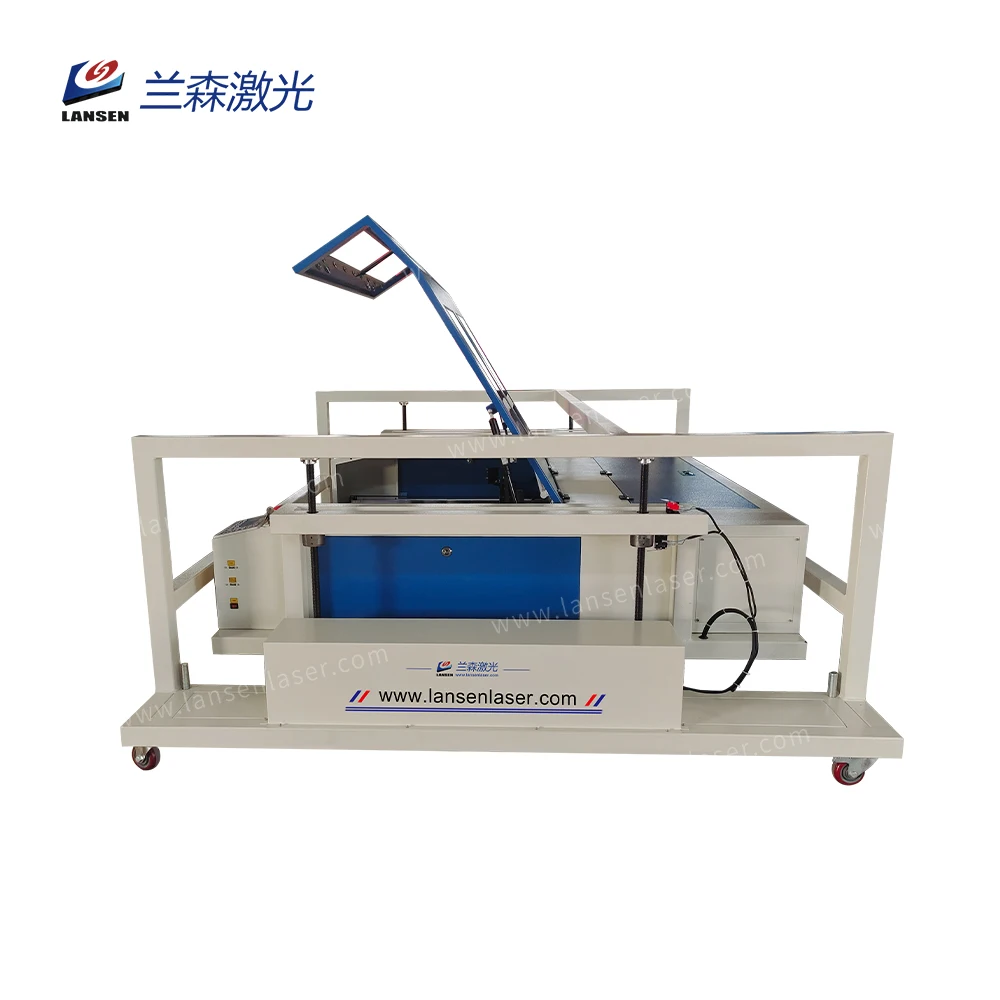

New Design Removable Co2 Laser engraving machine for Granite engraver stone engraved etching carving equipment price
- Category: >>>
- Supplier: Jinan Lansen Laser Equipment Co. Ltd.
Share on (1600301901465):
Product Overview
Description
Product Description

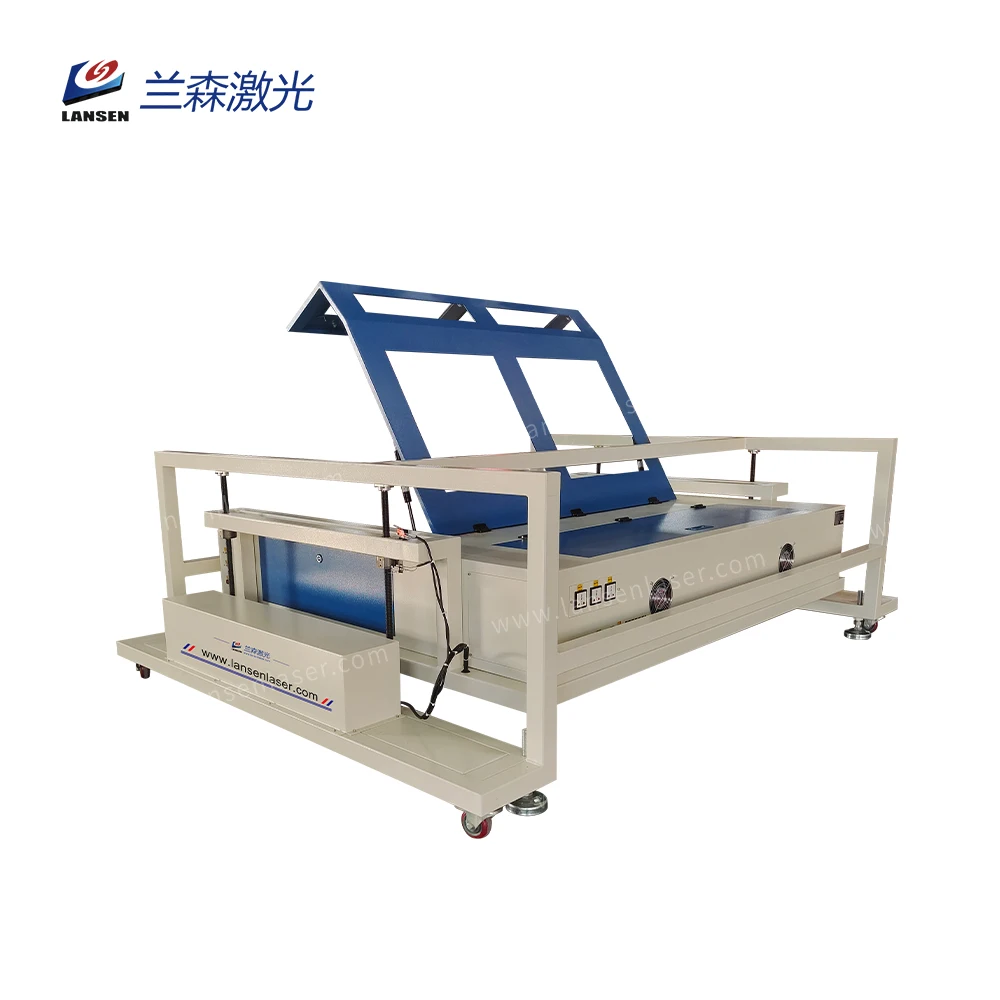

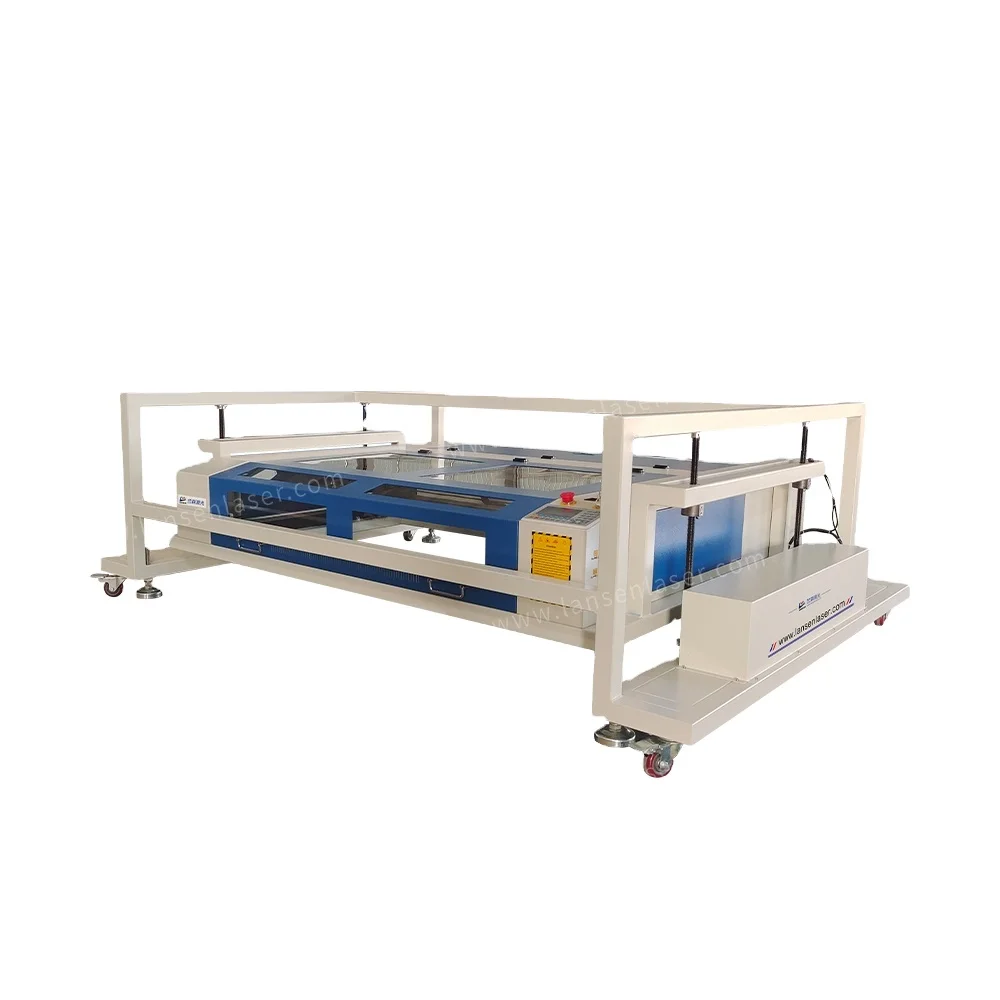

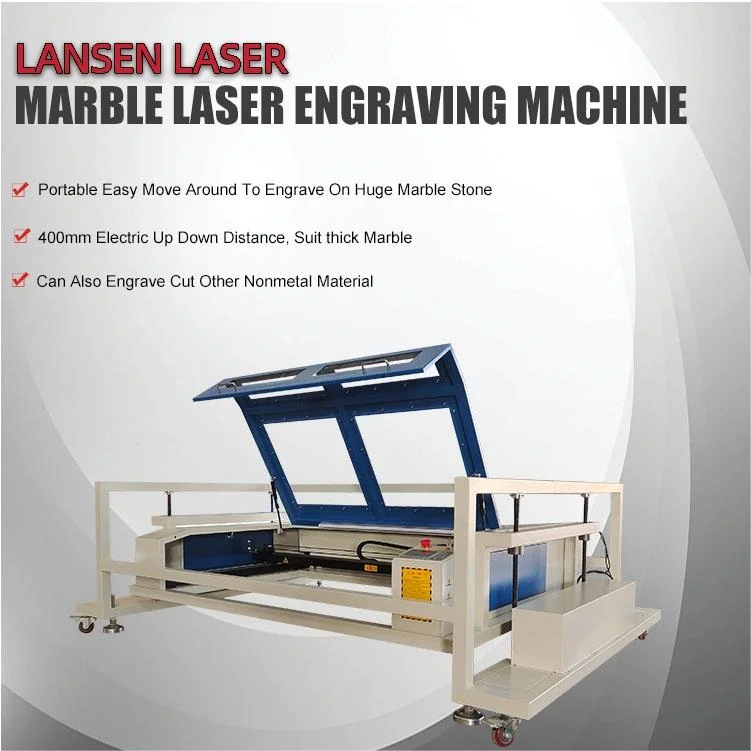

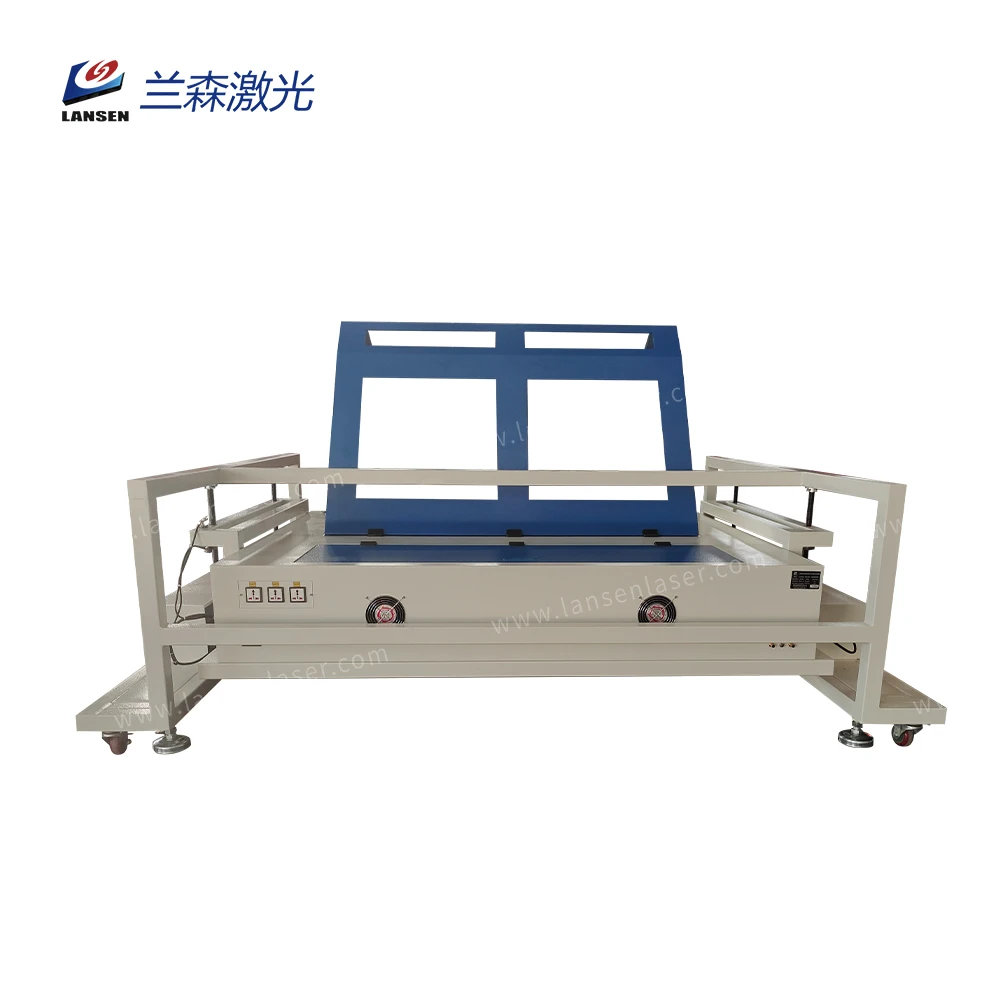

New Design Removable Co2 Laser Granite engraver
stone engraving etching carving
Lansen this stone marble granite engraving machine is mainly design for huge marble stone engraving work. The machine with universal wheels can easy move around to put on any huge marble stone. With the 400mm electric up down distance, can put on almost all thick marbles stones include tombstones.
This stone laser engraving machine with working area of 1600x1000mm (63*39 inch), the working area and up down distance can also customize according requirements.
Though this laser engraving machine specal suit for marble engraving work, it can also use to engrave cut other nonmetal material like wood, MDF, acrylic,etc. Thus have a widely usage for almost all industry.
This stone laser engraving machine with working area of 1600x1000mm (63*39 inch), the working area and up down distance can also customize according requirements.
Though this laser engraving machine specal suit for marble engraving work, it can also use to engrave cut other nonmetal material like wood, MDF, acrylic,etc. Thus have a widely usage for almost all industry.
Product Paramenters
1). Upper part and the under part of the machine are separated.
The upper part can put on large and thick marbles/stones/granite directly.
2). The machine is with double up-down worktable.
The upper part and the under part can move up and down automatically, which are very convenient for thick material.
3). Very useful for small house doors.
Model | LM1610D |
Working area | 160cm*100cm/63in*39in |
Equipment size | 287cm*195cm*98cm/ 113in*77in*38.6in (L*W*H) |
Laser power | 80W/90W/100W |
Laser type | CO2 sealed laser tube, water-cooled, 10.6um |
Engraving speed | 0-70000mm/min |
Cutting speed | 0-40000mm/min |
Laser output control | 1-100% software setting |
Communication interface | USB |
Smallest Character Engraving | English 1.0mm*1.0mm |
Locating Precision | ≤±0.01mm |
Highest Scanning precision | 4000DPI |
Operating temperature | 0 - 45°C |
Cooling type | Water cooling |
Power supply | 220V/50HZ , 110V/60HZ |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | 3 phase stepper motor |
Gross weight | 553Kgs |

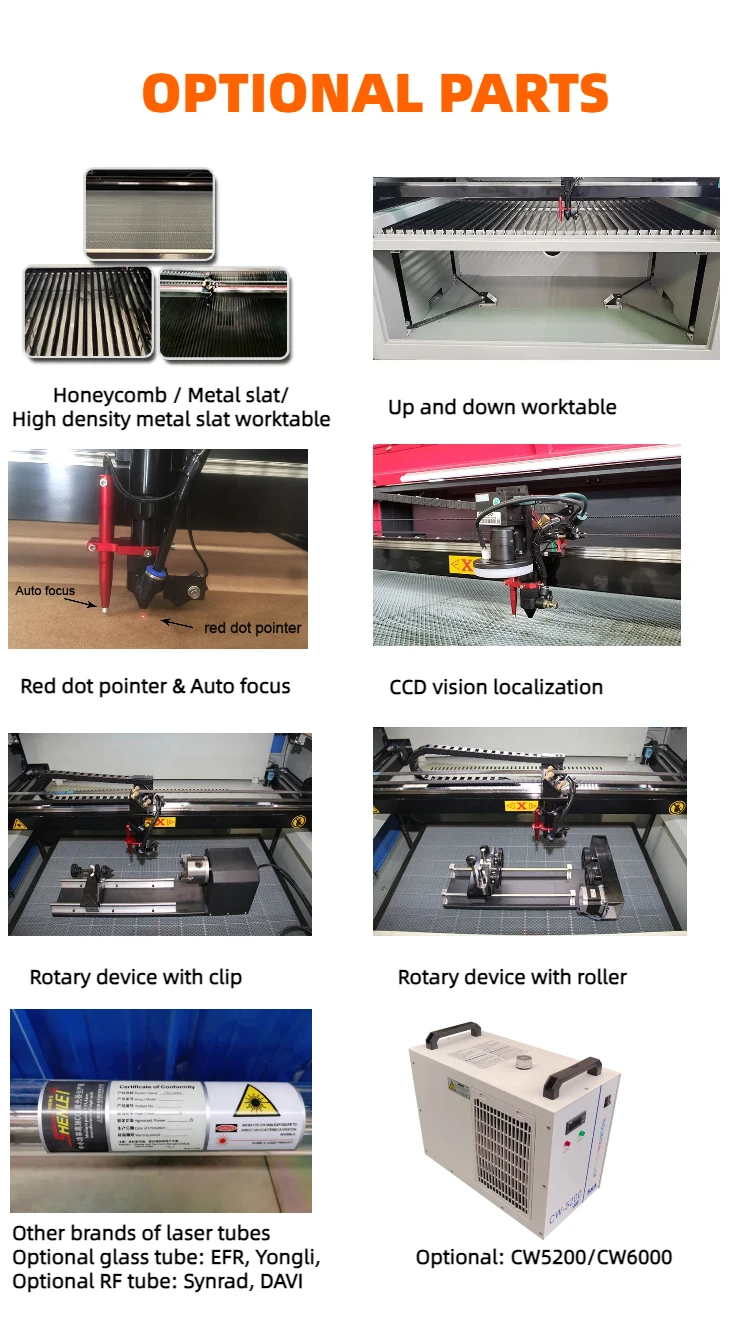

Optional Parts | 1. Rotary tool with rollers/Rotary tool with clips 2. Red dot positioner 3. Honeycomb work table 4. Auto focus |
Product Details

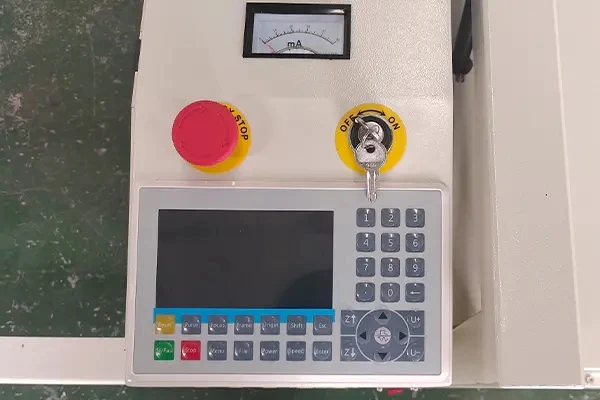

Ruida RDC6445G Control System
1, 5 inch big LCD display.
2, With Z+/Z- buttons, one button control up down of worktable.
3, With "Focus" button, one button control auto focus the worktable suit for different thick material.
4, With 0-9 numbers, easy set parameters for files.
Above control panel with emergency stop, key switch, Ammeter.
3, With "Focus" button, one button control auto focus the worktable suit for different thick material.
4, With 0-9 numbers, easy set parameters for files.
Above control panel with emergency stop, key switch, Ammeter.

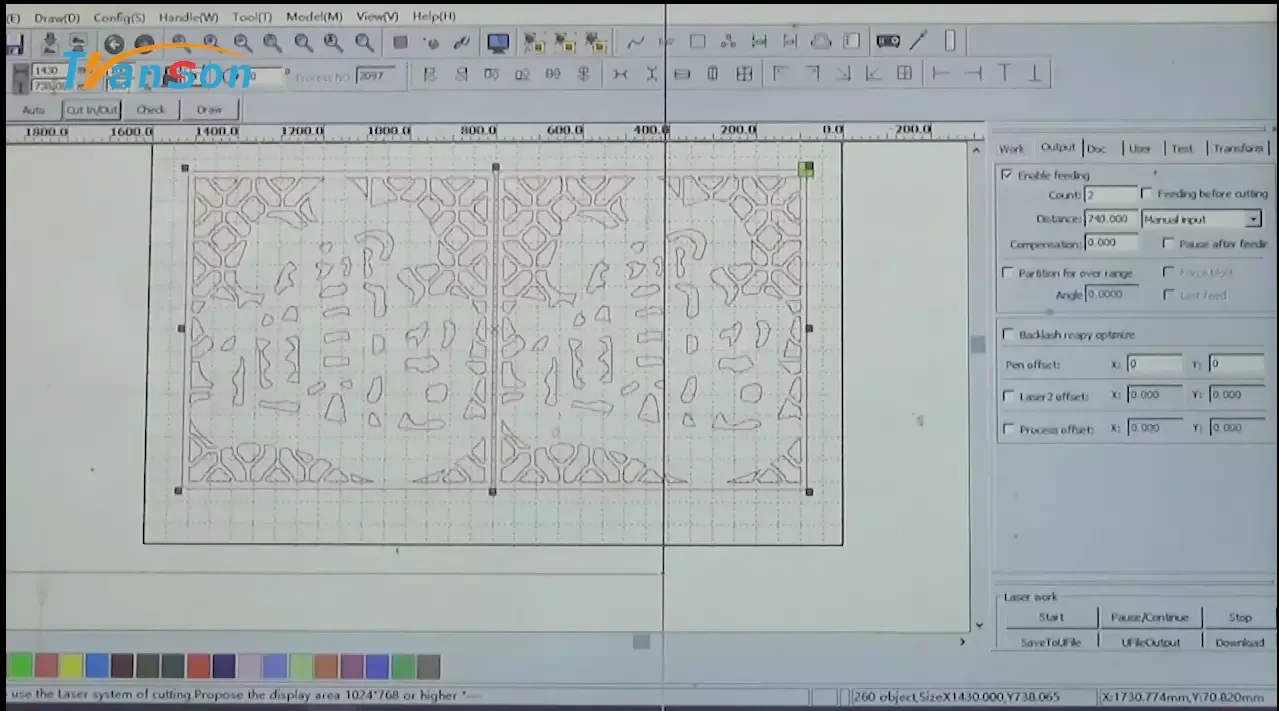

RDWorksV8 Software
Easy operate, compatible with Photoshop, AutoCAD, etc. users can use other software to make design then import files to RDWorks to
work. Files format support: AI, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNG, ICO, CUR,TIF,TIFF, etc. RDworks V8 software Support 15 different language:English, Japanese, French, German, Portuguese, Polish, Spanish,
Russian,Korean,Vietnamese, Indonesian, Italian, Turkrish, Arabic.
work. Files format support: AI, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNG, ICO, CUR,TIF,TIFF, etc. RDworks V8 software Support 15 different language:English, Japanese, French, German, Portuguese, Polish, Spanish,
Russian,Korean,Vietnamese, Indonesian, Italian, Turkrish, Arabic.

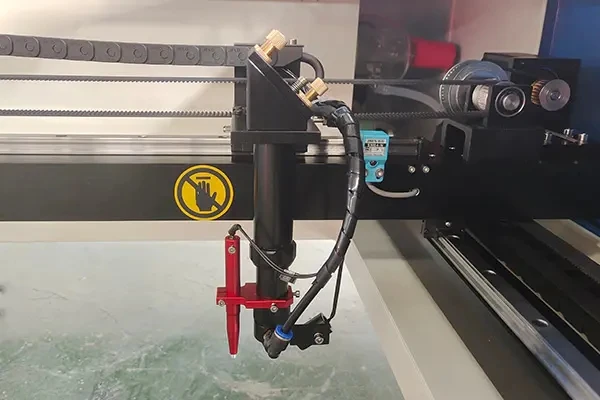

Laser Head With Auto Focus
Auto focus for easy find focus length, no need use ruler to find focus lens according different material

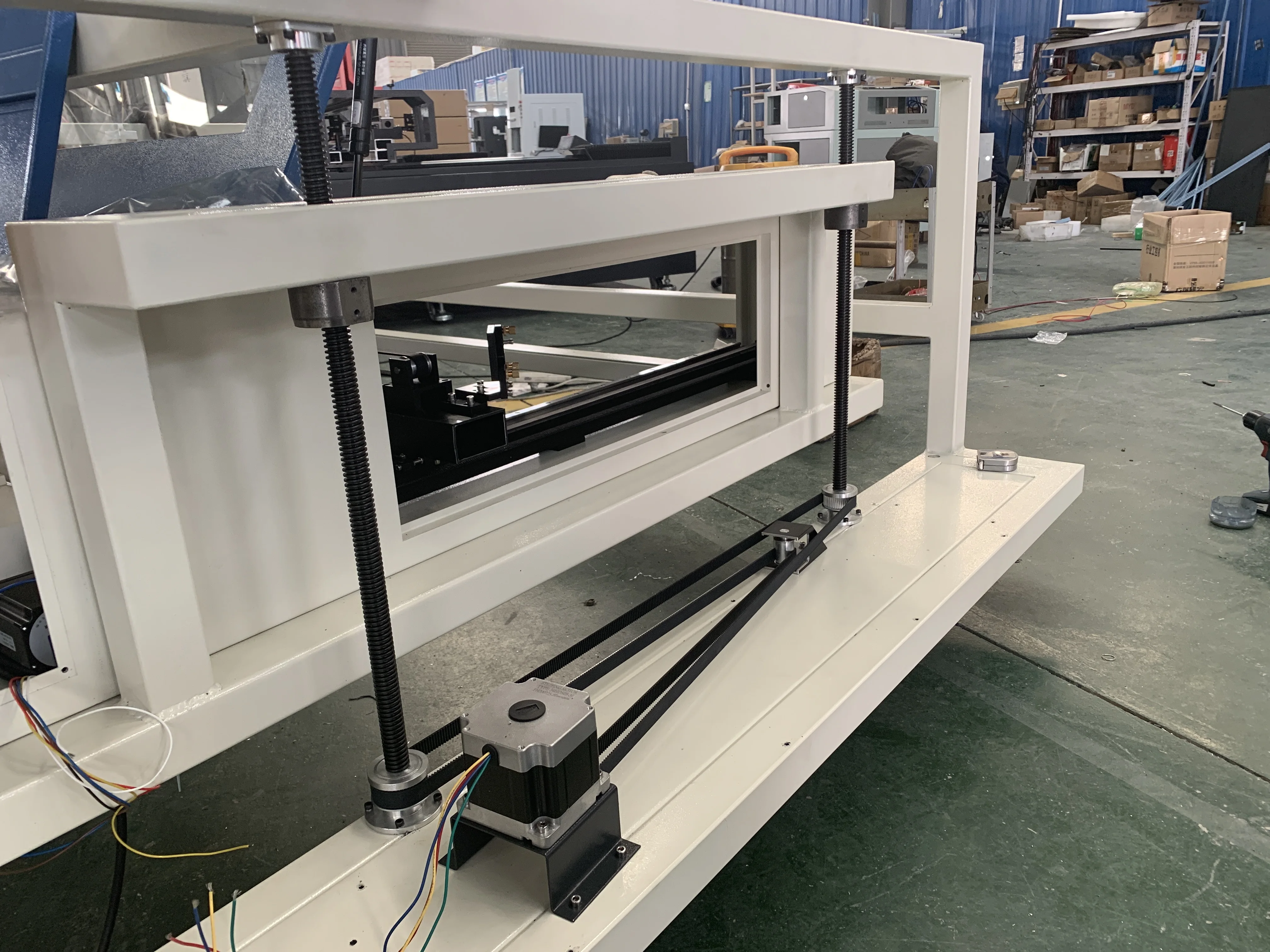

Electric UP Down
The whole machine with electric up down function, up down distance is 400 mm, suit different thickness material engrave cut work.

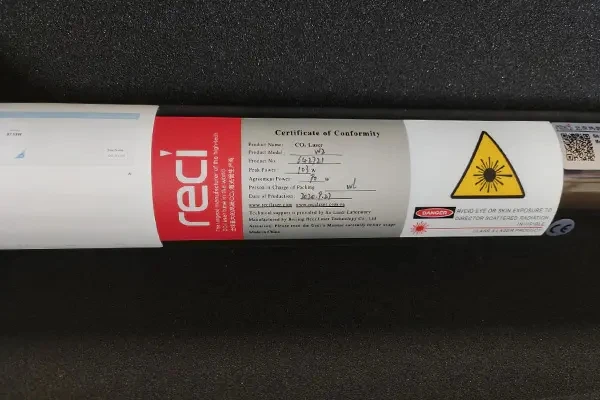

Standard Reci W2 90W-100W Laser Tube
China top brand Reci brand W2 90-100W CO2 laser tube, with estimate 10,000 hours life span and 18 month warranty.
Optional power:
Reci W1 75-90W/ W2 90W-100W/
Optional power:
Reci W1 75-90W/ W2 90W-100W/
W4 100-130W
Optional glass tube: EFR, Yongli, SPT, Optional RF tube: Synrad, Coherent, DAVI
Optional glass tube: EFR, Yongli, SPT, Optional RF tube: Synrad, Coherent, DAVI
S&A Brand CW3000 Water Chiller
Advanced CW3000 water chiller for cycle water, with water temperature display and water circle unsuccessful alarm function. With signal line connect to machine water flow signal port, if machine detect water flow unsuccessful, the laser machine will stop work to protect laser tube.
Optional: CW5200/CW6000 with refrigerants.
Optional: CW5200/CW6000 with refrigerants.

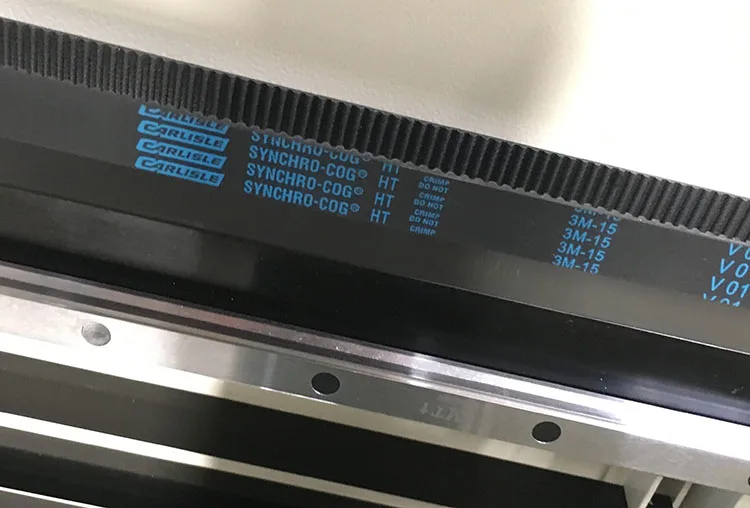

Square Rail Guide + USA Carlisle Belt
PMT square rail guide and USA brand Carlisle belt, high precise and high smooth, durable with long life span than normal belt.
Application

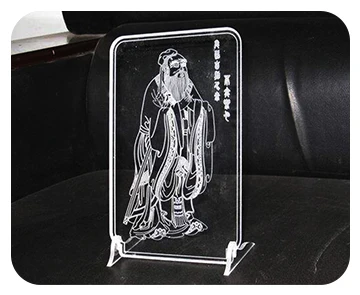

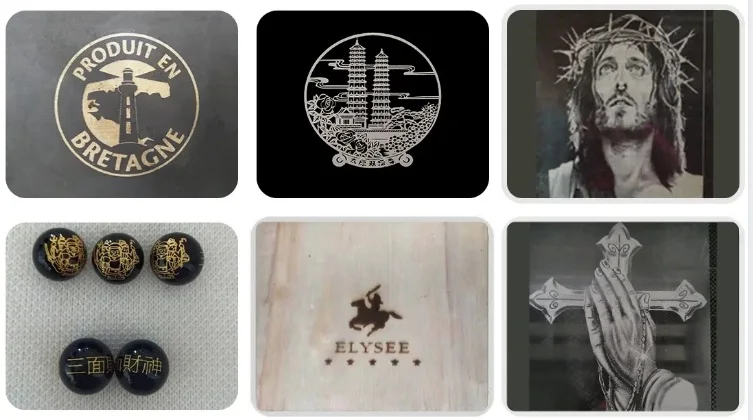

1.Applicable materials:
Marble, stone, tombstone, wood, bamboo, organic glass, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
2.Applicable industries:

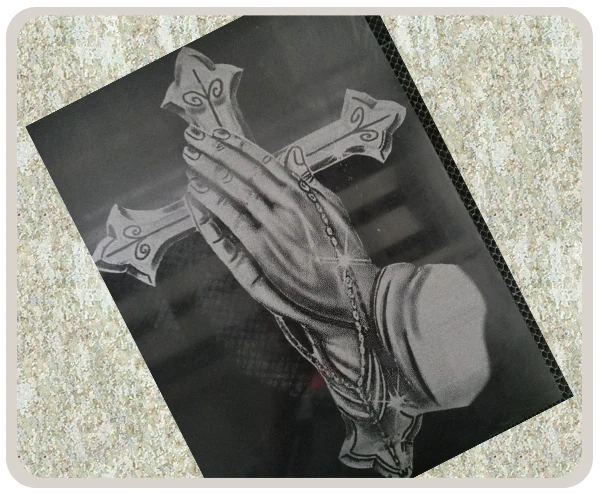

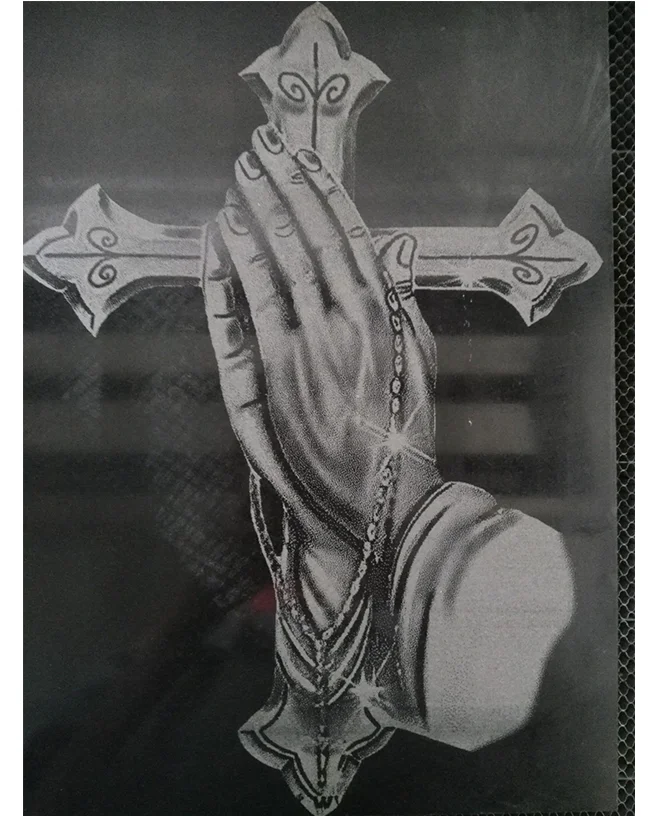

This stone engraving machine mainly design for tombstone engraving work, like engraving portrait on granite. But it can also use to other industry like advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging, etc.
Marble, stone, tombstone, wood, bamboo, organic glass, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
2.Applicable industries:
This stone engraving machine mainly design for tombstone engraving work, like engraving portrait on granite. But it can also use to other industry like advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging, etc.
Packing&Delivery
Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.
Supply Ability: 100 sets / Month
Port: Qingdao
Payment: T/T (Bank Transfer),western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail: International standard plywood export box
Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS
