UM34/UM34C UM24/UM24C UM25/UM25C LCD Display Voltage Current Meter Voltmeter Ammeter Battery Charge Cable Resistance Tester

Product Overview

Description

UM34/UM34C UM24/UM24C UM25/UM25C LCD Display Voltage Current Meter Voltmeter Ammeter Battery Charge Cable Resistance Tester

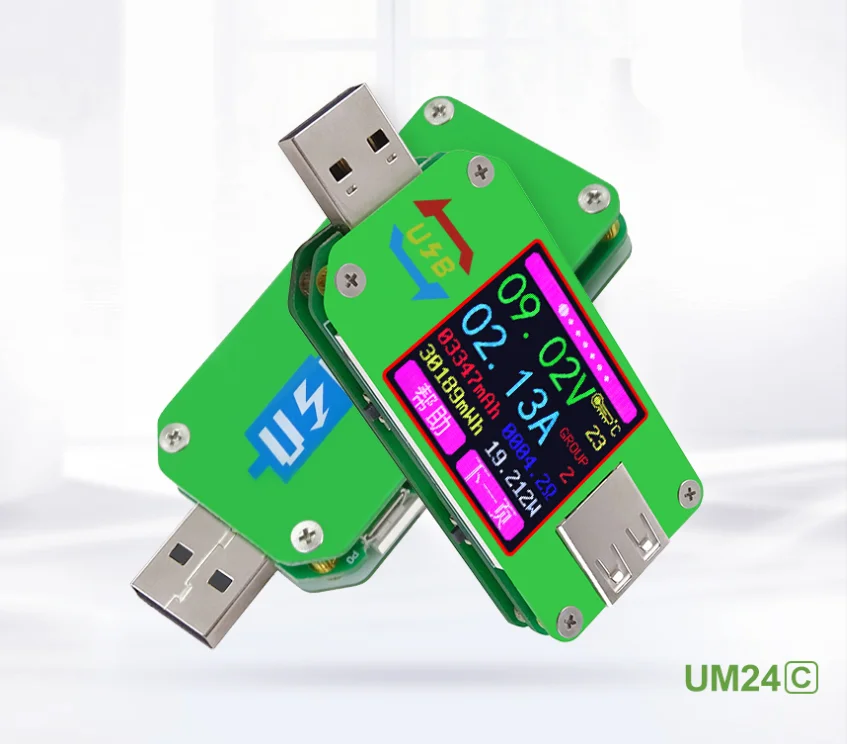

-Model :UM24/UM24C

Technical Parameter:

Product Model:UM24/UM24C                                                Product weight:23.47g(UM24C) 18.83(UM24)

Voltage measurement range:4.50-24.00V                          Voltage measurement resolution:0.01V

Current measurement range:0.000-3.000A                       Current measurement resolution:0.001A

Capacity accumulation rannge:0-99999mAh                     Voltage measurement accuracy:±(0.2%+1 digit)

Energy sccumulation range:0-99999mWh                         Current measurement accuracy:±(0.8%+3 digit)

Load impedance range:1.5-9999.9Ω                                   Time measurement range:0-99h59min59s

Temperature range:-10℃~100℃/0℉~200℉                 Temperature measurement error:±3℃/±6℉

Screen brightness setting:0-5 levelAuto screen off time:1-9mins

Voltage graphing range:04.5-24.0V                                     Current graphing range:0.00A-3.00A

Display screen:1.44 Inch color LCD display                       Quick charge recognition mode:QC2.0     QC3.0

Refresh rate:2Hz                                                                      Product size:71.2mmx31.8mmx12.4mm(UM24C) 71.2mmx31.8mmx11.3mm
