Laboratory Test Equipment Dry Flocculation Testing Machine For Non woven Fabrics And Other Textile Materials

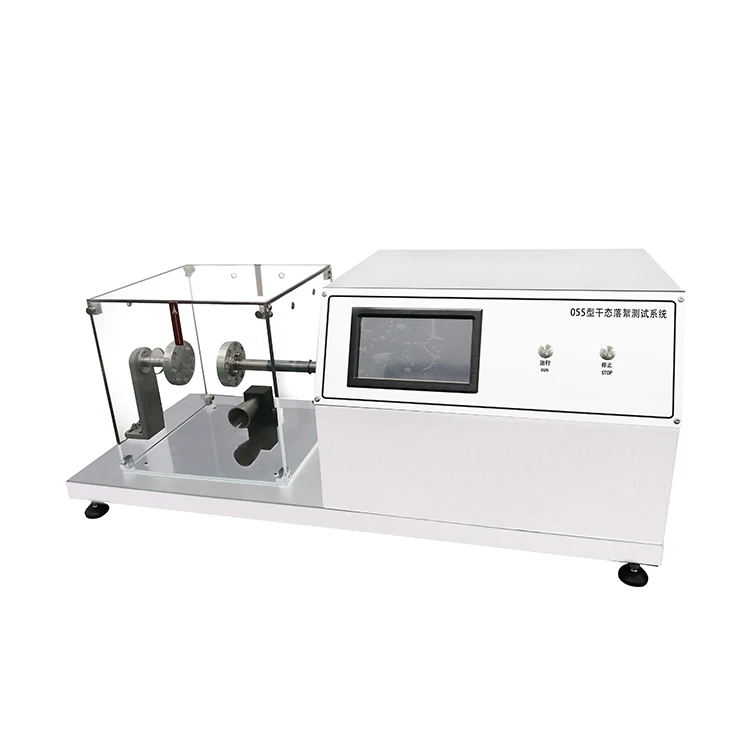

Dry Flocculation Testing Machine For Non-woven Fabrics

Application
    Raw materials used in "Single-use and reusable surgical drapes, surgical gowns and clean clothes for patients, medical staff and instruments";
    For the experiment of dry lint of non-woven fabrics and other textile materials, this machine is equipped with a double-operated 100-level cleanliness level of ultra-clean work;
    Taiwan system, equipped with adjustable wind speed system, can adjust the air volume arbitrarily.

Working Principle
    The sample undergoes a combined effect of torsion and compression in the test chamber. In this twisting process, air is drawn from the test box, and the particles in the air are counted and classified with a laser dust particle counter.

Technical Parameter
1. Disc diameter:  Φ82.8 mm
2. Reciprocating movement:  60 times/min
3. Rotation angle:  180 degrees/time (alternating clockwise and counterclockwise)
4. Starting distance:  188±2mm (between two discs)
5. Moving plate stroke:  120±2mm (straight line)
6. Detection range:  Class 100~300,000 (GMP A, B, C, D)
7. Eight particle size channels:  0.3, 0.5, 0.7, 1.0, 3.0, 5.0, 10.0, 25.0 (μm)
8. Sampling period:  1 second---59 minutes 59 seconds optional
9. Printing function:  built-in printer, which can print counting results
10. Allowed sampling concentration:  35,000/L
11. Cleanliness level:  Class 100@≥0.5um
12. The number of colonies:  ≤0.5/dish. (φ90mm culture plate)
13. Average wind speed:  0.3-0.6m/s (adjustable)
14. Vibration half peak value:  ≤3um
15. Illumination:  ≥300Lx
16. Grid size:  working area 1130×650×720 (mm) outline 1300×825×1760 (mm)
18. Weight:  450 Kg
19. Power supply:  AC220V/50Hz 0.8kw

Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-30 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.

Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change.

Q: How to install and use the product?
A: The product is shipped with an operating instructions and video of English version.
