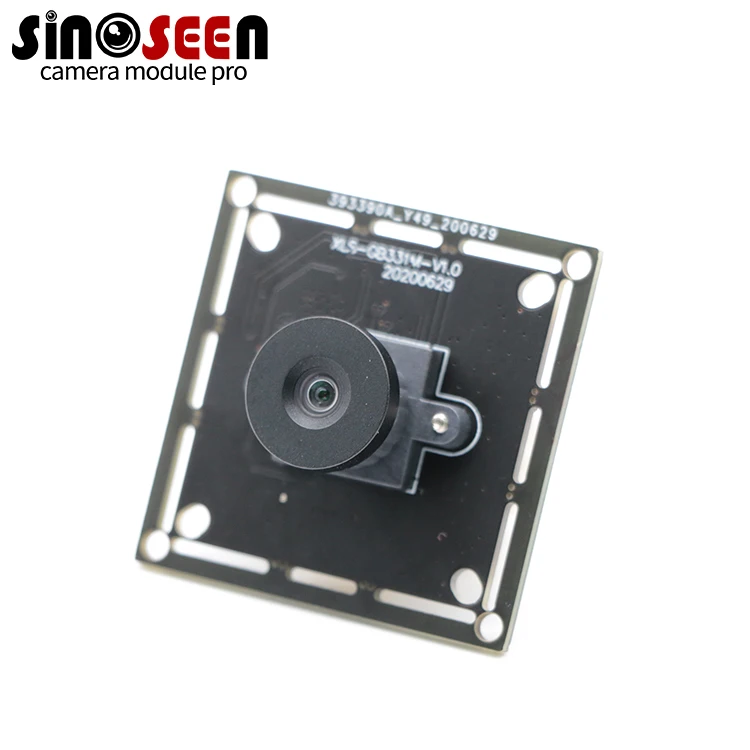

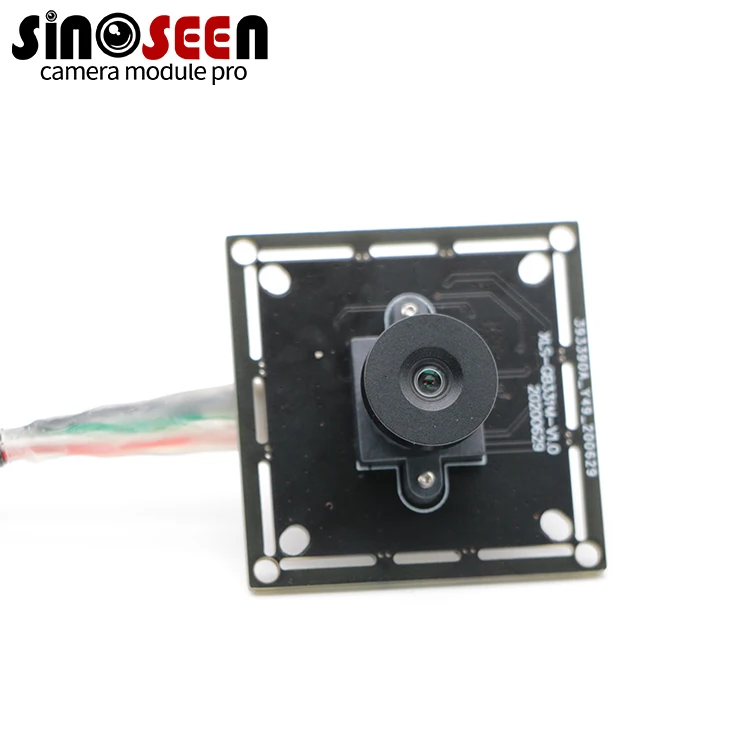

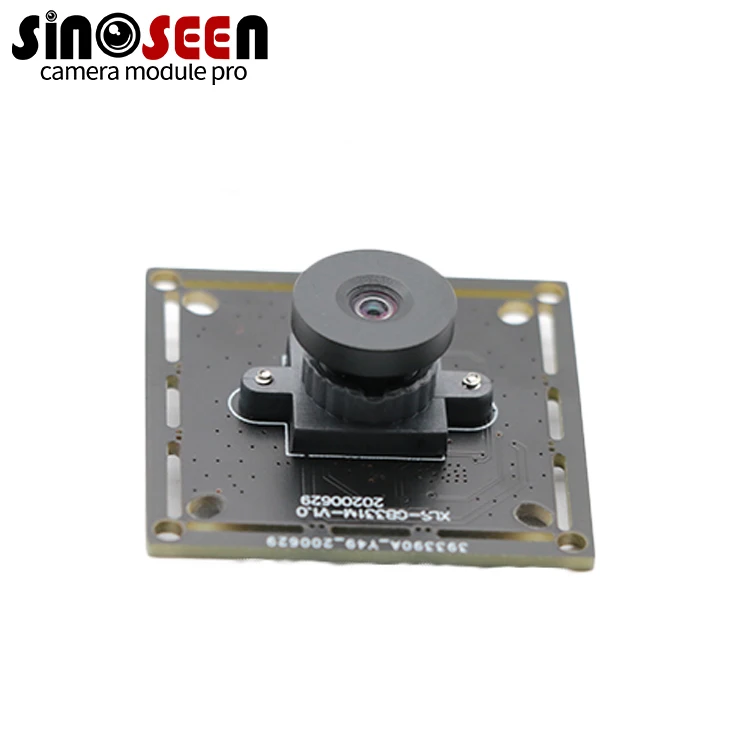

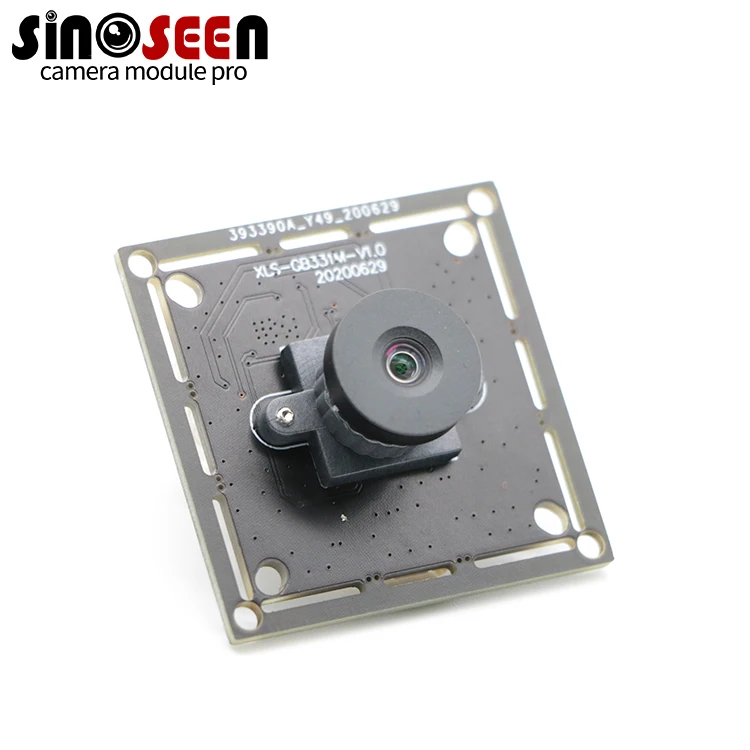

Fixed Focus 1MP Image Global Shutter AR0144 USB Camera Module
- Category: >>>
- Supplier: Shenzhen Sinoseen Technology Co. Ltd.
Share on (1600301937666):
Product Overview
Description
Product Description
Model No | SNS-GB331M-V1 |
Sensor | 1/4’’ ON Semiconductor AR0144 |
Pixel | 1 Mega Pixel |
Most effective pixels | 1280H x 800V |
Pixel Size | 3.0µm x 3.0µm |
Chroma | COLOR Image |
Compression format | MJPG/YUY2 |
Resolution & Frame rate | 1280 x800@ 60fps 1280x720 @60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
Shutter Type | Global shutter |
Focus type | Fixed focus |
S/N ratio | 38dB |
Dynamic range | 63.9dB |
Protocol | Plug-&-Play (UVC compliant) |
Interface type | USB2.0 high speed |
Lens | Lens Size: 1/4 inch |
FOV: 90° | |
Thread Size: M12*P0.5 | |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 180mW |
Main chip | DSP/SENSOR/FLASH |

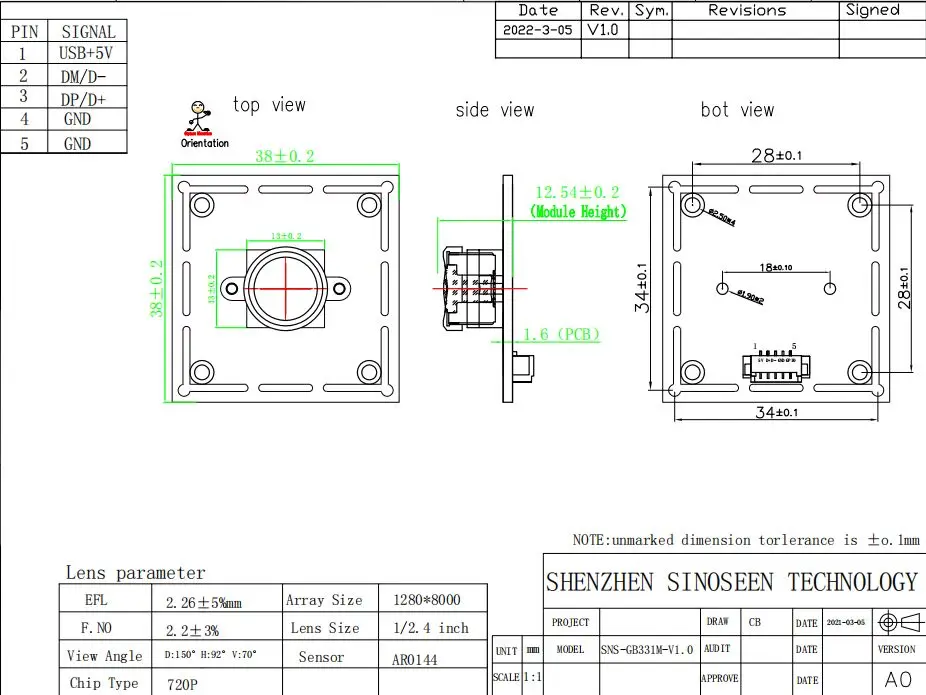

Dimension | 38x38MM customizable |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance |
Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Company Profie
Shenzhen Sinoseen Technology Co., Ltd was established in March 2009. For decades,Sinoseen has been dedicated to providing customers with various OEM/ODM customized CMOS image processing solutions from design and development, manufacturing, to after-sales one-stop service.We are confident to offer customers with the most competitive price and quality. At present our products involve USB camera modules, mobile phone camera modules, notebook camera modules, security cameras, car cameras and smart home camera products.Any product related with camera module,we can find the best solution for you.
Application
Application Areas
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
Customization Process
Customization Process
1 According to the actual application scene and functional target, the camera needs to comprehensively consider the product structure size, image definition, frame rate, lens angle, lighting scene and other factors to choose the appropriate DSP chip, SENSOR and lens. Need to be customized.This product is only for customer testing DEMO, please contact our customer service to inform you which product you want the camera to be used on? What functions are implemented? Any special requirements? According to the cost target and other comprehensive Factors, we help you choose the appropriate DPS+SENSER+ lens scheme, and then design the product PCBA according to the structural requirements.
2 Example: a customer prepared to do a person identify comparison machine. If it is used in the indoor with good light , we suggest the customer to use ordinary lens and SENSOR. If there is bad light or backlight, we suggest the customer to use WDR wide dynamic SENSOR+ disto If the customer has very high security requirements, we recommend that the customer use WDR and the black and white infrared binocular recognition camera. When the client determines the SENSOR and lens scheme, the parameters such as color, white balance and Saturation should be adjusted according to the actual environment to achieve the target effect.
2 Example: a customer prepared to do a person identify comparison machine. If it is used in the indoor with good light , we suggest the customer to use ordinary lens and SENSOR. If there is bad light or backlight, we suggest the customer to use WDR wide dynamic SENSOR+ disto If the customer has very high security requirements, we recommend that the customer use WDR and the black and white infrared binocular recognition camera. When the client determines the SENSOR and lens scheme, the parameters such as color, white balance and Saturation should be adjusted according to the actual environment to achieve the target effect.
