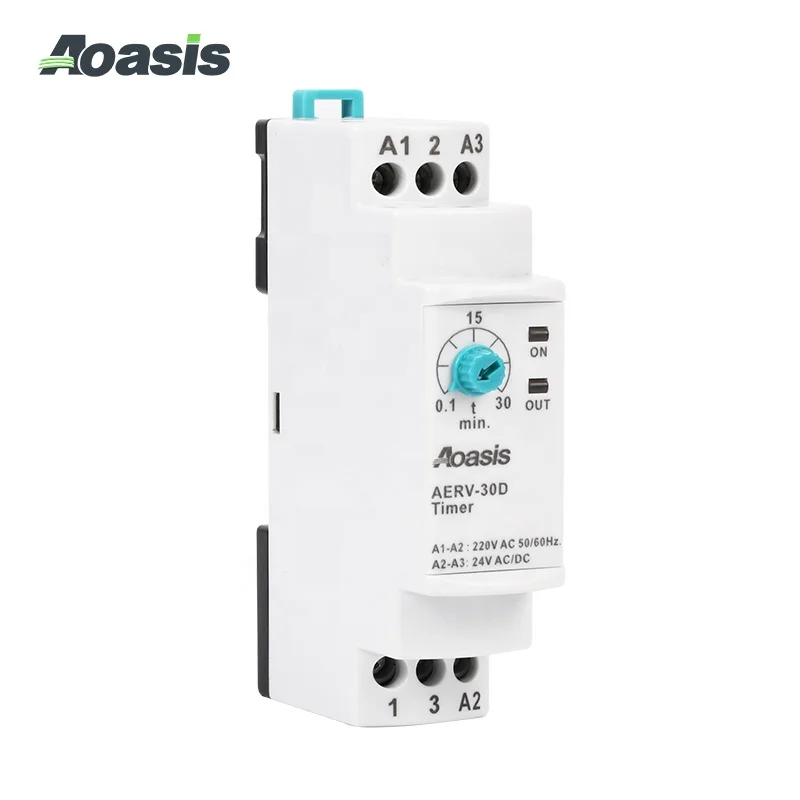

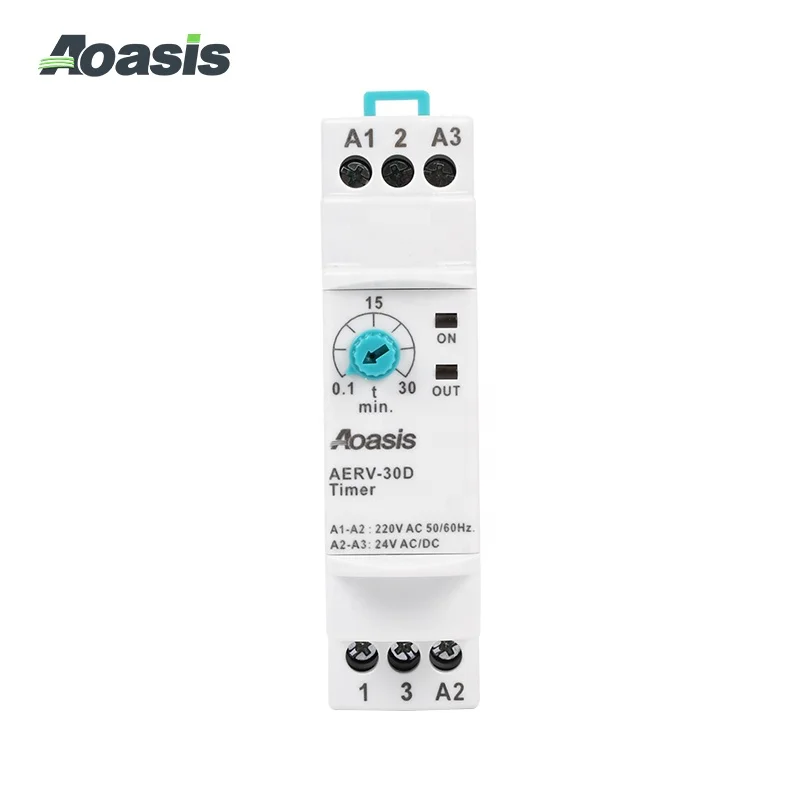

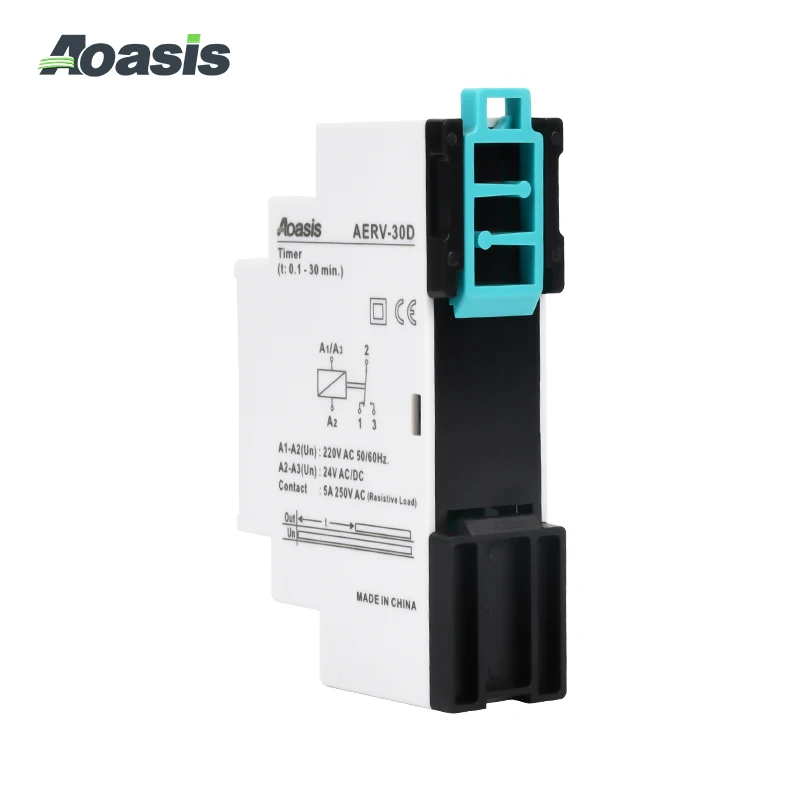

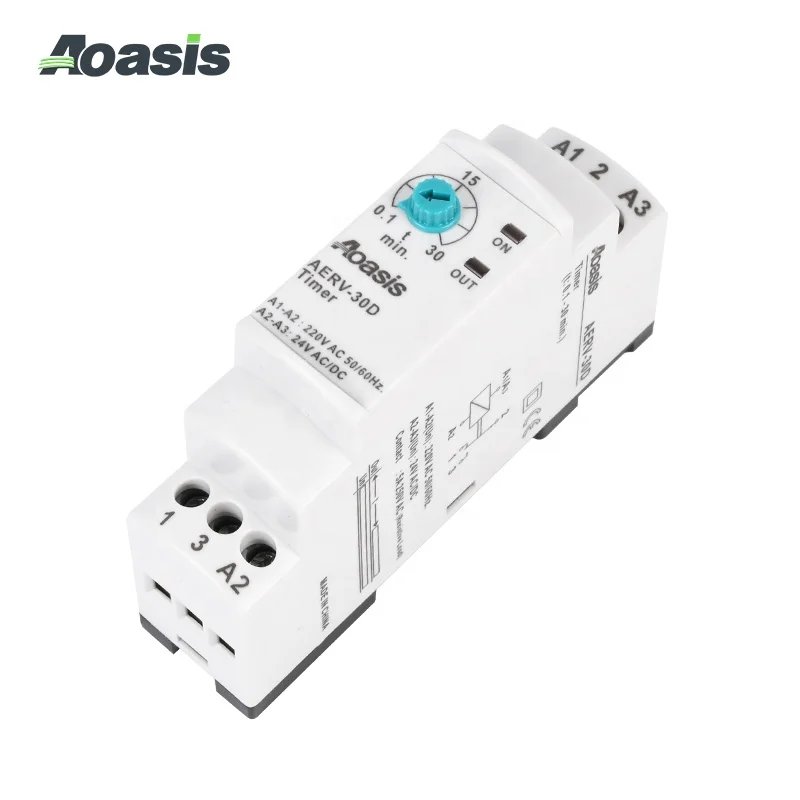

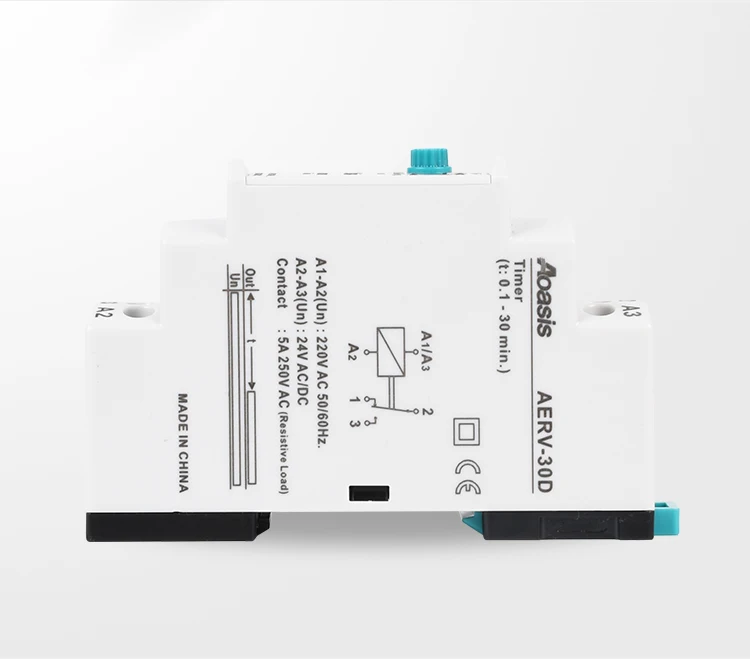

AERV 30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes
AERV-30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes
AERV-30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes
AERV-30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes
AERV-30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes
AERV-30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes
AERV-30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes

AERV 30D On delay timer Relay Electronic Adjustable Delay Time Relay 0.1s to 30 minutes

Share on (1600301977650):


Price:

Quantity:


Product Overview

Description





Operating Frequency
50/60 Hz
Operating Power
<4VA
Operating Temperature
-20°C.....+55°C
Time(t)
0.1sec.-60min
Display
 On led and Out led
Connection Type
Terminal connection
Weight
Max.90gr
Contact
5A/250V AC (Resistive Load)
Operating Altitude
<2000 meter
Cable Diameter
2,5mm²
Operating Voltage(Un)
150V-260V AC/24VDC or 110VAC/24VDC
Mounting
Vertical assembled in the panel or assembled on the din rail


General
AERV-XX timer relay are used in all fields (industry, house, plant etc.) need controlls related to the time.

Usage and Working Principle

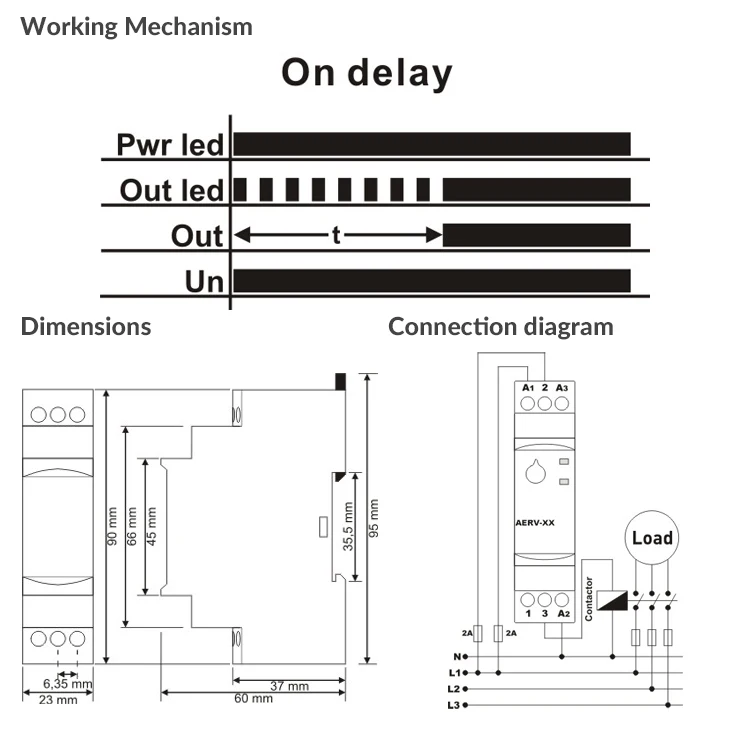

Please make the connection according to the diagram. Please adjust the delaying time by the button. Energize the device. Device will count the stand by time. On(Power) led gets on when the counting occurs, Out(relay) led gets off. During this step contact output is (NC)1. After the time is up Out (relay) led gets on and contact output is (NO)3. Until it is de-energized device remains the same.

Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical might damage the device. Make sure device works after cleaning

Warnings
Please use the device according to the manual.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.
