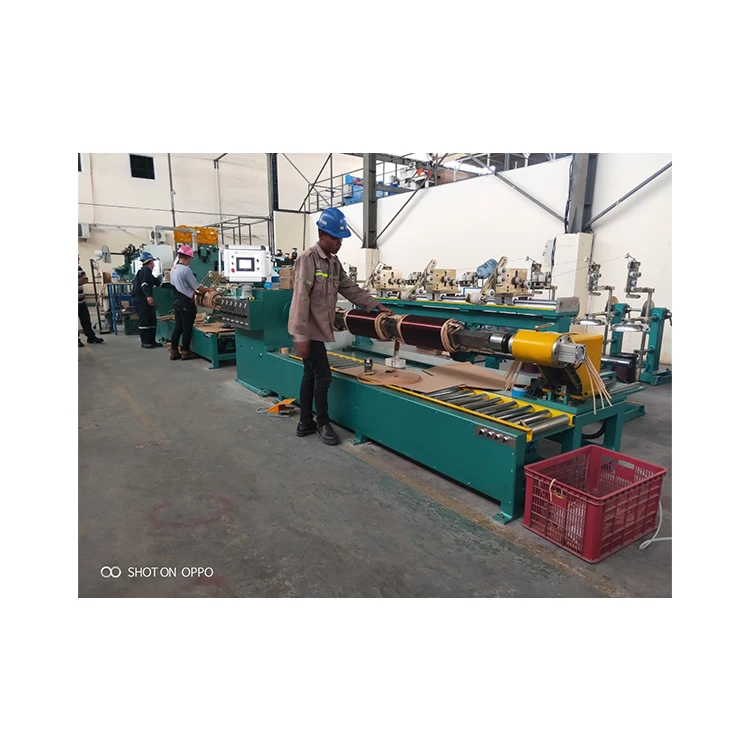

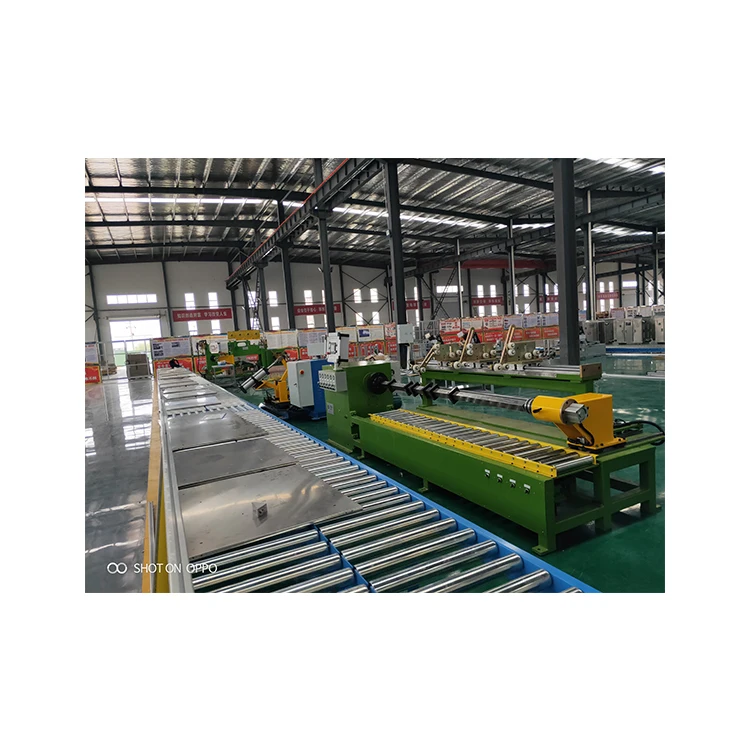

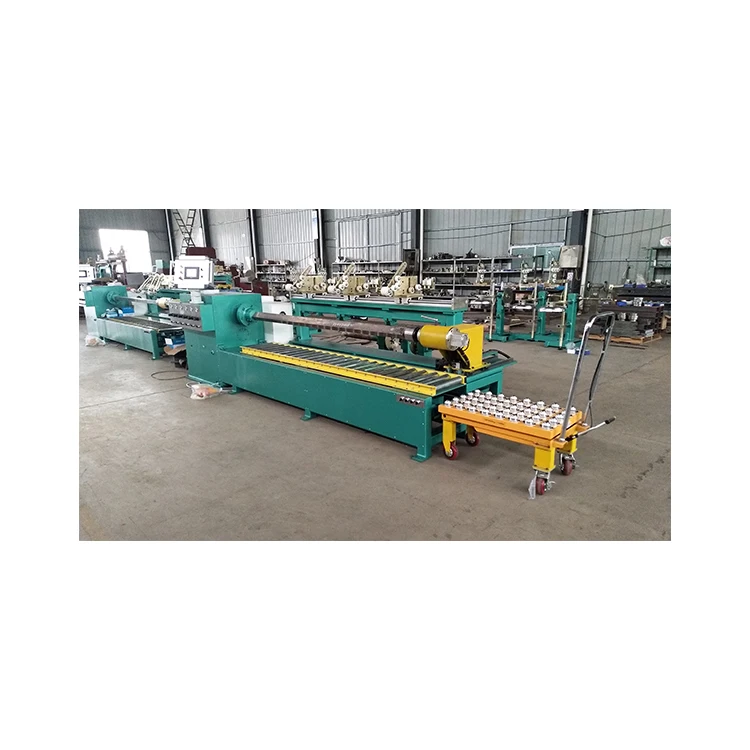

High Voltage Three Coil Automatic Wire Winding Machine Zbr 500 3 For Oil Transformer Coil Winding
- Category: >>>
- Supplier: Jiangxi Hongjun Environmental Protection Technology Co. Ltd.
Share on (1600301978607):
Product Overview
Description
Production Description
Three coil automatic wire winding machine-ZBR-500-3 | ||||
No. | Component | Technical parameter | ||
1 | Central Height | 850mm | ||
2 | Winding width | MAX：800mm | ||
3 | Windable coils | O.D.：800mm; I.D.：80mm | ||
4 | Work torque | 800N | ||
5 | Winding speed | 0-250 r/min | ||
6 | Winding power | 7.5KW | ||
7 | Winding shaft | 60*60*2400mm | ||
8 | Round wire | Ø0.6-Ø4.0mm | ||
9 | String cable specifications | Ø0.15-Ø0.8mm | ||
10 | Layer insulating | Air shaft 3 sets | ||
11 | Tension way | Pneumatic 3 sets | ||
12 | Width of insulating paper | 100-650mm | ||
13 | winding axial spec | 35 mm | ||
Introduction of the machine

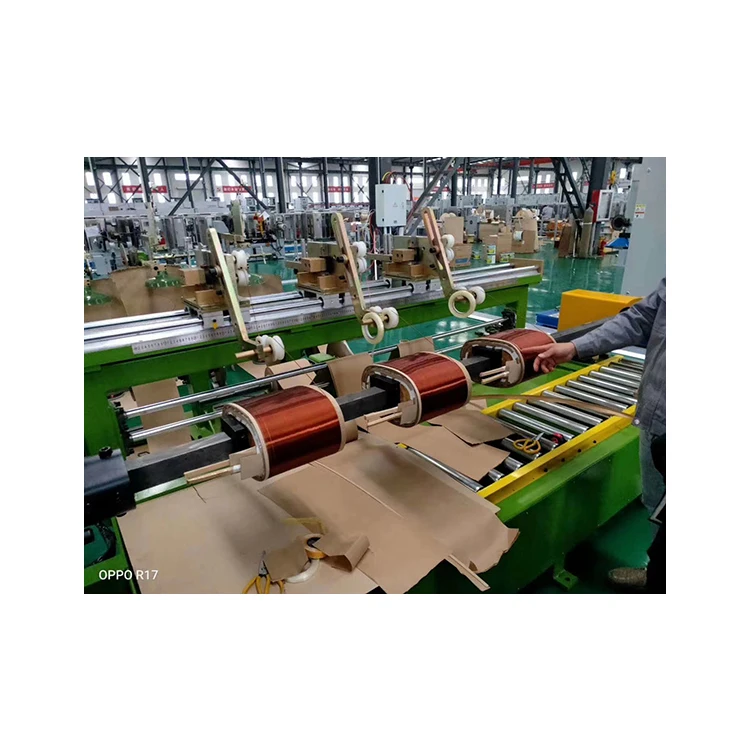

Application:ZBR-500-3 three coil automatic wire winding machine is suitable for S9 S10 S11 S15 oil-immersed and dry -type transformer,reactor, amorphous transformer high voltage coil winding.
Main Component：
The machine is used as the line driving device for the machine, the high precision ball screw, the linear guide rail as the line drive device, the winding mechanism adopts the motor, the decelerator drive, the gearbox, the tail frame and other assembly combinations.
Main Features:
The parking stability is reliable, winding automatic counting, power failure memory function, using encoder counting, the feet step on the switch and back control.
Application:ZBR-500-3 three coil automatic wire winding machine is suitable for S9 S10 S11 S15 oil-immersed and dry -type transformer,reactor, amorphous transformer high voltage coil winding.
Main Component：
The machine is used as the line driving device for the machine, the high precision ball screw, the linear guide rail as the line drive device, the winding mechanism adopts the motor, the decelerator drive, the gearbox, the tail frame and other assembly combinations.
Main Features:
The parking stability is reliable, winding automatic counting, power failure memory function, using encoder counting, the feet step on the switch and back control.
