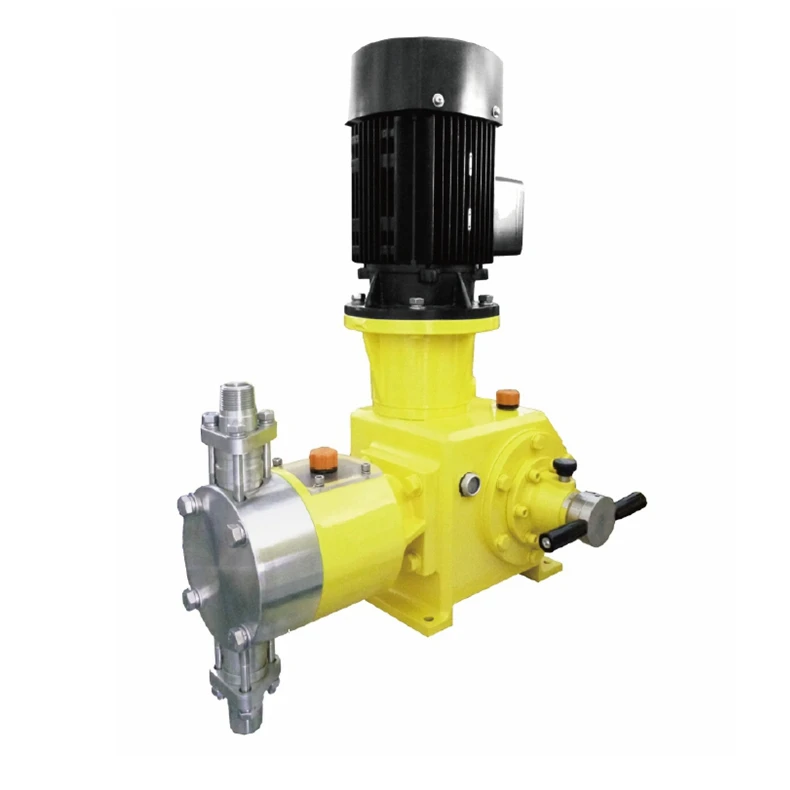

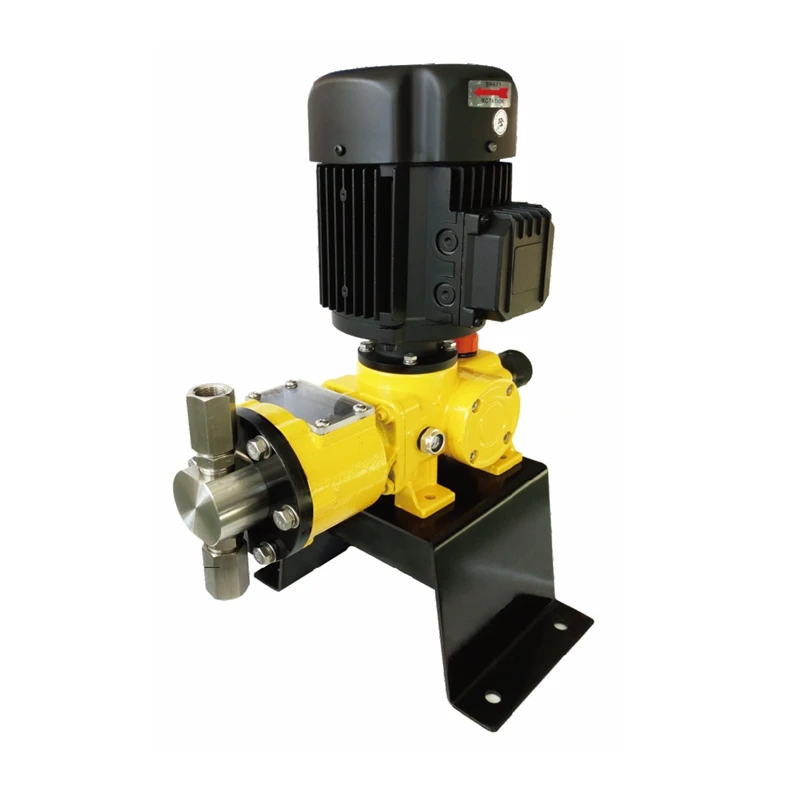

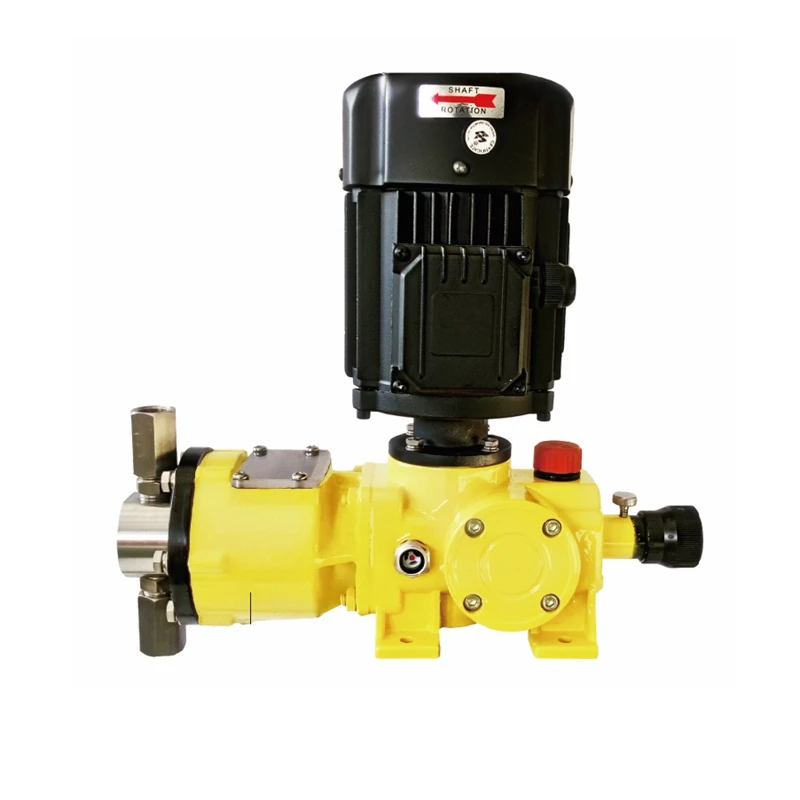

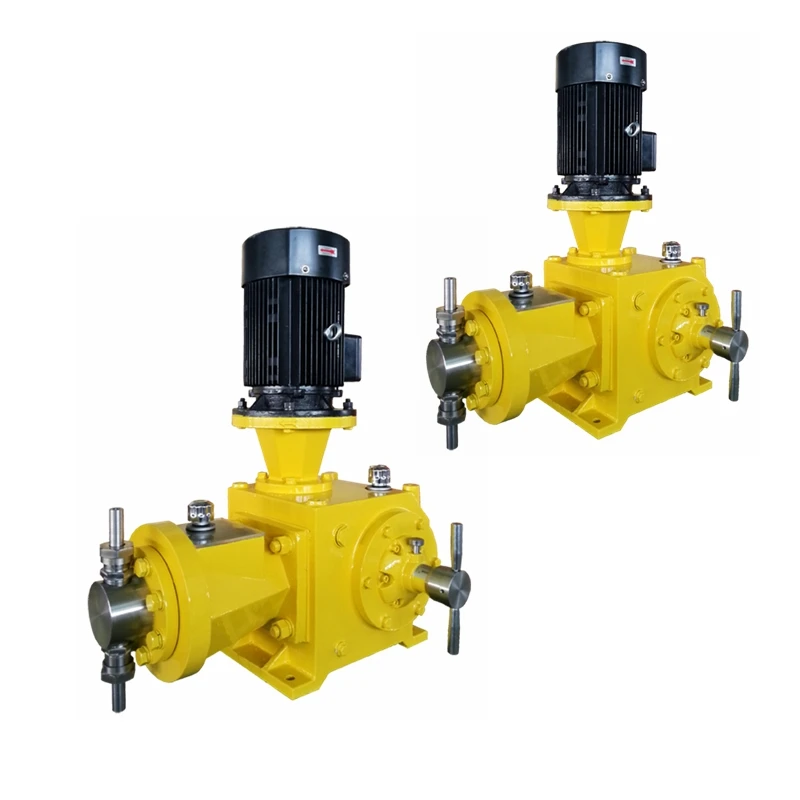

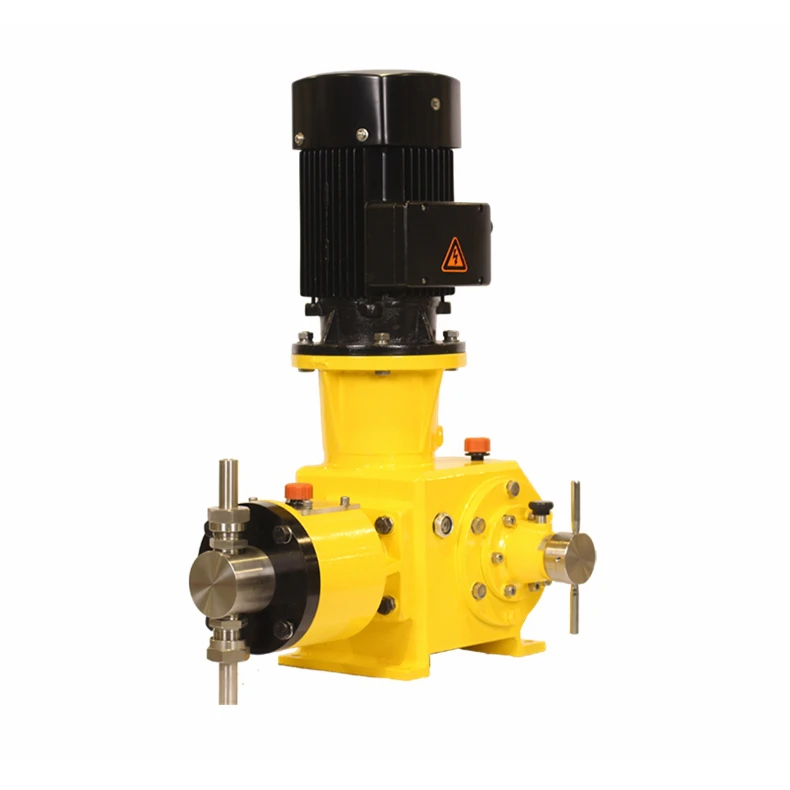

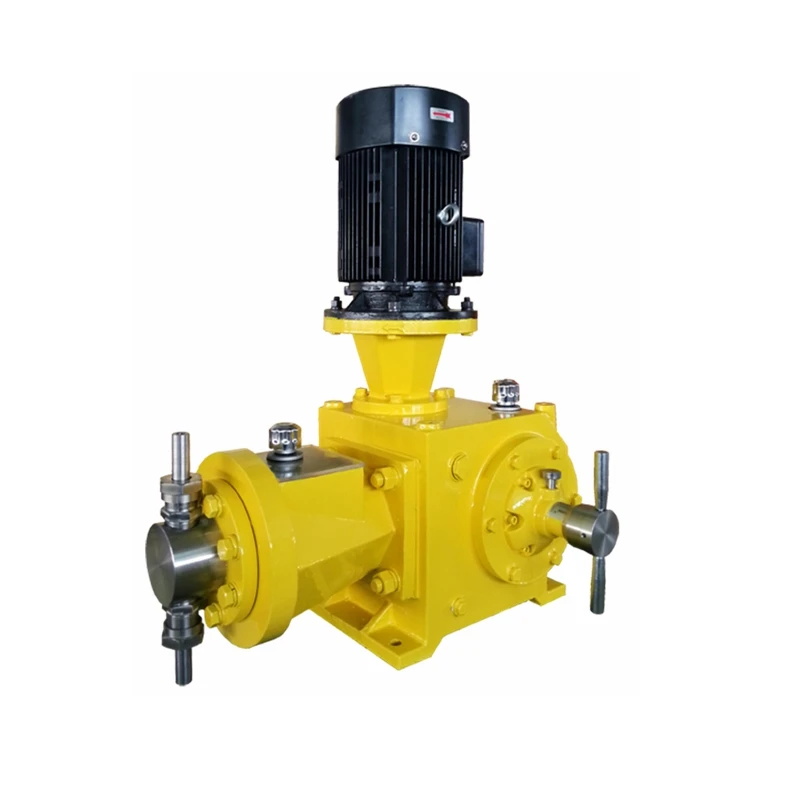

High precision stainless steel plunger type metering piston pump with ceramic plunger for high pressure and high temperature





Application
The dosing pump is widely used in fields such as chemical,petrochemical,electricity and metallurgy etc. In particular,it is very popular in fields with high viscosity,high pressure and high temperature.


Main performance parameters
1.Max. flow rate: 1200 lph
2.Max. discharge pressure: 500 bar
3.Steady-state accuracy: ± 1%
4.Max. suction lift: 2.5 m
5.Max. liquid temperature: -10 ℃ to +100 ℃
6.Max. ambient temperature: +40 ℃


Control mode
1.Power supply: 380V/220V-50/60HZ-3/1 phase.
2.Variable frequency controller receives the external control signal and adjusts the stroke speed,input signal:4-20mA analog signal.
3.Motor controller determines three phase motor by "on/off" mode,adjusts the output flow.


Main components of the Fluid end


ITEM
DATA

Fluid end
SS304
SS316
Pump head
SS304
SS316
valve body
SS304
SS316
valve seat
SS304
SS316
valve ball
SS304/Zirconia
SS304/Zirconia
Plunger
SS304+Ceramic
SS316+Ceramic
Tamping
Graphite fiber+GSJ
Graphite fiber+GSJ
Seal ring
Fluororubber/EPDM/PVD/4F
Fluororubber/EPDM/PVD/4F

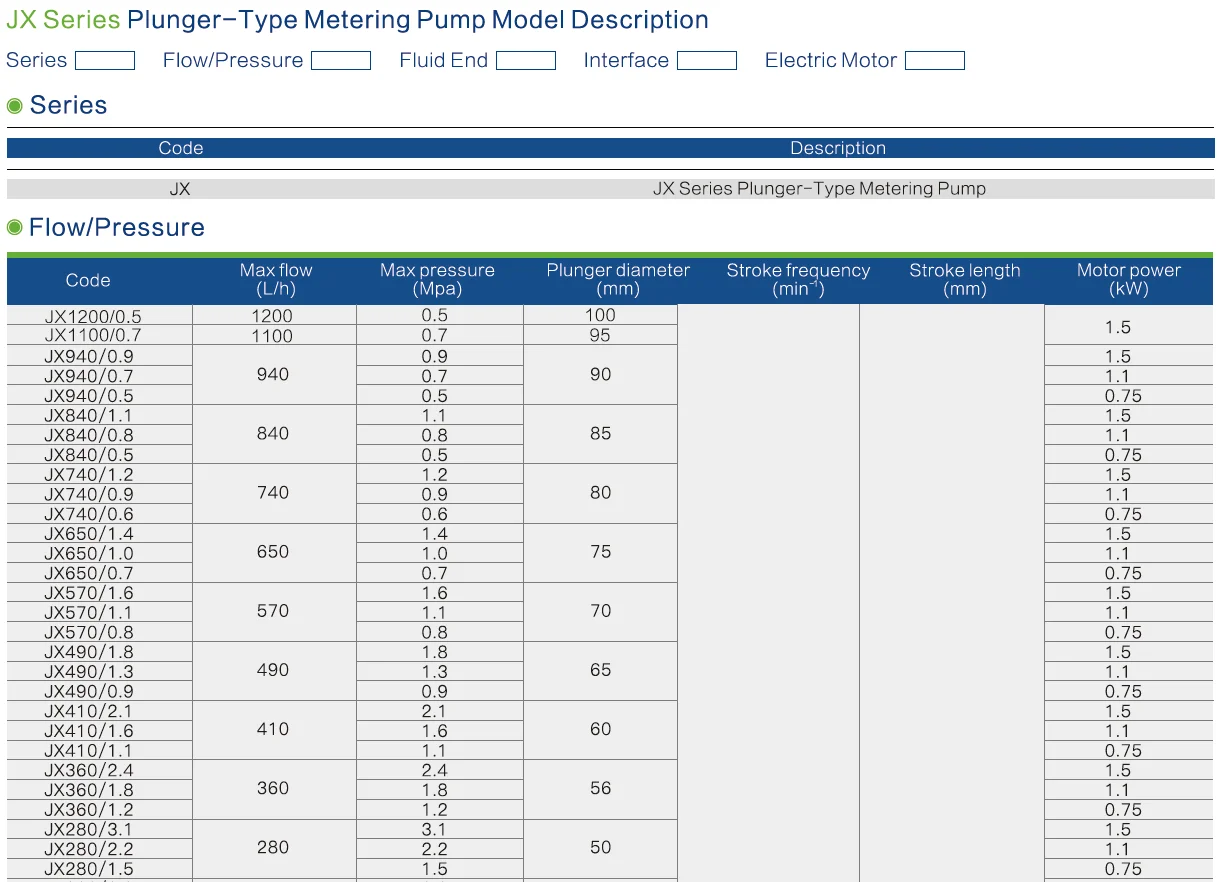

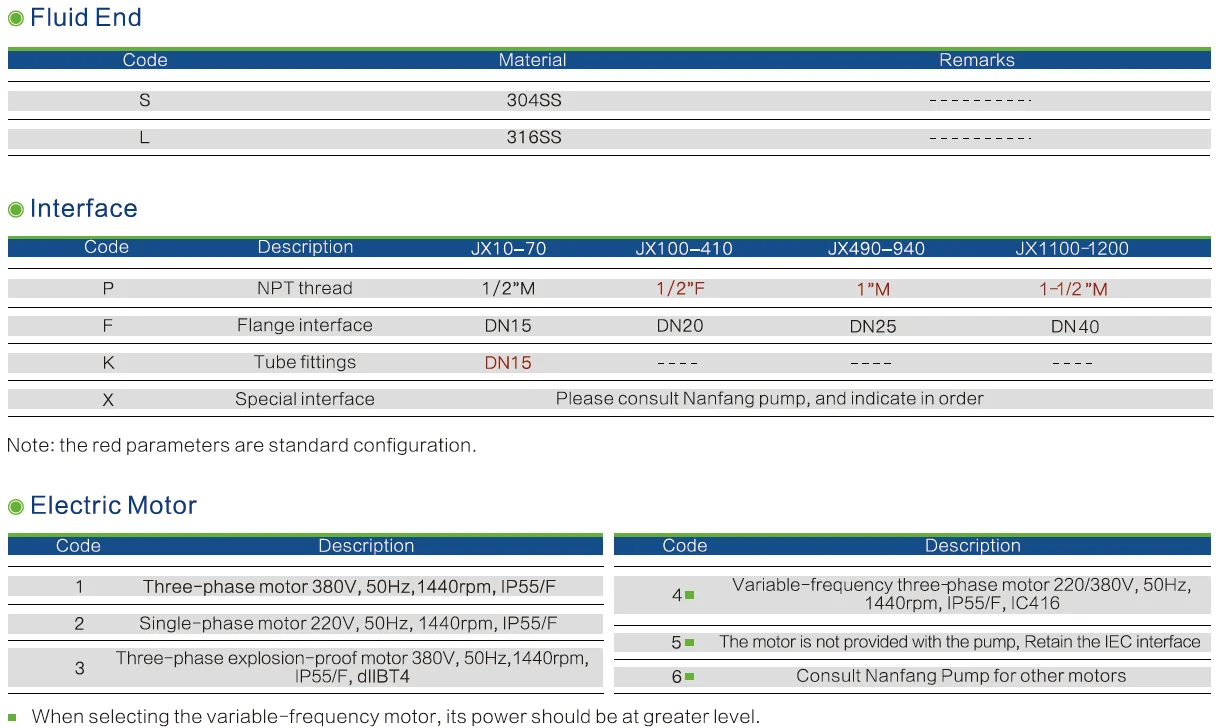

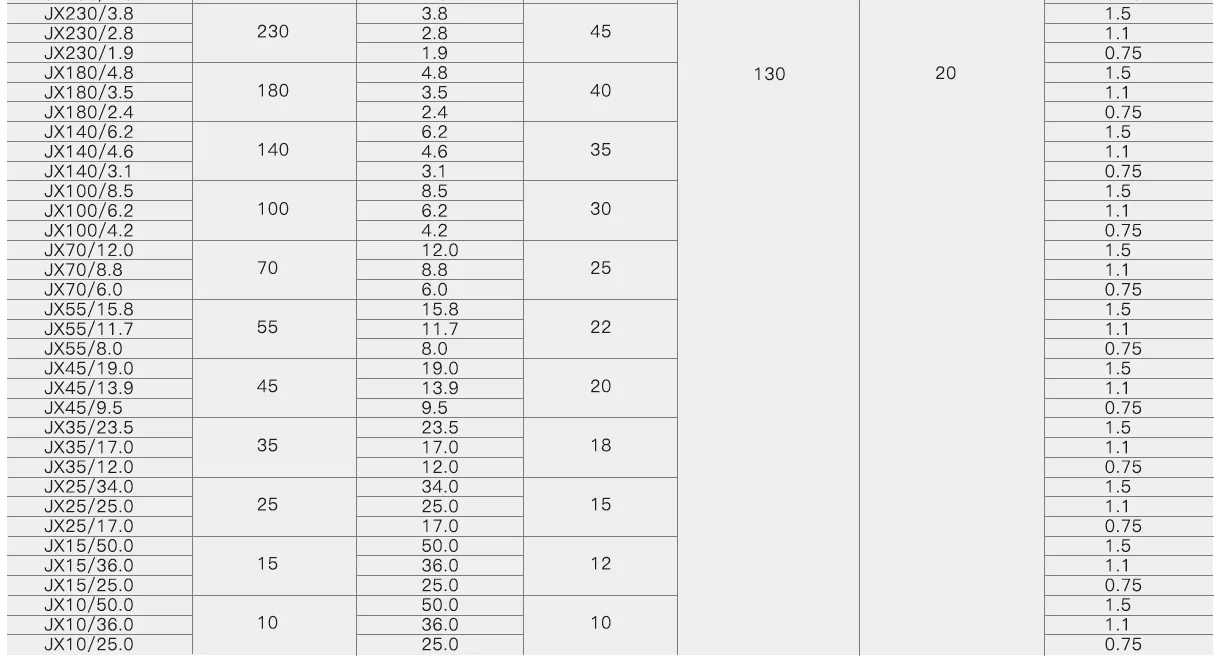

Definition of model

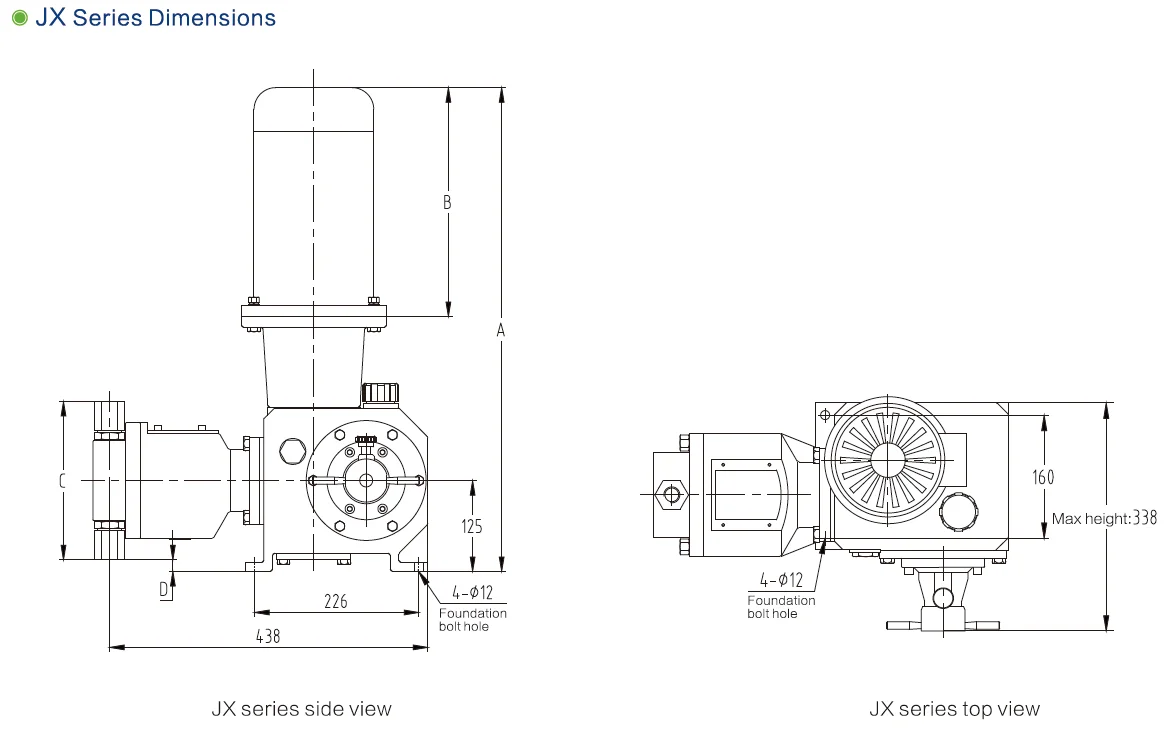

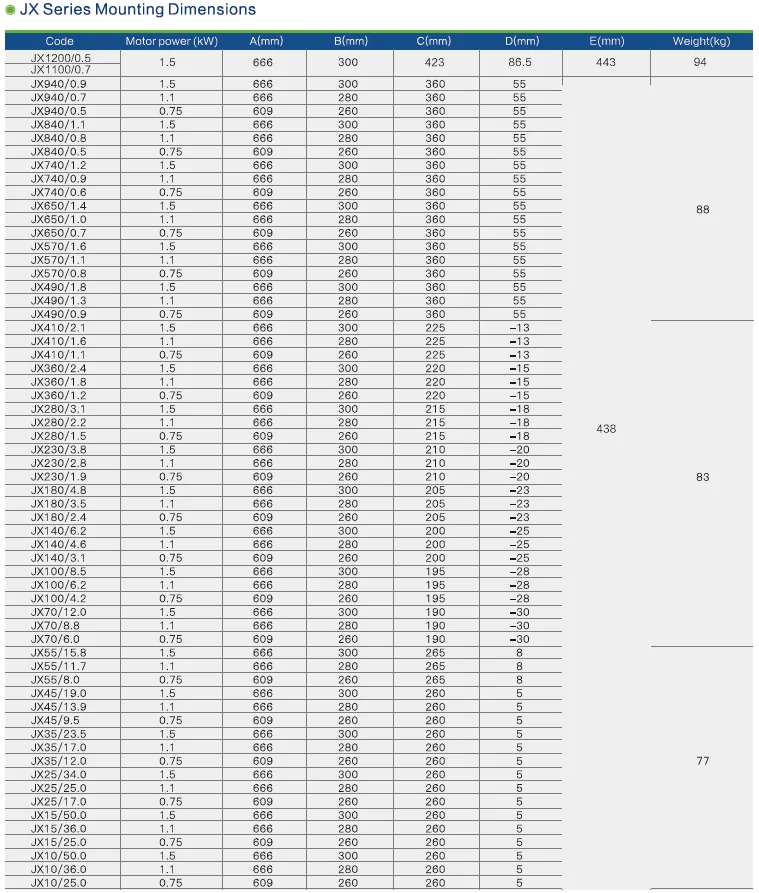

Installation sketch






Workshop










\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t






\t\t\t\t\t\t\t\t\tCustomers \t\t\t\t\t\t\t




About us


Ms.Alice long
Hangzhou Chayo Environmental Technology Co.,Ltd
add: 62-2F Yangchen road,pinyao town,hangzhou.zhejiang.
Tel: 0086-86306016
Mob,whats app: 0086-13750800179

Email: chayopump@aliyun.com



FAQ


1.Q: How to buy our pumps ?
A: Firstly we should know from you :
1.1.What is the fluid ? Clean water(temperature), dirty water(temperature), particles,or slurry etc. ?
1.2.What is the flow and head ?
1.3.What is the voltage and frequency?
1.4.Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.

2.Q:What’s your MOQ?
A:Trial sample order is OK.

3.What is the delivery time?
A:15-30 days after receiving your advanced deposit.

4.Q:Can you we do OEM brand?
A:Yes,welcome your OEM.

5.Q: How to solve the quality problems after sales?
A: Taking photos or videos of the problems and send to us, will make a satisfied solution for you within 48 hours after our confirmation.
