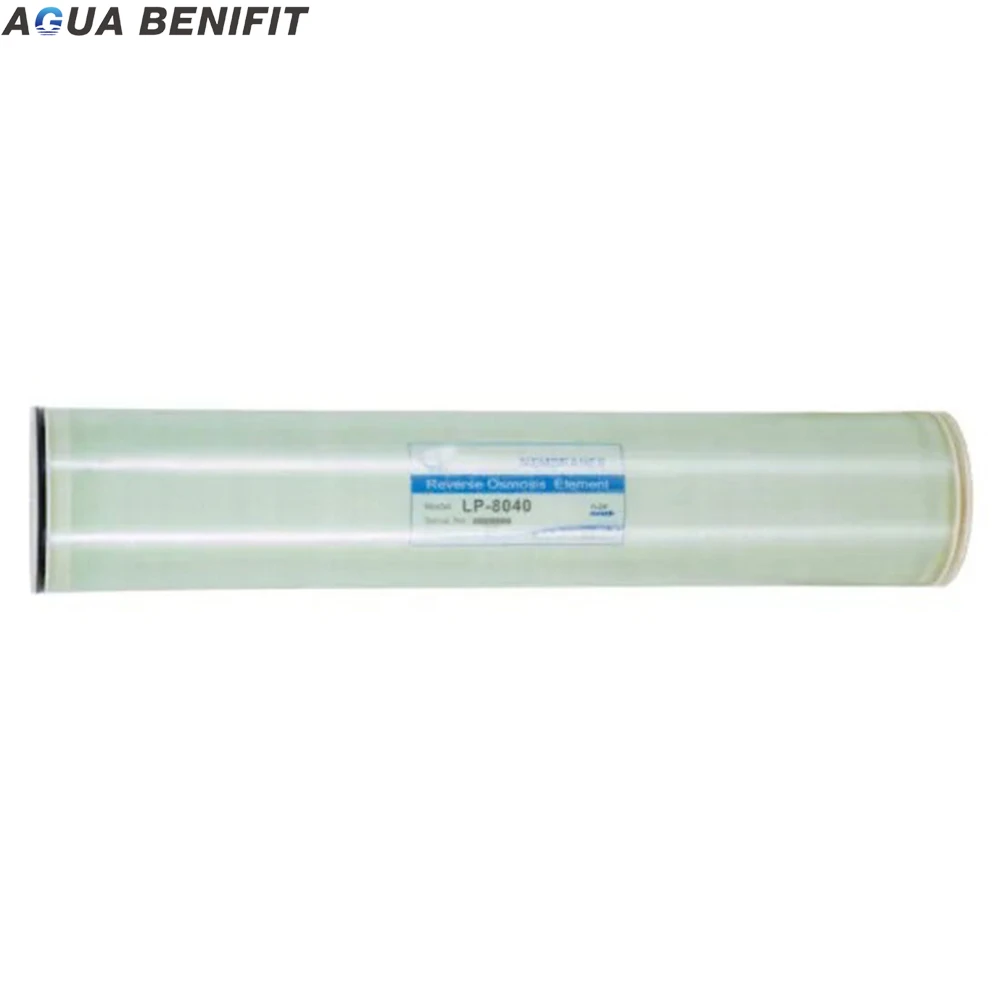

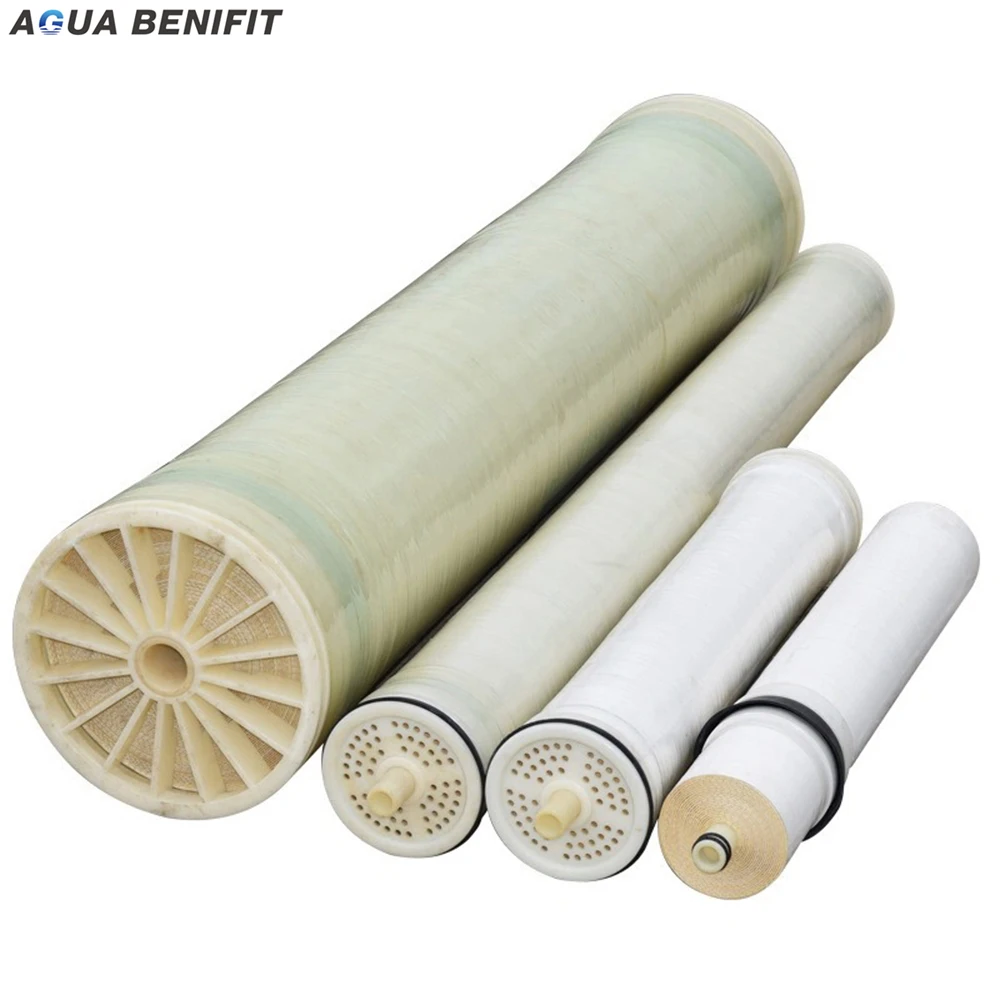

BW 8040 Filmtec RO Membrane for Industrial Water Equipment
- Category: >>>
- Supplier: Ningbo Shengyuan Electric Co. Ltd.
Share on (1600301998957):
Product Overview
Description

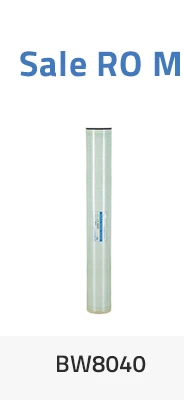

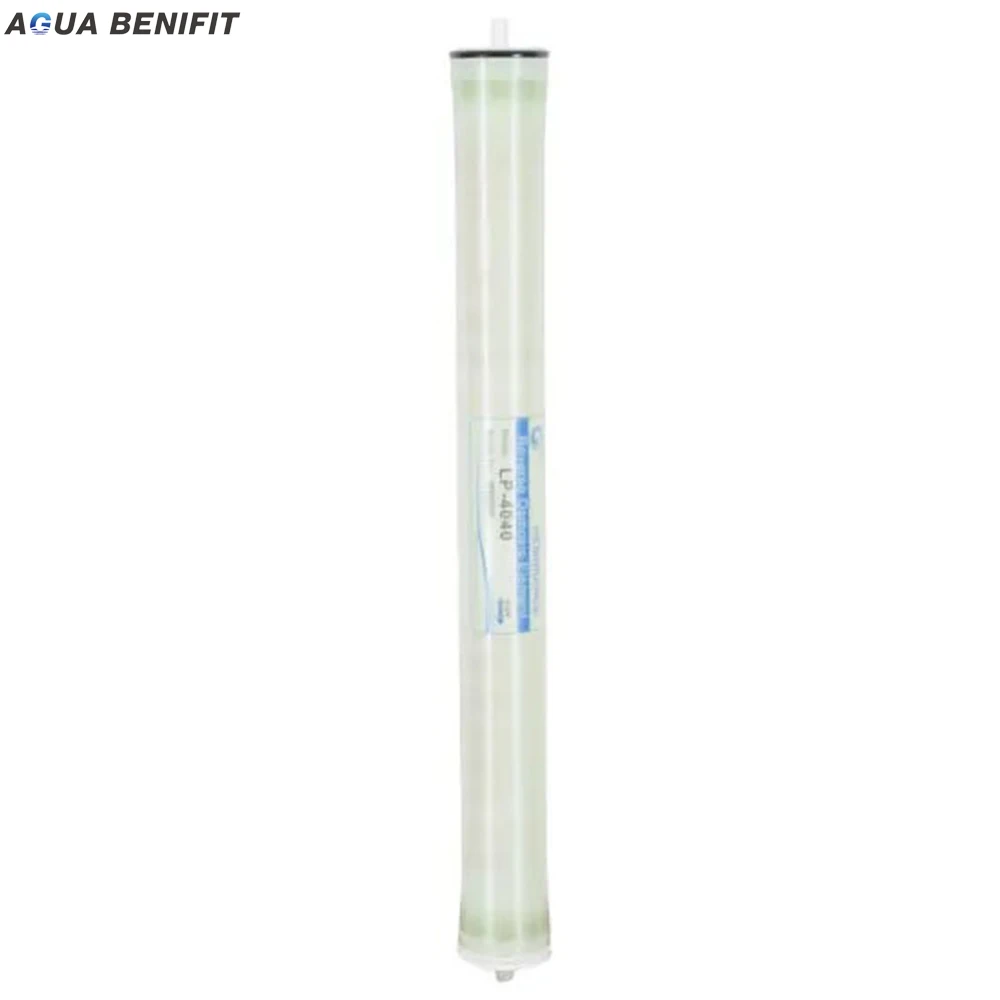

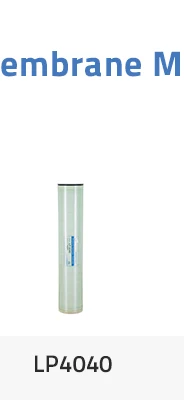

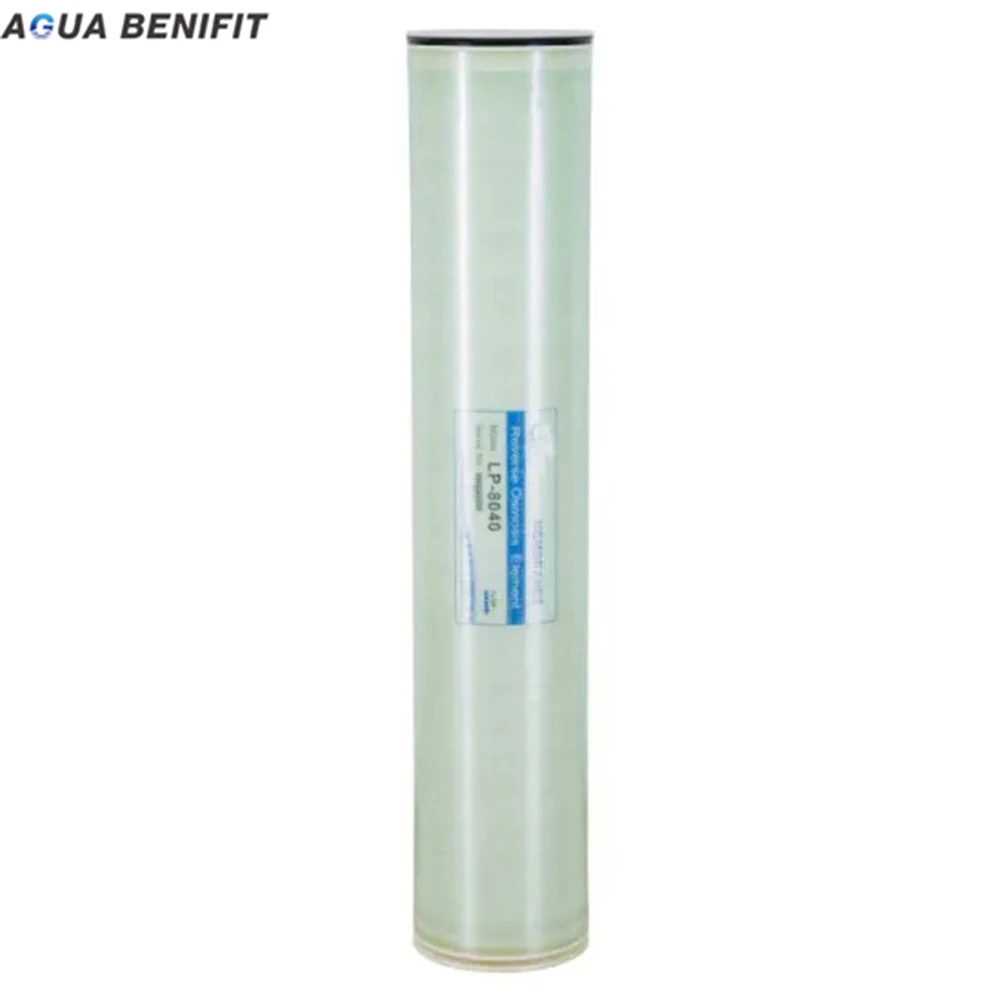

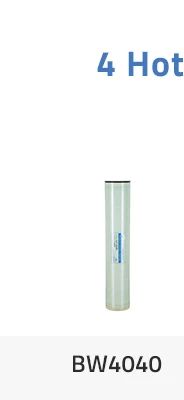

Specifications | BW-8040 | BW-4040 | LP-8040 | LP-4040 | |||
Material | Aromatic polyamide | ||||||

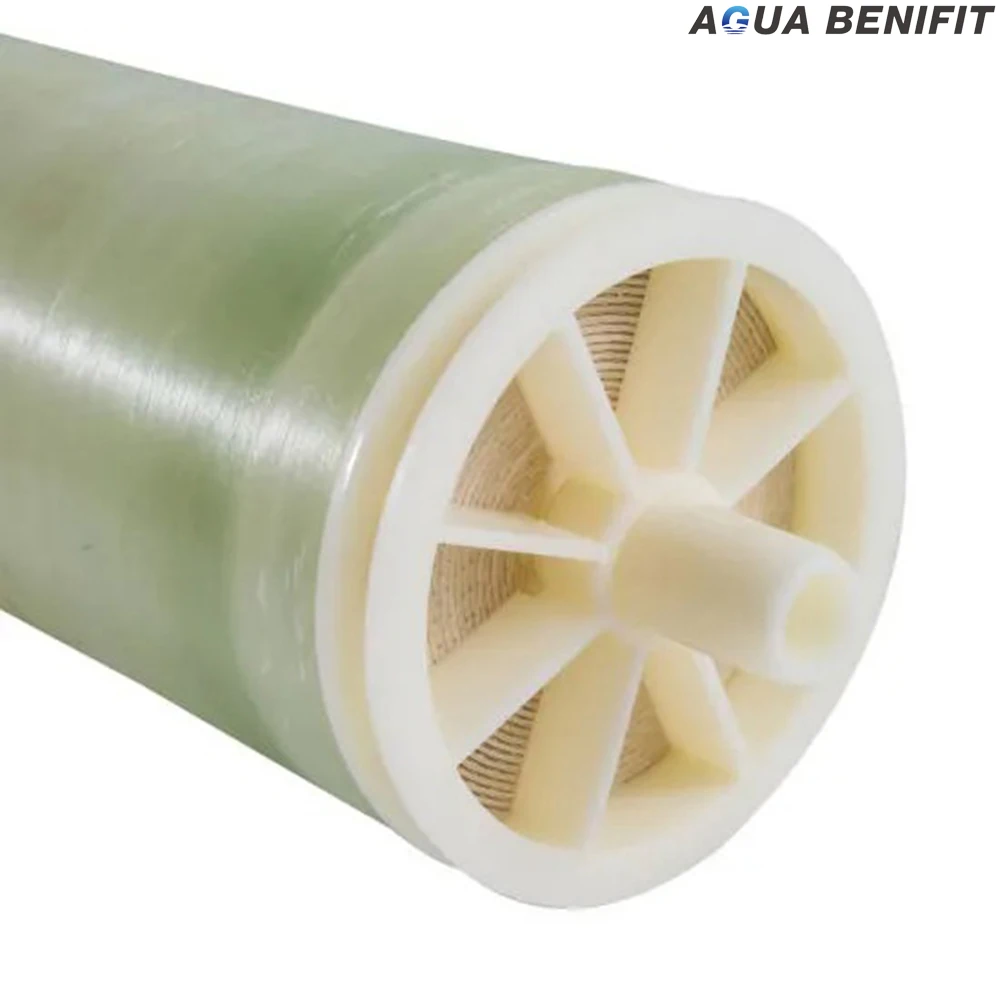

Structure | Spiral-wound | ||||||
Effective Membrane Area（m²） | 37 | 7.6 | 37 | 7.6 | |||
Thickness of the inlet grid（mil） | 34 | ||||||
Standard Test Solution | 2000mg/L NaCl | 1500mg/L NaCl | |||||
Operating Pressure | 1.55Mpa | 1.55Mpa | 1.05Mpa | 1.55Mpa | |||
Test Temperature | 25℃ | ||||||
Recovery（%） | 15% | ||||||
pH | 6.5~7 | ||||||
Permeate Flow Rate（m3/d）/GPD | 38/10000 | 7.6/2000 | 40/10500 | 8/2100 | |||
Rejection（%） | 99.5 | 99.0 | |||||
Max. Operating pressure | 4.1Mpa (600Psi) | ||||||
Max. feed flow (GPM) | 75 | 16 | 75 | 16 | |||
Feed Temperature | 5~45℃ | ||||||
Feed pH | 3~11 | ||||||
Cleaning pH | 2~12 | ||||||
Max. feed turbidity | 1.0 | ||||||
Max. feed SDI15 | 5 | ||||||
Residual Chlorine | < 0.1 mg/L | ||||||
Max. Pressure Drop each Element | 15psi | ||||||
