Воздушный цилиндр PP PVC пластиковая машина для вакуумного формования для пищевого контейнера лотков для яиц
- Category: Plastic Vacuum Forming Machines >>>
- Supplier: Quanzhou Gester International Co. Ltd.
Share on (1600302014952):
Product Overview
Description
Product Description
Air Cylinder PP PVC Plastic Vacuum Forming Machine For Food Container Egg Tray | |||||||||
 |
| ||||||||
Product Overviews
| APPLICATION |
Mainly for the production of variety plastic containers ( egg tray, fruit container, package containers, etc) with thermoplastic sheets, such as APET, PETG, PS, PSPS, PVC,etc.
| FEATURE |
1. Utilizes PLC control system, servo drives upper and lower mould plates, and servo feeding, which would be more stable and precision.
2. Human-computer interface with high definition contact-screen, which can monitor the operation situation of all parameter setting.
3. Applied self-diagnosis function, which can real-time display breakdown information, easy to operate and maintenance.
4. Several products’ parameter can be stored in device, which would be quickly test and adjustment of machine when producing different products.
| KEY SPECIFICATIONS |
Model | HEY05A | HEY05B |
Control | Air Cylinder | Servo |
Forming Area(L*W) | 1350*760 mm | |
Option Customized Forming Area(L*W) | 1220*760/900mm, 1350*900mm, 1500*760/900mm | |
Whole Machine Power | Max. 50kw | |
Heating Power | Max. 40kw | |
Average Power Consumption | About 25kw | |
Heating Method | Infrared-radiation Heating | |
Work Frequency | 4-24 times/min | |
Forming Height | Max. 240mm (Male Mould), Max. 200(Female Mould) | |
Sheet Thickness | 0.1-2.5 mm | |
Sheet Width | 450-800mm | |
Air Compressor | 0.6-0.7 Mpa | |
Air Supply Quantity | 1.5-2 m3/min | |
Vacuum Flow Rate | 100 m3/hour | |
Power | 3kw | |
Ultimate Vacuum | 5mbar | |
Water Supply | 350kg/h | |
Power Supply | Three Phase Four Lines 380V 50/60HZ | |
Machine Dimensions | 8900*1800*2600mm | |
Whole Machine Weight | Around 4500 kg | |

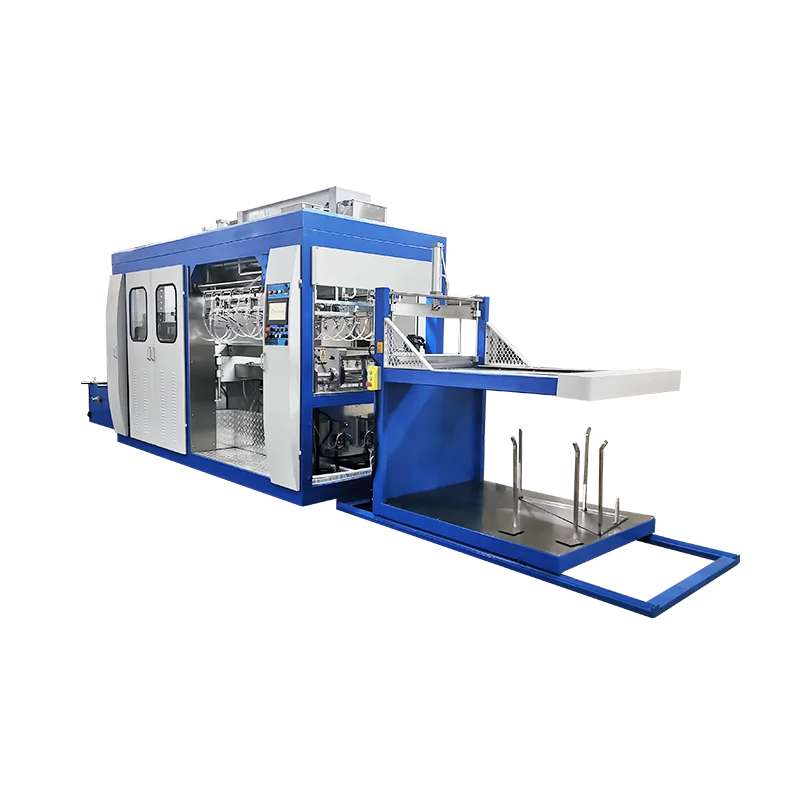

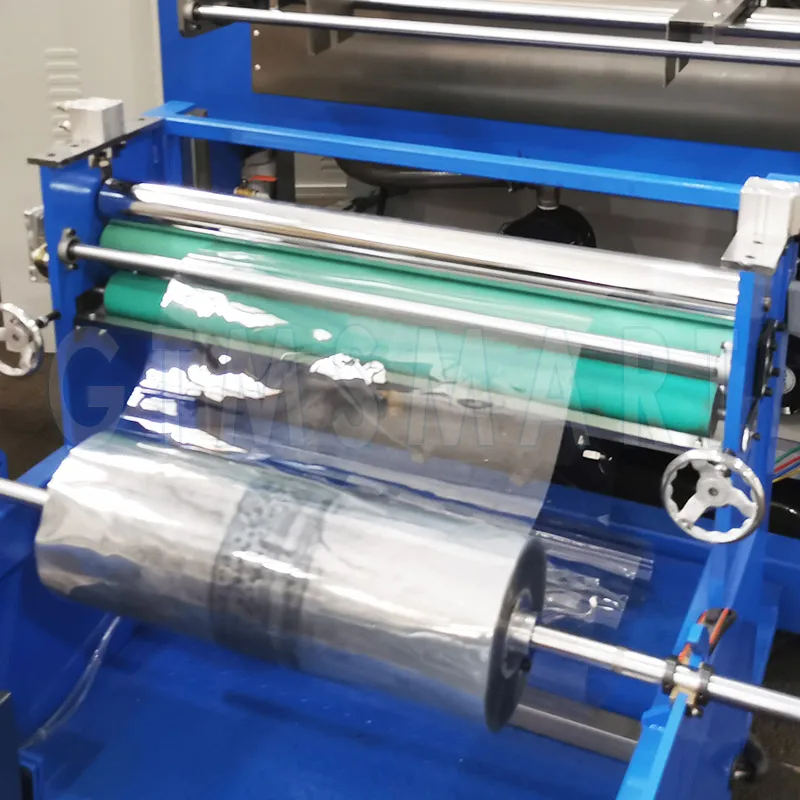

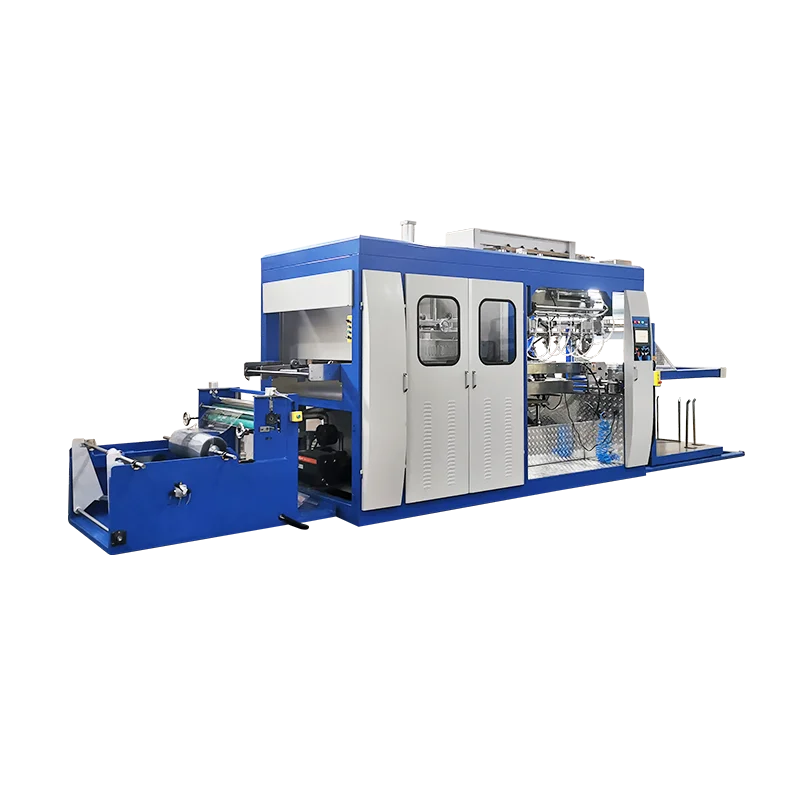

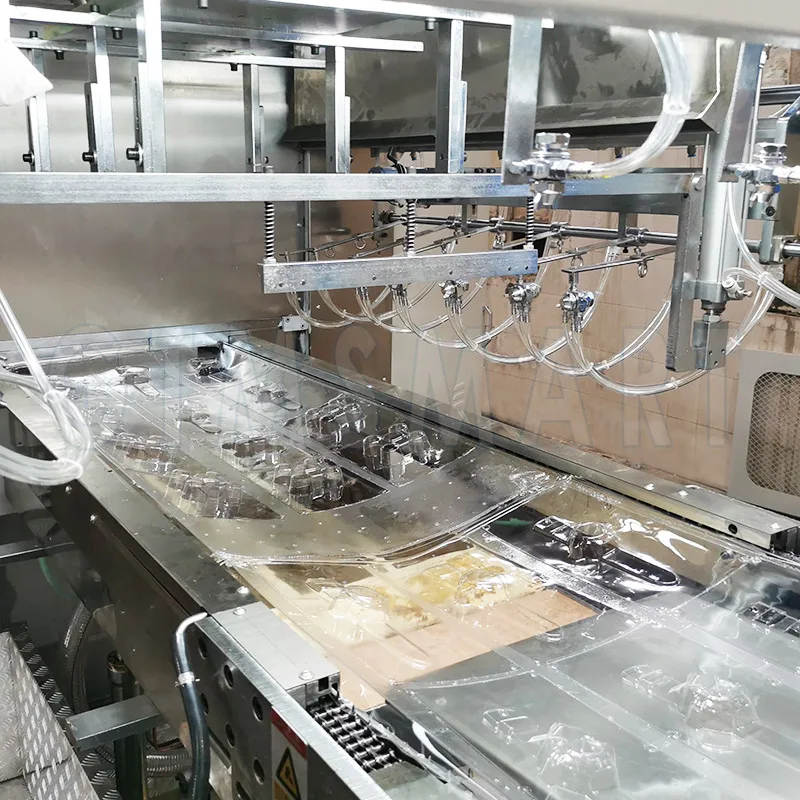

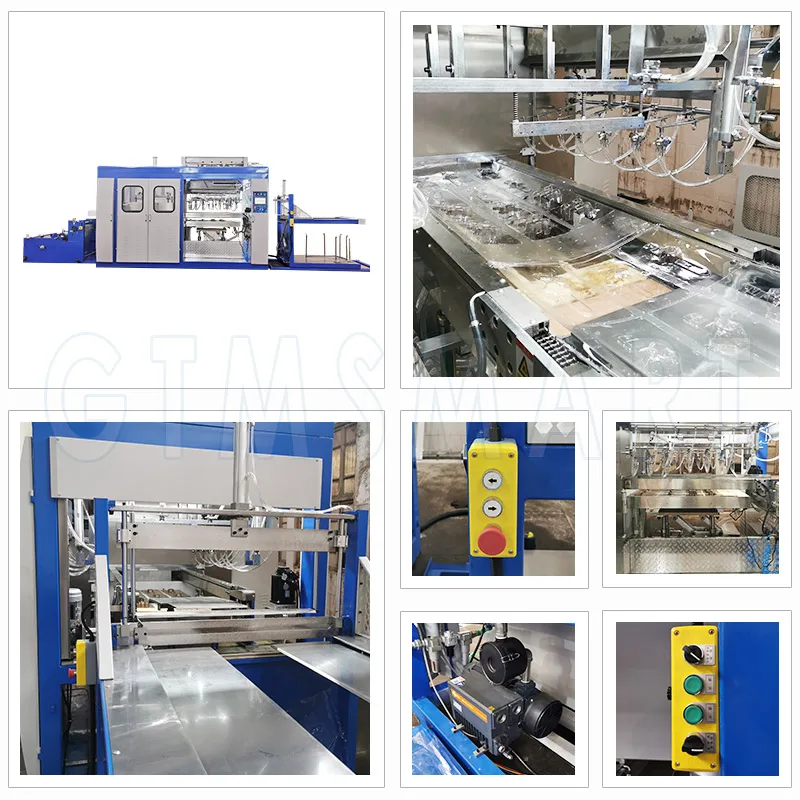

| PRODUCT IMAGE |
