Advanced High Efficient Stable Working SF6060 Automatic Wood Cross Cut Off Saw With CE Certification
- Category: >>>
- Supplier: Qingdao Fengkai Machinery And Equipment Co. Ltd.
Share on (1600302243554):
Product Overview
Description
Products Description
Feature

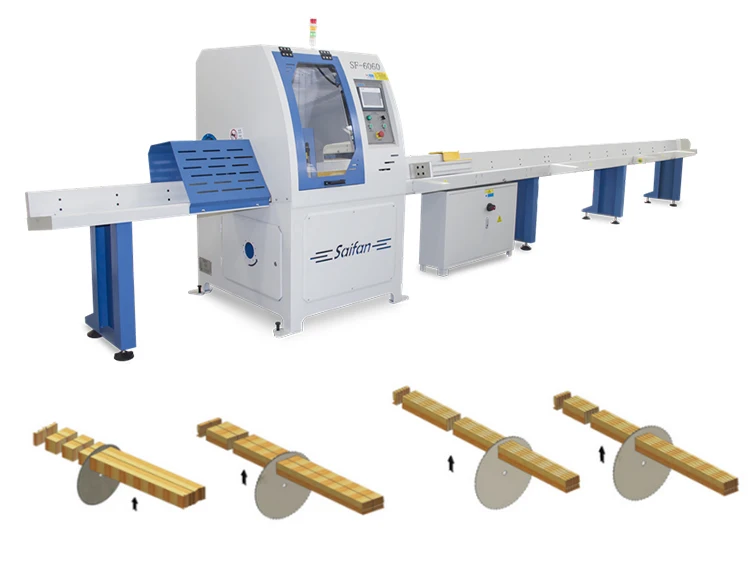

This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.It contains cutting program, input parameters from the Siemens PLC touch screen, have two cutting modes,one is Manual measure mode, measure raw material length by hand then input into machine, and then input max. 8 different cutting length and quantity.
Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Another mode is Auto measure mode, machine will auto measure the raw material length, and can input only 1 length and quantity.
Can automatic show the problem alarm words in screen, and with our operation guidance videos, worker can easily understand the problem and release it.
Product Paramenters
Name | Wood Cross Cut Saw | ||||
Model | SF6045 | SF6060 | |||
Saw blade diameter | 450mm | 600mm | |||
Feeding table length | 2m/ 4m/ 6m | ||||
Max. Feeding length | 2.1m/4.1m/6.1m | ||||
Out-feeding table length | 1.2m | ||||
Cutting thickness | 10-120mm | 10-140mm | |||
Cutting width | 30- 200mm | 30-300mm | |||
Cutting section Thickness*width | Max. 120*150mm Max. 100*200mm | Max.150*280mm Max. 140*300mm | |||
Feeding speed | 5-30m/min | ||||
Saw spindle diameter | 30mm | 30mm | |||
Cutter spindle rotation speed | 3000rpm | 3150rpm | |||
Servo drive motor power | 0.75kw | 1kw | |||
Cutting motor power | 7.5kw | 11kw | |||
Total power | 8.5kw | 12.5kw | |||
Voltage | 380v 50hz 3phase | ||||
Pressing method | Cylinder, air pressure 0.5-0.7Mpa | ||||
Cutting tolerance | In +/-1mm | ||||
Machine working dimension Length*width*height | 5.4m*1.2m*1.6m (2m model) 7.4m*1.2m*1.6m (4m model) 9.4m*1.2m*1.6m (6m model) | ||||
Machine weight | 1200-1400kg | ||||
Dust collection port | 100mm*2pc | ||||
Electrical components | Schneider | ||||
PLC Touching screen | Siemens | ||||
Product Details
Control cabinet
Siemens PLC and touch screen, in 4 languages Chinese English Spanish Russia.Other language is also ok, if you can translate for us.
Program
Measure the raw material length, then can input 8 different size and quantity, or input one size only, machine can work
automatically.
automatically.
Pusher
Servo feeding pusher, material aluminum alloy, reliable and long life
Feeding table
2m 4m 6m length for your choice, slanted table thus wood can align to the fence more easier
Electric cabinet
Door with safety switch
Safety cover
Door with safety switch

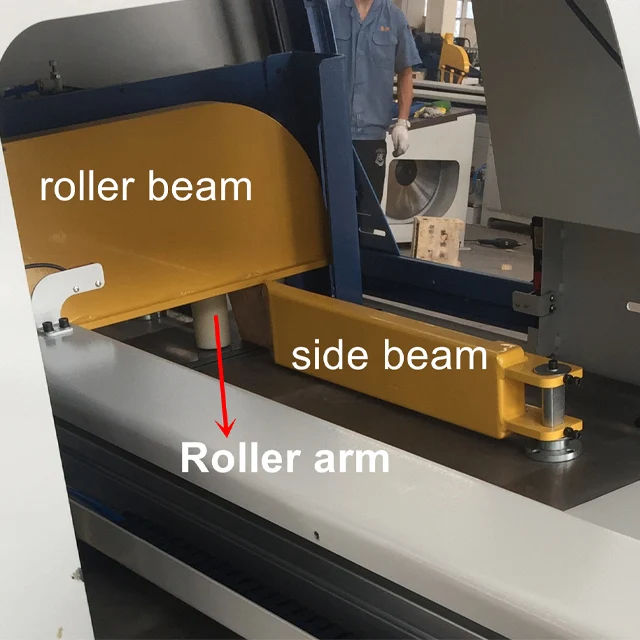

Pressing system
Pneumatic pressing boards, front side 1pc, top 1pc, rear side 1pc, ensure smooth cutting.
Sensors
IFM sensors to detect the wood length
Magnetic start button
Can put anywhere of the machine, anywhere convenient to the operator.
Separate saw blade station
Replace saw blade convenient and safe.
Dust Collection Port
2 pcs 100mm diameter dust collection port, strong ability to output the sawdust.
Left feeding
Can make to left feeding
Final Products
Company Profile
Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
Product Packaging
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.
