10x2500 guillotine shearing machine stainless steel metal sheet iron plate sheet cutting machine with long service time.

Product Overview

Description

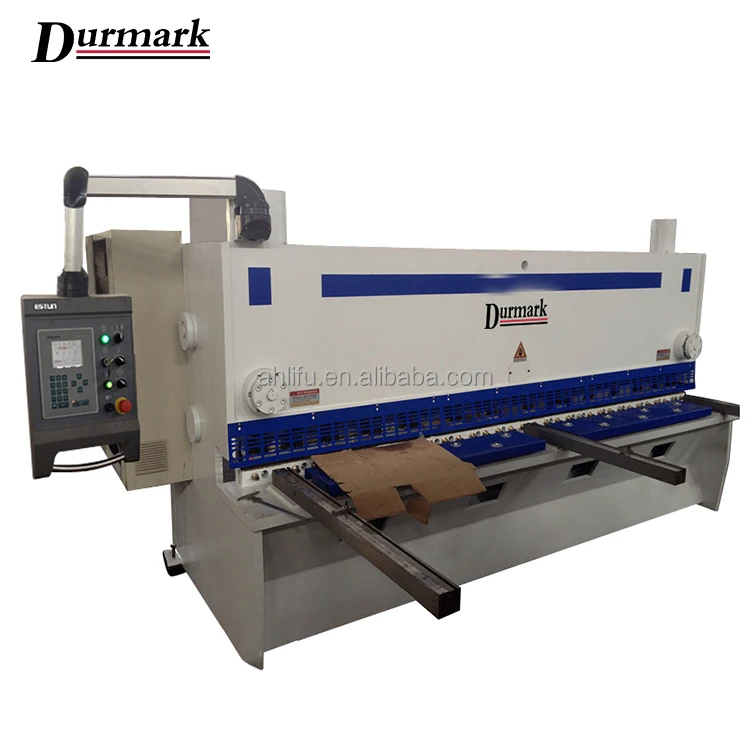

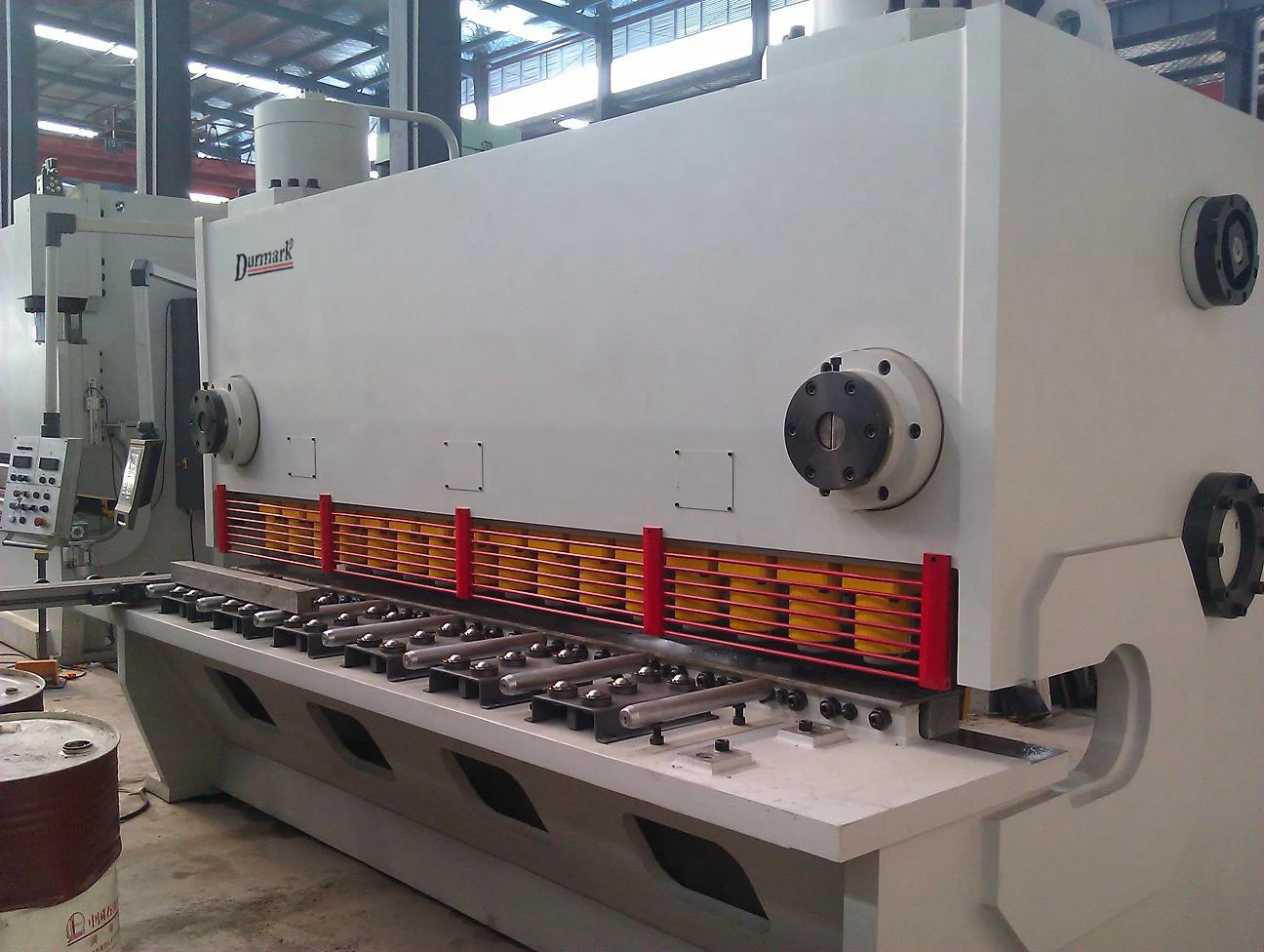

QC11K 10x2500  Hydraulic guillotine shearing machine cutting machine



Product Description



Hydraulic guillotine shear is a frequently used shearing machine in metal processing industry.



Owing to its outstanding productivity and low noise, it is increasingly used by metal fabricating industries. In addition, CNC system ensure easy operation and adjustment.

Guillotine shearing machines can be divided into different types according to different drive methods. Hydraulic guillotine shear is the most popular shear for its high productivity, excellent capacity and cutting quality.



Product parameters

Model:	Unit		10X2500
control shaft			X,A
Max  shear plate thickness	mm		10
Max shear length	mm		2500
Column spacing	mm		2700
Strength of sheared sheet	N/mm2		450
depth   throat	mm		100
Max  stroke of upper knife	mm		120
blade length	mm		2600
Speed:
Rear stopper speed	mm/sec		120
The shear number	mm/sec		18
After the keep-off:
X axis stroke	mm		600
shear Angle			0.5-1.5°
blade clearance			electrical control
Specifications ability:
system pressure	Bar		215
Main motor	KW		11
Amount of oil (46# hydraulic oil)	KG		170
Dimensions	mm		3300×1500×1580
weight	Kgs		6500
Power Supply			AC 220V~400V,3ph,50/60HZ
Configuration:
control system		E21 NC System form ESTUN
Electrical component		Schneider from French Brand
Main motor power		Siemens  baide from Germany Brand
linear guideway		HIWIN from TaiWan Bran
linear guideway		HIWIN from TaiWan Bran
Foot Switch (Level 4 Safety)		Schneider from French Brand
hydraulic system		Rexroth hydraulic system from Germany
oil pump		Sunny high-pressure oil pump is from U.S.A
oil connection		Germany EMB Brand
Plade		DURMARK CHINA

  Main feature

1, Hydraulic guillotine with high resolution touch screen

2, Variable hydraulic guillotine shear for all kinds of metal sheets

3, Adjustable blade gap, cutting angle and length make it possible to cut all types of metals with various materials and thicknesses.

4, Blade gap adjustment is based on the material and thickness of metal sheets to be cut. Optimum gap not only effectively extend the lifespan of blade but also guarantee shearing quality. Generally, the adjustable ratio accounts for 10% of the sheet thickness.

5, Fine adjustment of cutting angle is designed for minimum distortion of metal sheets.



Advantage

High precision shearing;
High resolution touch screen for easy operation;
Suitable for all kinds of metal sheets with excellent precision and quality;

Integral steel structure provides rigidity, stability and good resistance to deformation;

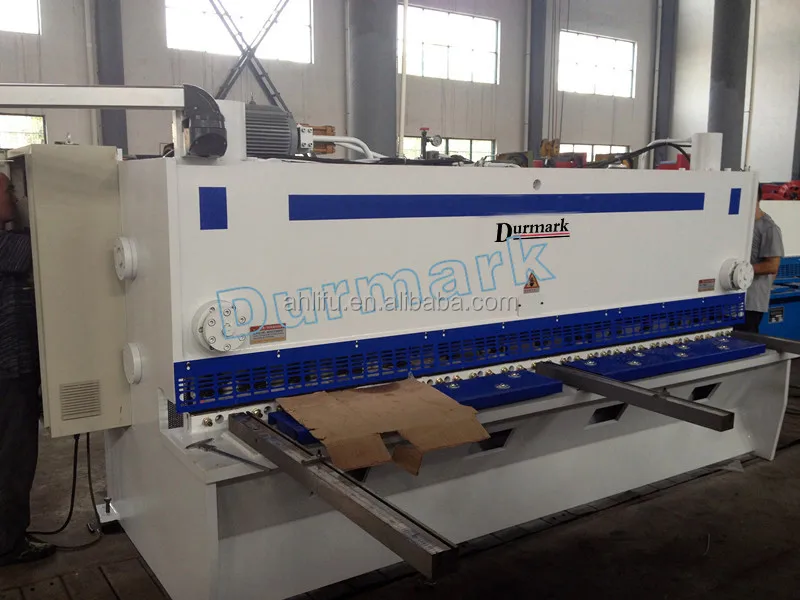

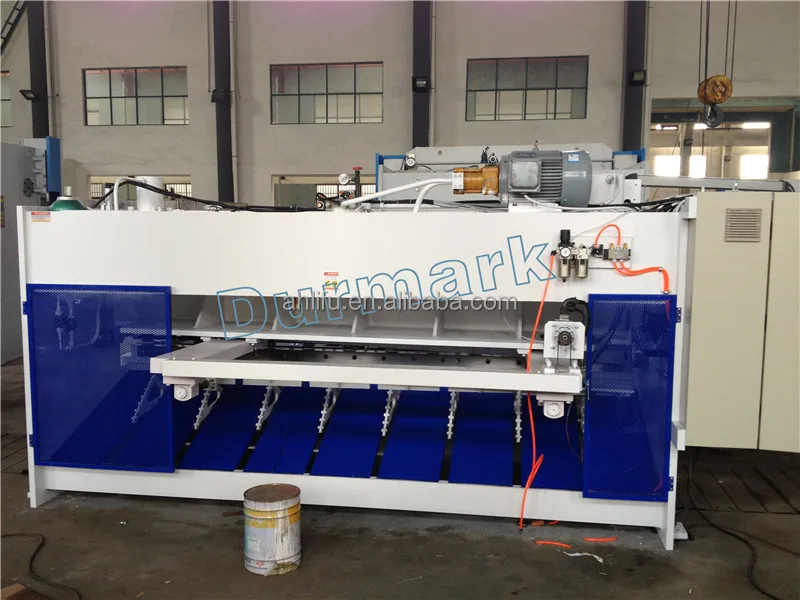

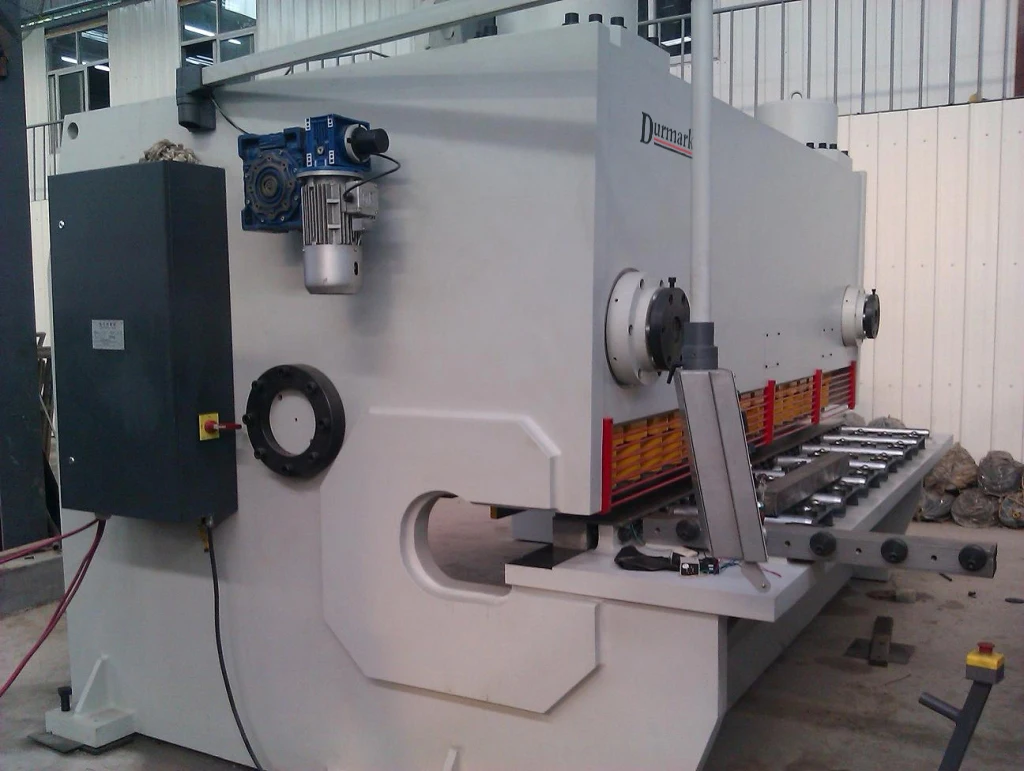

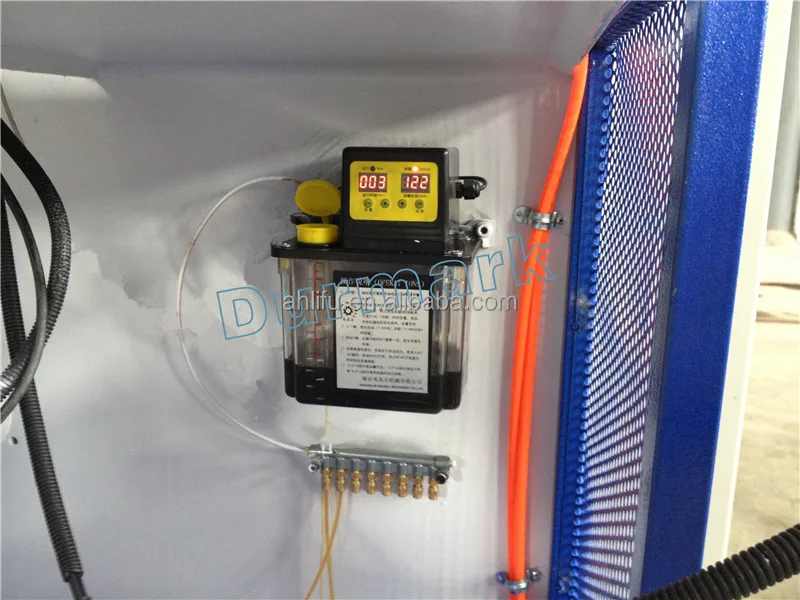

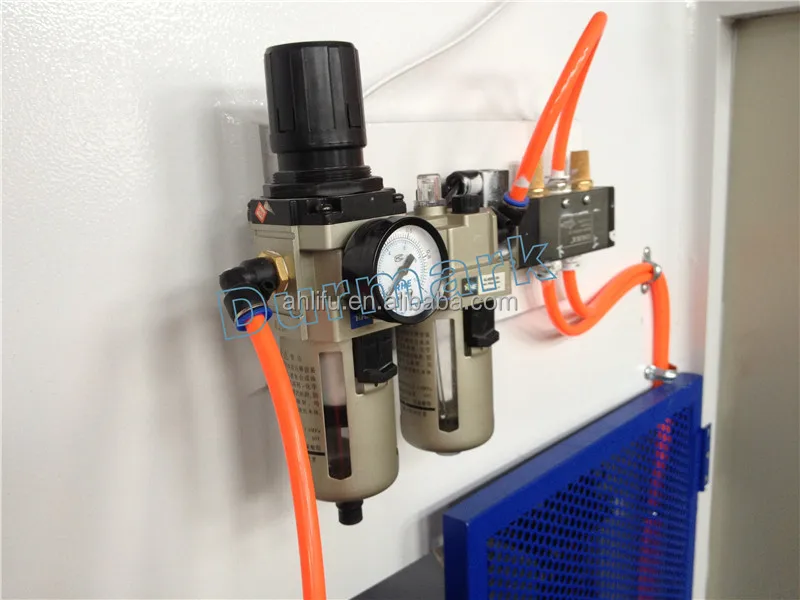

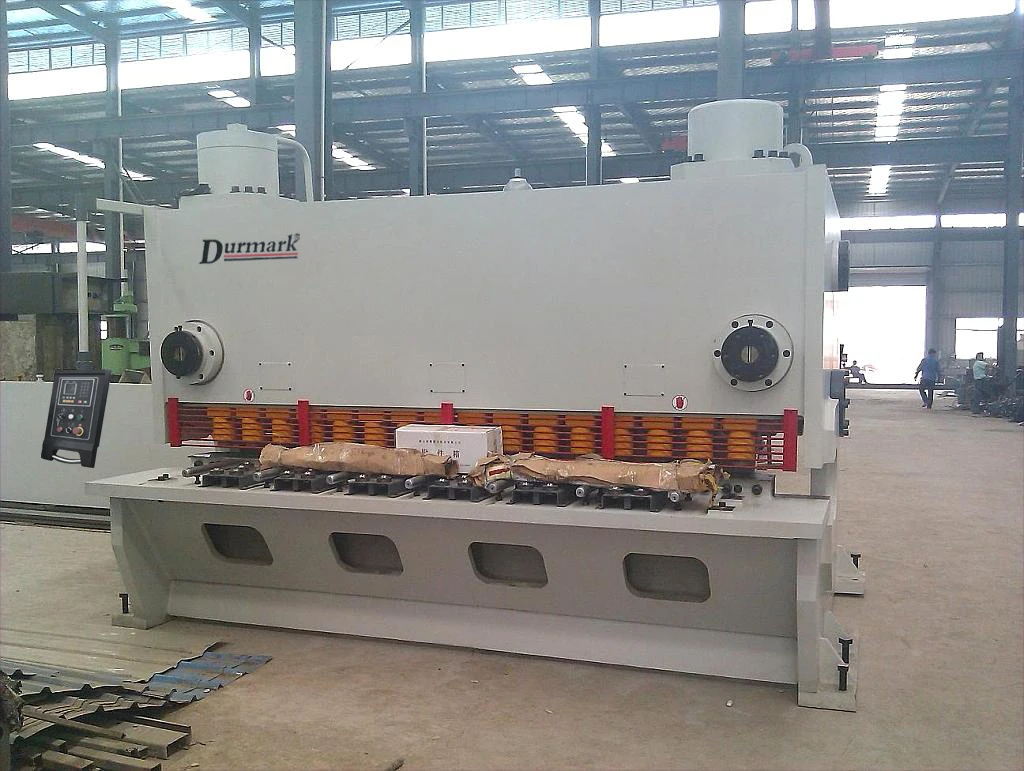

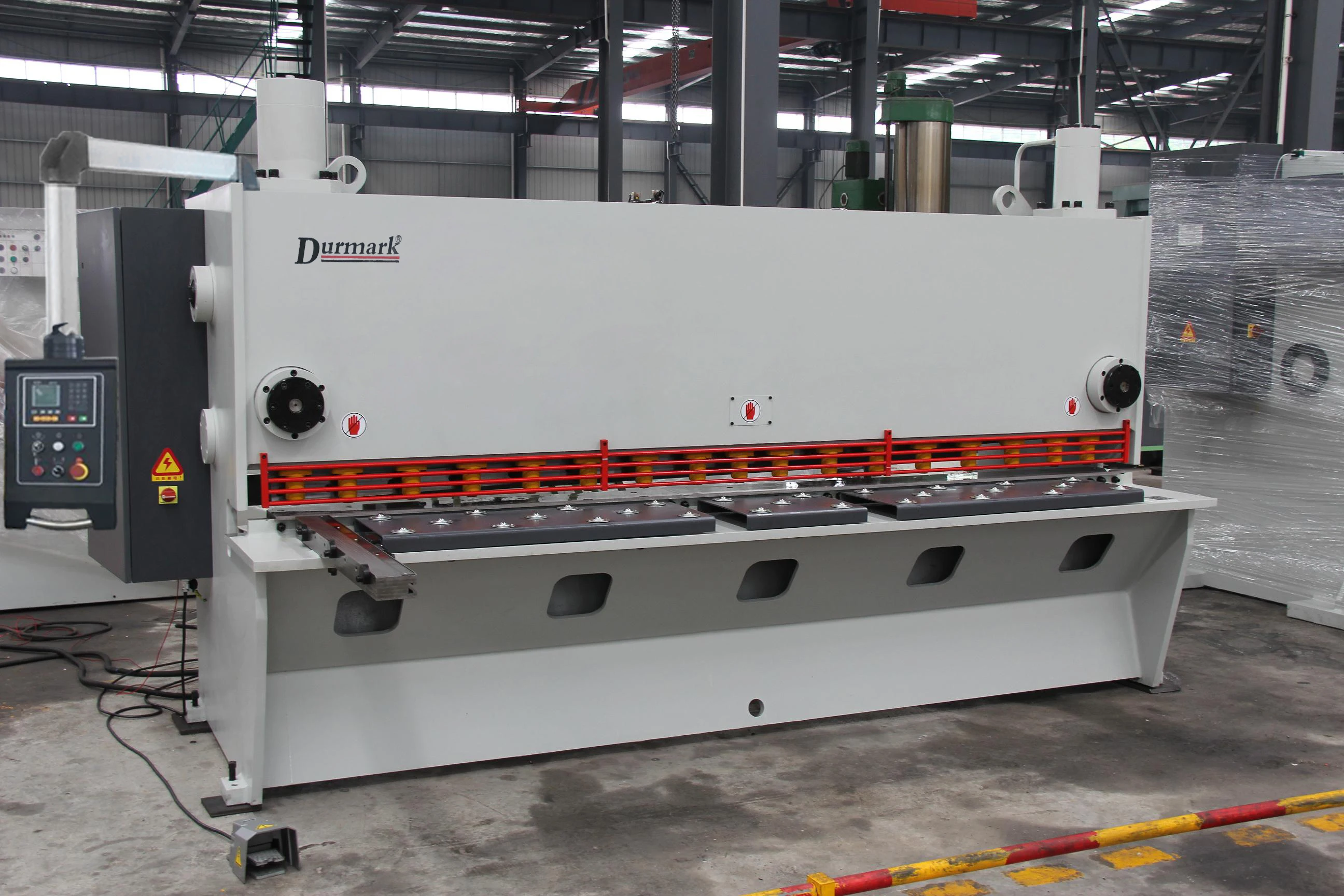

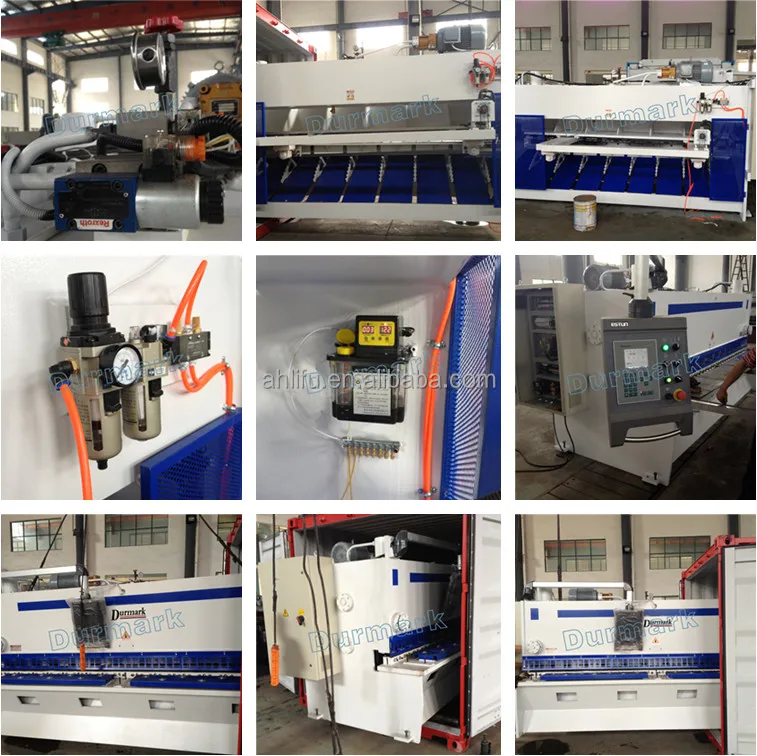

Detailed imgine





Our service

Pre-sales Service

1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed



After-sales Service

1. Training how to install the machine
2. Training how to use the machine
3. Warranty 2 year
4. Engineers available to service machinery oversea
