10 ton wireless portable engine electronic Everight Dynamometer manufacturer
- Category: Force Measuring Instruments >>>
- Supplier: Hangzhou,Everight,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

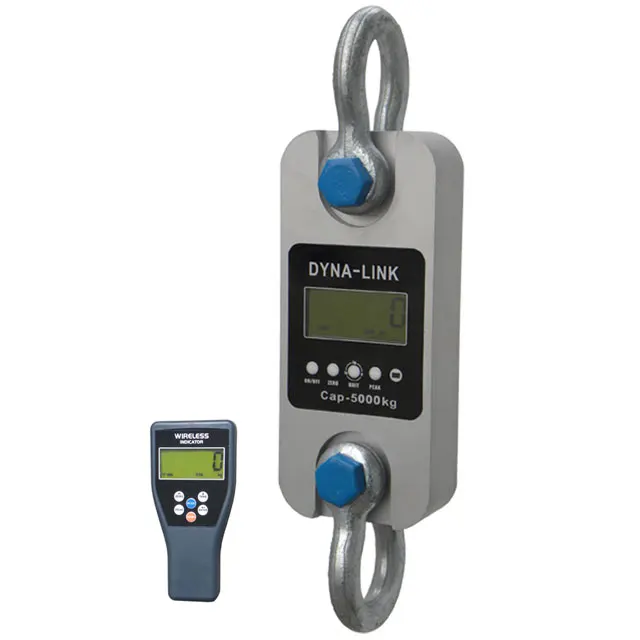

DL-W3 wireless dynamometer
DL-W3 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal
applications,Whether used as conventional crane weigher or to measure force, DL-W3 wireless dynamometer is microprocessor
controlled for high precision accuracy, calibration is easier with wireless handheld indicator.
applications,Whether used as conventional crane weigher or to measure force, DL-W3 wireless dynamometer is microprocessor
controlled for high precision accuracy, calibration is easier with wireless handheld indicator.
FEATURES AT A GLANCE
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t)
pounds(lb), Newton and kilonewton(kN)
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places
value.
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User
calibration(with password).
Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
Indicator RS-232 communication: Print or exact data easily. Continuous output can drive a scoreboard.
Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t)
pounds(lb), Newton and kilonewton(kN)
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places
value.
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User
calibration(with password).
Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
Indicator RS-232 communication: Print or exact data easily. Continuous output can drive a scoreboard.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Body Display | 25mm (1’’) 5digits LCD with backlight | ||||
2 | Indicator Display | 25mm (1’’) 5digits LCD with backlight | ||||
3 | Power on zero range | 20% F.S. | ||||
4 | Manual Zero Range | 4% F.S. | ||||
5 | Tare Range | 20% F.S. | ||||
6 | Stable Time | ≤5 seconds | ||||
7 | Overload Indication | 100% F.S. + 9e | ||||
8 | Max. Safety Load | 125% F.S. | ||||
9 | Ultimate Load | 400% F.S. | ||||
10 | Battery Life | ≥50 hours | ||||
11 | Body Battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 | ||||
12 | Indicator Battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ4 | ||||
13 | Operating Temp. | - 20℃ ~ + 50℃ | ||||
14 | Operating Humidity | ≤85% RH under 20℃ | ||||
15 | Wireless Distance | Min. 80m(default) [200m(optional)] | ||||
16 | Wireless Frequency | 2.4GHz(default),433MHz,868MHz(optional) | ||||
Successful Project
Project in Indonesia
Project in India
Project in Thailand
