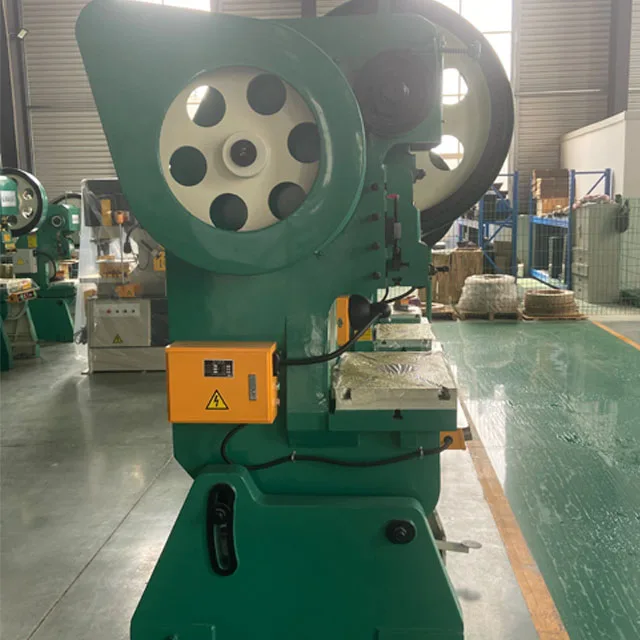

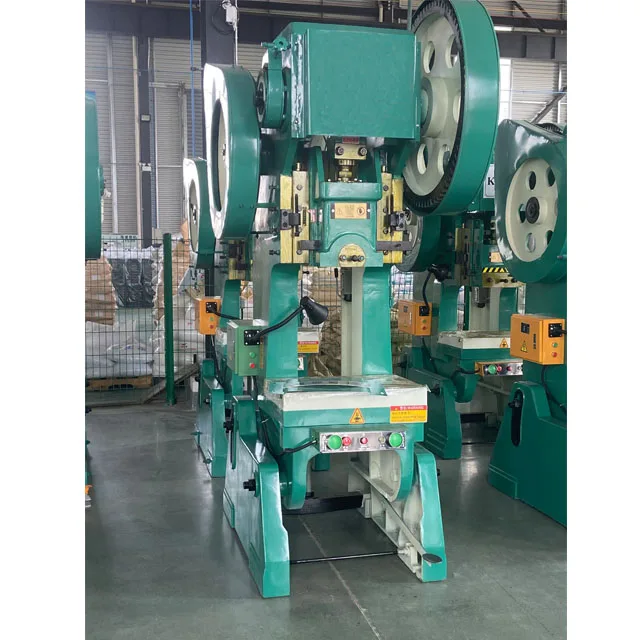

J23 series J23 25 open tilting type press machine
- Category: >>>
- Supplier: Maanshan Runguang CNC Machinery Technology Co. Ltd.
Share on (1600302808639):
Product Overview
Description
Products Description
J23 series open tilting type press machine

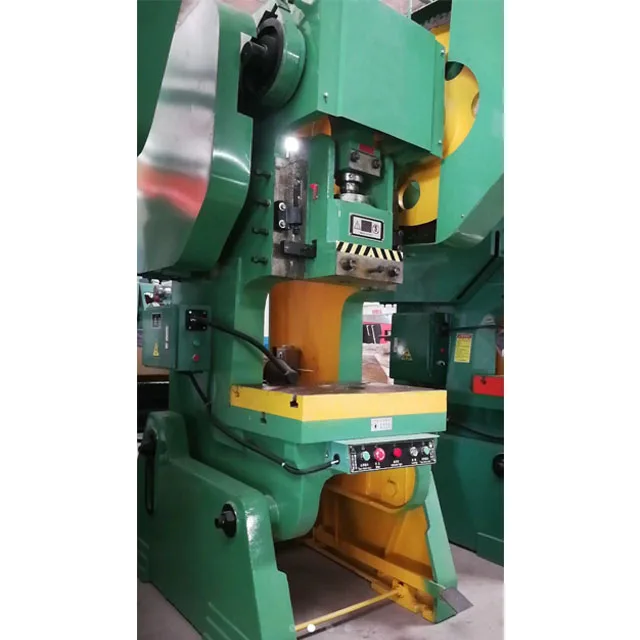

J23-25open tilting type press machine
1:Press can be divided into inclinable press, fixed bench press, deep throat press. Products can be selected according to the size and requirements of the workpiece processed by customers.
2:In the production, the stamping process because of the traditional mechanical processing for saving material and energy, high efficiency, the technical requirements for the operator is not high and through a variety of die application can make mechanical processing can not achieve the product these advantages, so it is used more and more widely.
3:Stamping production is mainly for the plate. Through the die, can make blanking, punching, forming, drawing, dressing, fine punching, shaping, extrusion and so on, widely used in various fields.
Details Images

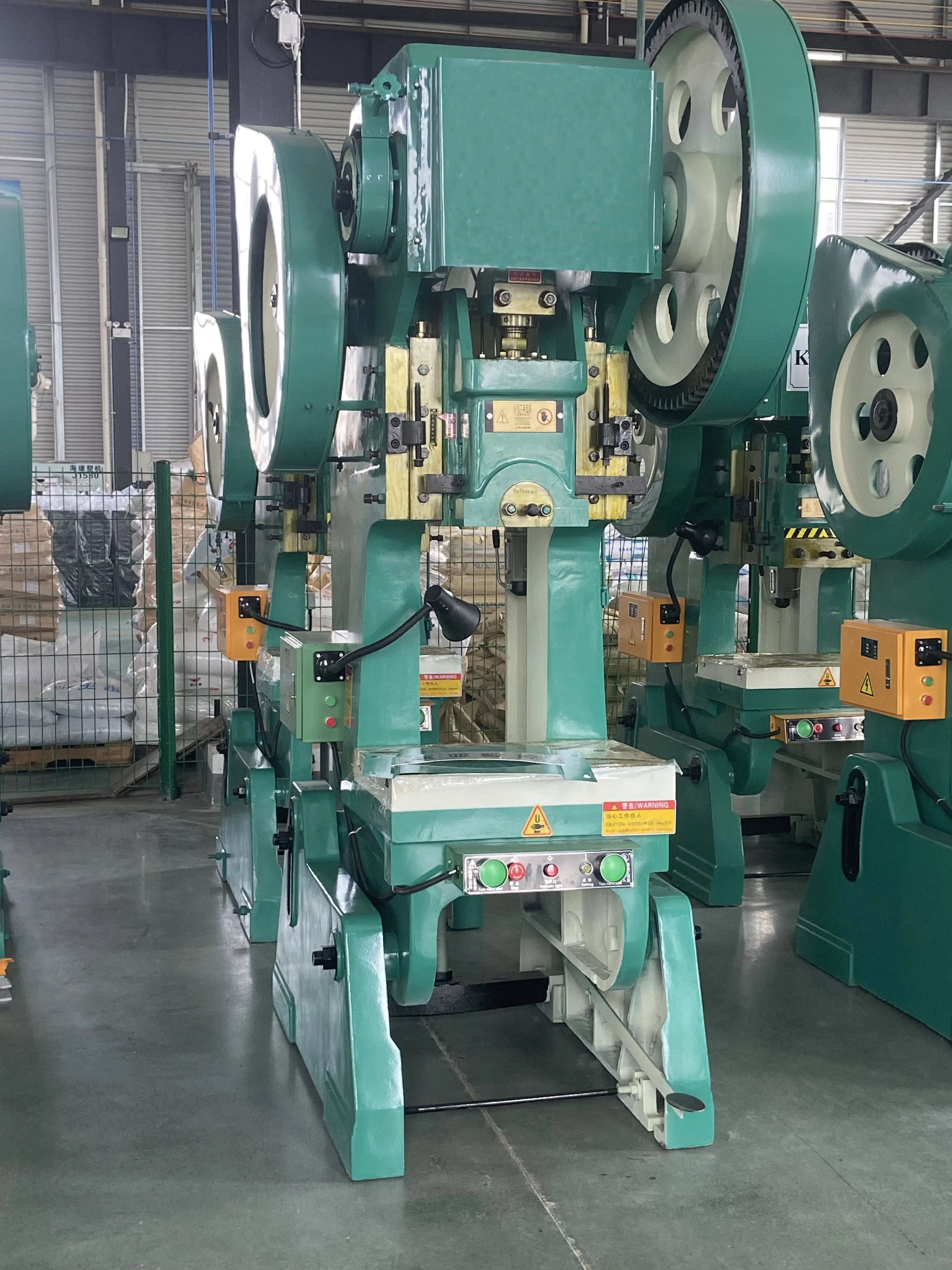

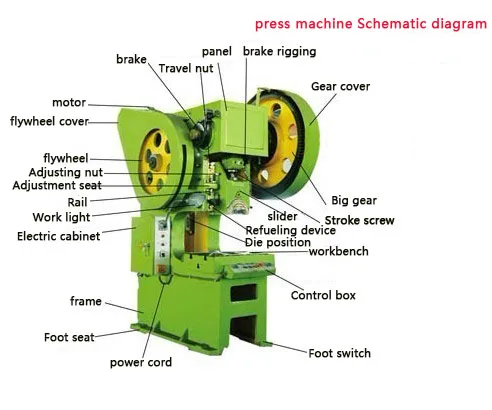

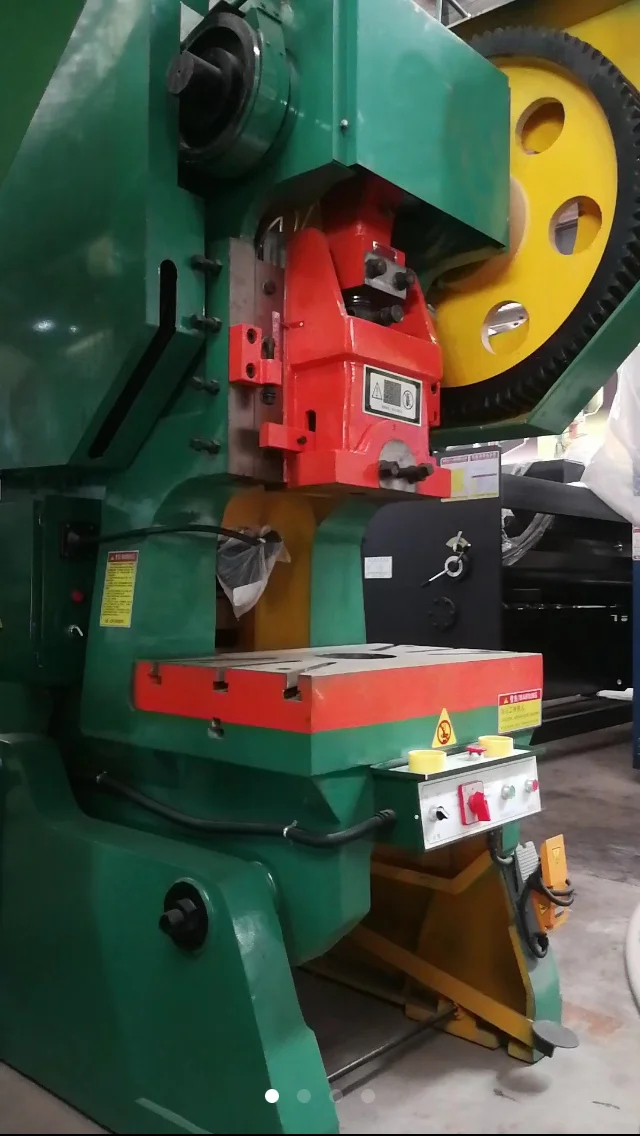

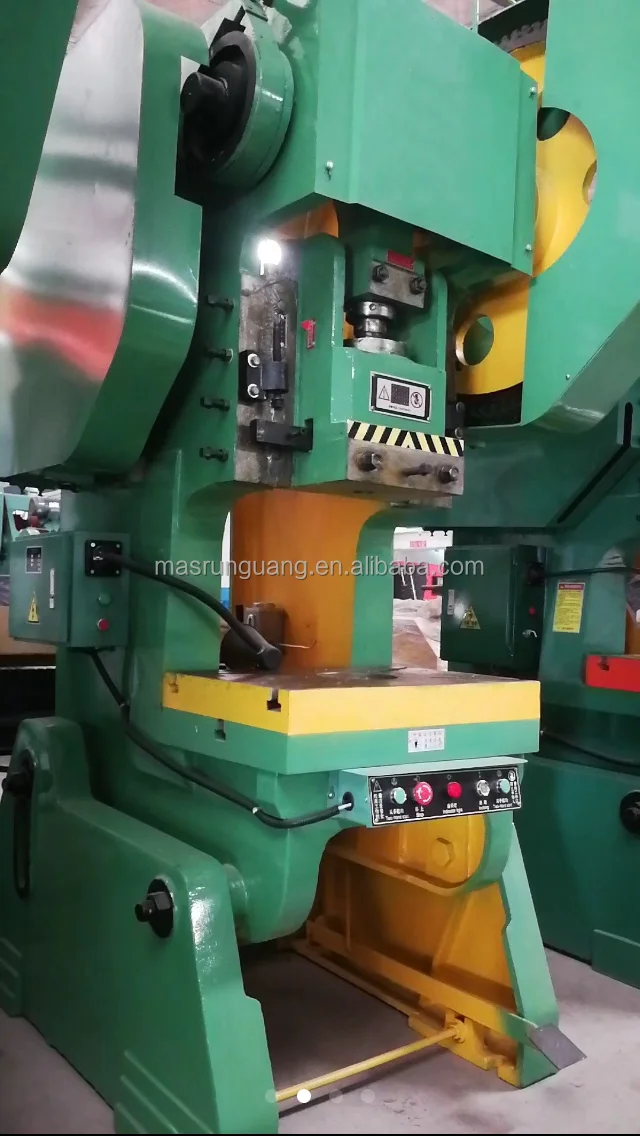

press machine
Are of good quality
Stable quality, good interchangeability, quality assurance
widely used in various fields.
Stamping production is mainly for the plate. Through the die, can make blanking, punching, forming, drawing, dressing, fine punching, shaping, extrusion and so on, widely used in various fields.
Stable performance
The fuselage adopts casting structure, stable performance
Good rigidity
Heavy body, high strength, long service life
Product Paramenters
Unit | J23-25 | |||||||
1 | Nominal pressure | KN | 250 | |||||
2 | Nomnal pesure sroke | mm | 5 | |||||
3 | Slipper stroke | mm | 70 | |||||
4 | Slipper stroke times | min-1 | 70 | |||||
5 | Max closing height | mm | 200 | |||||
6 | Connecting rod adjuster | mm | 40 | |||||
7 | Distance between slipper centre and machine | mm | 180 | |||||
8 | Work bench dimension | Front&back | mm | 320 | ||||
Left&right | mm | 525 | ||||||
9 | Diameter of blank-holding hole | Front&back | mm | 160 | ||||
Left&right | mm | 220 | ||||||
Diameter | mm | 200 | ||||||
10 | Slipper underside bore | Front&back | mm | 170 | ||||
Left&right | mm | 230 | ||||||
11 | Size of die handle bore | Diameter | mm | 40 | ||||
Depth | mm | 60 | ||||||
12 | Pole Distance | mm | 240 | |||||
13 | Workbench distance | mm | 280 | |||||
14 | Thickness of spacer | mm | 50 | |||||
15 | Angle of inclina tion | ° | 20 | |||||
16 | Motor Power | Power | KW | 2.2 | ||||
Round speed | min﹣1 | 1440 | ||||||
17 | Dimension | Front&back | mm | 1200 | ||||
Left&right | mm | 900 | ||||||
Height | mm | 2050 | ||||||
The above date is juso for gour reference, if there is ang disaccord please refer to actual adate. | ||||||||
Why Choose Us

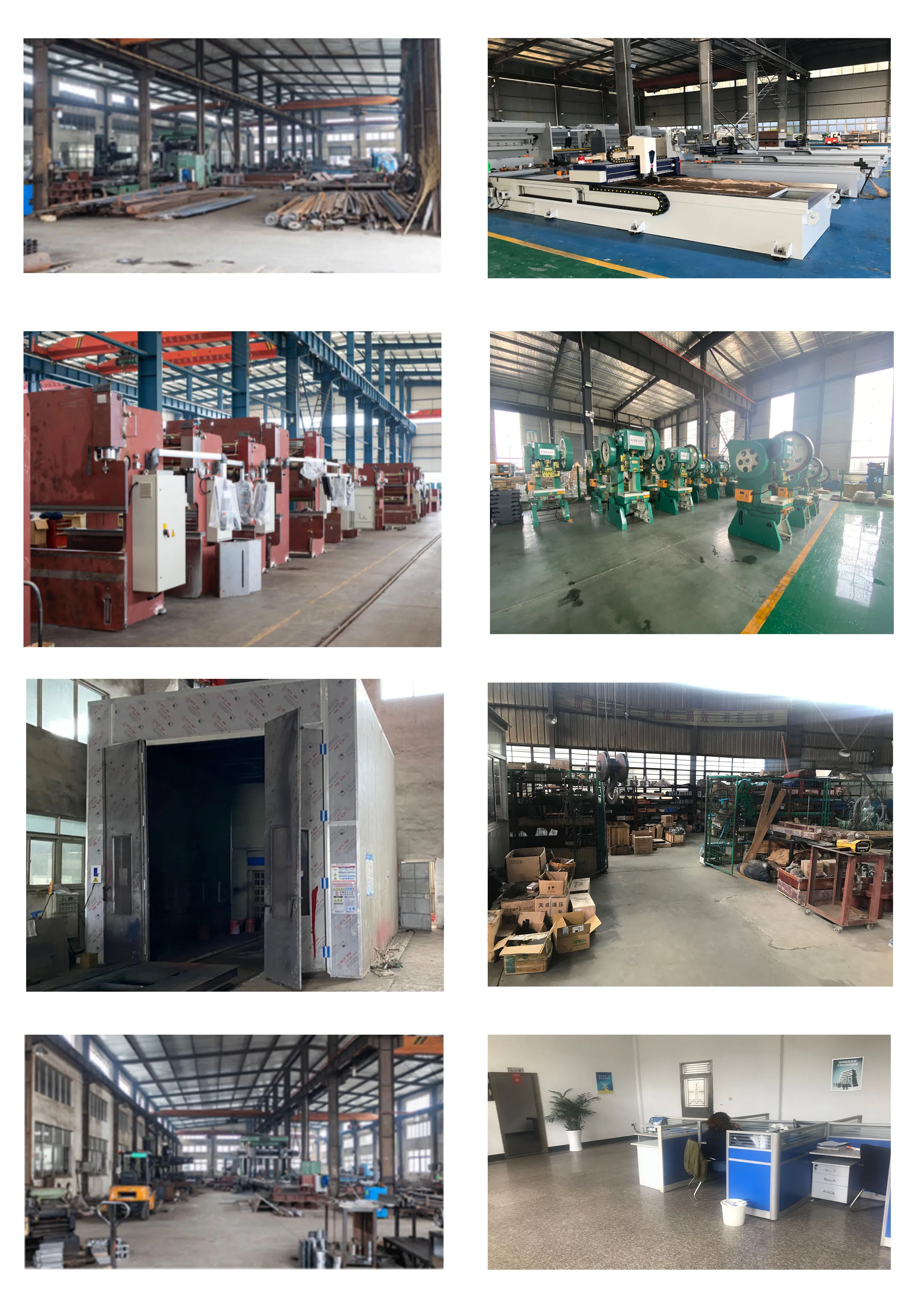

Company Profile
Product packaging

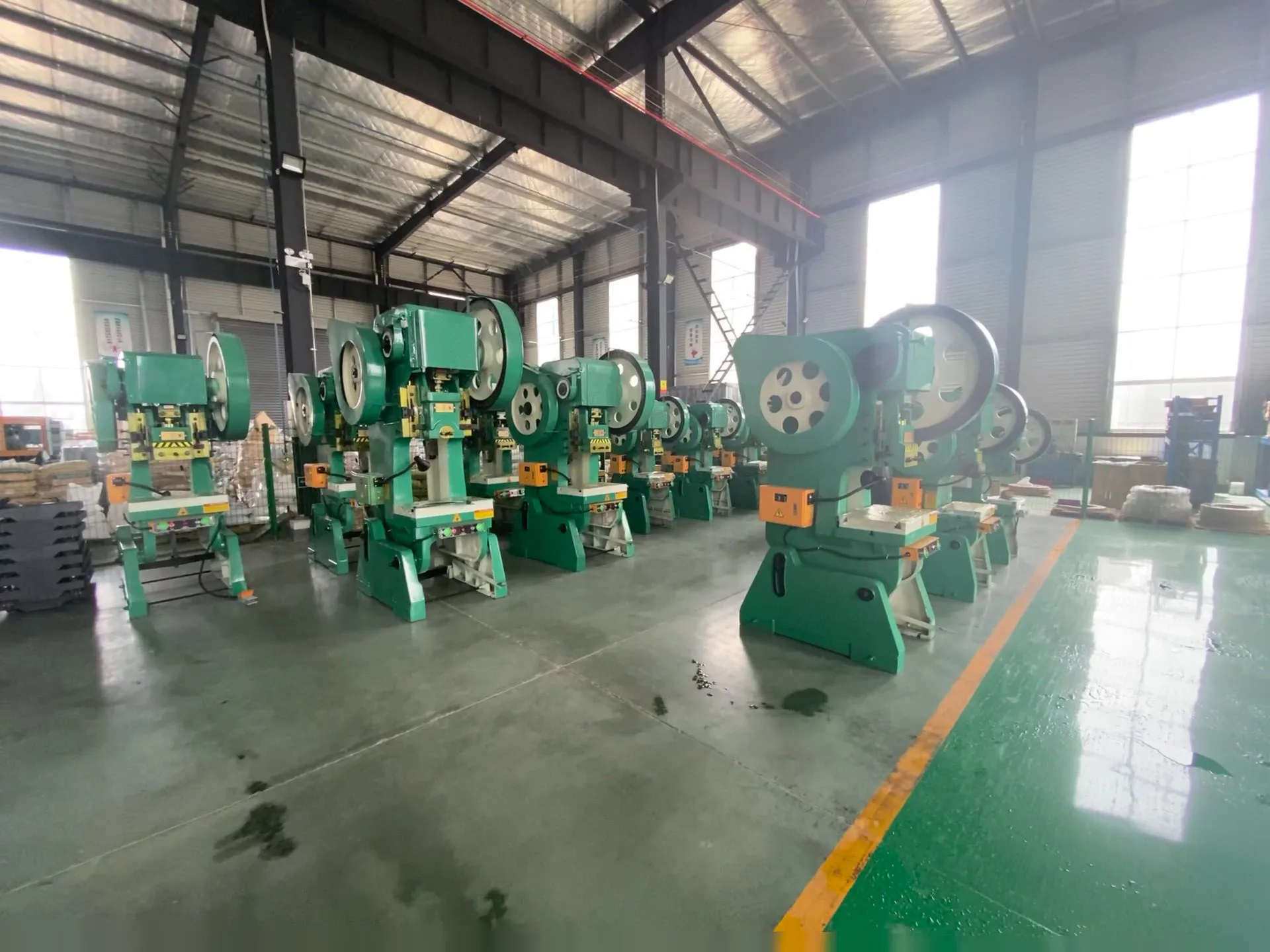

Customer Photos
