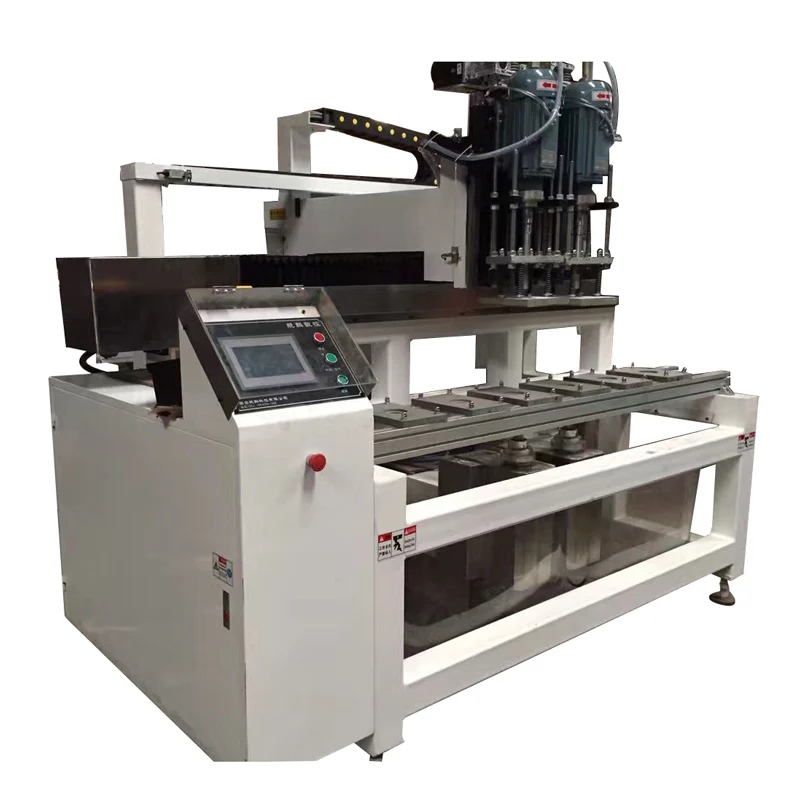

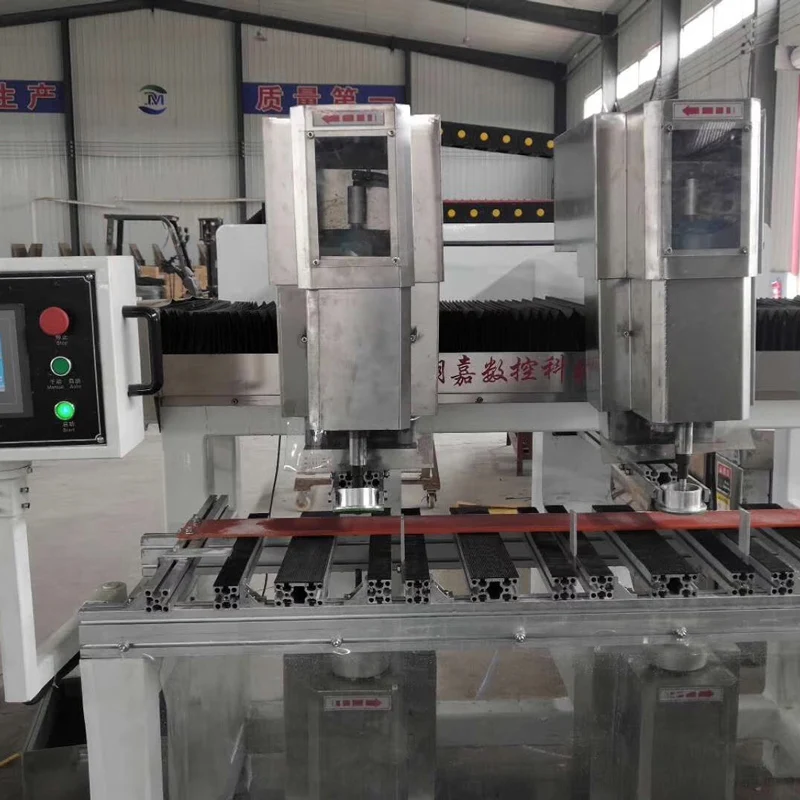

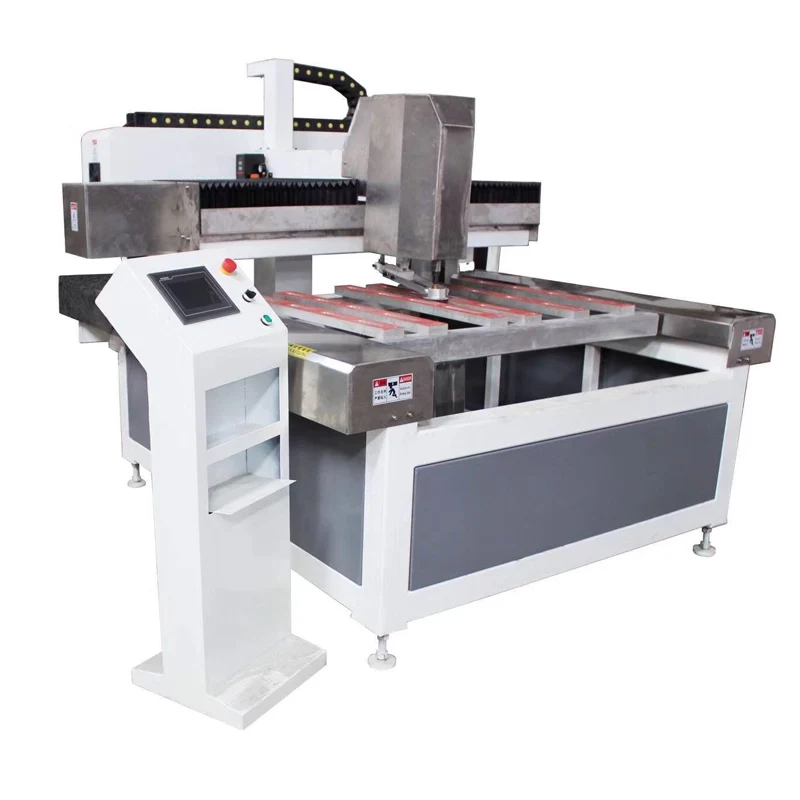

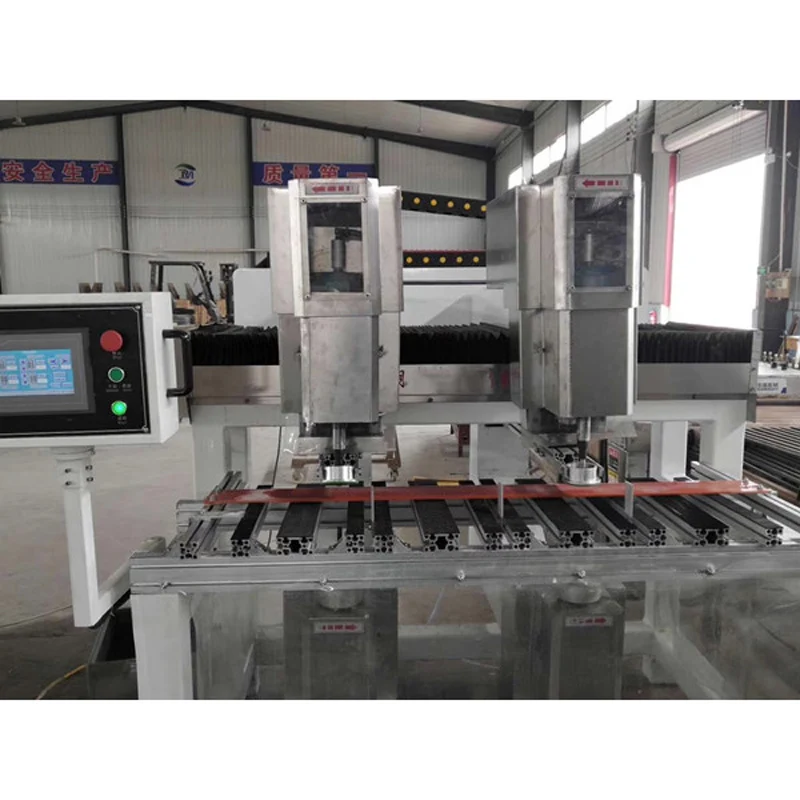

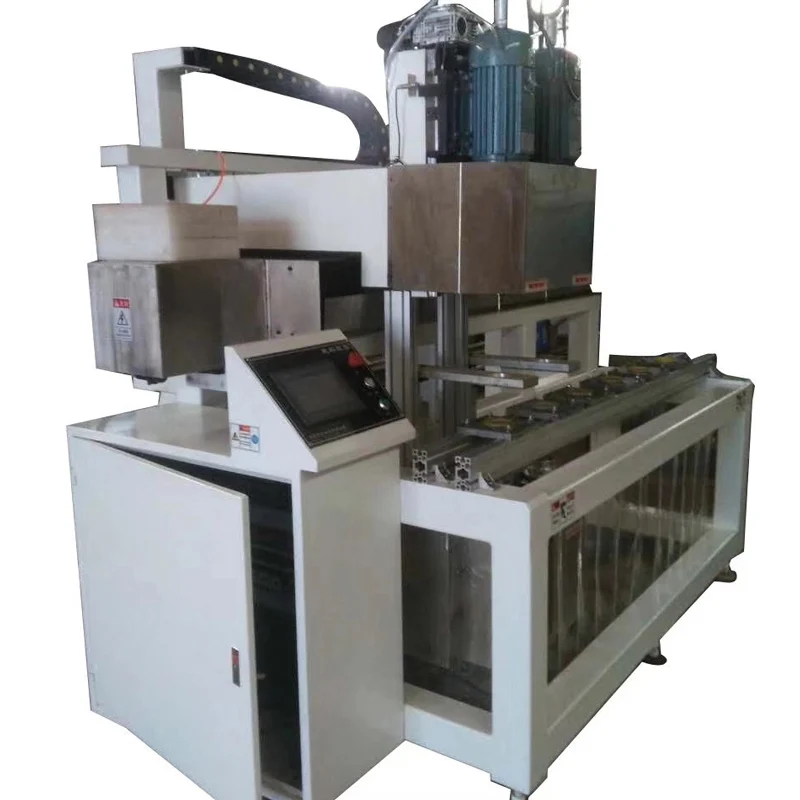

All export products high quality automatic vertical digital table glass drilling machine

Product Overview

Description





Working way:
First enter the circular data of the product to be processed into the program, then place the product to be processed on the drilling platform surface, align the positioning points on both sides of the table surface, press the pneumatic button, and the device automatically moves the drill pipe position according to the program and completes the drilling Then the glass is manually removed, and two pieces of glass can be placed on the work surface, and the two pieces of glass are processed alternately.



Wire body design and manufacturing standards:
The production process runs smoothly, the structure is firm and reliable, and no abnormal phenomena appear.
Each wire body is installed firmly and straight, and the purchased parts maintain the original color. The steel is painted after derusting and degreasing. The whole body is beautiful and generous. The paint surface is smooth and smooth. The machined parts of the whole machine except the paint are blackened or galvanized. The stainless steel parts are not surface treated.



Air line standard:
The wire inlet is equipped with oil-water separator, pressure regulating valve and system pressure gauge device
Reliable pneumatic components, no air leakage in pipes and joints, and painted arrows indicating the direction of medium flow.
Pneumatic control valves are arranged in valve terminals, and different colors of PU air pipes are used to connect the cylinders and mark the pipe numbers.



Specifications:



Model	ZYCJ1-40 automatic glass drilling machine
Drilling diameter	5-60mm
Glass thickness	3-19mm
Drilling stroke	X-axis:1100mm,Y-axis:750mm
Platform height	900mm
Maximum one batch quantity	20 pcs
Drilling speed	≤7-10s
Drilling accuracy	≤±0.13mm
Maiximum glass size	800*1200mm
Power	6KW
Weight	1000kg
Dimension	2100*2400*1950mm
Drilling method	First upper hole,then down hole
Driving	Servo motor(X axis and Y axis)
Controlling	PLC(INOVANCE)
Touch screen	KUNLUNTONGTAI
Serve motor	HECHUAN
Guide screw	TBL
Pneumatic component	SEUN DONGTAI

Payment terms:

1.LC at sight;

2.TT(30% in advance,the balance before delivery)



Trade terms:
EXW or FOB or others by request.

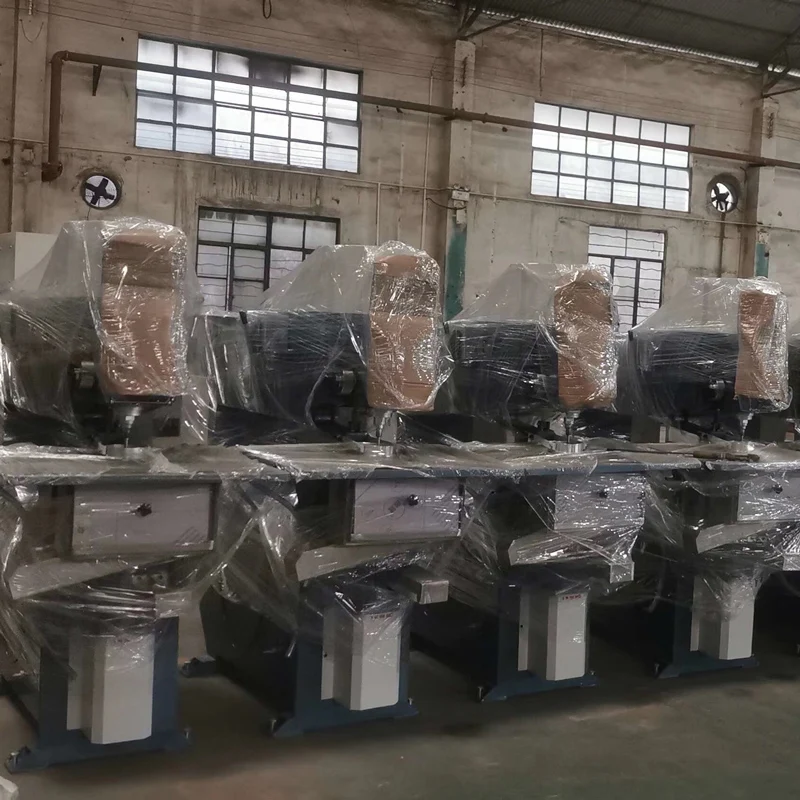

Package:
Wooden box



Delivery:
Regular standard items delivery will be 10 days after deposit;
Customized items delivery will be depended on negotiation.



After-service:
7*24 hotline:+8615866605088;
Video solutions;
Technicians provided.



Guarantee:
12 months guarantee after items recieved,damaged parts changed for free within one year;
Service provided for whole servcie life,just pay the parts cost;
