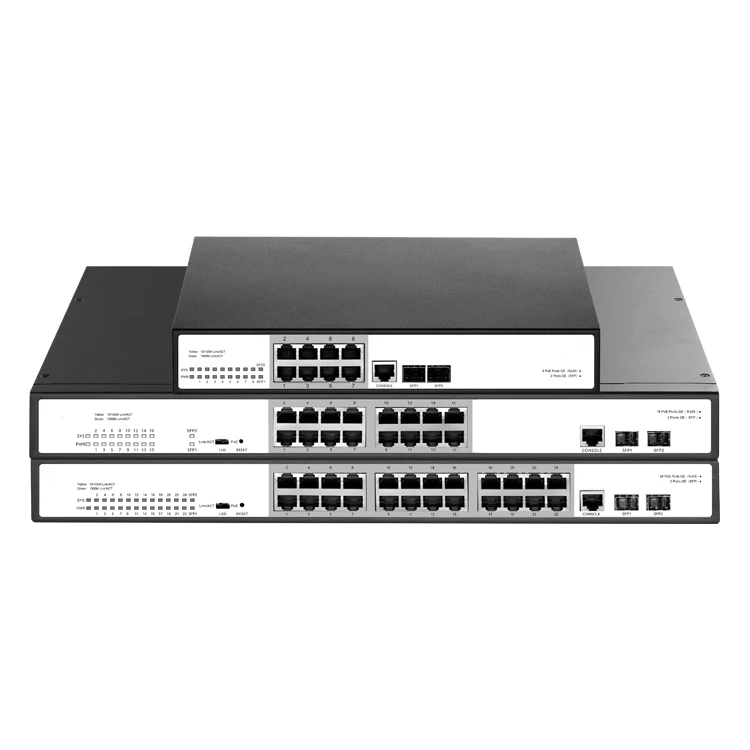

The P3000M series PoE Switches are Pure gigabit managed , 8/16/24-port Gigabit high power (IEEE 802.3at), utilizing a compact factor which can be mounted in a 19-inch rack with rack-mounting kits or placed on desktop.
With data and power supported by one unit, the Switches shall reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. Auto PoE detection and Plug and play installation makes Gigabit PoE Switch easy to use and with clear LED indicators to tell the working condition.
Features
P3010M-8POE-150W: Max Output Power: 150W, supports at most 8* 802.3af-compliant powered devices(power/port: 15.4W) or 4*802.3at-compliant
powered devices(power/port:30W);
P3018M-16POE-300W-V4: Max Output Power: 300W, supports at most 16* 802.3af-compliant powered devices(power/port: 15.4W) or
9*802.3at-compliant powered devices(power/port:30W);

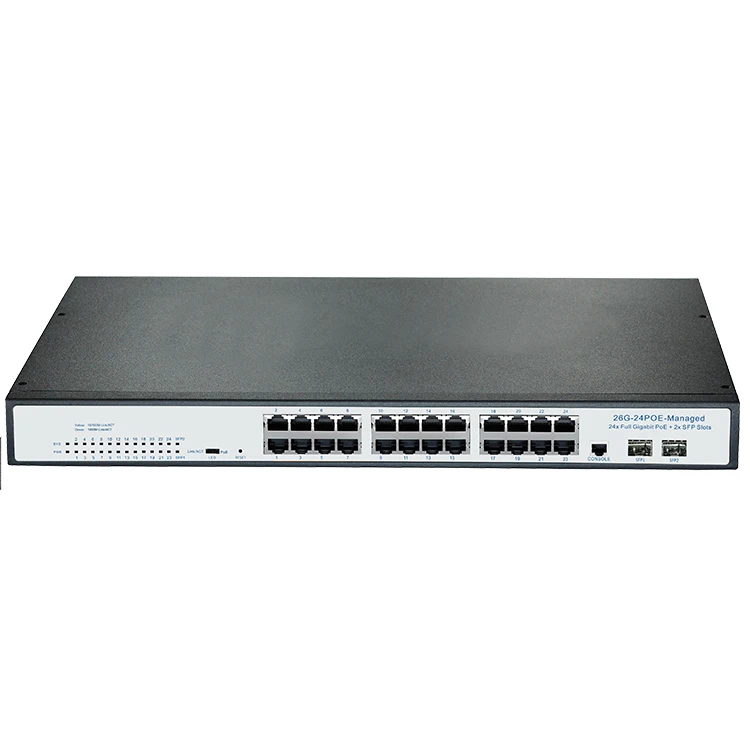

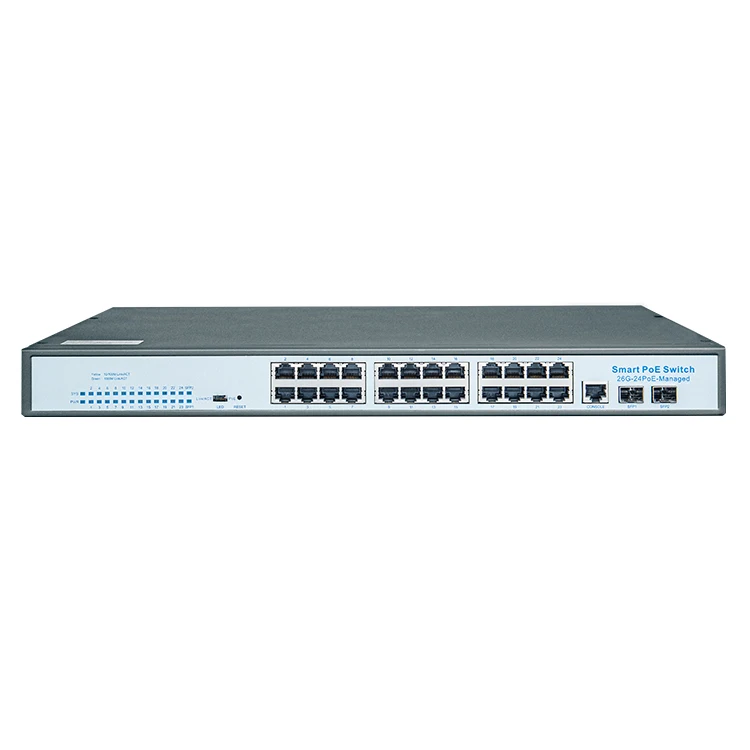

P3026M-24POE-450W-V4: Max Output Power: 450W, supports at most 24* 802.3af-compliant powered devices(power/port: 15.4W) or
14*802.3at-compliant powered devices(power/port:30W);
Switches can provide -48V DC power for powered devices (PDs), such as IP Phones, WLAN APs, and Bluetooth APs.
Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W), can supply power to PDs under these two standards;
Transmitting electronic power together with data through a single network cable, free of power lines;
Automatically detect and supply power to IEEE802.3at and IEEE 802.3af compliant powered devices(PDs);
Advanced SAFC function, only supply power to IEEE 802.3af/at compliant PDs, no worry about damaging other private standard PoE devices or devices
without PoE function;
Support port power supply prioritization, guarantee the continuous power supply of key nodes;
Up to 100m network cable transmitting distance, support flexible network expansion without power line deployment concerns. Users can freely fix their
wireless APs, IP cameras or other end devices on the wall or ceiling;
Built-in PSE power supply module, plug-and play design, easy to install;
High security performance defending against power surge;
Support short-circuit protection function, the switch will automatically start short-circuit function and cut off the power supply when there is high-current or other power failures, which can efficiently defend against device damage or network failures caused by line fault or wrong installation;
Energy-saving green design, support auto-switch to standby mode and auto-detect cable length. It will stay in standby mode and save the power when the port is disconnected , or provide a lower transmission power when the network cable is less than 10m;
Support CLI Management ,SNMP Management, simple WEB management, easy to configure the functions of switches.
It can be Centralized Managed by the TG Cloud Box .
PoE schedule to save power.
Intelligentrestart, schedule reset per PoE Port to maintain your IP Cameras,APs and other devices.
