Unique products to buy cooling type electromagnetic iron remove device

Product Overview

Description



Product Description:

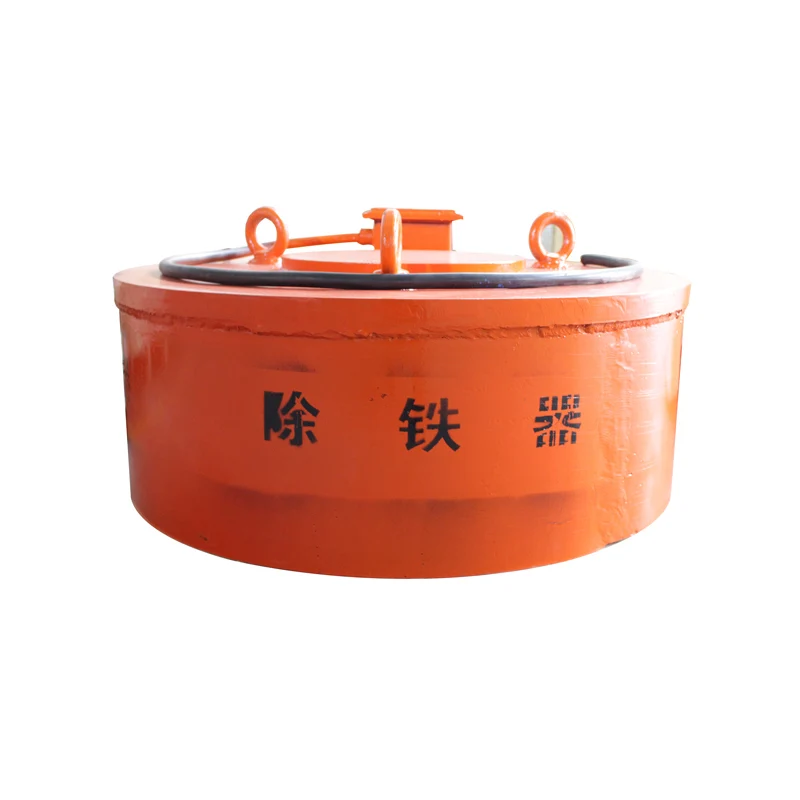

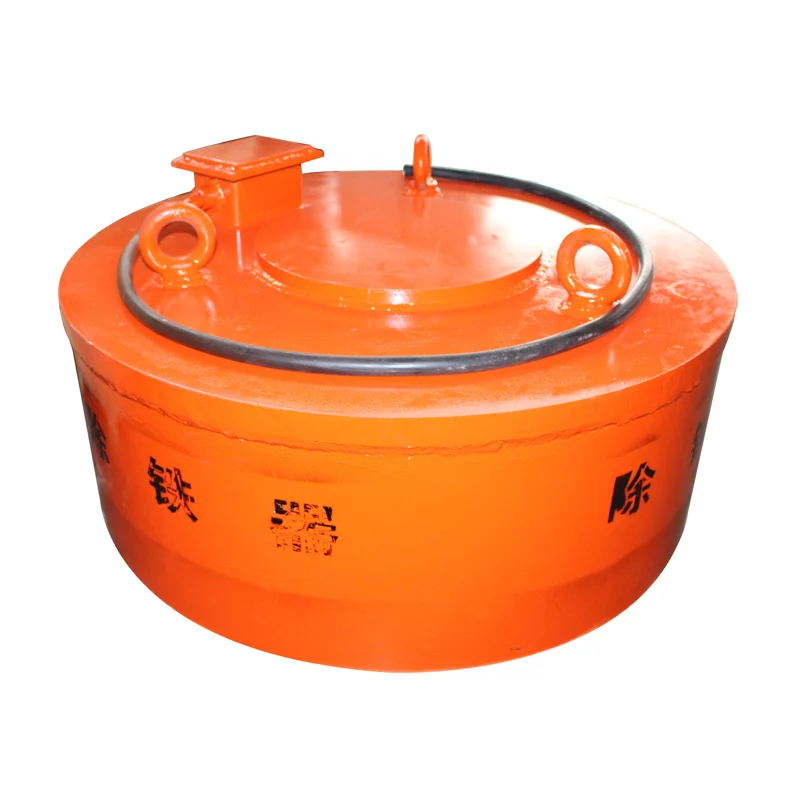

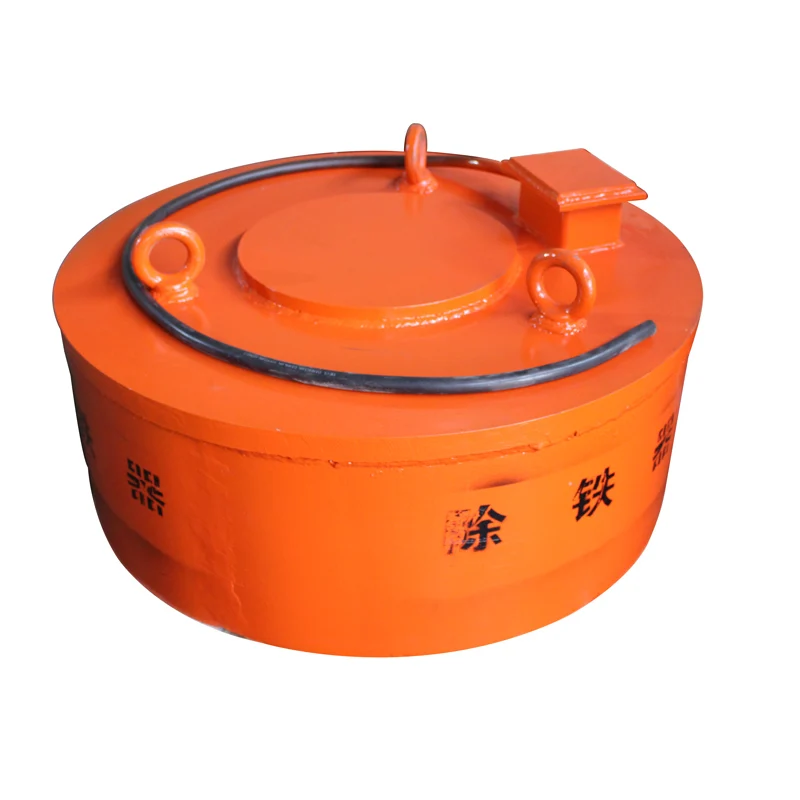

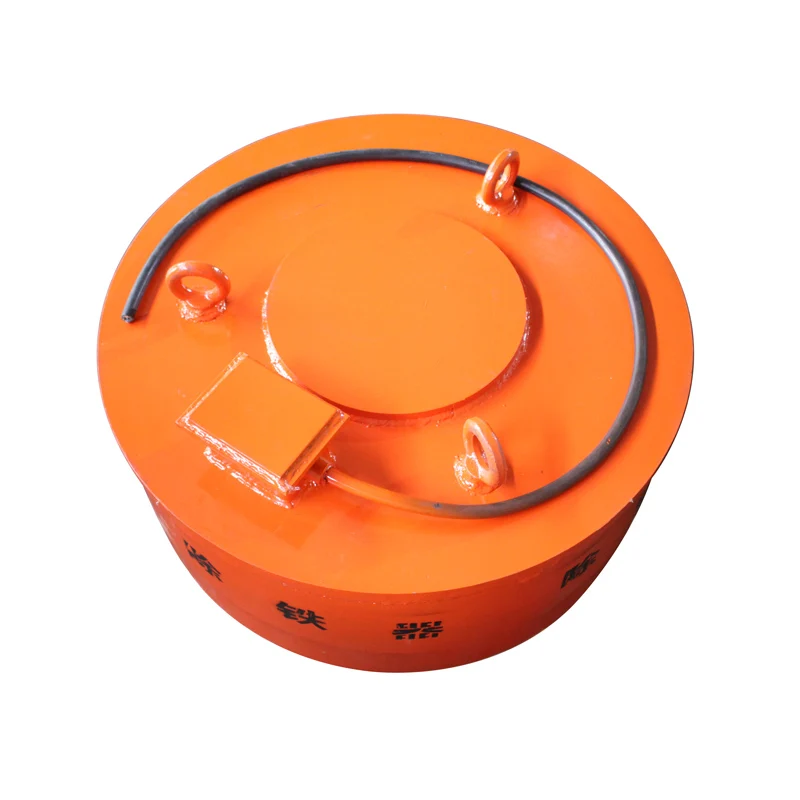

The application of RCDB nature cooling type electromagnetic iron remover is equivalent to PDC series disk type electromagnetic iron remover and RCDY series electromagnetic iron remover. They are both the iron removing device for removing impurity iron in powder or block non-magnetic materials. The inner part of the machine is made of special resin for electrical engineering, self cooling and full sealing structure. It has the characteristics of deep magnetic permeability, strong suction, dust-proof, rain proof, corrosion-resistant, etc. It can still operate reliably in extremely harsh environment.

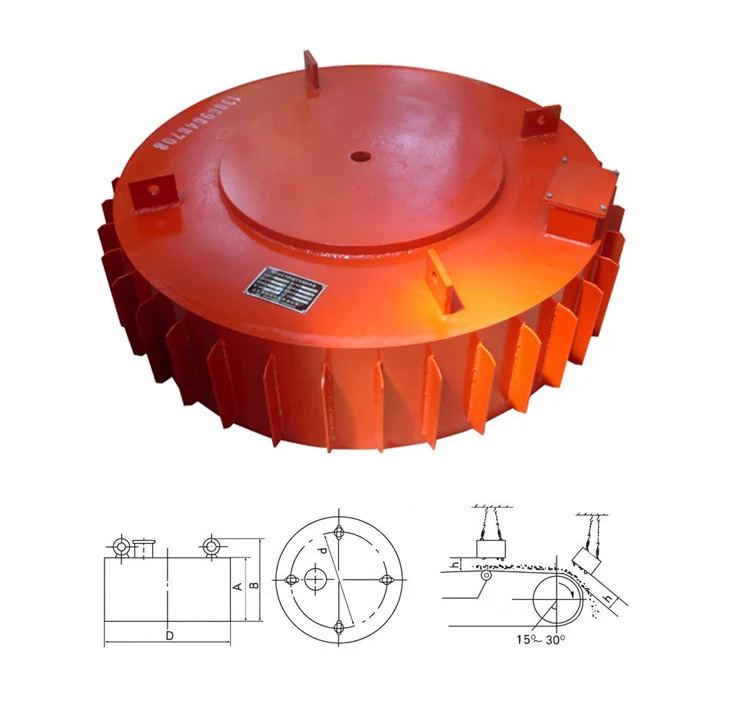

Model	Belt width(mm)	Rated hoisting height(mm)	Magnetic intensity(mT)	Materials Thickness(≤mm)	Excitation power(≤kw)	Belt speed(≤m/s)	Weight(kg)	Dimensions(mm)
								A	B	DΦ	dΦ
RCDB-3	300	75	70	50	0.4	4.5	185	210	250	400	280
RCDB-4	400	100	70	70	0.6	4.5	300	240	280	500	400
RCDB-5	500	150	70	90	1	4.5	430	280	325	610	450
RCDB-6	600	175	70	120	1.6	4.5	580	280	325	710	500
RCDB-6.5	650	200	70	150	2	4.5	680	280	325	816	640
RCDB-8	800	250	70	200	3.6	4.5	950	310	355	960	780
RCDB-10	1000	300	70	250	5	4.5	1520	310	360	1200	920
RCDB-12	1200	350	70	300	6.8	4.5	2250	310	365	1400	1000
RCDB-14	1400	400	70	350	9	4.5	2950	405	485	1650	1400
RCDB-16	1600	450	70	400	13	4.5	4800	460	540	1900	1650
RCDB-18	1800	500	70	450	18	4.5	6900	530	610	2150	1800
Note: Other specifications can be customized ,please call for further information.
