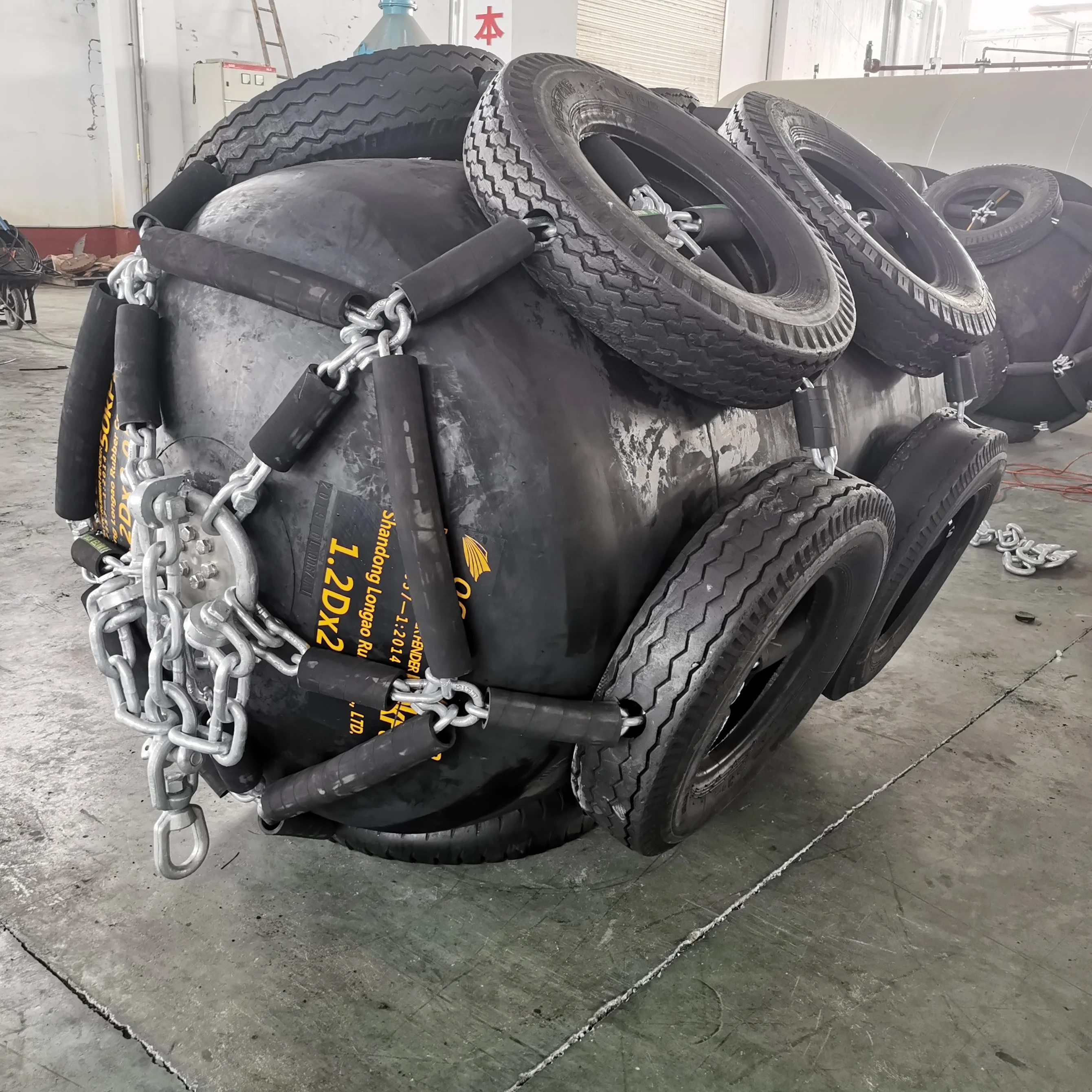

BV сертифицированный пневматический резиновый брызговик, морской брызговик yokohama
- Category: >>>
- Supplier: Shandong Longao Rubber Co. Ltd.
Share on (1600303208596):
Product Overview
Description
Pneumatic rubber fender

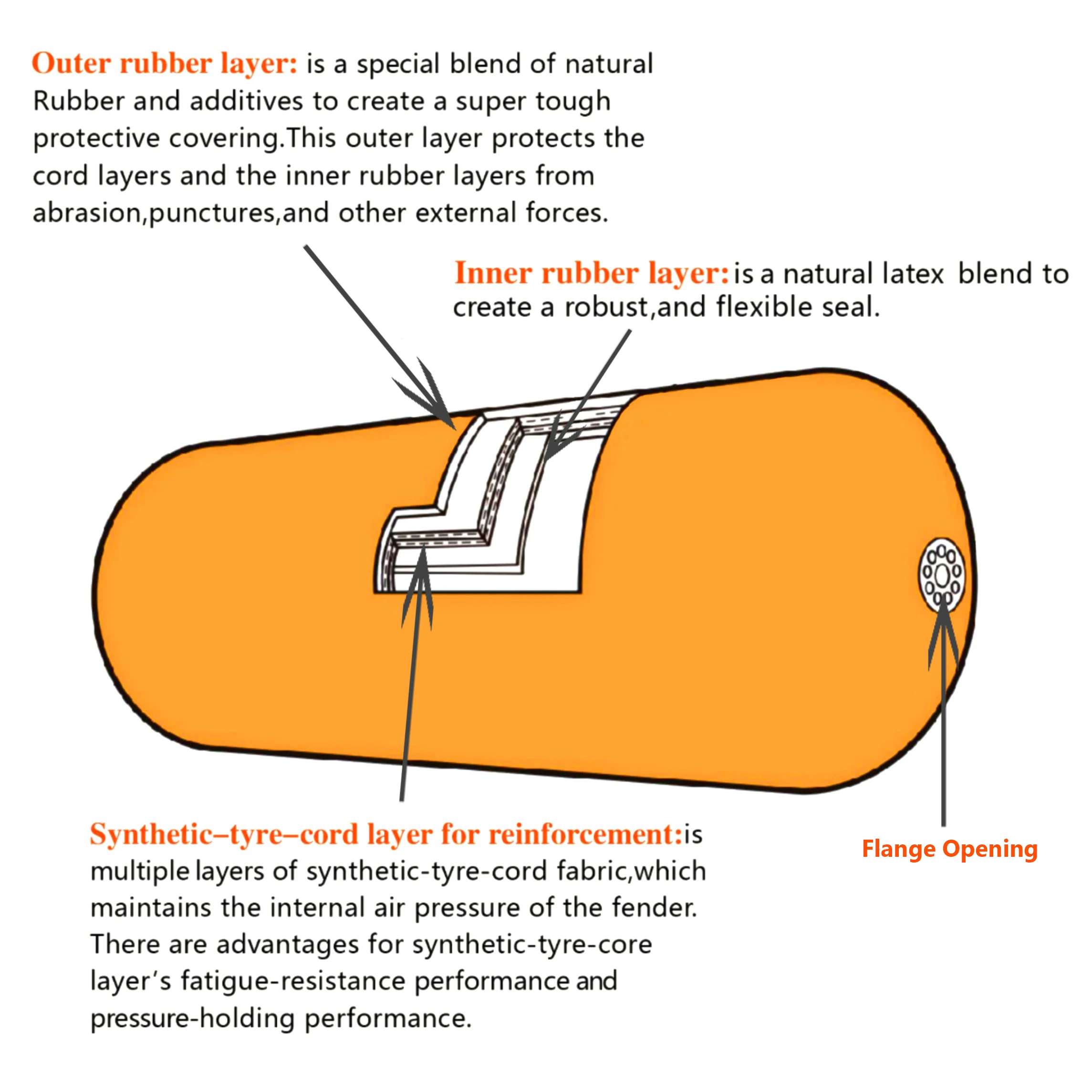

Marine fender which is made of synthetic-cord-reinforced rubber sheet with compressed air inside, at initial pressure of 50 kPa or 80 kPa, to enable it to float on the water and work as a shock absorber between two ships, or between ships and berthing structures when they come alongside each other on the water.

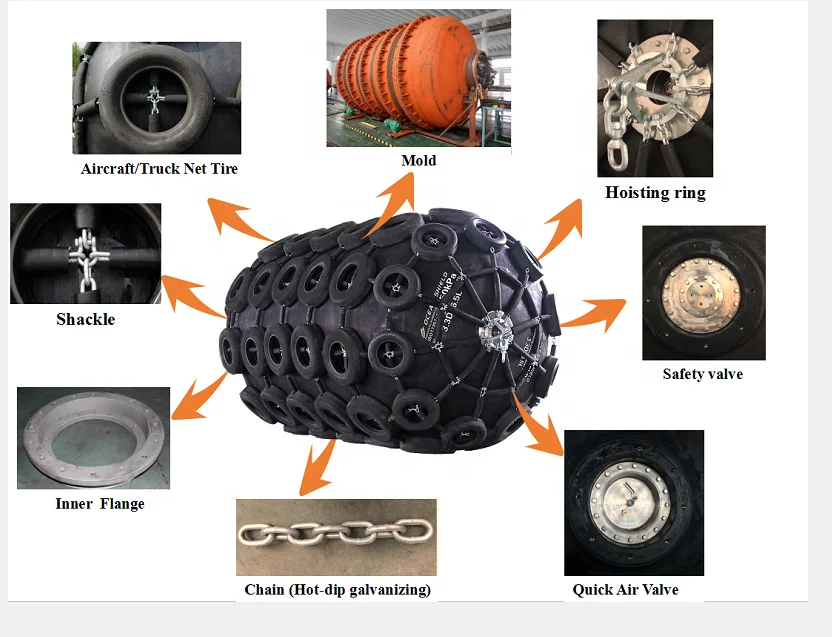

DETAILS
TYPE

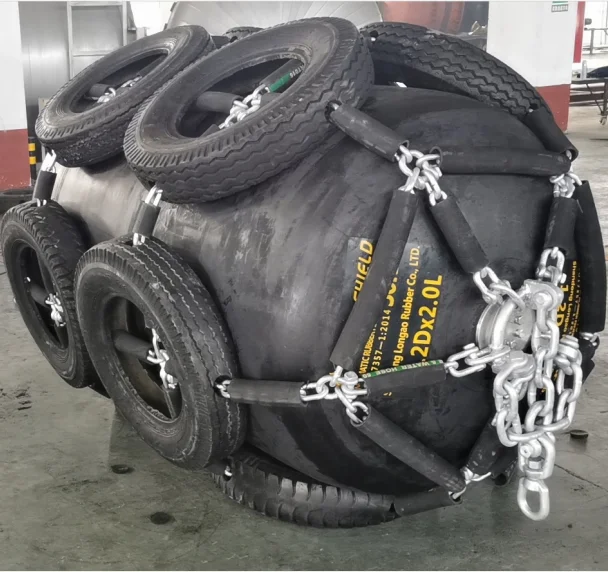

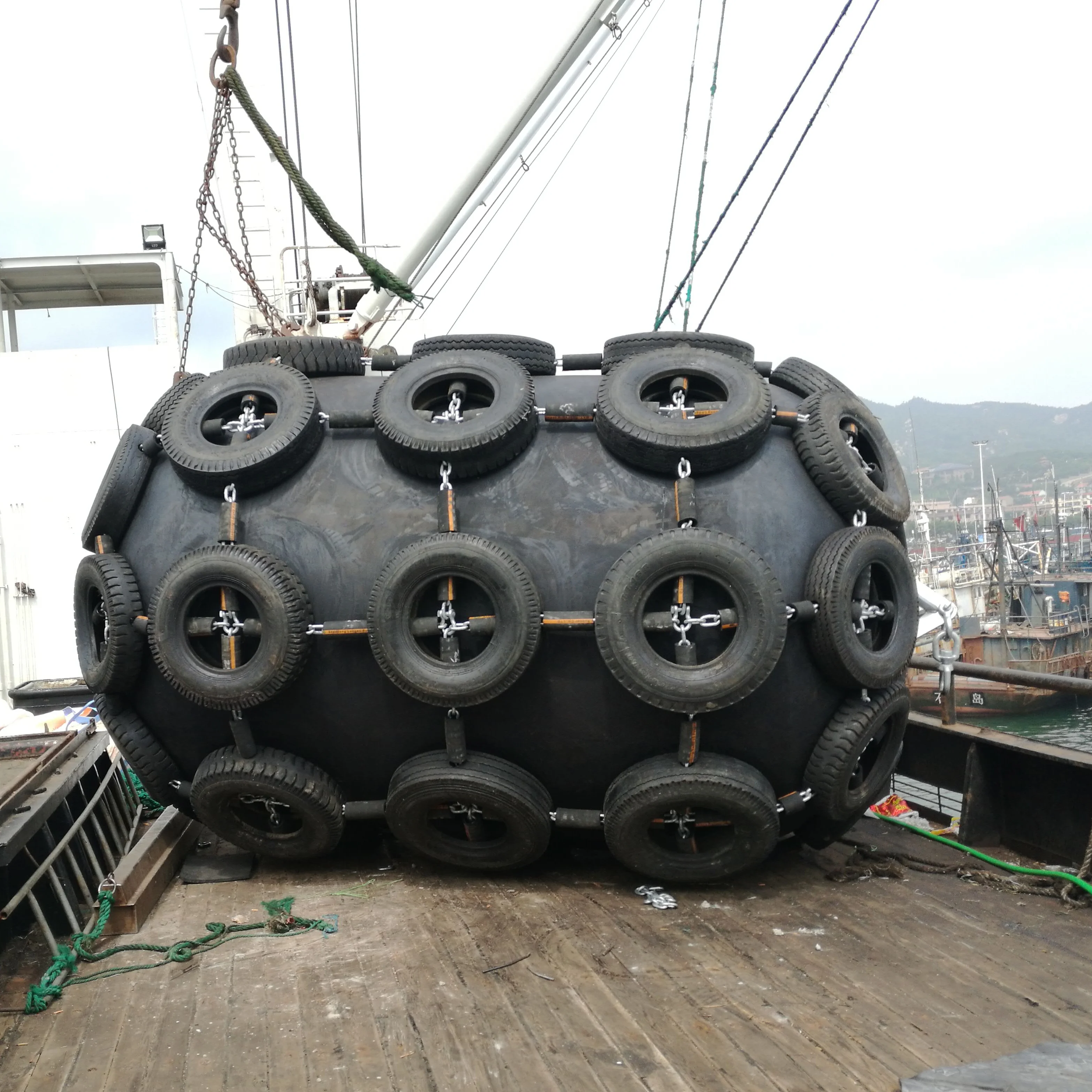

sling-type fender

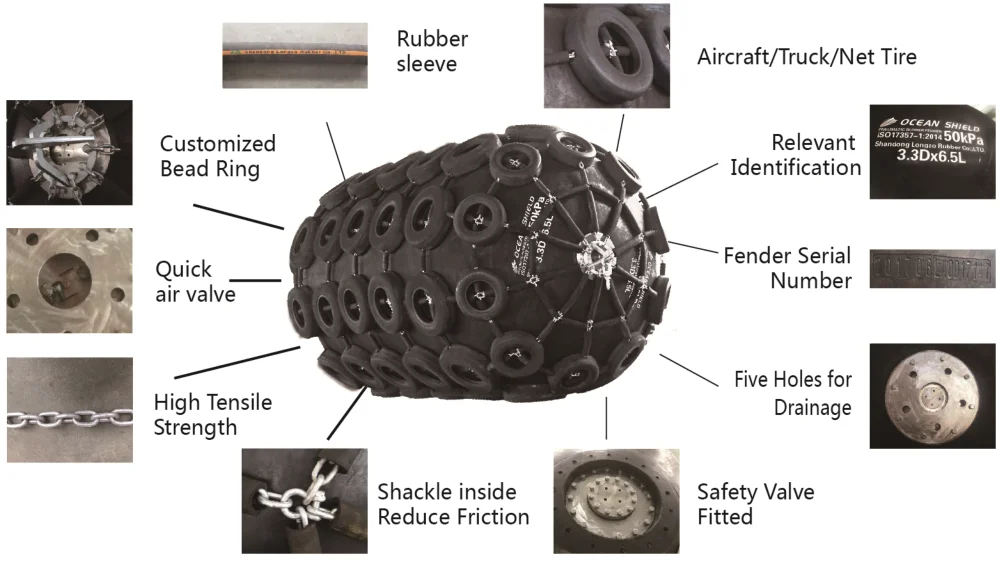

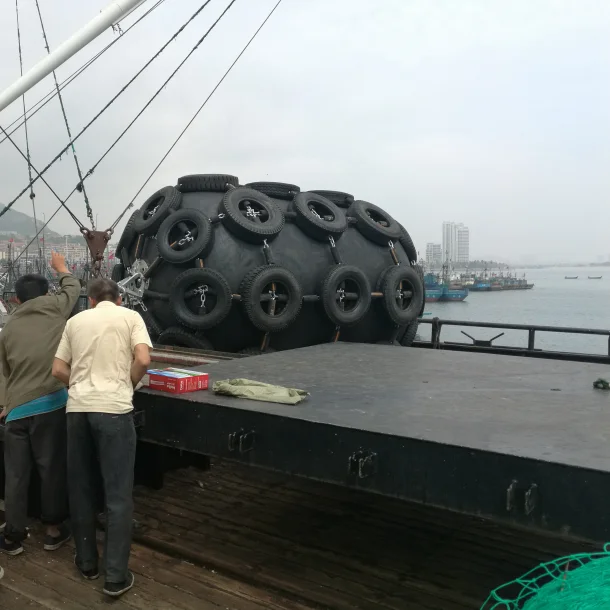

Net-type fender

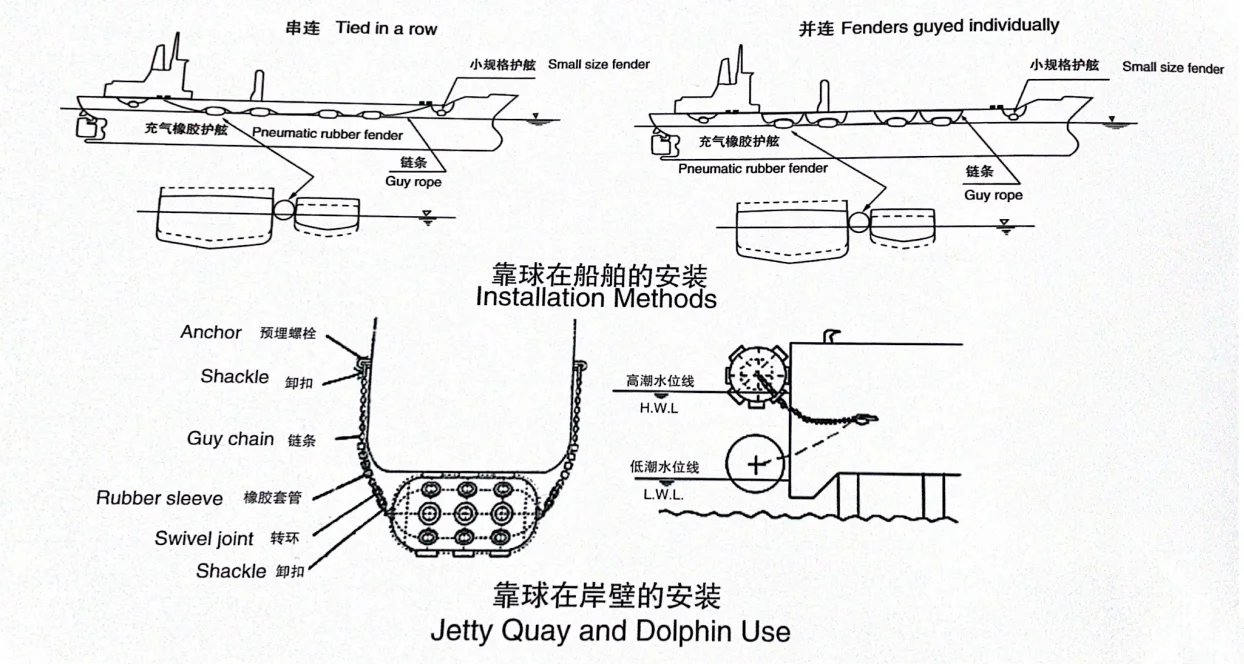

INATALLATION

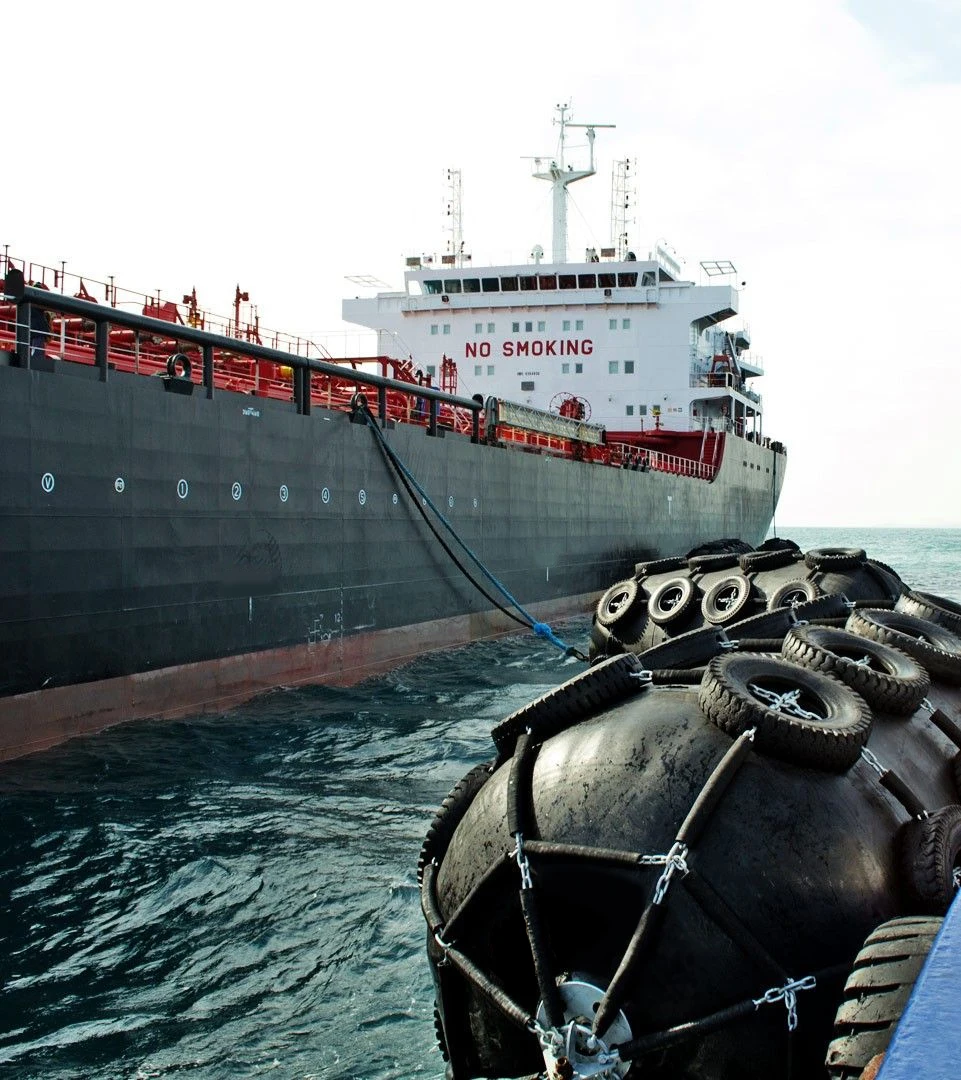

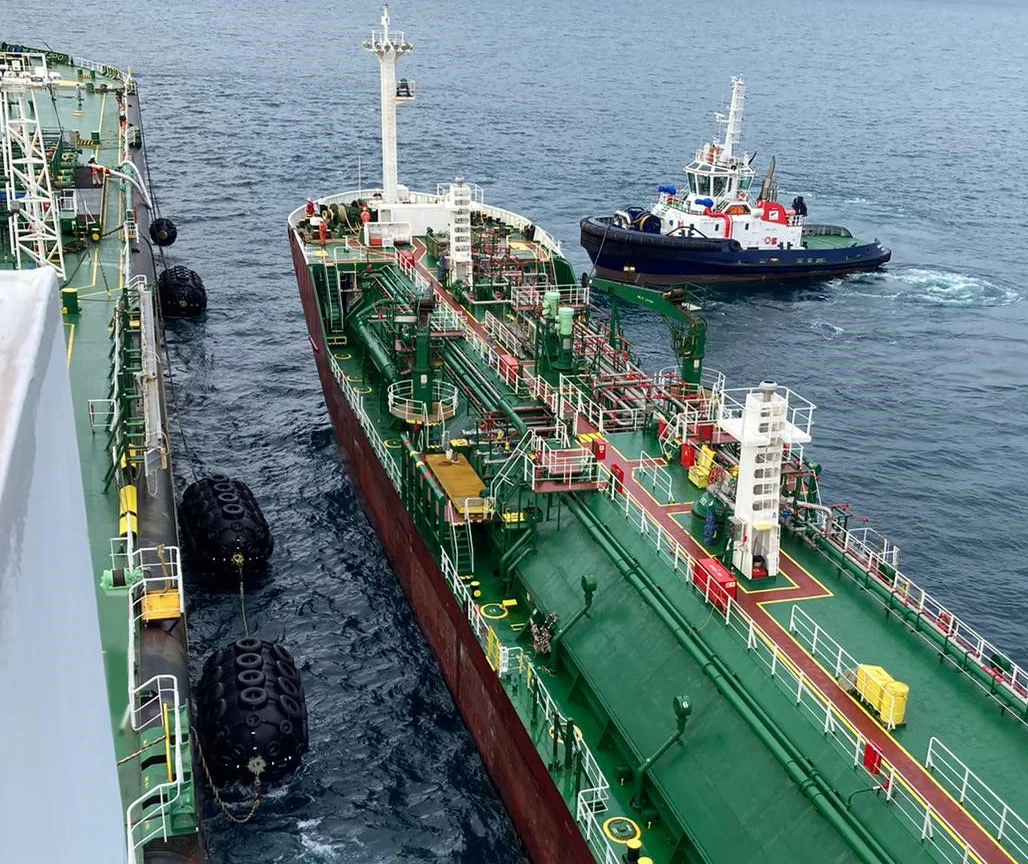

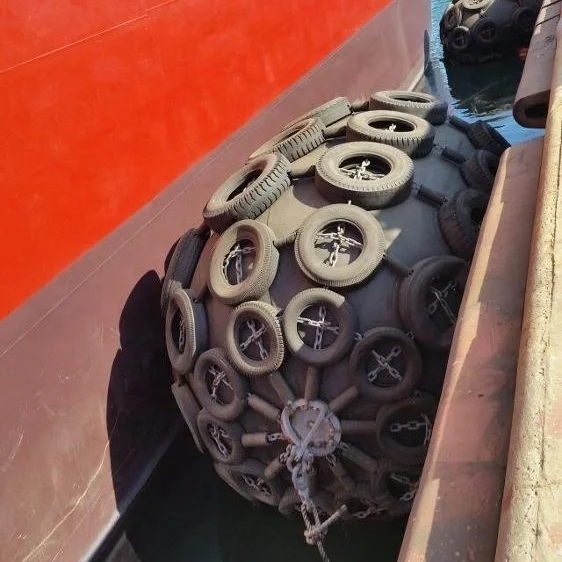

CASES
SPECIFICATIONS
Specification | Initial Pneumatic pressure 0.05Mpa | Initial Pneumatic pressure 0.08Mpa | ||||||||||
D(mm) | L(mm) | R(KN) | GEA(KJ) | Sphere-weight | R(KN) | GEA(KJ) | Sphere-weight | |||||
500 | 1000 | 64 | 6 | 36 | 85 | 8 | 40 | |||||
600 | 1000 | 74 | 8 | 42 | 98 | 11 | 47 | |||||
700 | 1500 | 137 | 17 | 70 | 180 | 24 | 79 | |||||
1000 | 1500 | 182 | 32 | 100 | 239 | 45 | 127 | |||||
1000 | 2000 | 257 | 45 | 145 | 338 | 63 | 175 | |||||
1200 | 2000 | 297 | 63 | 185 | 390 | 88 | 218 | |||||
1350 | 2500 | 427 | 102 | 270 | 561 | 142 | 314 | |||||
1500 | 3000 | 579 | 153 | 380 | 761 | 214 | 403 | |||||
1700 | 3000 | 639 | 191 | 470 | 840 | 267 | 512 | |||||
2000 | 3500 | 875 | 308 | 700 | 1150 | 430 | 670 | |||||
2500 | 4000 | 1381 | 663 | 1190 | 1815 | 925 | 1273 | |||||
2500 | 5500 | 2019 | 943 | 1400 | 2653 | 1317 | 1514 | |||||
3300 | 4500 | 1884 | 1175 | 1940 | 2476 | 1640 | 1967 | |||||
3300 | 6500 | 3015 | 1814 | 2470 | 3961 | 2532 | 2518 | |||||
3300 | 10600 | 5257 | 3067 | 2960 | 6907 | 4281 | 4090 | |||||
4500 | 9000 | 5747 | 4752 | 4980 | 7551 | 6633 | 5316 | |||||
4500 | 12000 | 7984 | 6473 | 6060 | 10490 | 9037 | 6508 | |||||
COMPANY
LOGISTICS
FAQ
1."Can I use marine airbags for both ship launching and docking ?"
Answer: Yes, our marine airbags are widely used for ship launching/ docking/ lifting/ moving and salvage etc.
2. How should marine airbag be maintained when storing?
Answer:When the air bag is unused for a long time, it should be washed and dried, filled with talcum powder and placed in a dry,cool and ventilated place. The air bag should be stretched out flat, not stacked, also not on the air bag pile pressure heavy.Keep airbags away from heat. Airbags should not come into contact with acids, bases, oils and organic solvents.
3. "I have ships but don't know how to choose marine airbags size ,can you help me?"
Answer: Pls tell me information of your ship, we can suggest suitable size for you.
4."I want to try your marine airbags, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with our marine airbags. We also have video . And we can go to your place to teach you using marine airbags on site.
5."What's your MOQ of marine airbags?"
Answer: 1PC.
6."What's the warranty period of your marine airbags?"
Answer: Our warranty period is 1 years. we will responsible for the repairment or replace the new marine airbags for you if it proved to be our quality problem.
7."What kind of certificate can you provide for marine airbags?"
Answer: CCS, BV, SGS etc. certificate is available.
Answer: Yes, our marine airbags are widely used for ship launching/ docking/ lifting/ moving and salvage etc.
2. How should marine airbag be maintained when storing?
Answer:When the air bag is unused for a long time, it should be washed and dried, filled with talcum powder and placed in a dry,cool and ventilated place. The air bag should be stretched out flat, not stacked, also not on the air bag pile pressure heavy.Keep airbags away from heat. Airbags should not come into contact with acids, bases, oils and organic solvents.
3. "I have ships but don't know how to choose marine airbags size ,can you help me?"
Answer: Pls tell me information of your ship, we can suggest suitable size for you.
4."I want to try your marine airbags, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with our marine airbags. We also have video . And we can go to your place to teach you using marine airbags on site.
5."What's your MOQ of marine airbags?"
Answer: 1PC.
6."What's the warranty period of your marine airbags?"
Answer: Our warranty period is 1 years. we will responsible for the repairment or replace the new marine airbags for you if it proved to be our quality problem.
7."What kind of certificate can you provide for marine airbags?"
Answer: CCS, BV, SGS etc. certificate is available.
