Share on:


Price:$28.00 - $30.00
Price in USD:Details

Quantity:


Product Overview

Description



Carbon series option


CARBON FIBER SHEET.

Click follow photo check more!

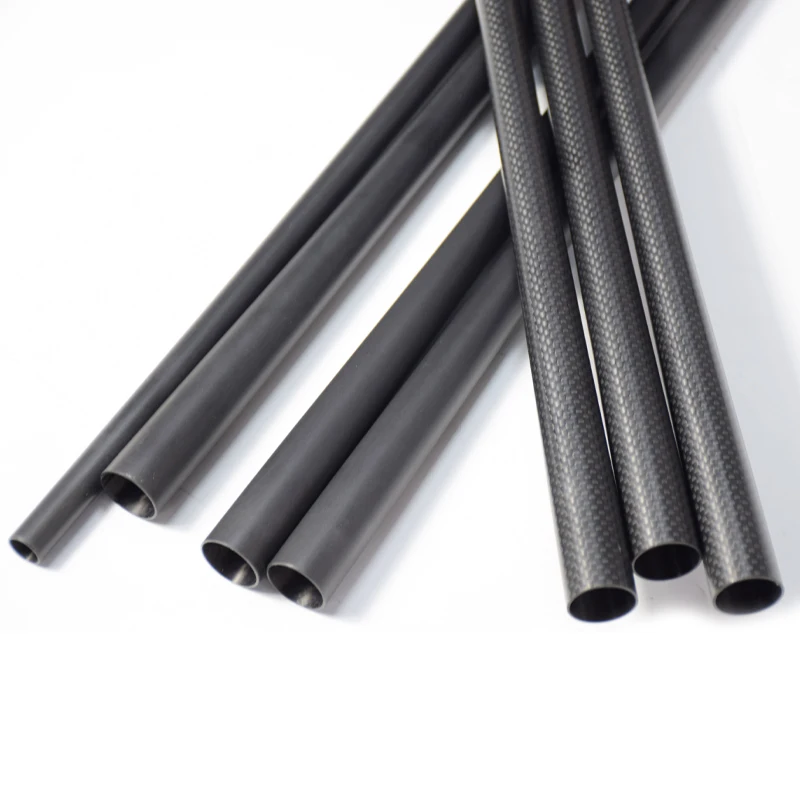

CARBON FIBER TUBE


CARBON FIBER TELESCOPIC POLE






Product Descriptionc




We are a professional chinese manufacturer of FRP profiles.and also carbon fiber products for more than 10 years! we produce all type carbon fiber tubes,panel,bars,rods,CNC sheet Etc
excellent properties include:
corrosion resistance /lightness /good toughness

If you want order our products, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, pocesing technology etc. With these items as the starting point, we can usually very quickly put together a quotation to help you get your project from idea to reality. pls click

CONTACT US





Any Size of carbon fiber tube we can do， Just tell us your ID OD LENGTH CONTACT US get quick quotation



Product Name
low deflection tacos de billar carbon unilock pool snooker carbon cue shaft handmade carbon snooker cue
Material
100% CARBON FIBER
Color
BLACK
Surface weave
UD 3K
service:
OEM & ODM and CNC services
Surface:
 Gloss or Matte or bare carbon
Used
widely used in aviation, space flight, automobile, toy, kite, pens, handicraft, tent, windmill,umbrella, each kind of sports  equipment and so on




QUICK FACTS FOR PULLBRAIDED CARBON FIBER CUES SHAFTS

Values provided here may vary slightly


Resin: Epoxy Resin
Tolerances: +/-1-2mm
Density:>1.65g/cm3
Stiffness:>80-120Gpa
Bending Strength:>80-120Gpa
Tensile Strength:>650Mpa
Operating Temperature: -40F to 248F

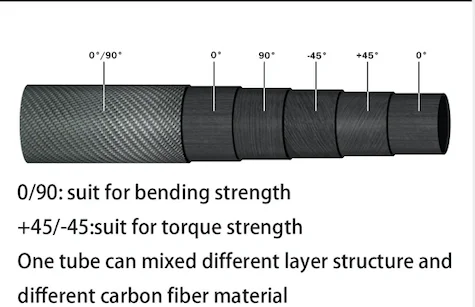

0/90: suit for bending strength.
+45/-45:suit for torque strength.
One tube can mixed different layer structure and different carbon fiber material.


Size customization


Carbon fiber pool cue hollow forelimb size table
The sizes in the table below are those with molds




Model number
length
Wall thickness
tip
Intermediate point
Tail end
T1
760MM
1.2MM
11.7MM
multipoint
21.45MM
T2
760MM
1.2MM
12.5MM
multipoint
21.45MM
T3
760MM
1.2MM
12.8MM
12.8*380MM
21.4MM
T4
762MM
1.25MM
11.9MM
11.9*355.6MM
21.54MM
T5
762MM
0.95MM
12.4MM
12.4*355.6MM
21.5MM
T6
760MM
1.0MM
12.5MM
13*400MM
21.4MM
T20
760MM
1.2MM
12.4MM
13.5*380MM
21.4MM
T24
812.8MM
1.25MM
12.75MM
13.5*431.8MM
22.0MM
T31
812.8MM
1.25MM
11.75MM
13.5*431.8MM
22.0MM
T37
812.8MM
1.25MM
12.25MM
13.5*431.8MM
22.0MM
T46
730MM
1.2MM
12.2MM
14.5*400MM
21.5MM
T51-1
812.8MM
1.2MM
11.8MM
13.5*434MM
21.35MM
T51-2
812.8MM
1.2MM
12.5MM
13.5*434MM
21.35MM
T51-3
812.8MM
1.2MM
12.8MM
13.5*434MM
21.35MM
Can customize the size, wall thickness, if necessary, please click
Contact us


Product advantage

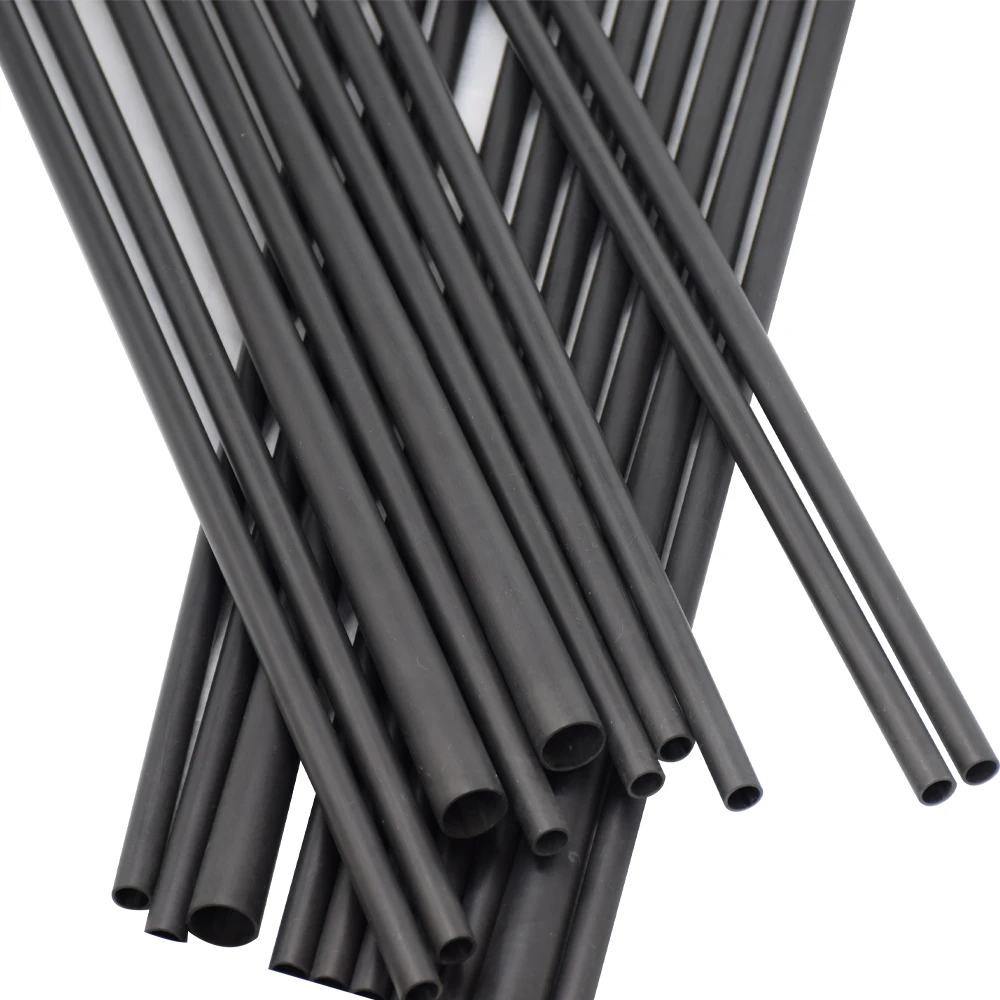

ONLY OFFER SHAFT BLANK
We only offer shaft blank and no joints and tips
Shaft size is for your reference if no yours contact us to custom yours

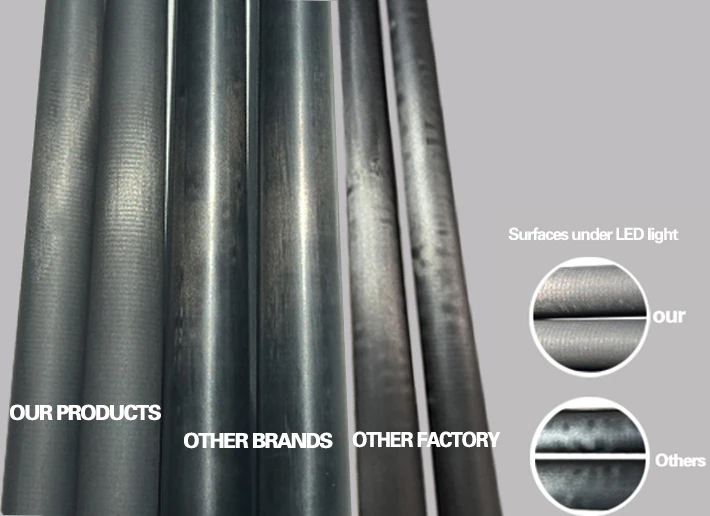

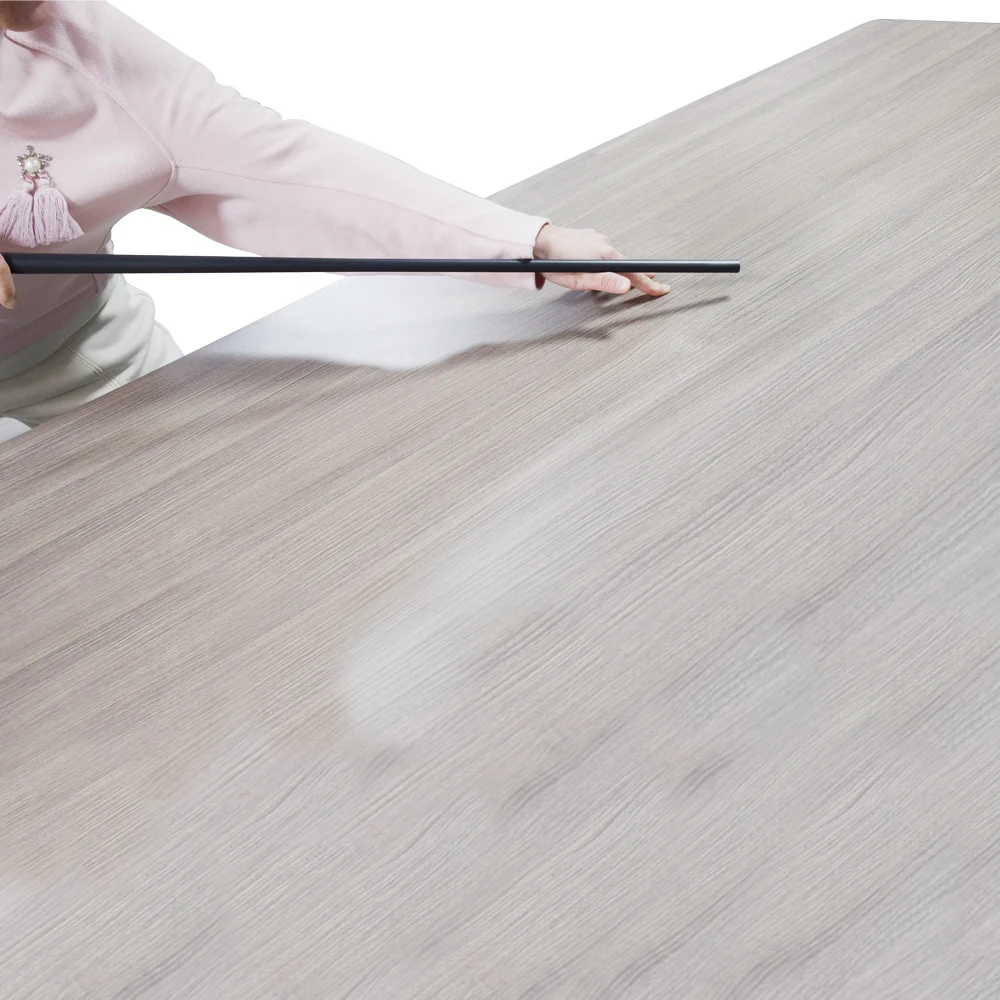

Our carbon fiber billiard cue forelimbs have no clouds on the surface.and the straightness can reach ±0.01 silk. We are also thesupplier of various brands of billiard cue.

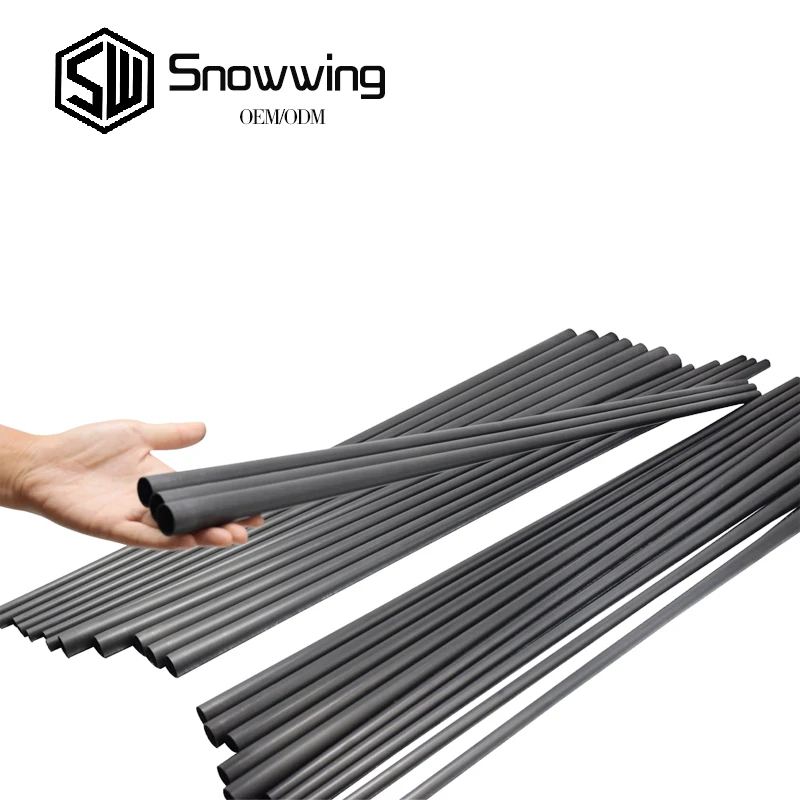

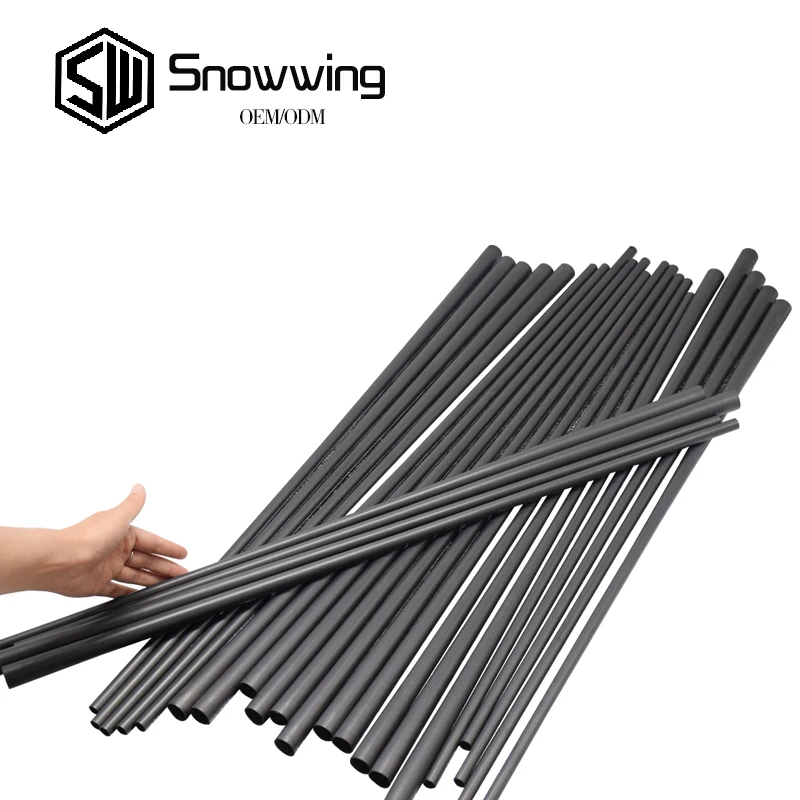

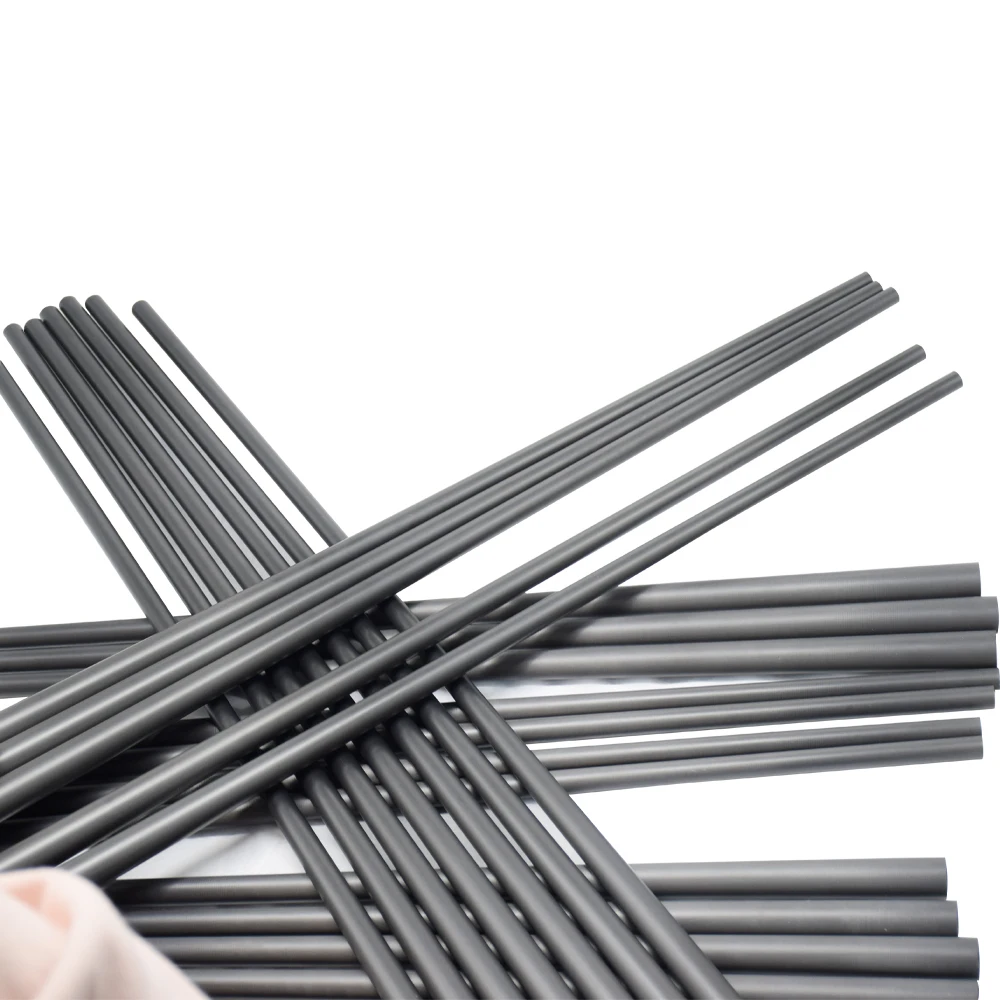

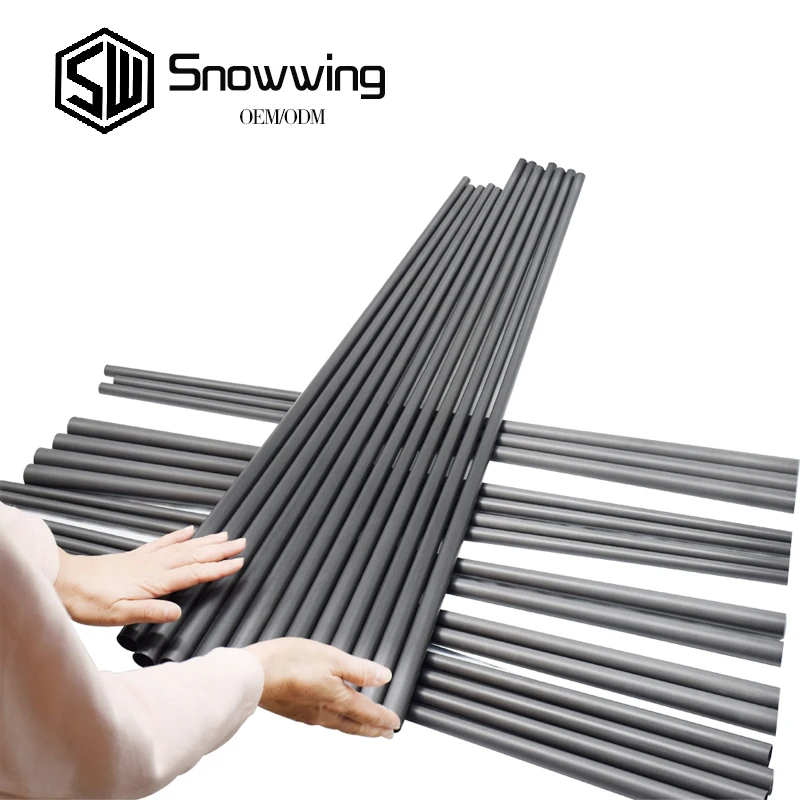

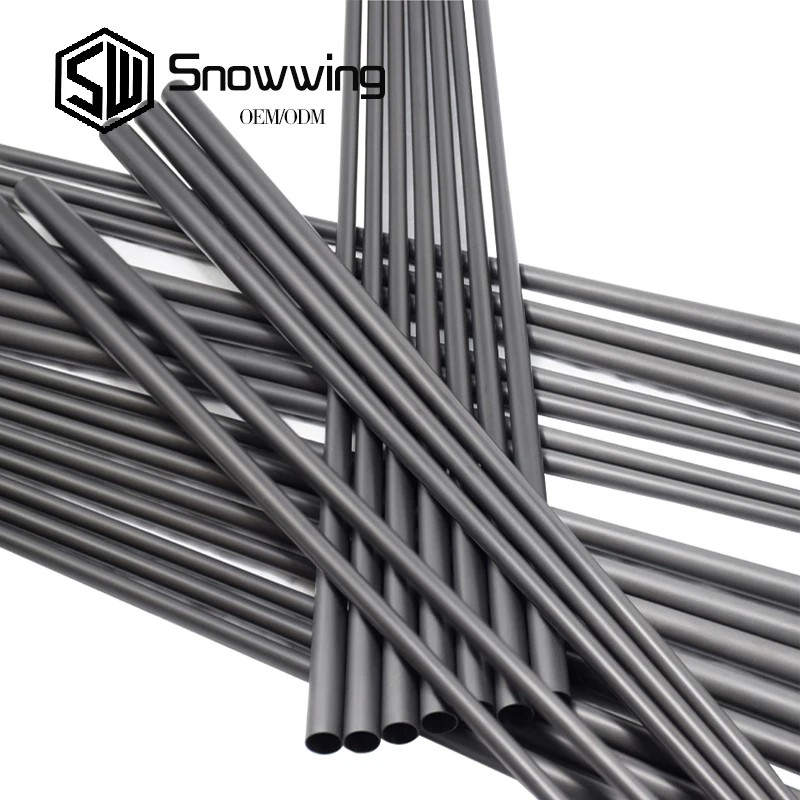

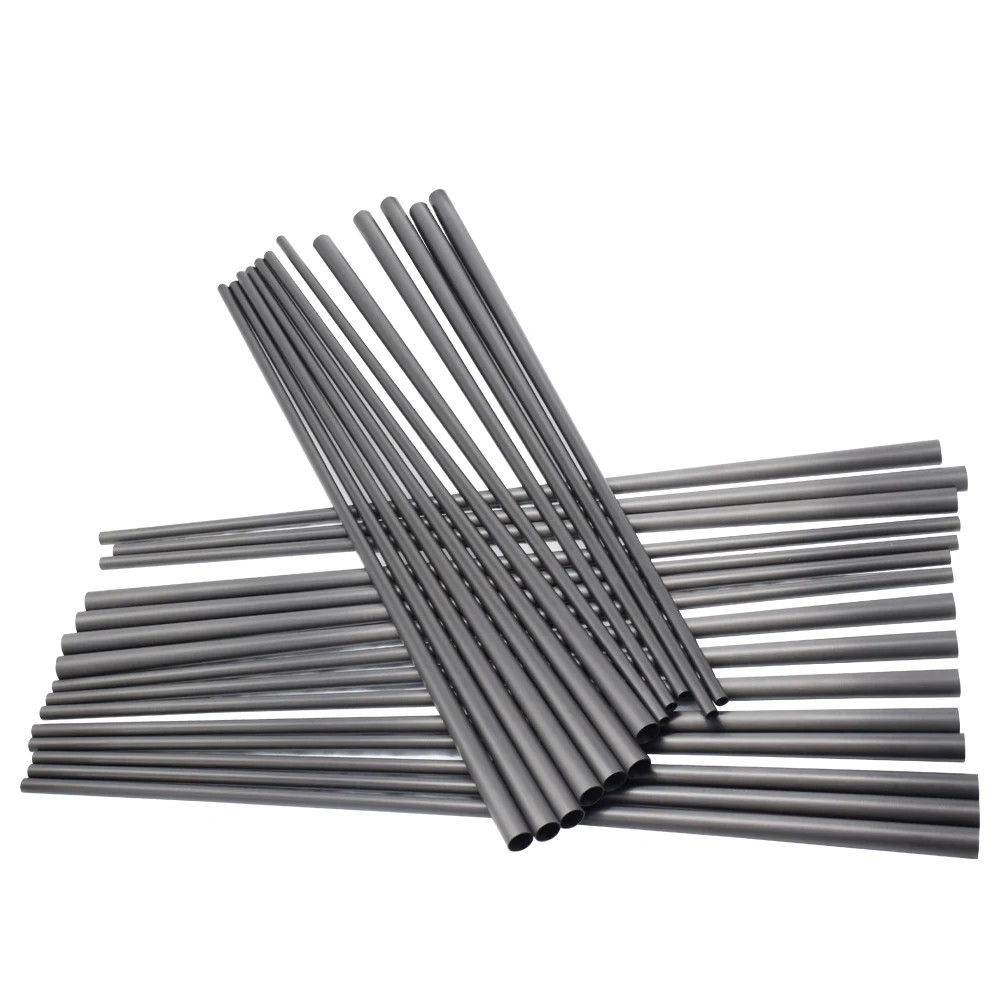

Product display




Various application fields



Automobiles.body,parts,inside decoration etc.
Bike Motorbicycle.body and parts.
Aerospace and navigation.plane,barge,freighter,boat,ship, vessel ,
Sports and entertainment.golf,ski pole,hockey pole,badminton pole,

Hunting bow and arrows archery stabilizer
tennis pole,snooker pole,trekking pole ski pole billiards cues protecting equipment etc.
RC hobby,copters and toys.
Construction and Bridge reinforcement and strengthening.
Energy. wind turbine blades,oil driller etc.
Telescopic tubes/poles

Music equipment
Decoration rings etc

if you want to get a quotation quickly and Pls click                                                contact us









Our team


We are a professional chinese manufacturer of FRP profiles.
and also carbon fiber products for more than 10 years!
we produce all type carbon fiber tubes,panel,bars,rods,carbon sheet Etc
Contact us

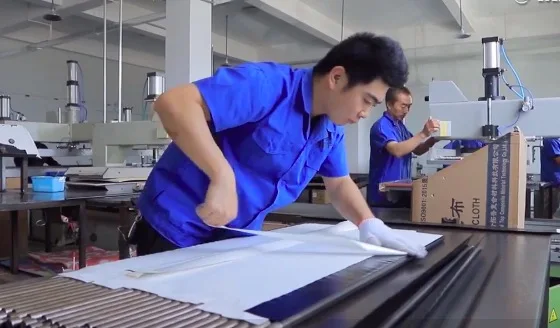

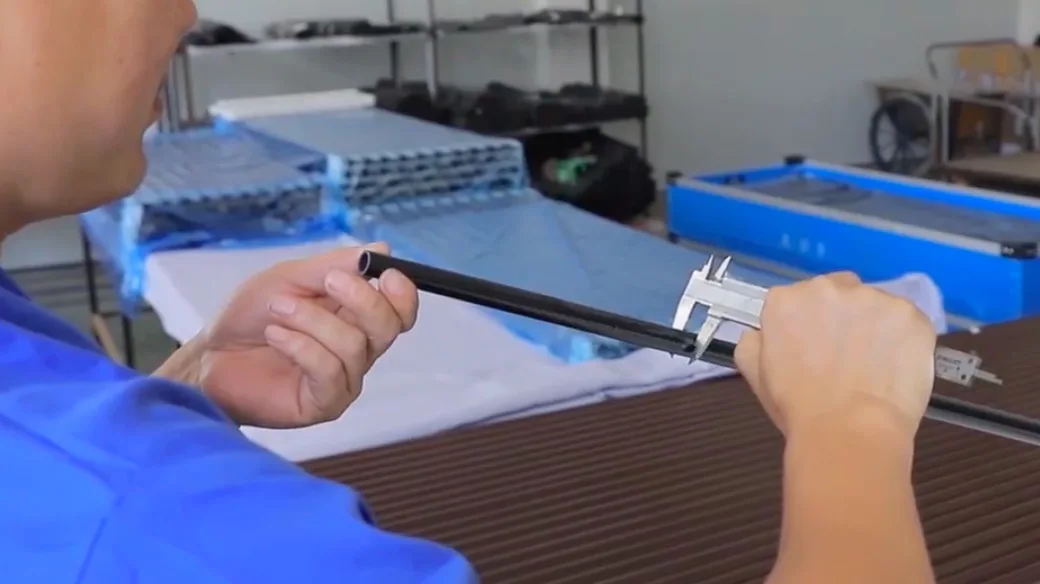

We have a visible production process, mature technology, advanced equipment, is a completely reliable factory.

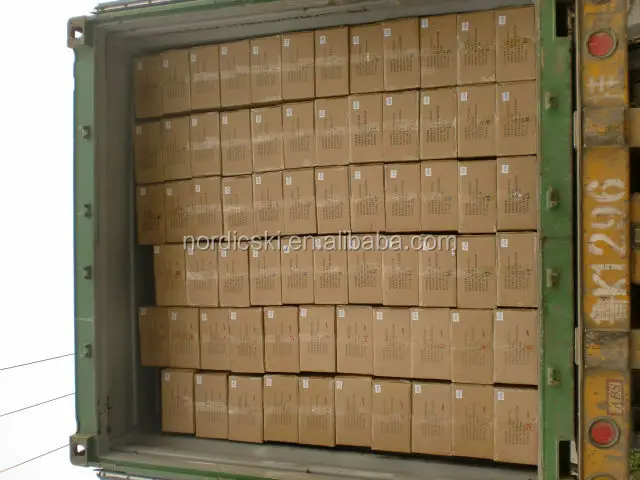

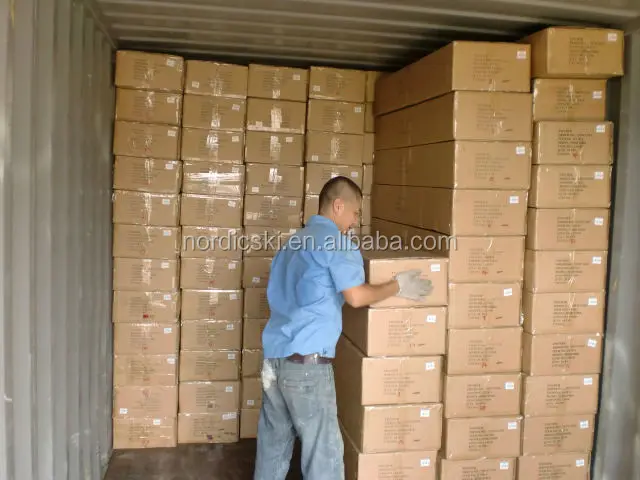

Packing & Delivery


want to get your quotation for your carbon tube tell us OD ID LENGTH we will offer quotation quickly and Pls click contact us








Why Choose Us




                              COMMENTS & FEEDBACK



Here is world-wide customer's feedback and all is 5 star.and we will offer better quality and better service for our customer,If you dont find size of tube the shape and the size of carbon sheets Pls click  CONTACT US  we will offer our better quotation and sample for test.choose us we wont let you down.







Customers from all over the world and we have become business partners.
They are come from different filed:industrial sport music energy cars electric Etc.
They are very passionate about carbon fiber products and sharing. They are growing and growing because of the products and services we provide CONTACT US lets be partners !
