Automatic Glass Jar Filling Machine 180ml 280ml Consistency of Creamed Honey chocolate spread filling and capping machine
- Category: >>>
- Supplier: Shanghai Weibang Machinery Co. Ltd.
Share on (1600303461990):
Product Overview
Description
Automatic Glass Jar Filling Machine 180ml 280ml Consistency of Creamed Honey Jar Filling machine ----Contact Claire ,008613321906856

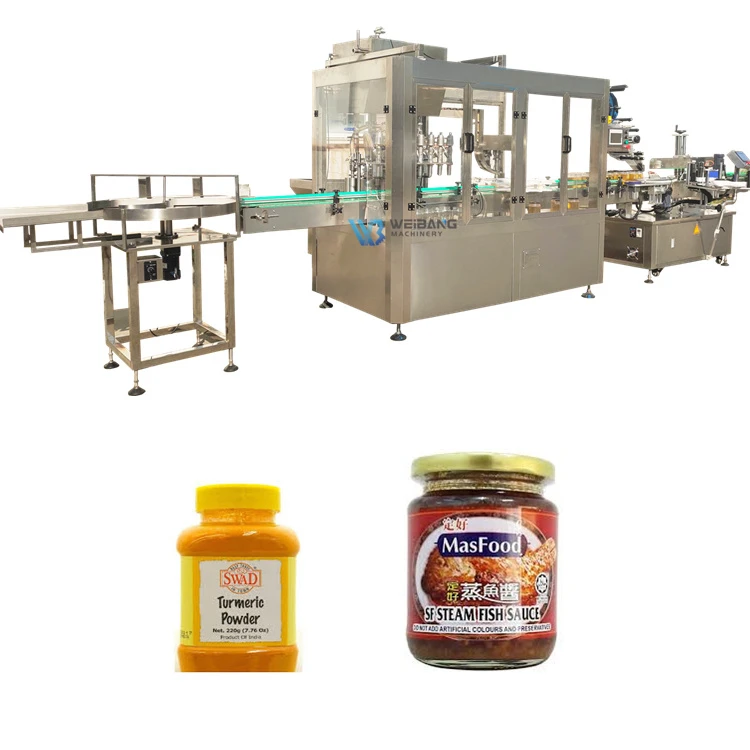

Full filling line included below machines:
1, Bottle infeed table
2, Automatic filling capping machine
3, Vertical labeling machine /Double sides labeling machine
4, Collecting table .
Optional machines :
5, Mixing tank
6, Shrink sleeve labeling machine
7 ,Box automatic cartooning machine
Product Description
Automatic Glass Jar Filling Machine 180ml 280ml Consistency of Creamed Honey Jar Filling machine
Application: suitable for filling and capping semi-liquid products without or with small particles: such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dish washing liquid, etc.
Performance feature:
1. Nice machine appearance, reasonable structure, this is the most advanced new design thick sauce filling machine at present, machine can be customized with 4/6/8/12/14/etc filling heads according to customer's production capacity.

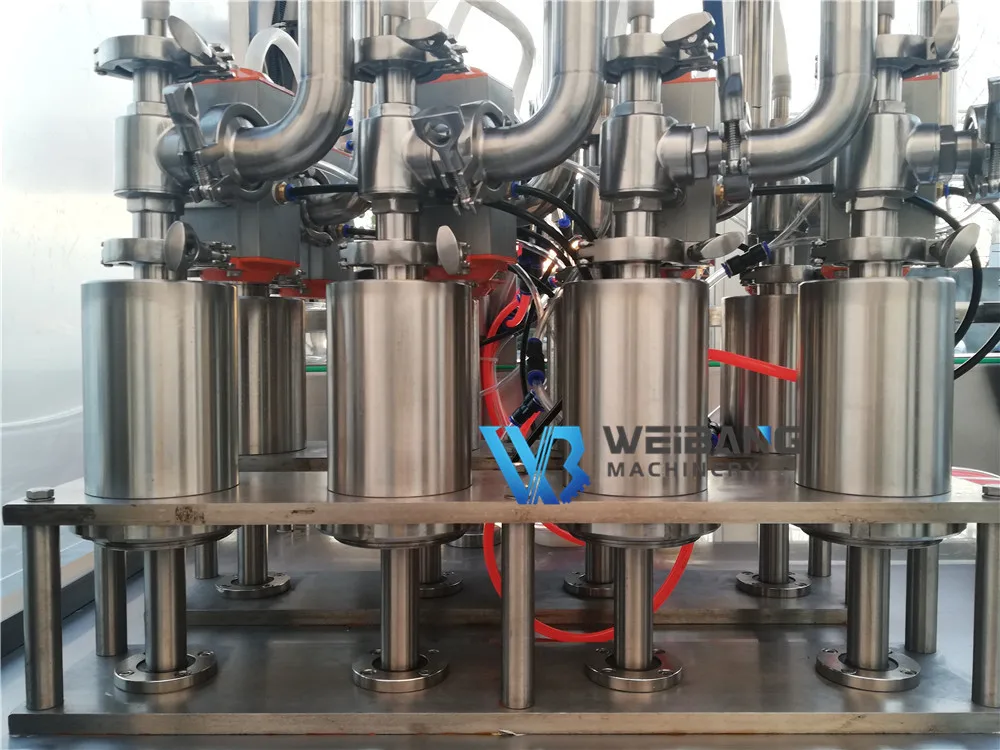

2. Adopts positive displacement plunger pump for filling, high precision, large range of adjusting dosage, can regulate filling amount of all the pump body as a whole, also can adjust a single pump slightly, quick and convenient.
3. Plunger pump filling system has features of no adsorbing drugs, good chemical stability, high temperature resistance, corrosion resistance, abrasion resistance, long service life, has unique advantages when fill some corrosive liquid.
4. Used for various viscosity liquid filling, frequency control, automatic count.
5. Main electrical elements adopts foreign well-known brand.
6. Machine body is made of 304 stainless steel, full compliance with GMP standard.
Technical parameters:
| Model | YB-NJ8 |
| Filing head number | 8 |
| Filling volume | 50-1000ml |
| Capacity | 10-50 bottles/min |
| Filling accuracy | ≤ ±1% |
| Pass rate | ≥ 98% |
| Power supply | 1 Ph. AC220V, 50/60Hz |
| Total power | 5.0 KW |
| Net weight | 750kg |
| Overall dimension | L2400 × W1500 × H1900mm |
Detailed Images

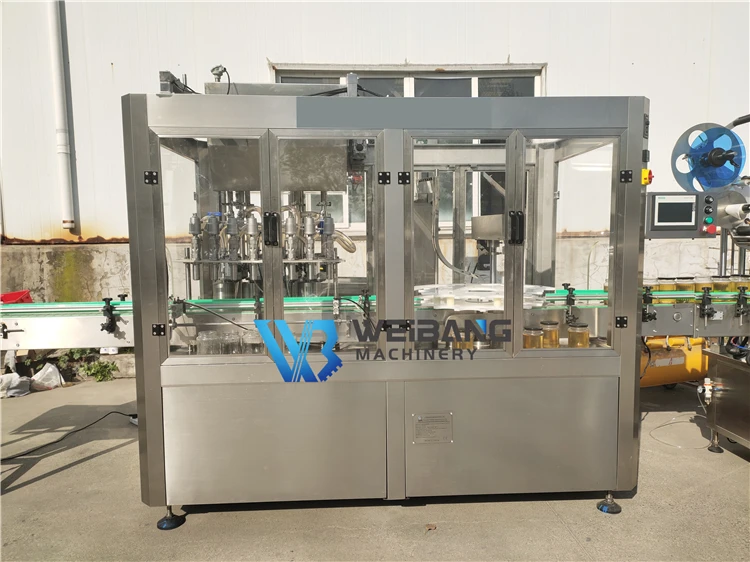

YB-NJ8 automatic Hand sanitizer gel bottle filling machine

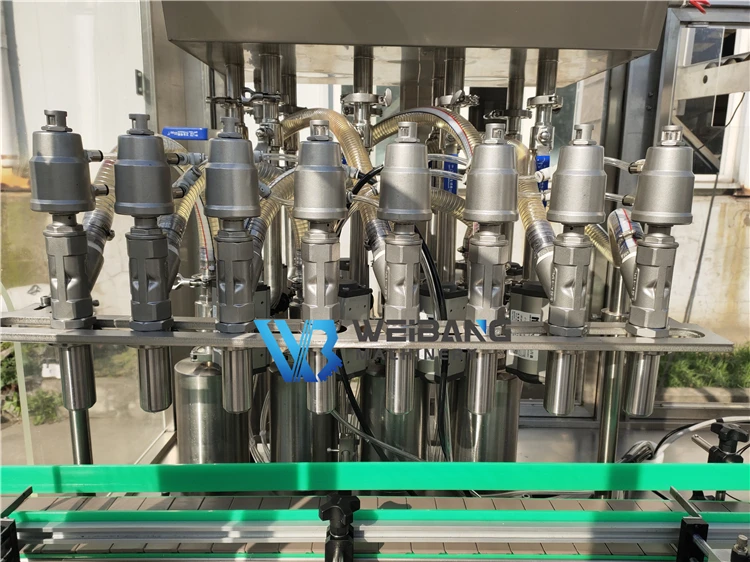

8 head filling (filling nozzle can be customized to 4/6 /8)

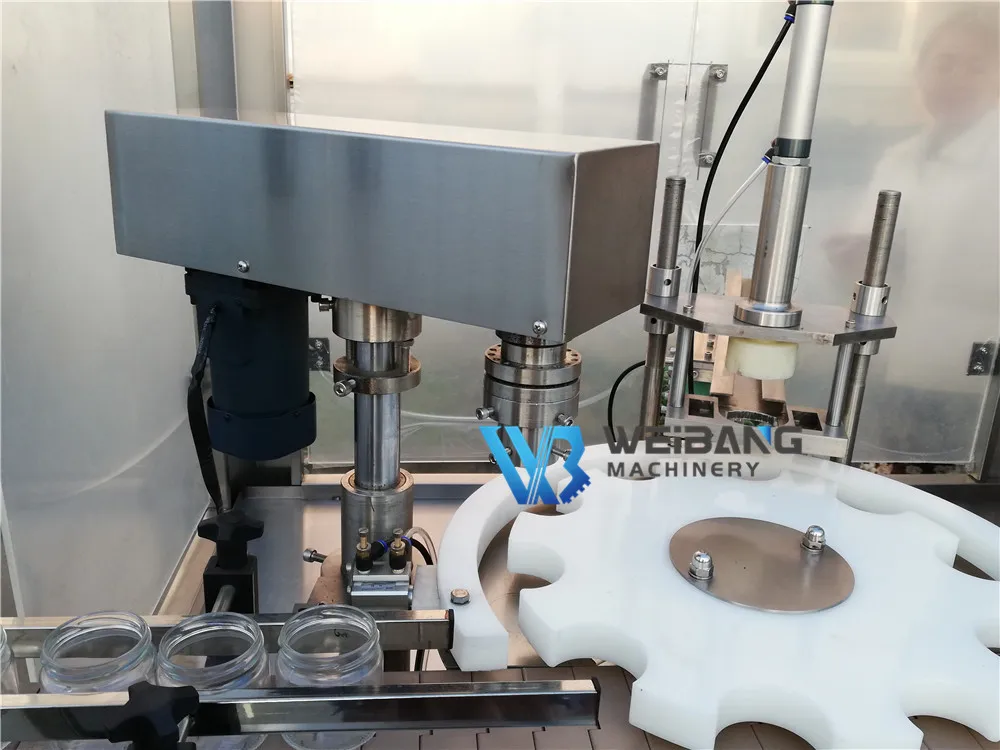

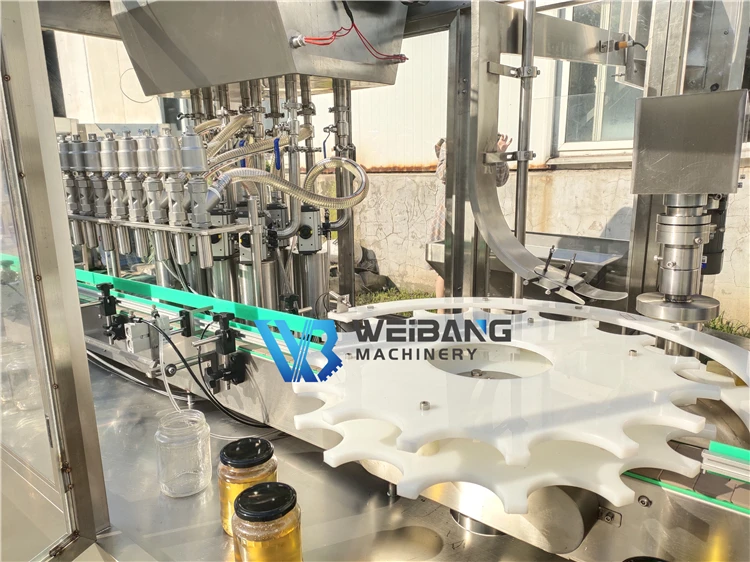

Bottle fix the position by starwheel, which made according to bottle size .

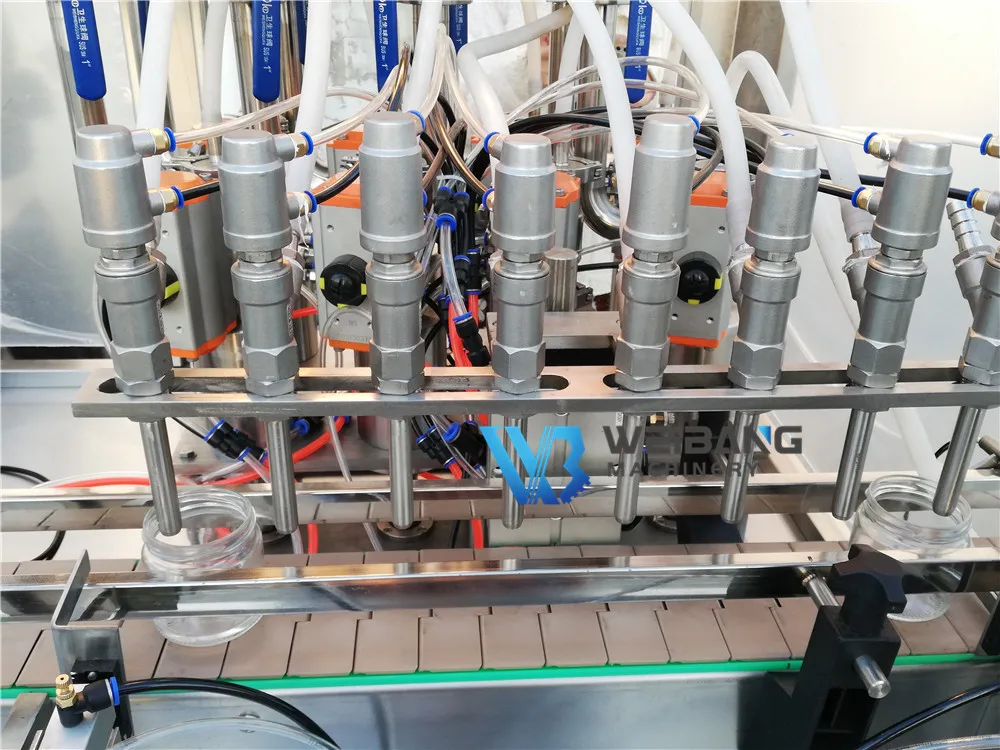

8 Nozzle filling ,1 add cover, 1 tighten

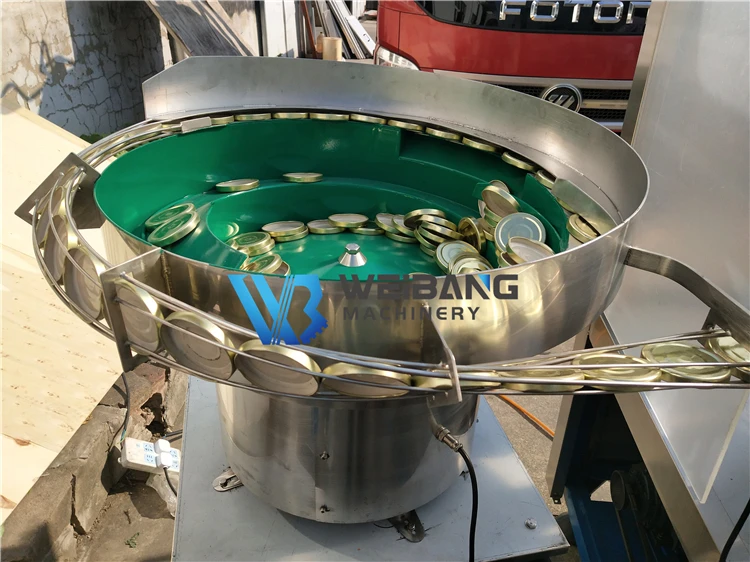

COVER vibrate bowl /feeder

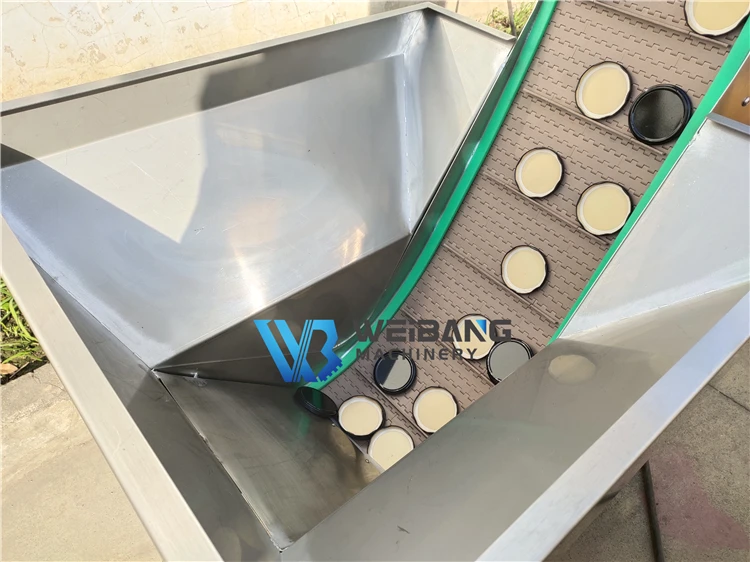

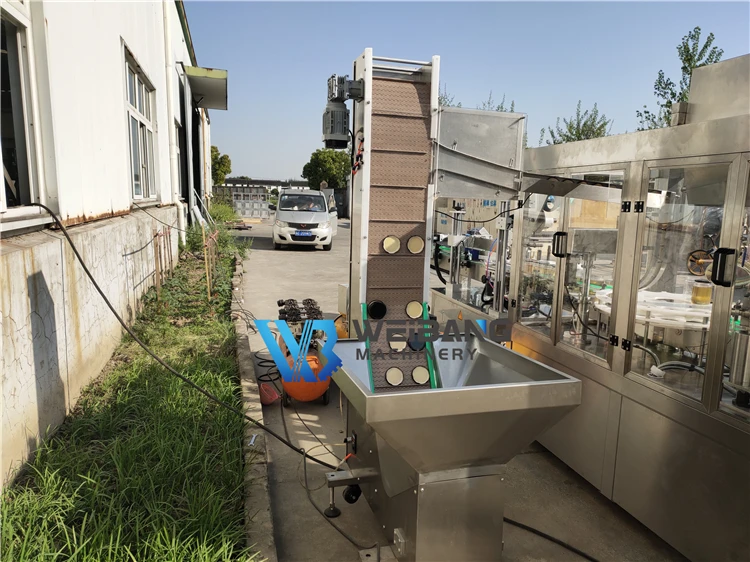

The Cap sorting can be made as a CAP ELEVATOR (OPTIONAL)

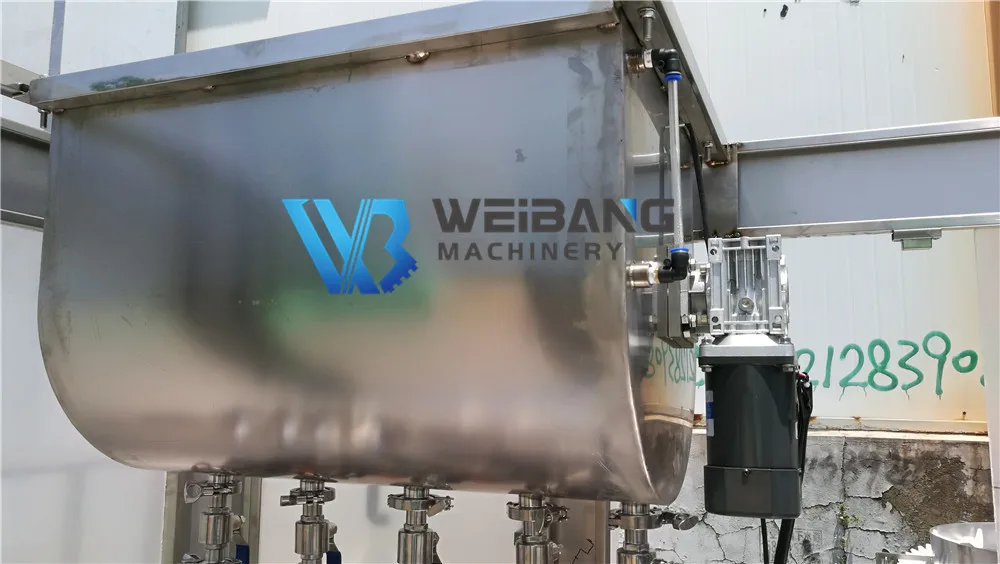

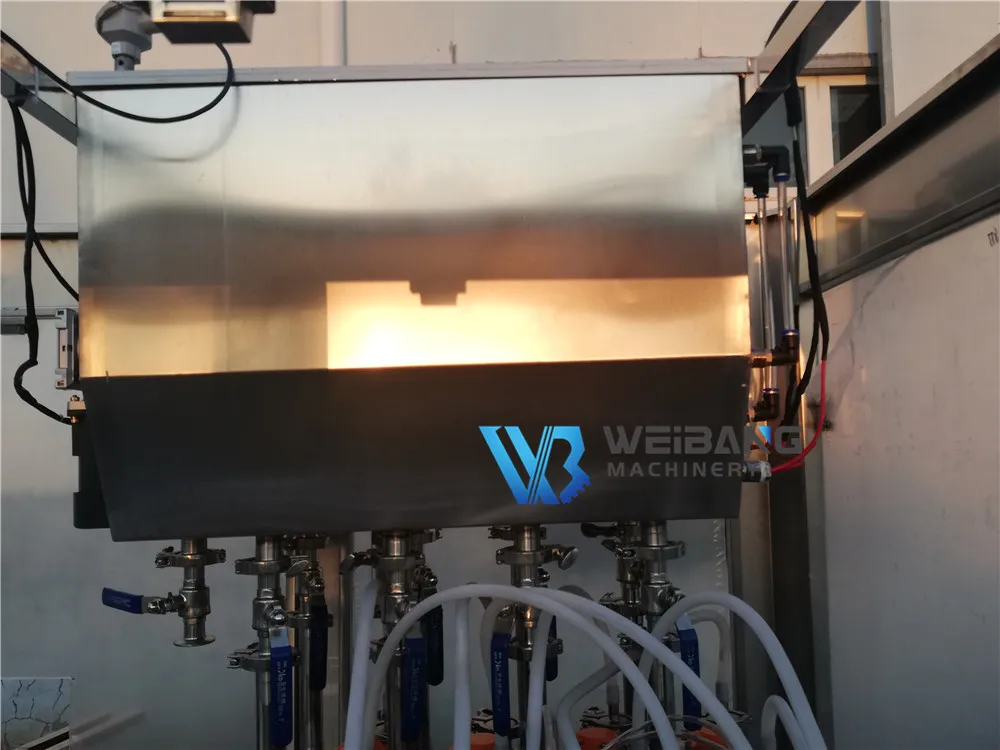

Material hopper ,Built in mixer and heating to keep the liquid warm and flow freely

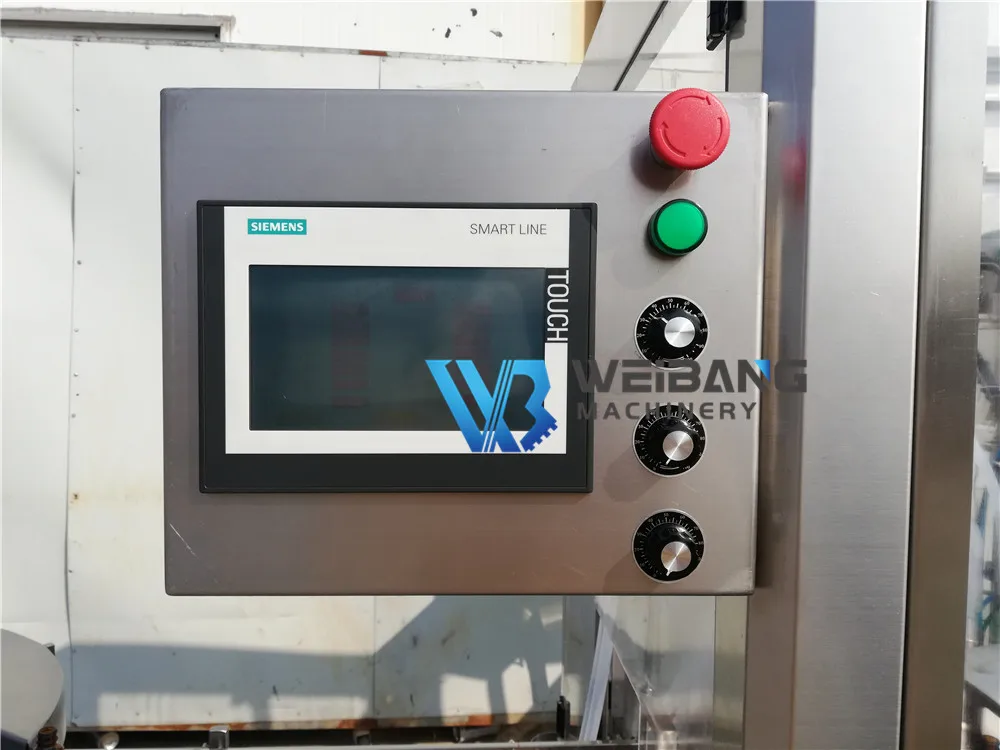

Color touch screen display,we use world famous Brand
Releated machine you May need :

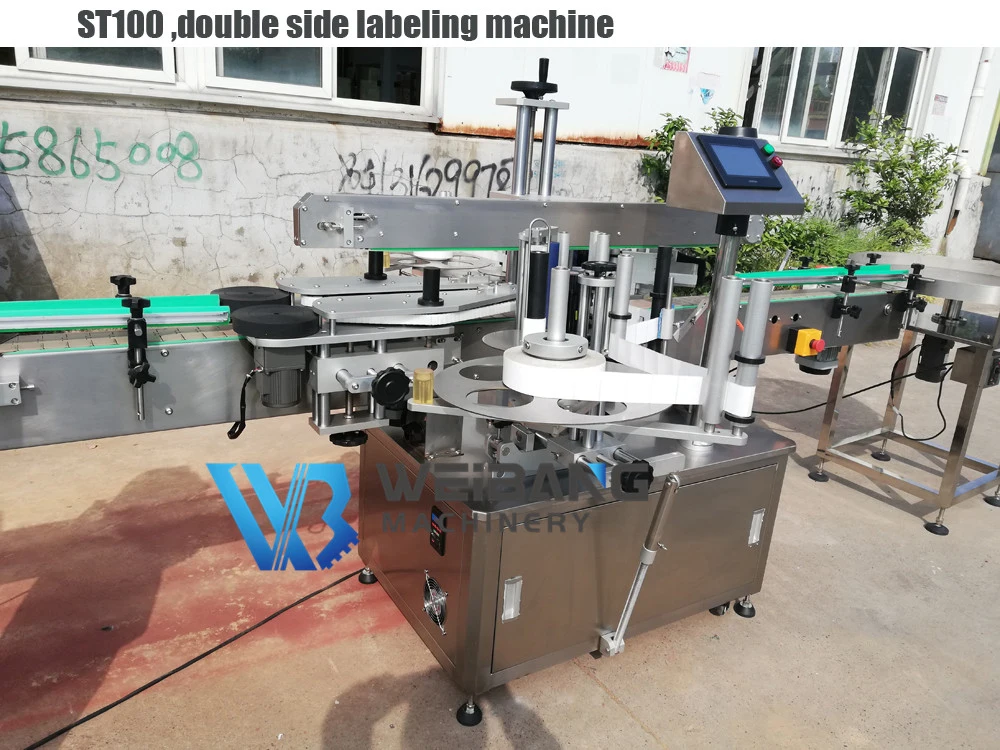

-Front and Back 2 sides Sticker labeling Machine for square bottle
Contact Us
Company Information
FAQ
1: Q: Are you a factory or trading company ?
A:We are a professional manufacturer ofVertical packing machine,horizontal packing and bottle filling machines . At the same time , we are also a trustworthy supplier of otherpacking equipment ,includingtea bag packing machine , yogurt cup filling and sealing machine ,Labeling machine,shrink sleeve labeling machine ,box cartooning machine ,metal detector,inkjet printing machine ,mixing tank andhard candy packing machine and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: How long is the lead time ?
A :All machine takes around 10-25 daysafter deposit payment .
5, Q:What is your warranty and after-sale service
A:One year warranty and Lifelong after-sale service via skype/whatsapp/mobile/etc .Also Technical service is available.
6,Q:Can I Visit factory and send team for Learning and inspect?
A:Yes, sure, Welcome your visit and no problem for your team come and learning, we will do our best to teaching they how to use the machine .
7, Q: Which is the nearest sea port for you ?
A :Our company located at Shanghai city ,soShanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
8, Q: What advantages we have?
A: Rich experience: We have over 15 years experience in exportingpacking machine and bottle filling line , all of our sales have been inpacking and filling industry over 8 years , some over 15 years . We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers' different requirement . We have our own factory , so that , no matter thepacking machine andfilling machines which manufactured by ourselves , but also other relatedmachinewe get from our partners . All will be re-tested again in our factory .
