Price:$84.00

Quantity:


Product Overview

Description



Product Description


Stand-Alone Satellite Multiswitch 13 inputs 32 outputs terminal multi switch 13x32




Featrues


□ 12 satellite IF and 1 terrestrial TV inputs for 32 satellite receiver
□ 12 satellite IF inputs selected by 13V、18V、22KHz andDisEqC 2.0 signal
□ Low insertion loss, high isolation and return loss
□ SAT-IF-PATHs to the subscribers are active and supplied by the receiver
□ Sheet metal housing with plastic holder
□ Design good for indoor usage


Specifications Item
Typical
QC Limit
Remark
Frequency Range
Terr.:47~862MHz SAT:950~2150MHz
Inputs
12 SAT+1 Terr.
F connectors
Outputs
32 Receiver
F connectors
Thru Loss
Terr.
4dB
5dB
SAT
4dB
5dB
TAP Loss
Terr.
6dB
8dB
SAT
7dB
9dB
Return Loss
Terr.
12dB
10dB
SAT
12dB
10dB
Stop band attenuation
Terr.
28dB
25dB
SAT
28dB
25dB
Isolation
H/V
30dB
25dB
REC-REC
30dB
25dB
Power Adapter
IN:100~240V OUT:18V 2000mA
Dimensions (L,W,H)
298×352×42
mm

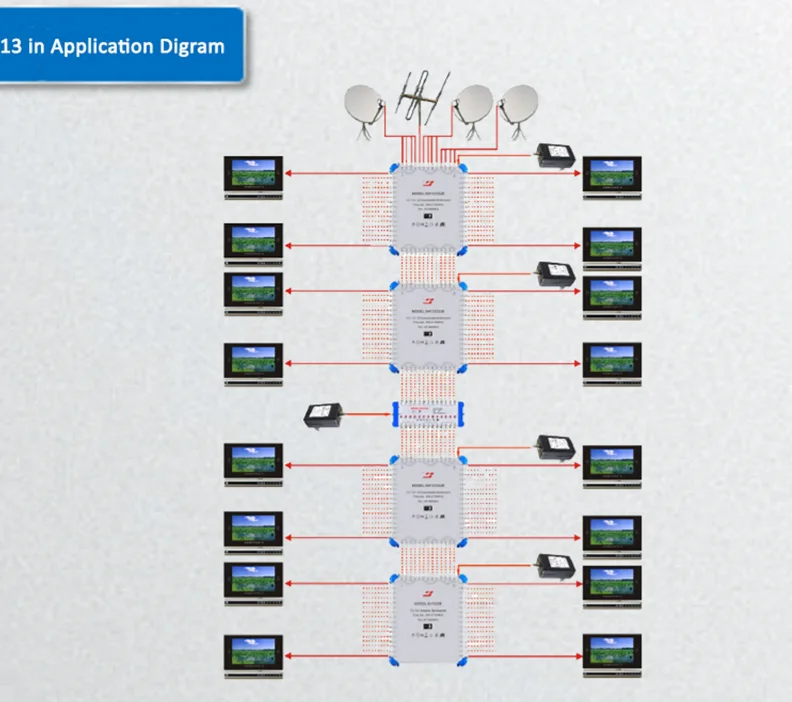

Application






Packing & Delivery

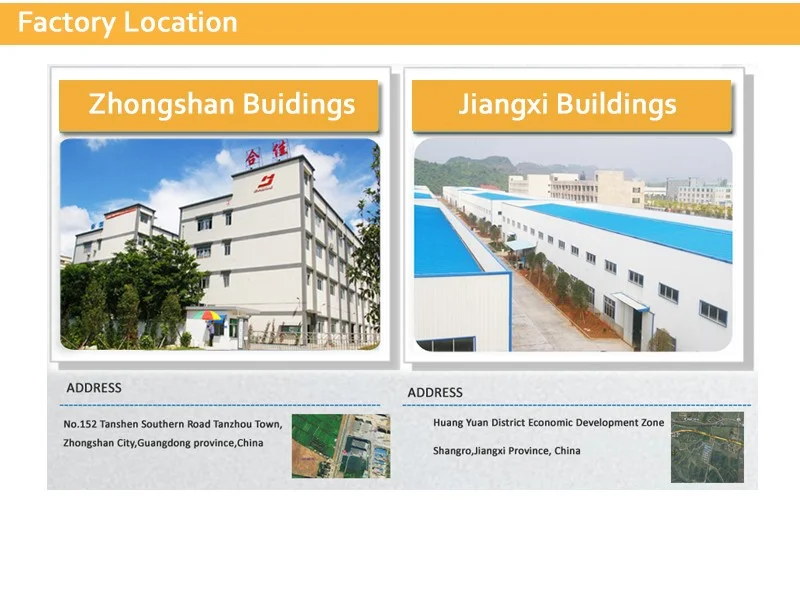

Company Profile

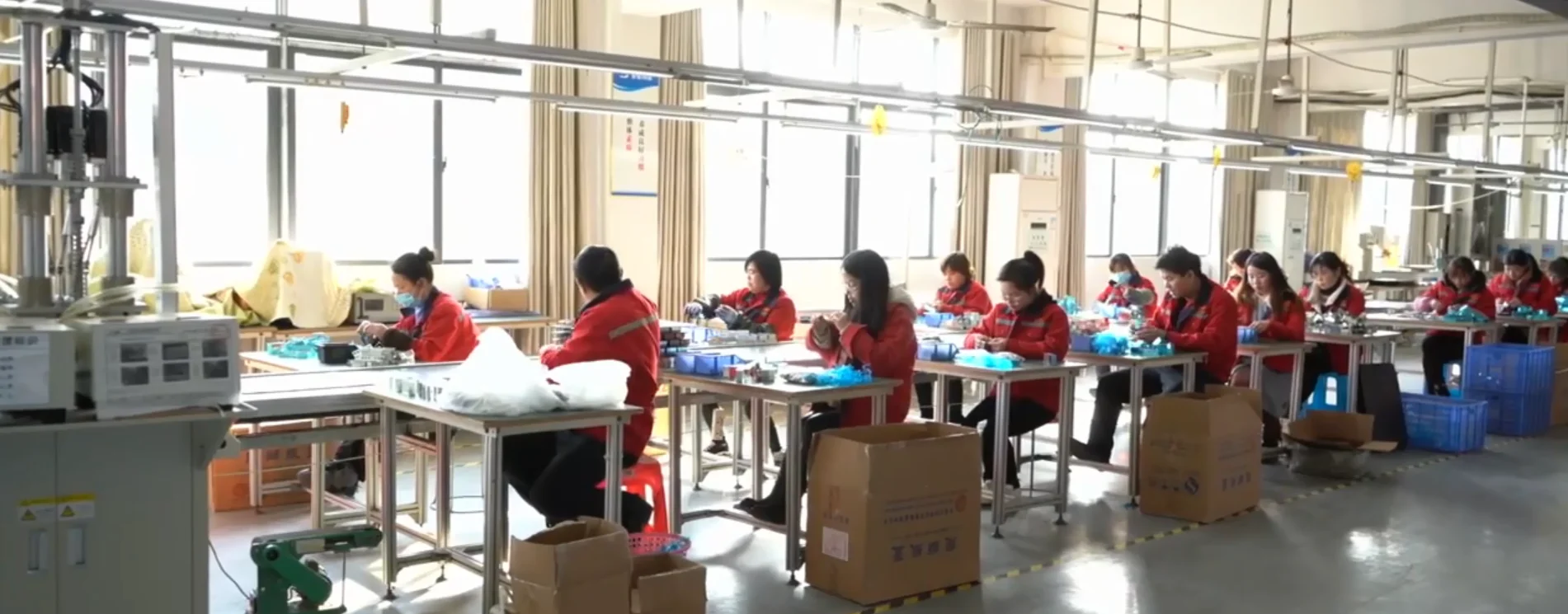

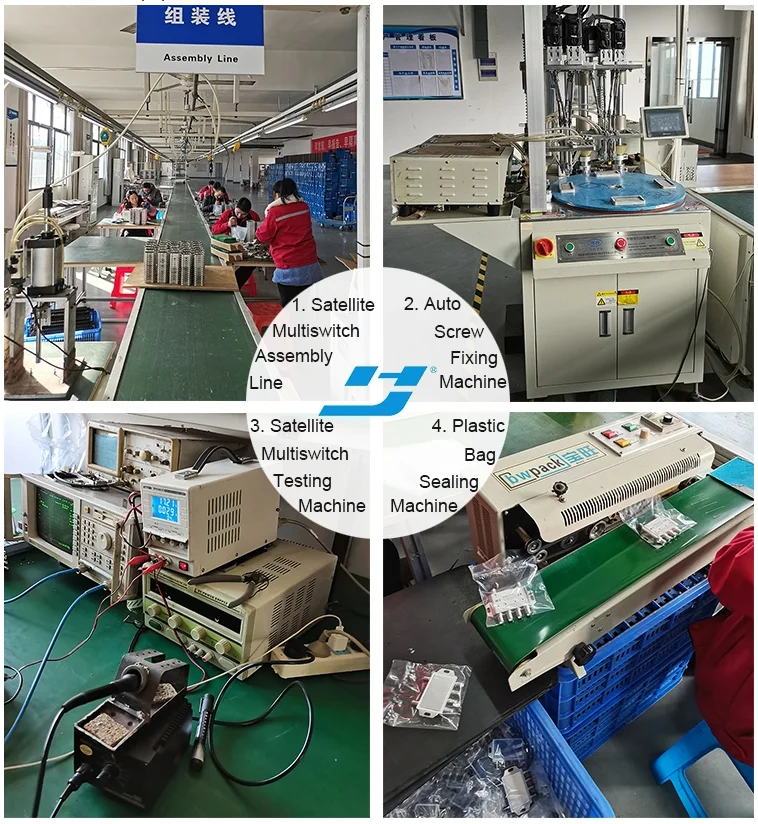

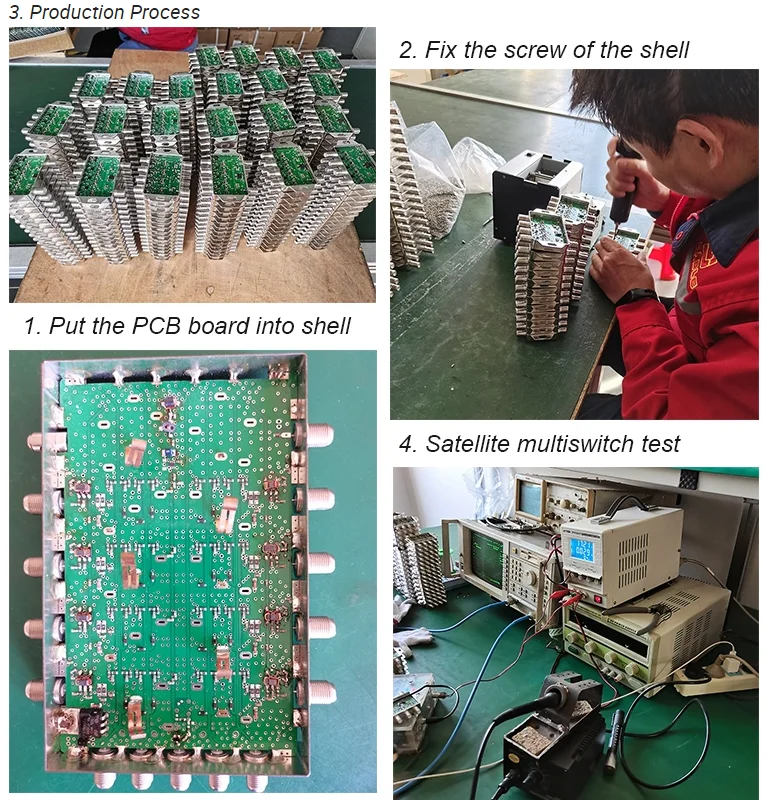

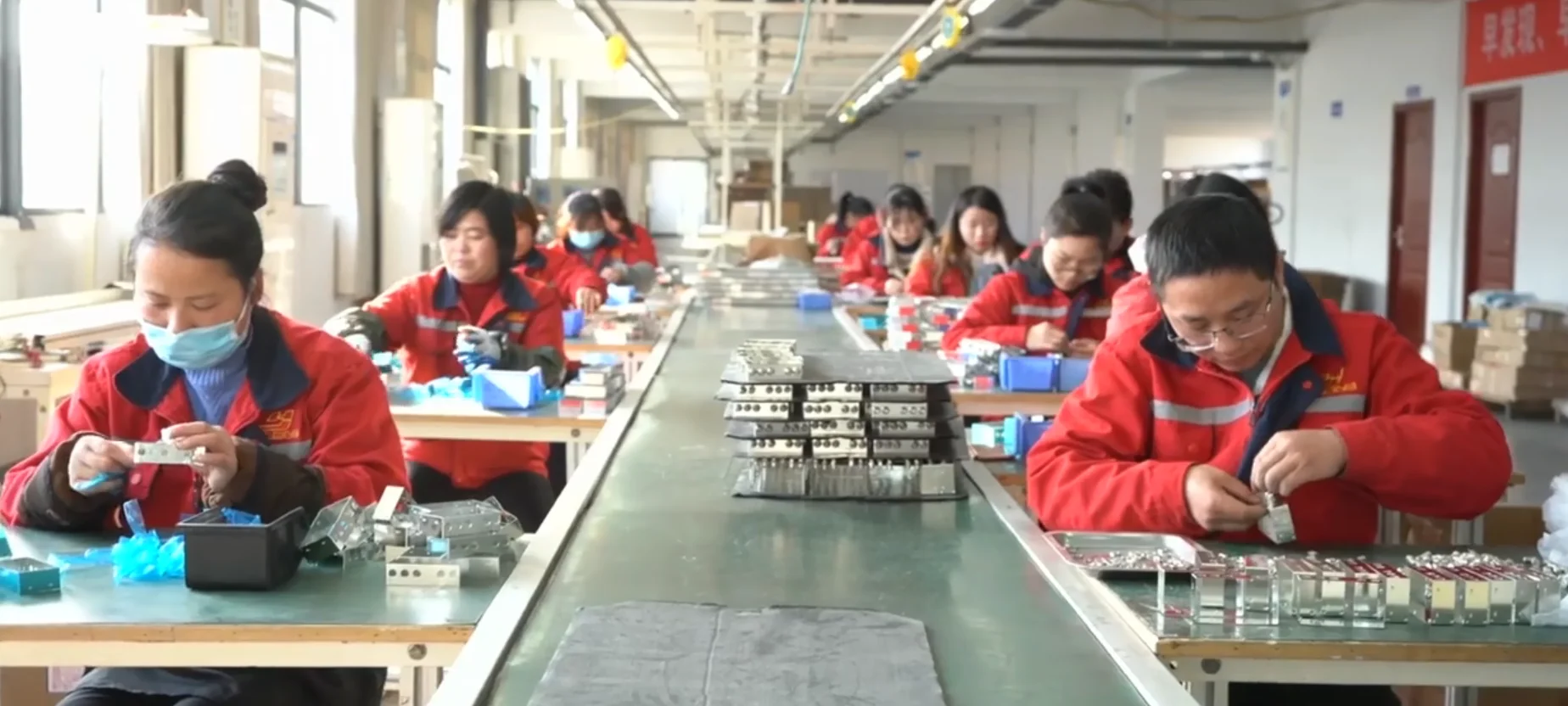

Workshop:










Exhibitions:






FAQ


Q1:Are you a trading company or manufacture?
A: Hejia Multiswitch is a professional manufacturer since 2003.We located in the city of ZHONGSHAN,quite near to Shenzhen/Guangzhou and Hong Kong.
Q2:Is the sample order acceptable?
A: Yes.Our company mainly deals with wholesale deals. But sample order is also welcome for the first cooperation to test the quanlity..
Q3:I would like to ask you if it's possible to have my logo on this product.
A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's
anextraservice,so a little bit extra service fee is needed.
Q4:May I have samples to test?
A:If we have sample is stock and the total amount is sample.The sample will be free.
B:If we don't have inventory,the cost of the sample and freight cost have to be paid by your side.But all the sample cost will be return when you place order in the future.

If you intersting in our products, pls send the enquiry now.

Free sample will be deliveried to your address soon
