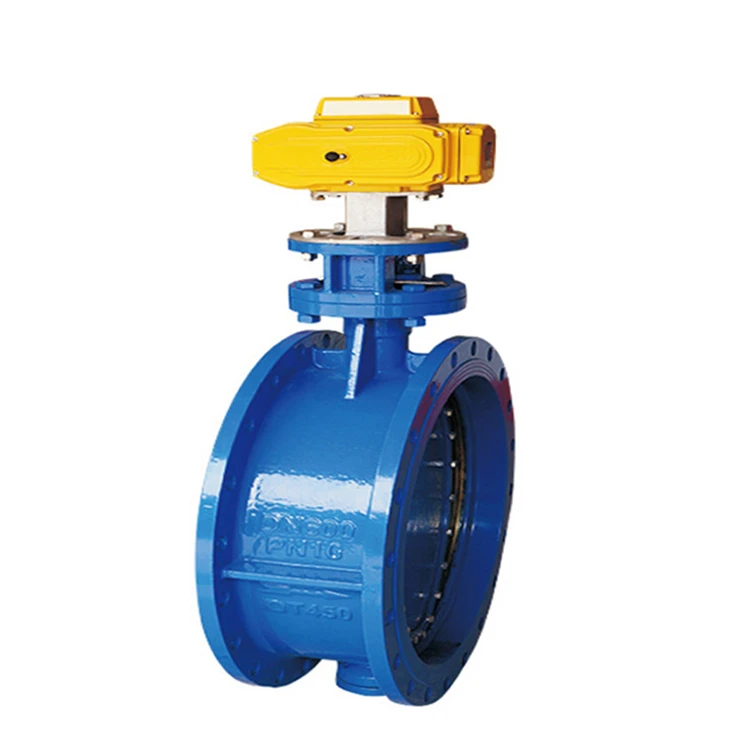

DN50~DN300 Electric Actuator Flange Butterfly Valve for Water Butterfly Valve DN80 Flange Connection Price
- Category: >>>
- Supplier: Guangzhou Fols Valve Technology Co. Ltd.Guangzhou Ltd.
Share on (1600303567232):
Product Overview
Description
DN50~DN300 Electric Actuator Flange Butterfly Valve For Water Butterfly Valve DN80 Flange Connection Price
Product Description
| · Our Advantages · |
Advantages:
• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.
• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.
• OEM / ODM service available.
| · Product Specification · |
The electric flange butterfly valve is characterized by simple structure, small volume, light weight. The butterfly valve is full open or closed when the disc is rotated a quarter turn with good flow control characteristic. It’s very small pressure from the disc when the butterfly valve is in full open position. They are widely used in water supply, fire protection, air condition, environmental protection, food, light industry, electrical, petroleum, papermaking and so on.
Technical Parameters:
| Size Range | 2"~12", DN50~DN300 | ||
| Operating Pressure | 1.6MPa | ||
| Control Mode | On Off Type / Modulating Type | ||
| Optional Voltage | DC12~24V (±10%), AC110-220V, 50/60Hz | ||
| Body Material | Cast Iron, Ductile Iron | ||
| Disc Material | Stainless Steel | ||
| Sealing Material | EPDM, PTFE | ||
| Threaded Connection | Flanged | ||
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||
| Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||
| Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||
Product Features
1. Design reasonable, unique structure, light weight, open and close quikly.
2. Operation torque small, easy operation.
3. Mounted in any position, and easy maintenance.
4. The seal part can be replaced, zero leakage of reliable seal performance.
5. The seal material anti-aging, corrosion resistance, long life and other characteristics.
Electric actuator ( Optional)
| Specification of Electric Actuator | ||||||||
| Items Parameter | FOSD-05 | FOSD-10 | FOSD-16 | FOSD-30 | FOSD-60 | FOSD-125 | FOSD-250 | FOSD-400 |
| Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Rated travel time | 10S/20S | 15S/30S | 30S/60S | 100S | 100S | 100S | ||
| Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Power | AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options) | |||||||
| Input signal | 4-20mA (Modulating type) | |||||||
| Output signal | 4-20mA (Modulating type) | |||||||
| Insulation resistance | 100M/500VDC | |||||||
| Pressure withstanding | 1500 VAC , one minutes | |||||||
| Inbreaking protection | IP65/IP67 | |||||||
| Installation angle | 360° any angle | |||||||
| Electrical Interperation | one G1/2 CNCO,one Power cord connection port,one signal wire connection port | |||||||
| Ambient humidity | -30°C to +60°C | |||||||
| Pilot circuit options | A:with limit position switch style (standard) | |||||||
| B: with neutral position switch style ( passive contact) | ||||||||
| C:with potentiometer style | ||||||||
| D: both potentiometer and neutral position switch style | ||||||||
| E: with control module style ( Modulating Applications) | ||||||||
| F: DC motor control circuit style | ||||||||
| G:Three-phase current 380V control circuits style | ||||||||
| H:Three-phase current 380V, both neutral position switch and potentiometer style | ||||||||
| · Wiring Diagram · |

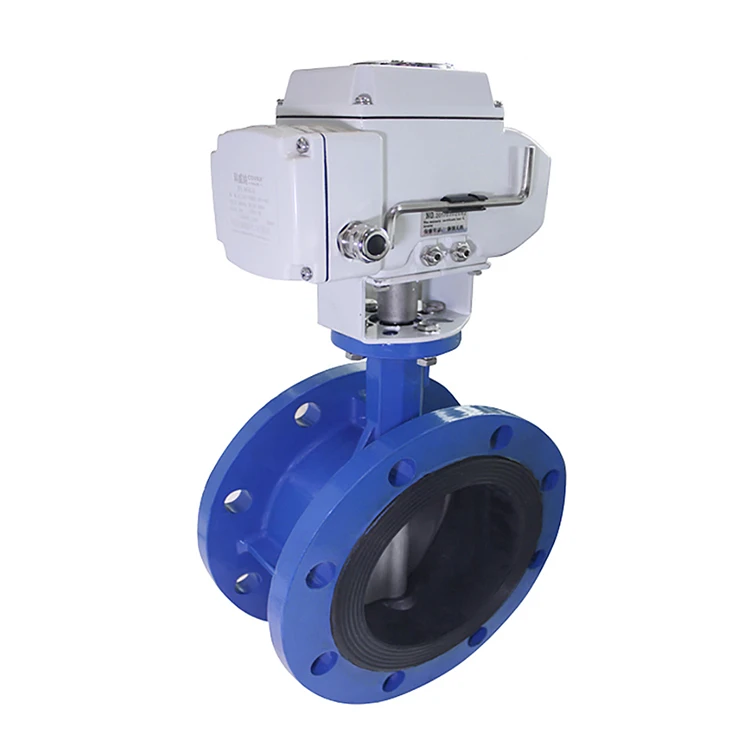

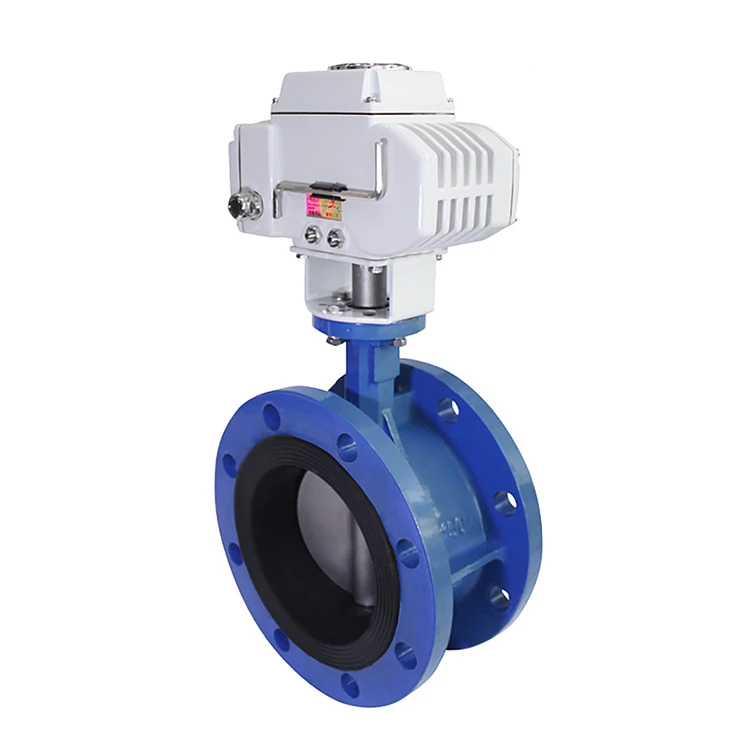

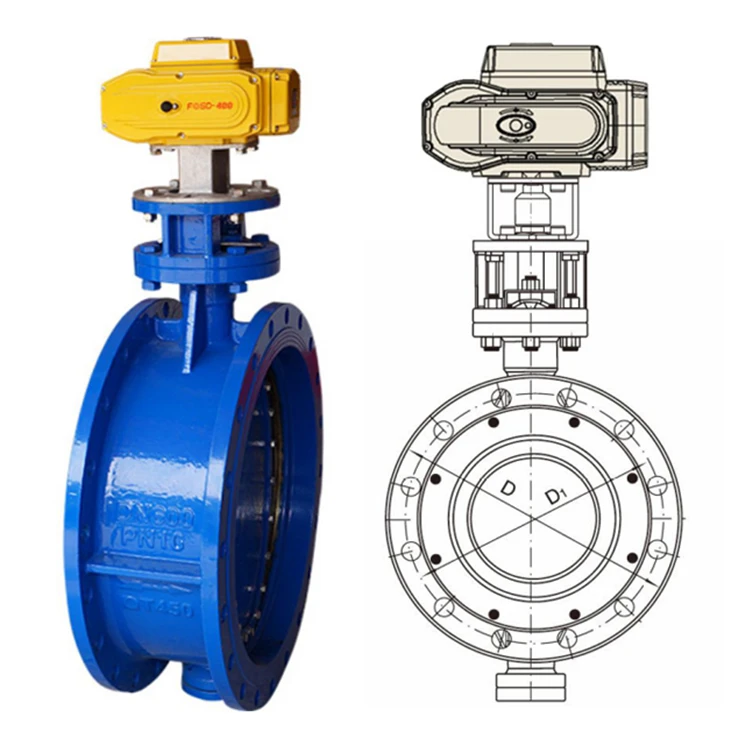

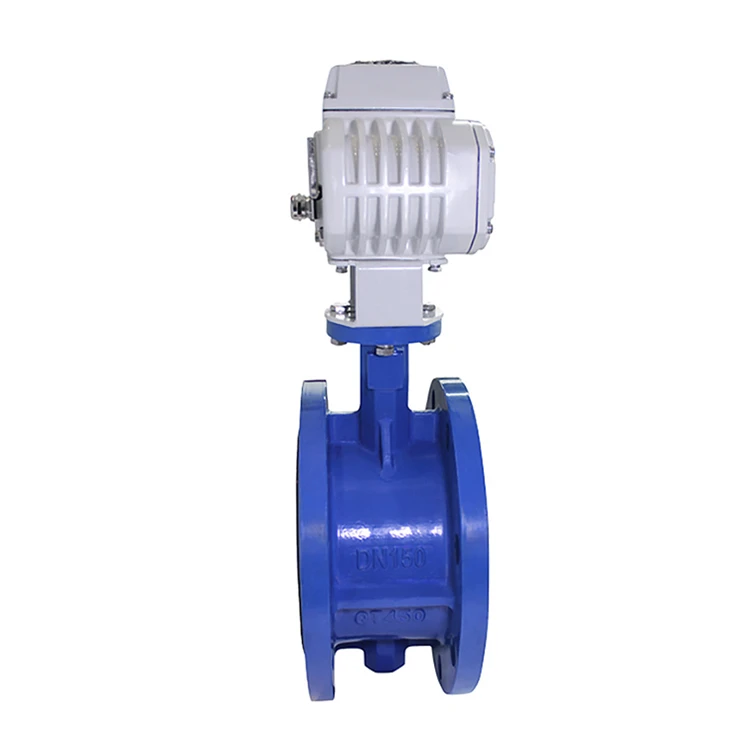

| · Product Picture · |
| · More type of electric actuator · |
Explosion-proof type With handwheel type Multiturn type Small type
ISO 5211 Mounting
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer and have our own factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
Q. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
