Packaging Auxiliary Materials Cheap Price RFID LF 125KHz Sticker For ManagementPackaging Label

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

What dose RFID inlay use for?

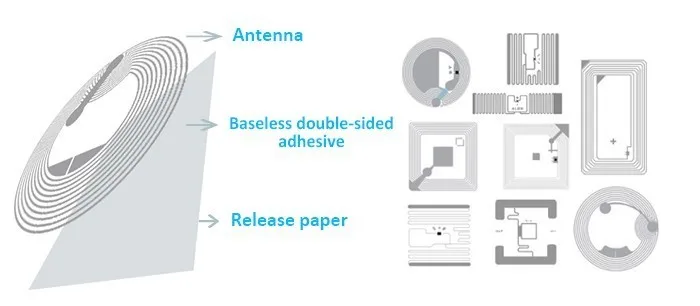

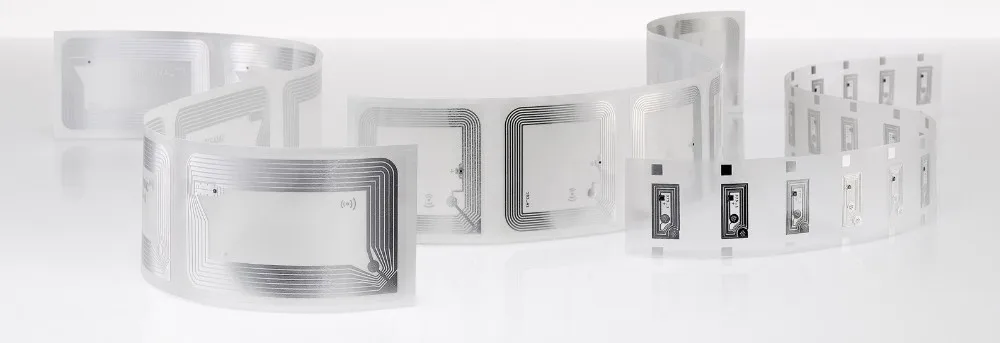

  First we need to figure out what is RFID dry inlay. RFID dry inlay composed by 3 part: Aluminum, chipset and PET. RFID dry inlay is a semi-finished RFID, it can be HF or UHF, and can be read by the reader. Each RFID dry inlay has their own unique ID number.

  The RFID dry inlay can be used into cards, stickers, intelligent home accommodation, etc..
☆  Actual applications such as access control, asset managment, attendance management, animal Identification System,parking system, logistics management, industrial automation,supermarket, store management, security system, medical institutions management, etc..

Product
Factory supply 13.56mhz rfid sticker tags NFC dry/wet inlay NTAG213
Antenna Material
Aluminum Al (30μm) + PET (38μm) + Al bridge (10μm)
Antenna Shape
Round or square
Thickness
0.07mm (chip location: 0.23mm)
Frequency
13.56MHz
Dry inlay
12*18mm, 14.5*14.5mm, 76*45mm, dia 20mm, 40mm, etc
Working temperature
-20℃ to +60℃
Storage temperature
-25℃ to +65℃
Working life
100000 times / 10 years
Nominal Read Range
2~6cm depending on antenna geometry and reader configuration
Application
Identification,Card, Logistics, Library, Asset management, Payment, Access control
Details Of Sticker

NFC Chip Types
Protocol
R/W
User Memory
Chip options
Type 1
ISO14443A
Yes
96 Bytes
Topaz512
Type 2
ISO14443A
Yes
48-2048 Bytes
NTAG213/215/216
MIFARE Ultralight® C, MIFARE Ultralight® EV1
MIFARE Classic® 1K
F08
Type 3
ISO18092
Yes
2048 Bytes
Sony Felica
Tpye 4
ISO14443A
Yes
Up to 32 K Bytes
MIFARE® DESFire® EV1 (2K/4K/8K)
MIFARE® DESFire® EV2 (2K/4K/8K)
Type 5
ISO15693
Yes
1024 bits/2048 bits
ICODE SLIX, ICODE SLI-S

Remark:
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
