PCB Board With Three Stage Track Super Speed SMT Equipment Pick And Place SMT Pick And Place PCB Assembly Machine
Product Description

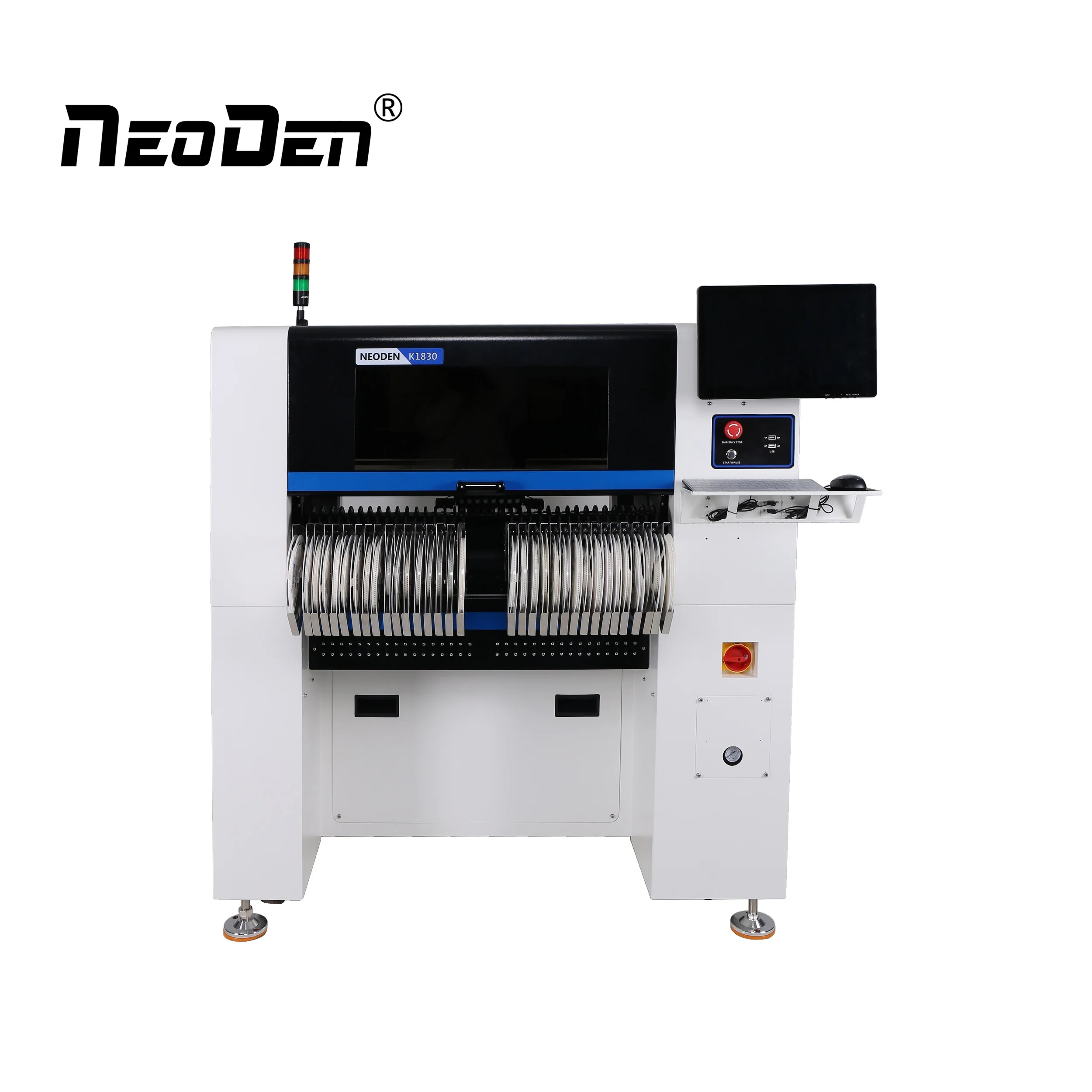

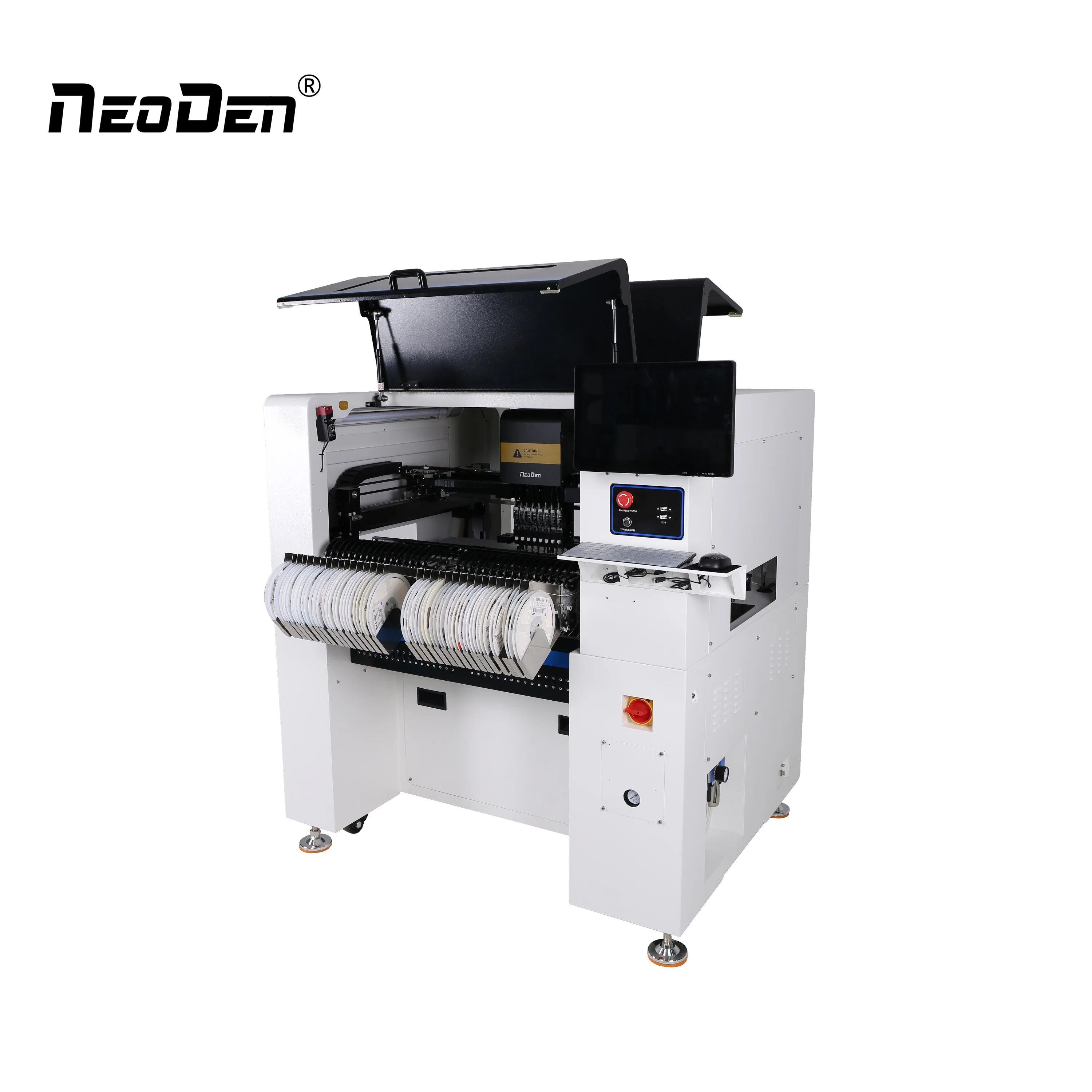

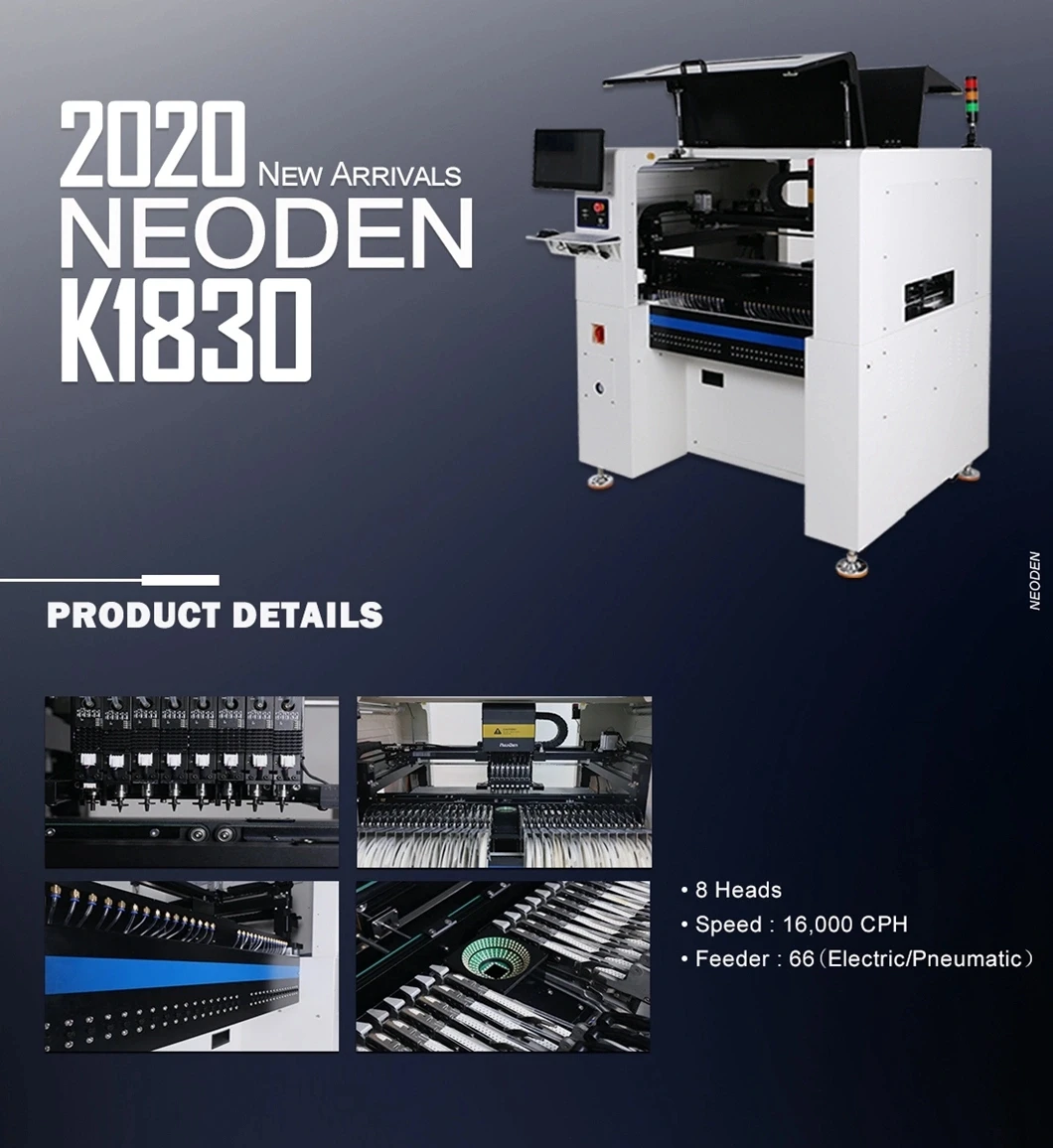

NeoDen K1830 features with 8 simultaneous pick-up heads, 66 tape reel feeder capacity, upgraded vision system and positioning system, which is suitable for scale pcb assembly production with fast speed and high accuracy.
PCB Board With Three Stage Track Super Speed SMT Equipment Pick And Place SMT Pick And Place PCB Assembly Machine
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for 0201 component, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
PCB Board With Three Stage Track Super Speed SMT Equipment Pick And Place SMT Pick And Place PCB Assembly Machine
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
Smt Pick & Place Machine smt pick and place equipment SMT Pick and Place Machine with 8 Heads smt machine
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
smd placement machine automatic pick and place machine smt pick and place machine smd pick and place machine
Featuressmt pick and place machine smt machine smd pick and place machine smd machine smt placement machine

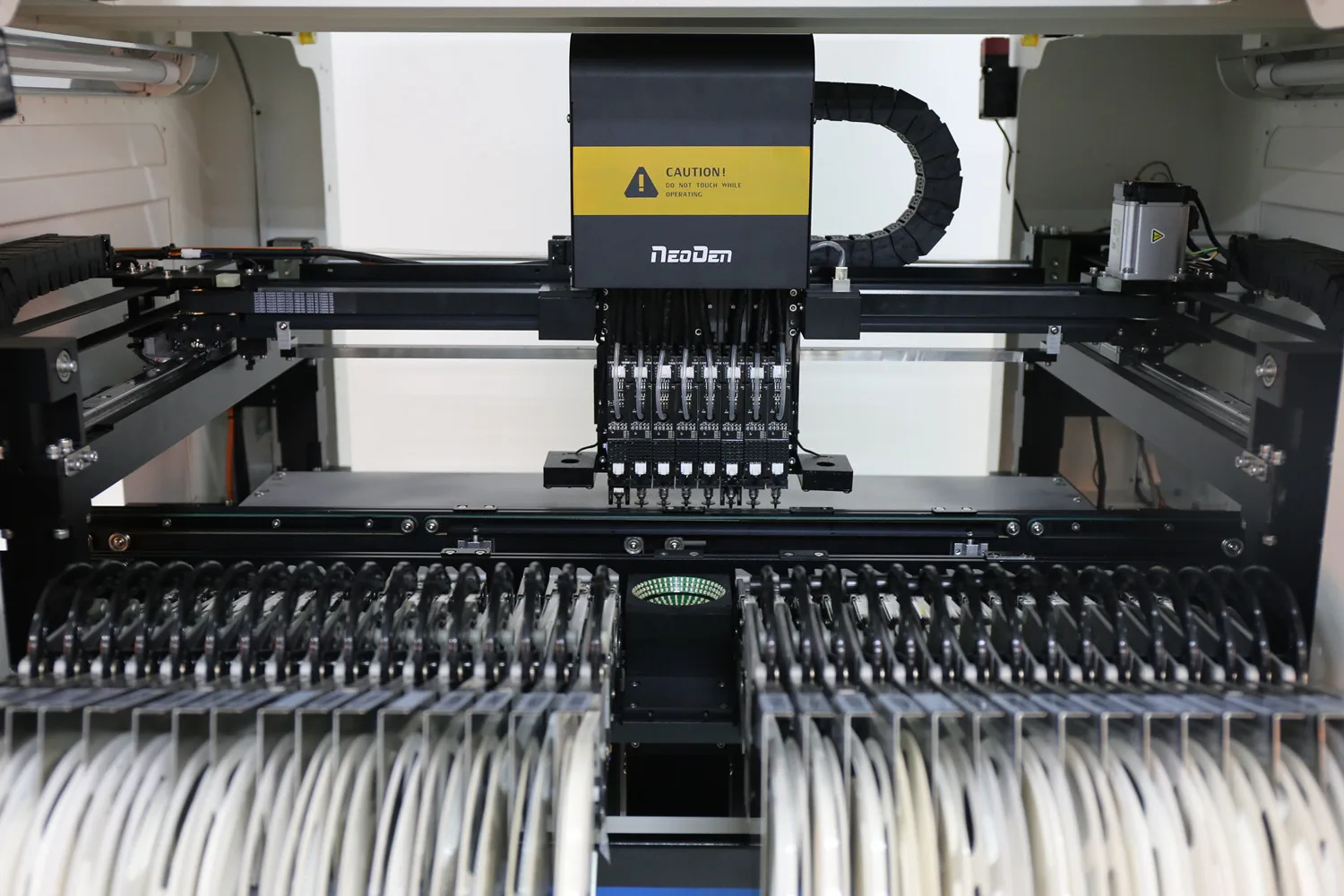

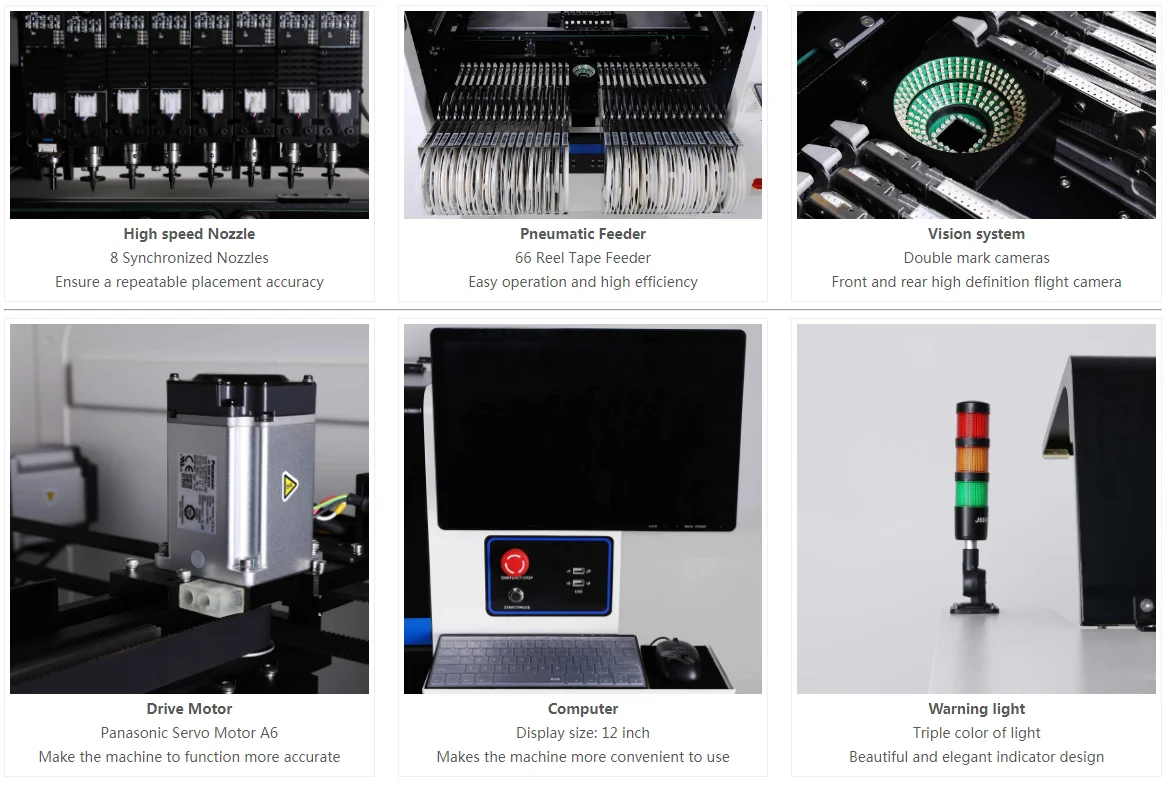

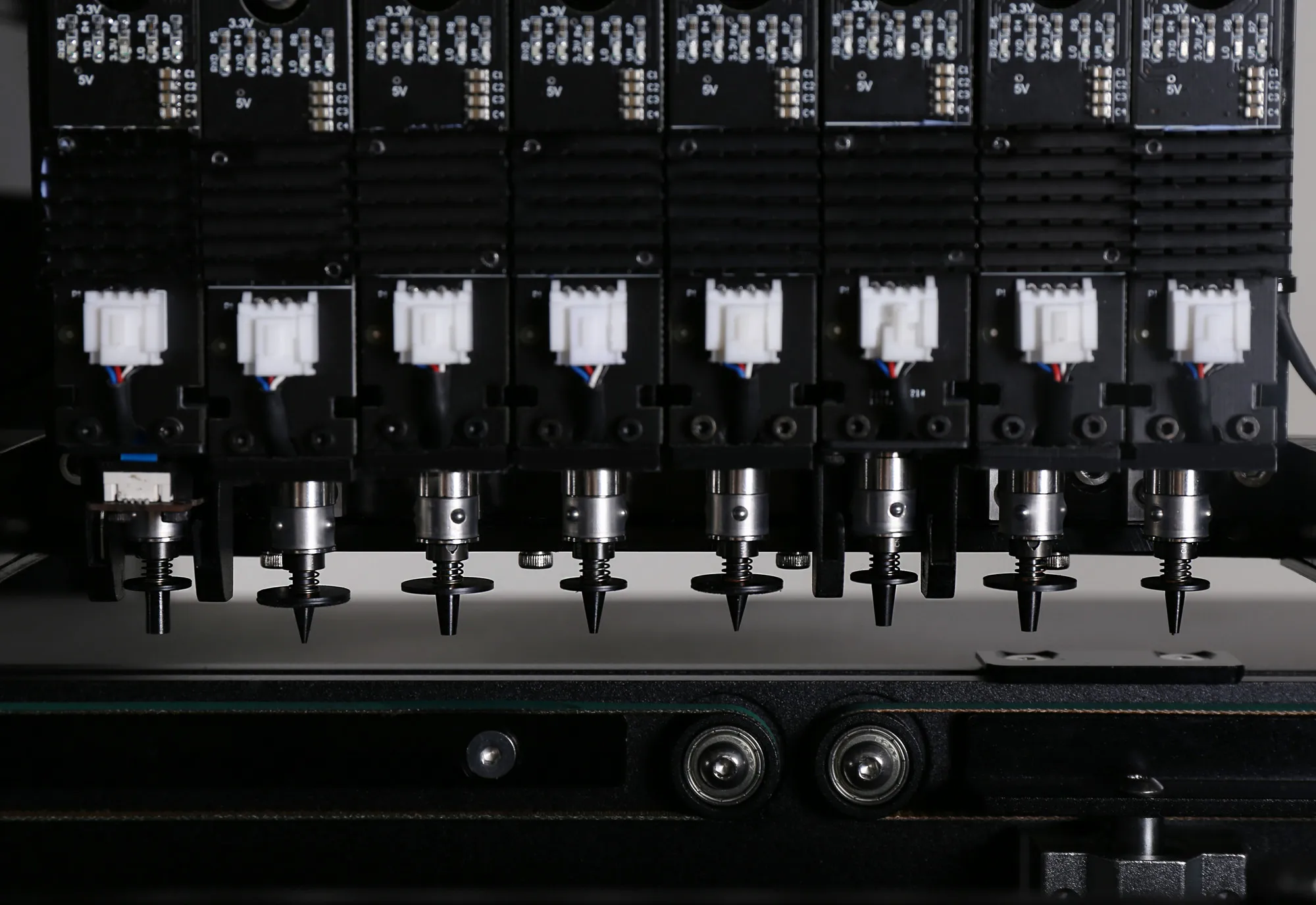

1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed;
2. Machine runs on highly stable and secure Linux operating system;
3. Double mark cameras to reach at extreme end feeders for better calibration;
4. High resolution and high speed component camera system improves the overall speed of the machine;
5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible;

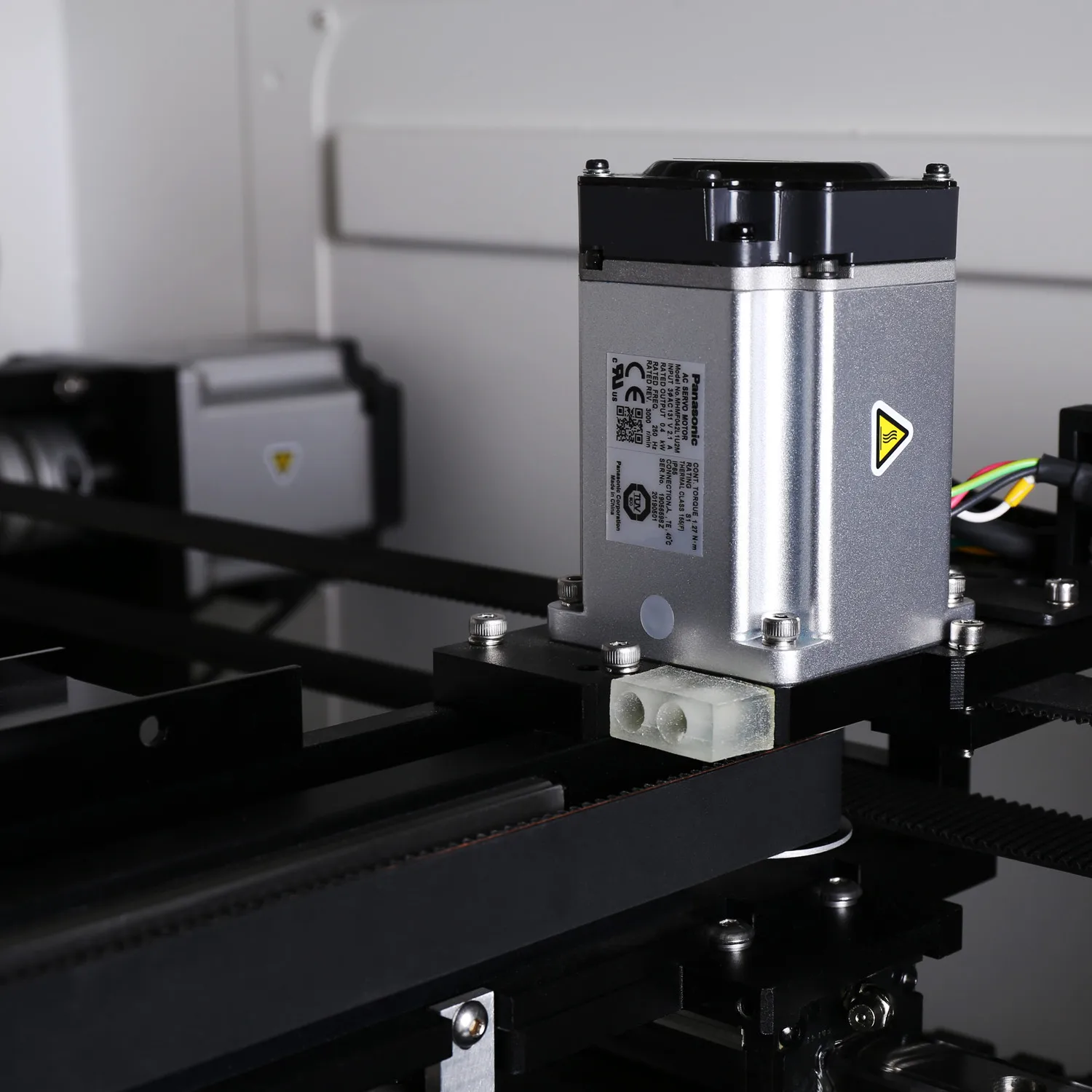

6. Closed loop Servo control system with feedback makes the machine to function more accurate;
7. Picking height & placing height can be detected automatically,components attribute can be set promptly,to ensure the easy operation and high accuracy;
8. Picking location of pneumatic feeder can be calibrated automatically and promptly,to ensure easy operation and high efficiency;
9. PCB location can be calibrated automatically and promptly,based on the correct and specific placement request.
2. Machine runs on highly stable and secure Linux operating system;
3. Double mark cameras to reach at extreme end feeders for better calibration;
4. High resolution and high speed component camera system improves the overall speed of the machine;
5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible;
6. Closed loop Servo control system with feedback makes the machine to function more accurate;
7. Picking height & placing height can be detected automatically,components attribute can be set promptly,to ensure the easy operation and high accuracy;
8. Picking location of pneumatic feeder can be calibrated automatically and promptly,to ensure easy operation and high efficiency;
9. PCB location can be calibrated automatically and promptly,based on the correct and specific placement request.
smt equipment pick and place smt machine pcb pick and place machine pick and place robot smt placement machine
smt placement machine smt equipment pick place machine pick and place smt machine pick and place robot
Details
Specification
Model | NeoDen K1830 | ||||||
Nozzle Qty | 8 nozzles | ||||||
Reel Tape Feeder Qty(Max) | 66 (Electric / Pneumatic) | ||||||
IC Tray Feeder Qty | 10 (In Succession) | ||||||
Max PCB size | 540*300mm(In Single Step) | ||||||
Smallest Component Size | 0201(Electric Feeder Available) | ||||||
Applicable IC Package | QFP, SSOP, QFN, BGA | ||||||
Placement Accuracy | 0.01mm | ||||||
Max Component Height | 18mm | ||||||
Max Placement Speed | 16,000CPH | ||||||
Component Recognition | High resolution flying vision camera System | ||||||
PCB Fiducial Recognition | High precision mark camera | ||||||
PCB Loading | Synchronized 3 Stages Internal Conveyor | ||||||
PCB Transfer Direction | Left→Right | ||||||
Air Supply | >0.6MPa | ||||||
Power | 500W | ||||||
Voltage | 220V/50HZ & 110V/60HZ | ||||||
Net Weight | 280kgs | ||||||
Gross Weight | 360kgs | ||||||
Machine Dimensions | 1288×1062×1291mm(Without Tri-color light) | ||||||
Packing Dimensions | 1420×1220×1665mm | ||||||
1.Tool Box*1
2.Air pipe connector(10-8)*1
3.Air pipe connector(12-10)*1
4.JIEKE Allen wrench Set *1
5.Open end wrench(22-24)*1
6.Open spanner(12-14)*1
7.Cross screwdriver(6*100)*1
8.8G Flash Drive*1
9.PCB Positioning Block*9
10.Double Sided Adhesive Tape(A4)*2
11.Demo PCB*1
12.File bag*1
13.Mouse and keyboard tray *1
14.Monitor Stand*1
15.Warranty Card*1
16.Certificate*1
17.User Manual*1
18.Nozzle:10pcs(CN040-1PC; CN065-2PCS; CN100-2PCS; CN140-2PCS; CN220:1PC; CN400-1PC; CN750-1PC)
2.Air pipe connector(10-8)*1
3.Air pipe connector(12-10)*1
4.JIEKE Allen wrench Set *1
5.Open end wrench(22-24)*1
6.Open spanner(12-14)*1
7.Cross screwdriver(6*100)*1
8.8G Flash Drive*1
9.PCB Positioning Block*9
10.Double Sided Adhesive Tape(A4)*2
11.Demo PCB*1
12.File bag*1
13.Mouse and keyboard tray *1
14.Monitor Stand*1
15.Warranty Card*1
16.Certificate*1
17.User Manual*1
18.Nozzle:10pcs(CN040-1PC; CN065-2PCS; CN100-2PCS; CN140-2PCS; CN220:1PC; CN400-1PC; CN750-1PC)

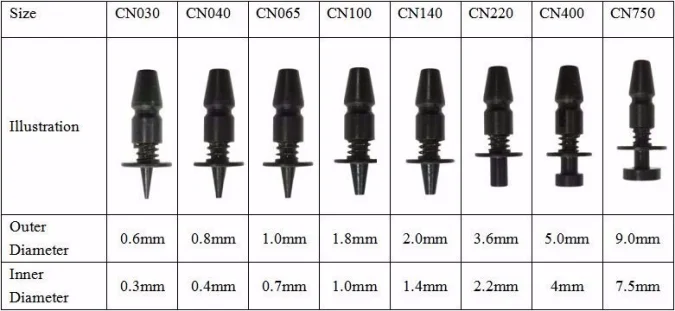

Nozzles Information
Placement Effect
Packing & Delivery
Related Products
SMT Pick and Place Machine NeoDen9
SMT Pick and Place Machine NeoDen4
Reflow Oven IN6
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our show
Workshop
Exhibition
Certification
