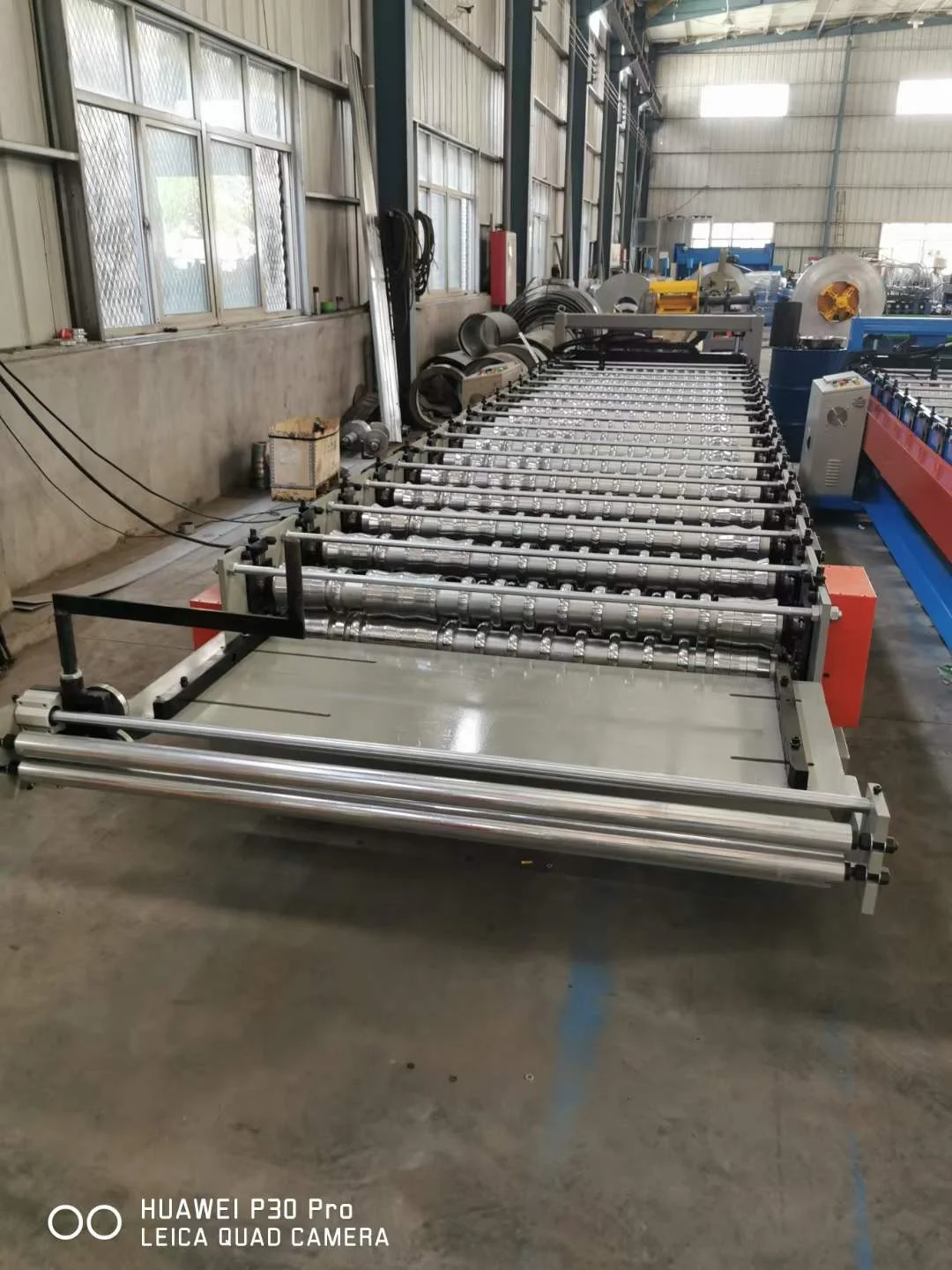

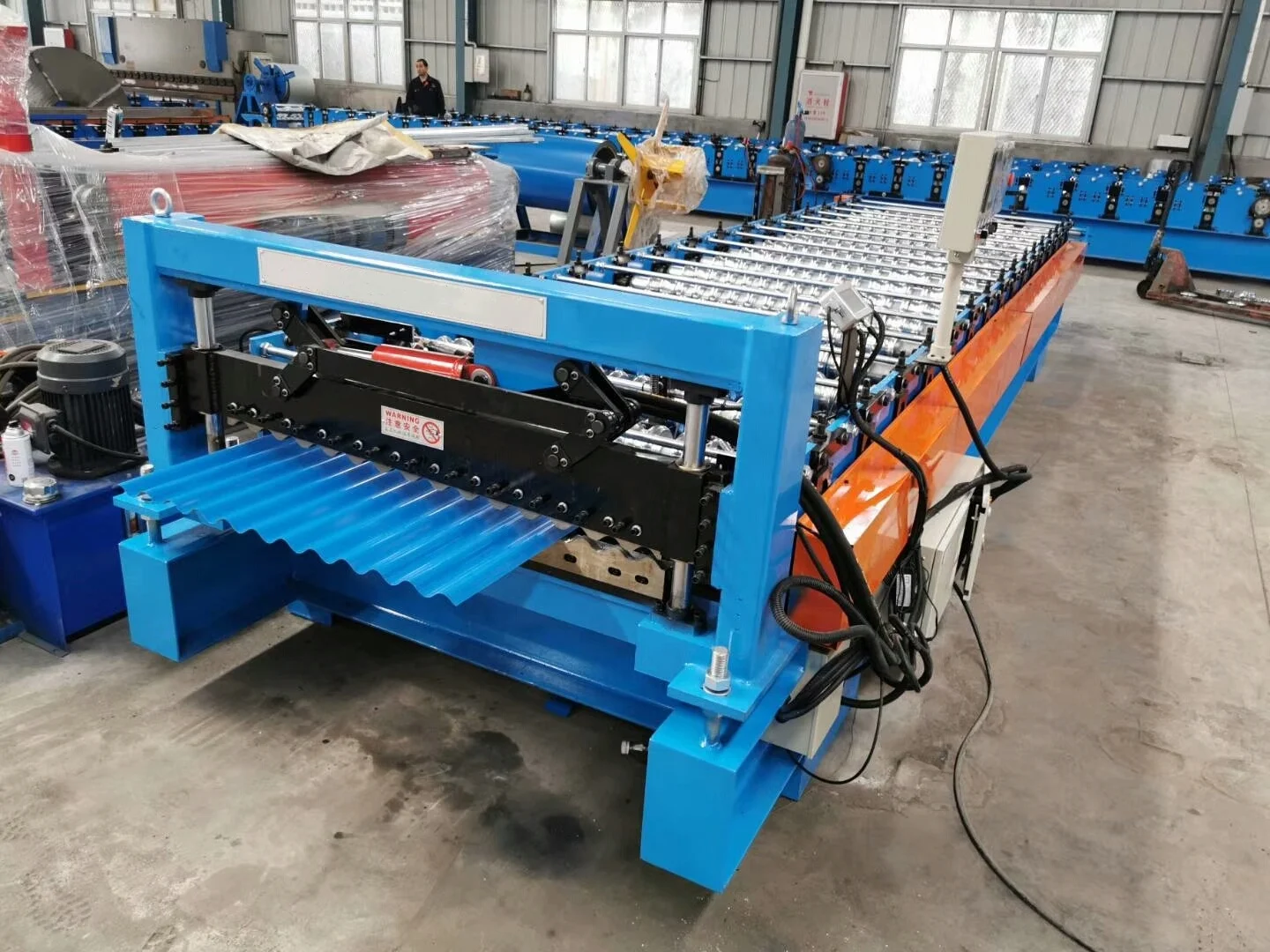

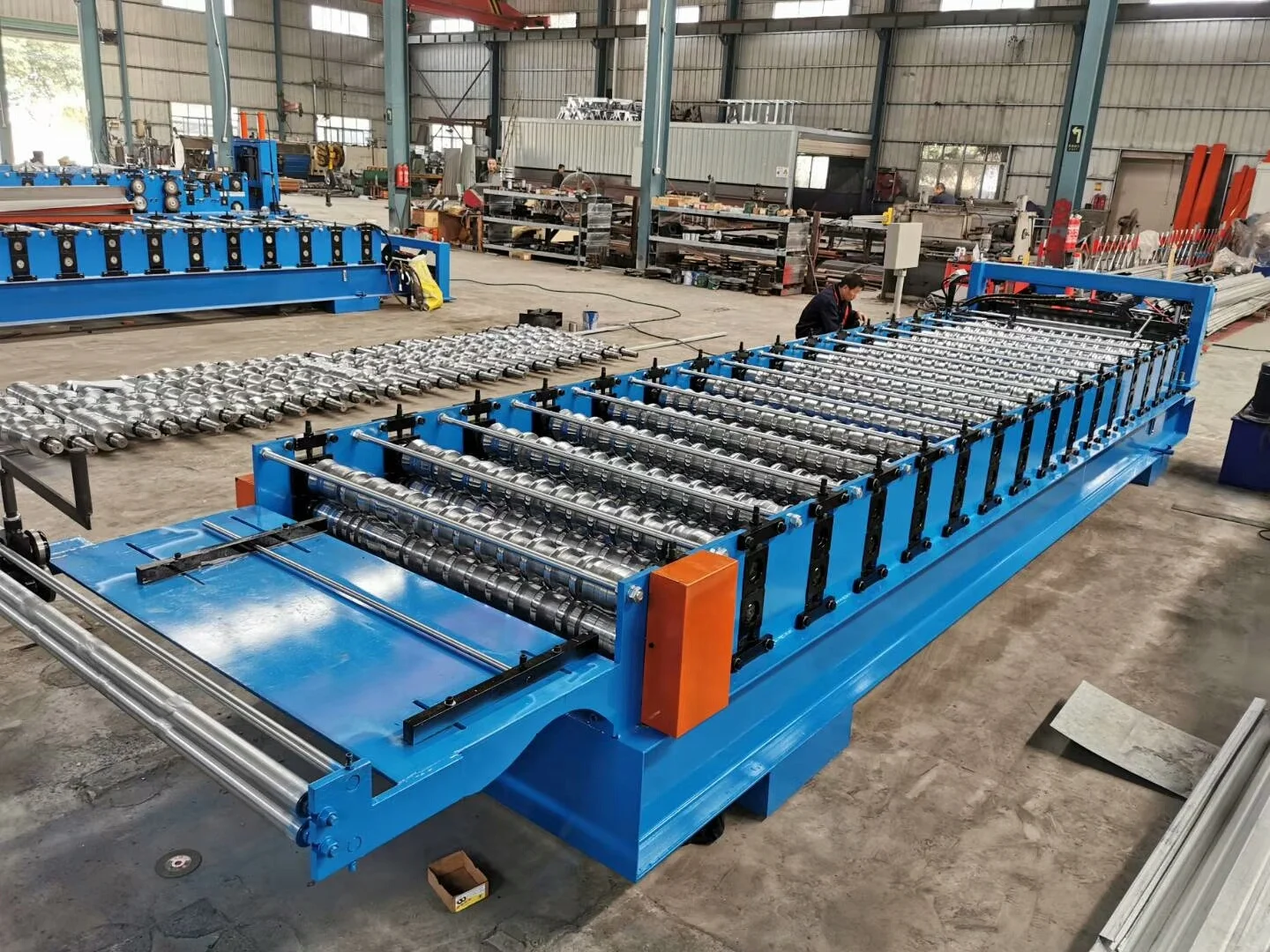

Galvanized corrugated iron sheet roll forming machine wall panel roof panel

Product Overview

Description

Galvanized corrugated iron sheet roll forming machine wall panel roof panel

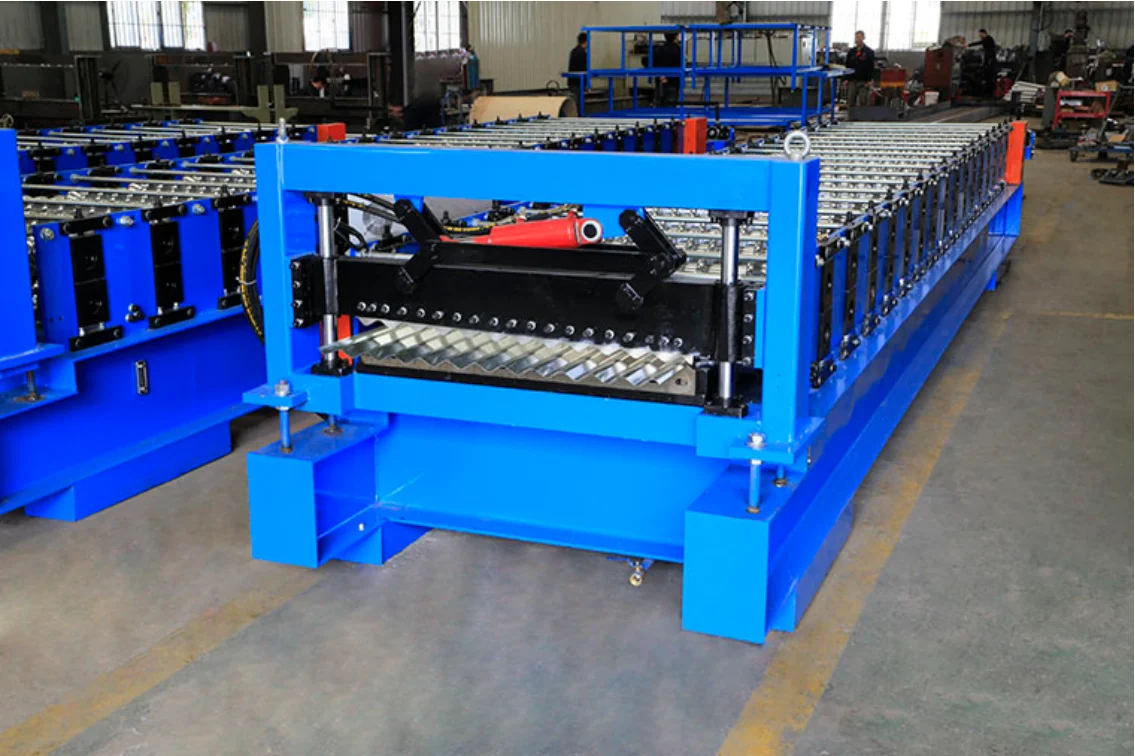

    Corrugated roof sheet making machine is specially designed for forming corrugated sheets and siding corrugated panels with various sizes and speciafications under mass-production,

     The production speed of our newest corrugated roof sheet forming machine can be 30-60m/min,



The technical flow of the production line:

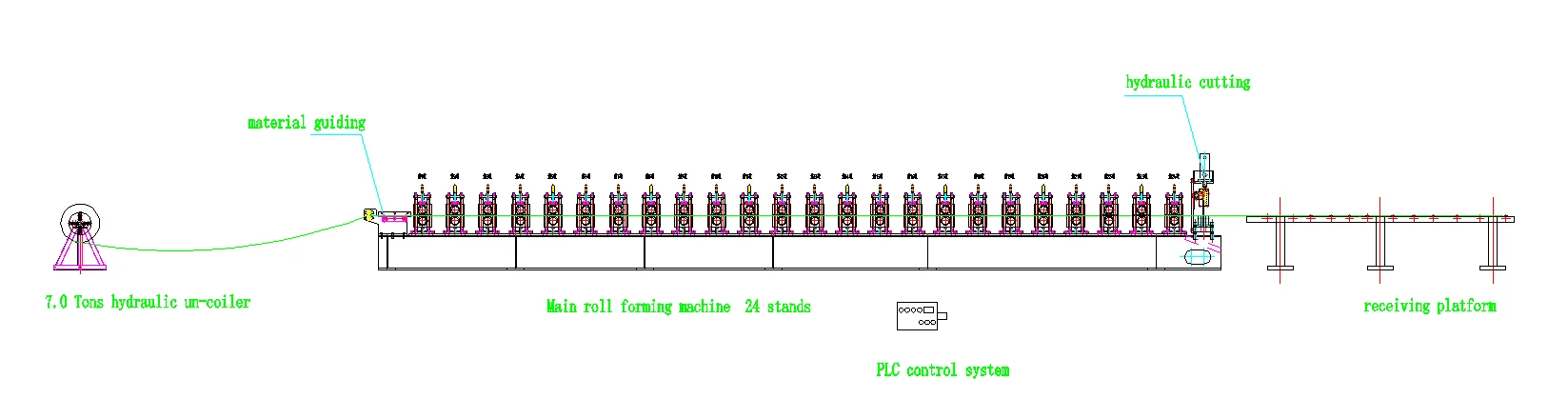

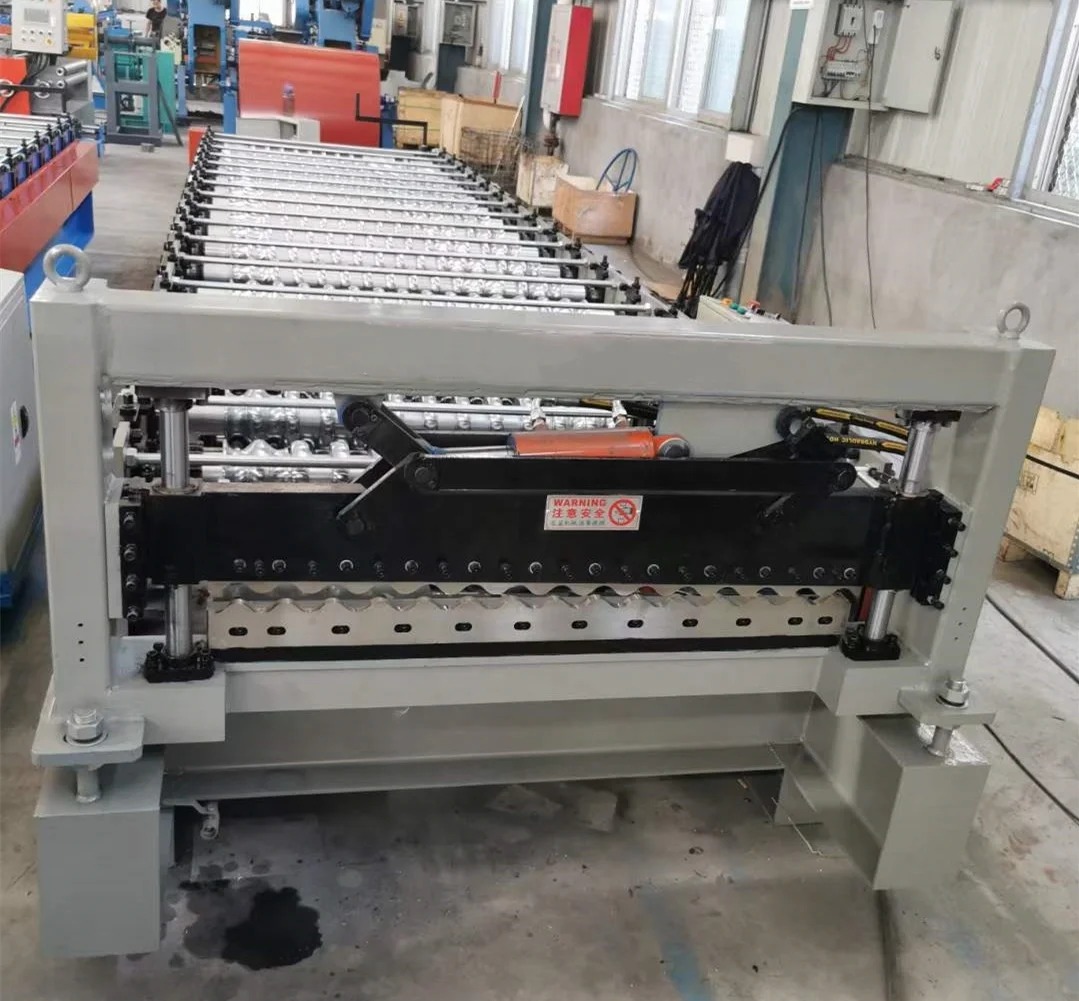

   Decoiler --- Feeding guide --- Main roll forming --- PLC control --- Hydraulic station --- Hydraulic cutting --- Exit rack

Basic information:

Material thickness range	0.3-0.8mm
Decoiler	5 tons
Main motor power	7.5 kw
Speed	16 m/min

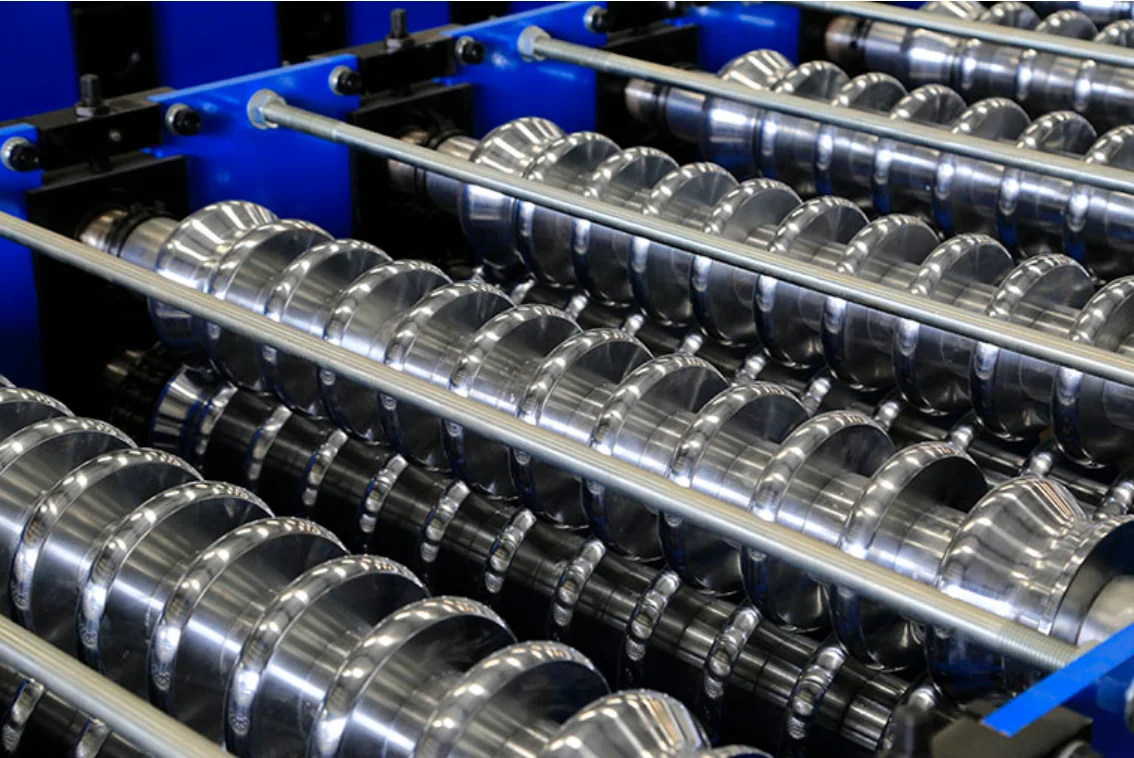

Quantity of rollers	20
Shaft diameter	75mm
Way Of Drive	Chain

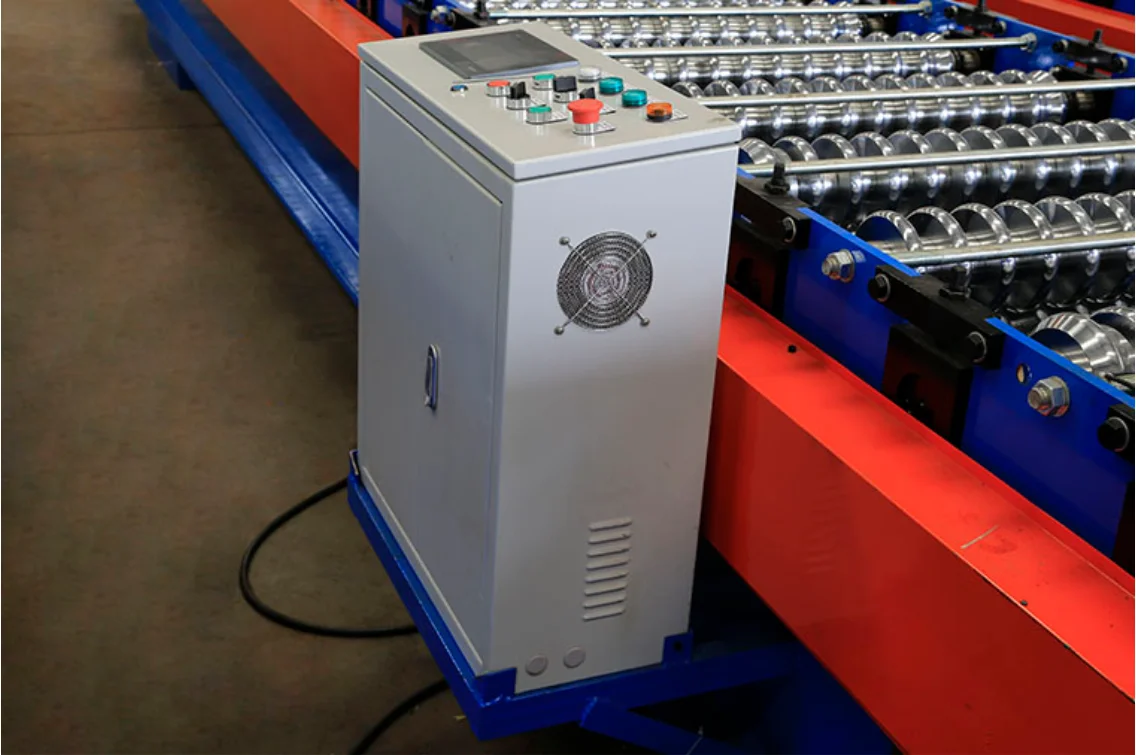

Control system	PLC
Voltage	Customized
