New OSCH02 OSCH02M 2 CH USB PC Virtual Digital Oscilloscope 100MHz 1GSa/s Logic Analyzer Generator Support Android

The different of the 4 models

OSCH02: Oscilloscope only, not include logic analzyer and generator module. OSCH02M:Oscilloscope only, support Android,not include logic analzyer and generator module. OSCH02X:Oscilloscope,include logic analzyer and generator module. OSCH02F:Oscilloscope,support android,include logic analzyer and generator module.

Features

 Hand-held portable, 153(L) x 93(W) x 23(H) mm, up to 210g.  1G/250M Maximum sampling rate, 100M bandwidth,2 channels.  8 Bit ~ 13 Bit vertical resolution.  Open source hardware interface to support expansion modules.  USB 2.0 interface, USB powered.Comes with PWM output.  72 hours long time data logger. Can add logic anazlyer or isolated differential module  Waveform recording and playback review.  Support waveform image import as the comparison reference for real-time waveform.  Support Serial bus decoding (RS-232,RS-485, I²C, CAN).  Supports a variety of current clamps and other physical volume custom probes.  Support buffer waveform preview and mouse wheel operations.  Historical change trend statistics and analysis functions.  Pass / Fail detection.

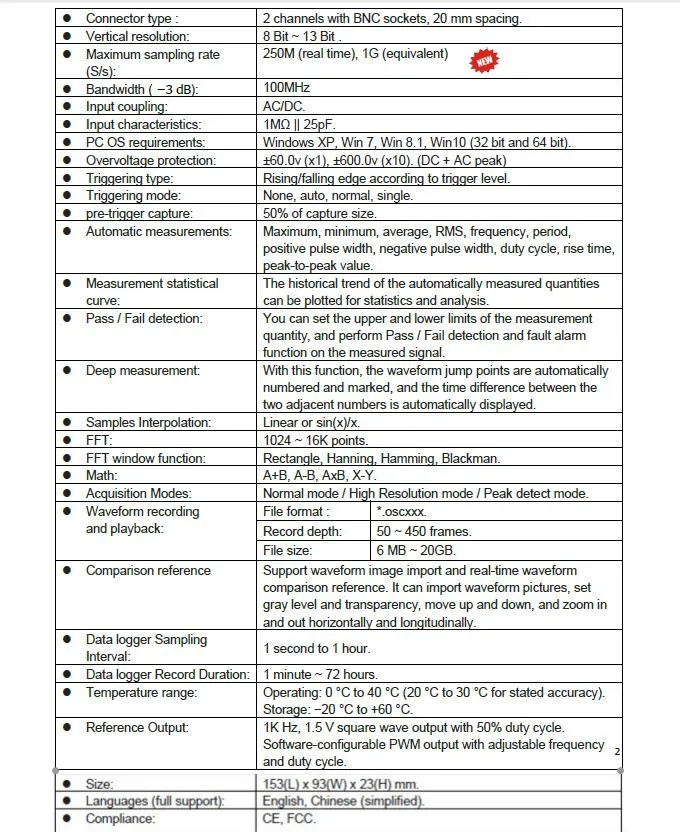

Specification

Application

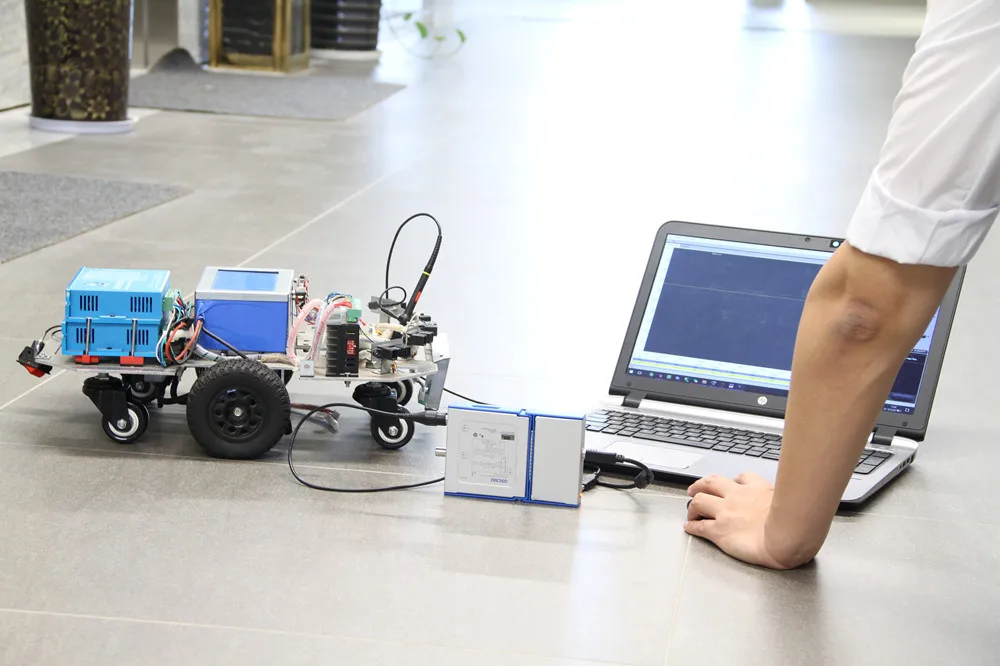

 General-purpose and precision testing.  Embedded in industrial testing equipment for use.  Embedded electronics courses for the educational market.  Ripple and noise measurements for power supply characterization.  Multi-sensor systems and Serial bus decoding.  Car inspection and maintenance.  Current/Voltage recording and analysis System for Solar Power Supply and Lighting System.  Diagnosis device for field engineers.  Basic equipment for DIY makers to develop their own modules.

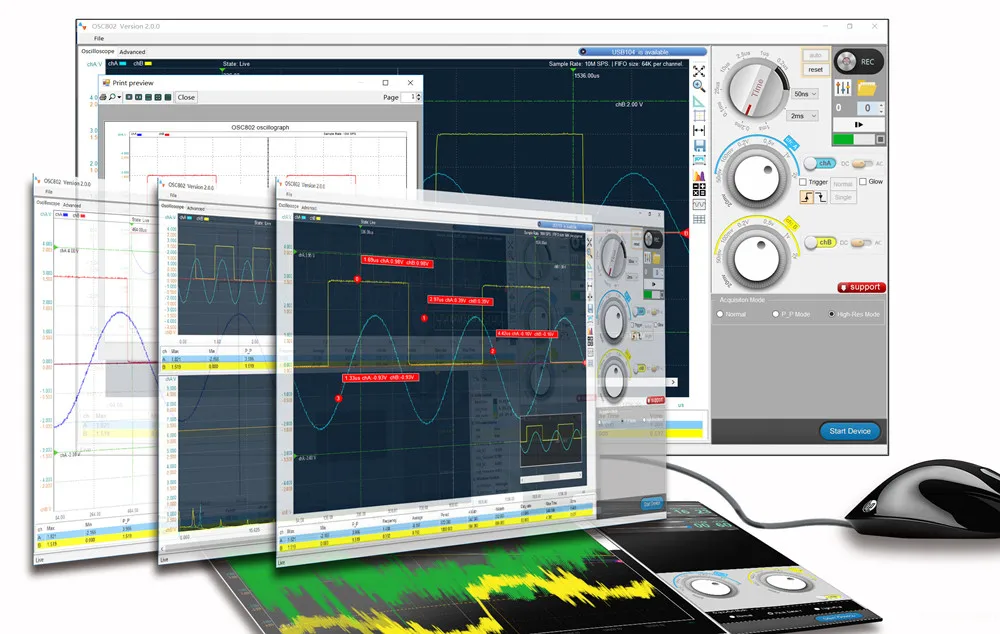

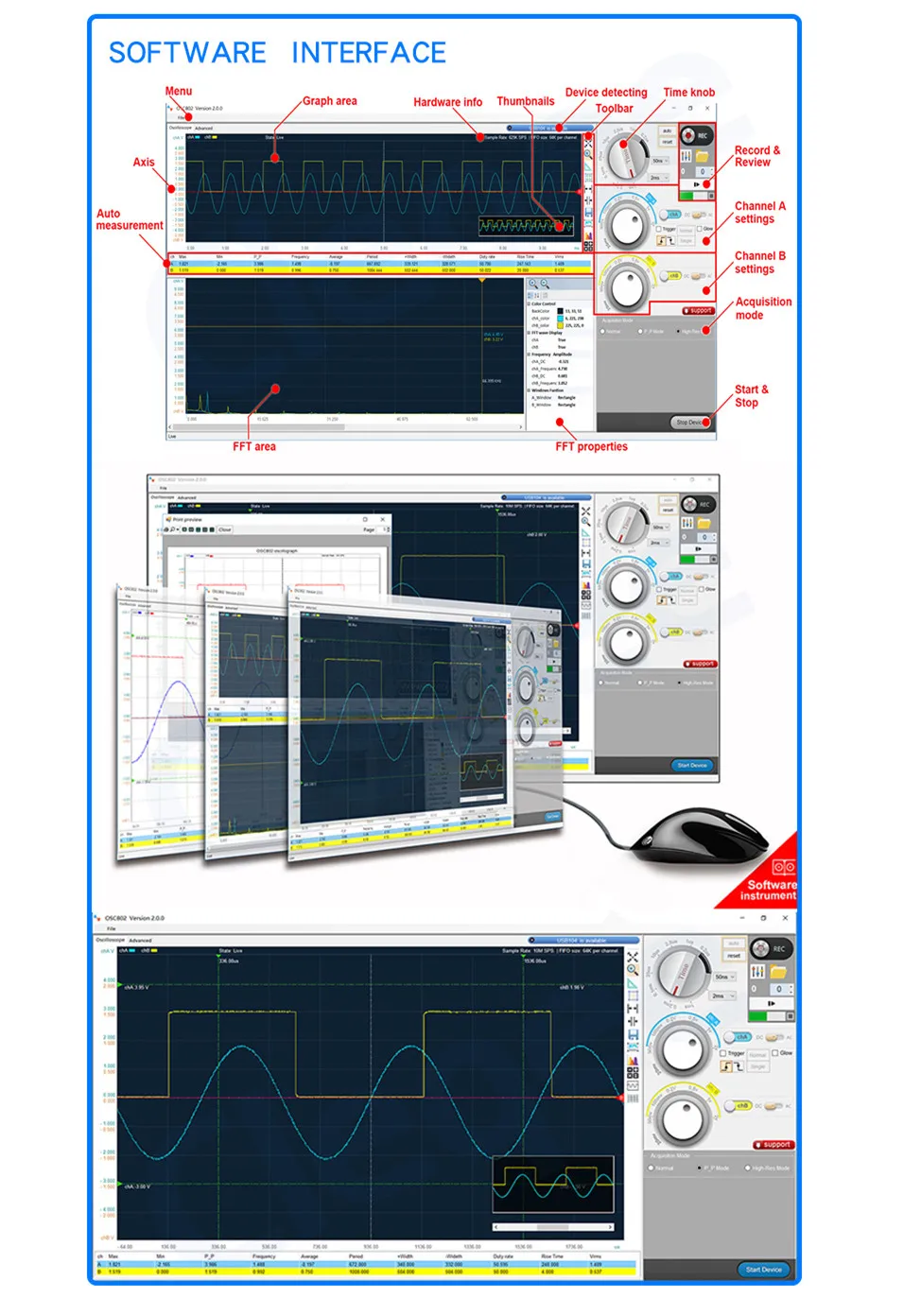

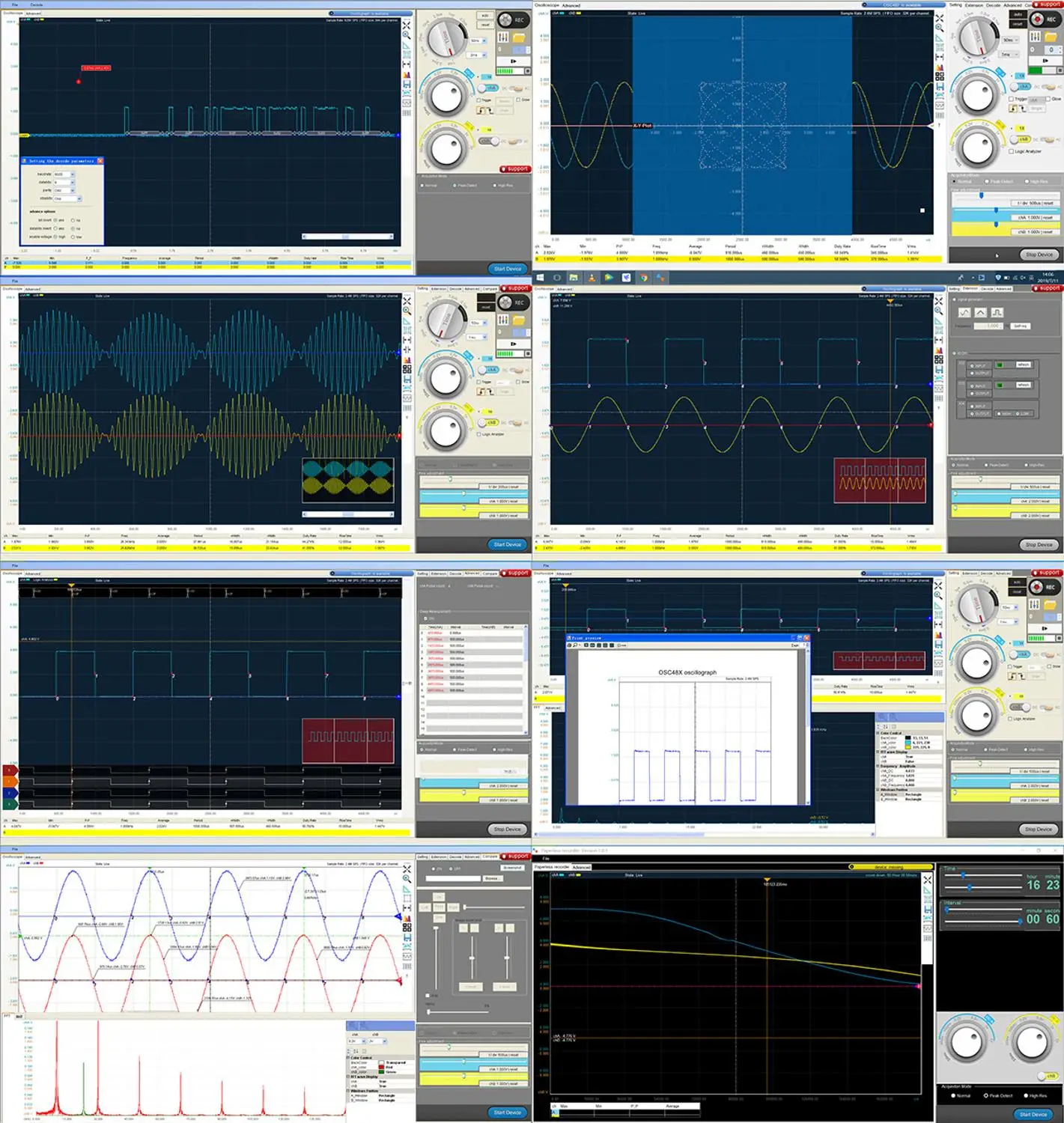

Interface of software

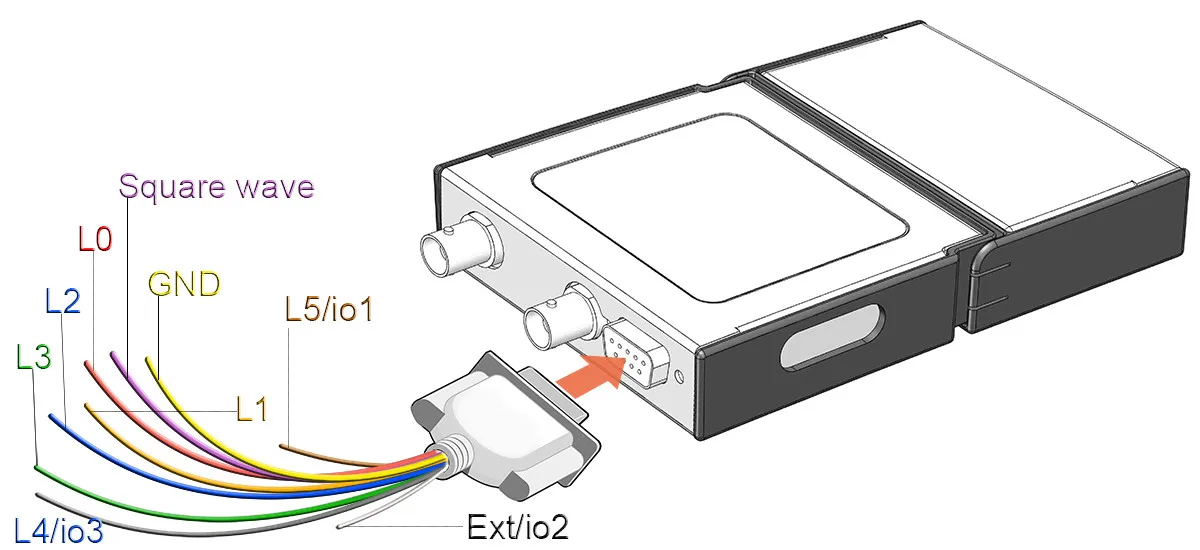

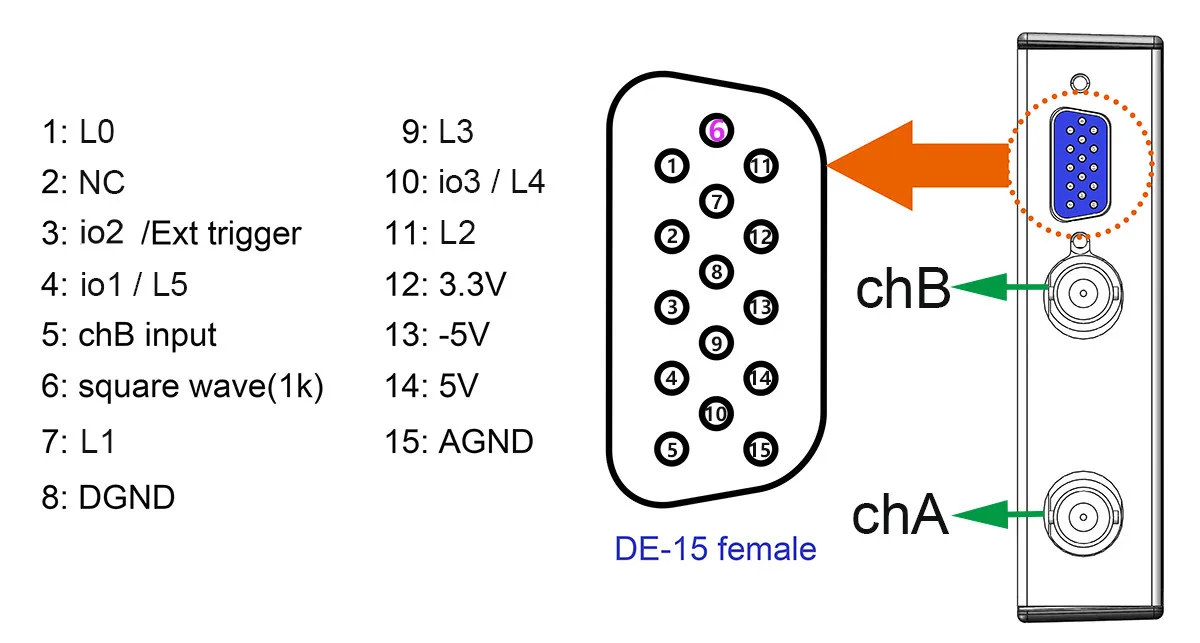

Logic analyzer module

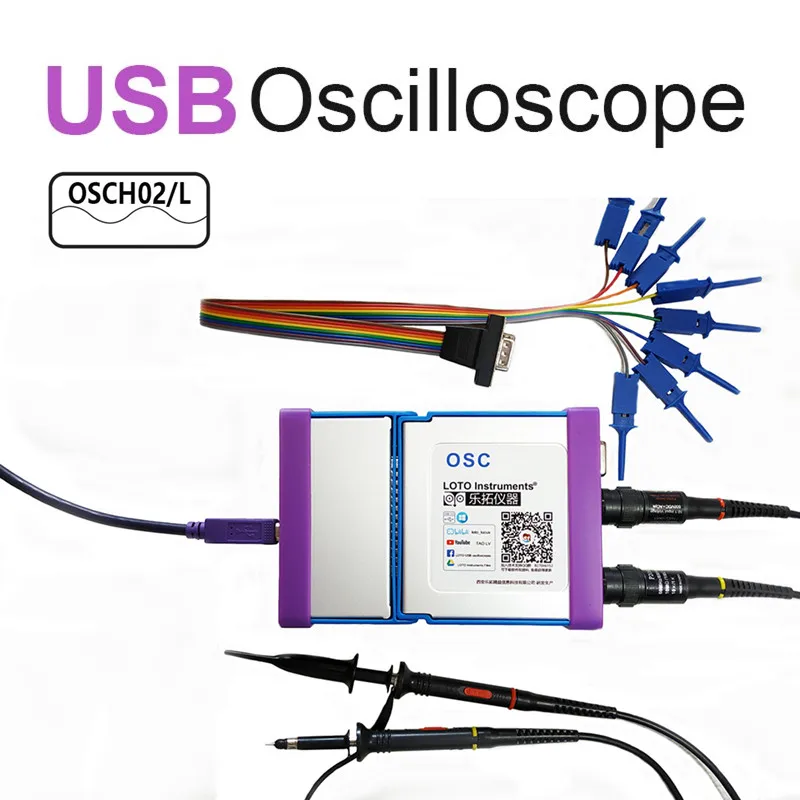

What's in the package

OSCH02: 1 x OSCH02 USB Oscilloscope 2 x Probe 1 x USB cable OSCH02M 1 x OSCH02M USB Oscilloscope 2 x Probe 1 x USB cable OSCH02X 1 x OSCH02 USB Oscilloscope 1 x L06 logic analyzer 1 x Generator module 2 x Probe 1 x USB cable OSCH02F 1 x OSCH02F USB Oscilloscope 1 x Generator module 1 X L06 logic analyzer 2 x Probe 1 x USB cable
