Эффективный и гигиеничный Электрический Конвейерный барабан DM0080 с ленточным приводом
- Category: Material Handling Equipment Parts >>>
- Supplier: Kunshan,Meilide,Industrial,Automation,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Technical Parametersnter

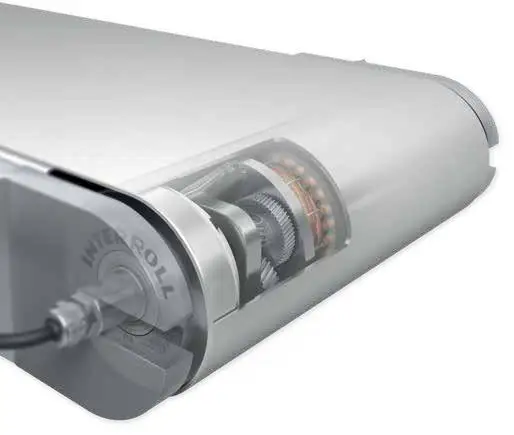

Our drum motor platform provides
asynchronous and synchronous technology.
The diameter is 80, 113 or 138 mm.

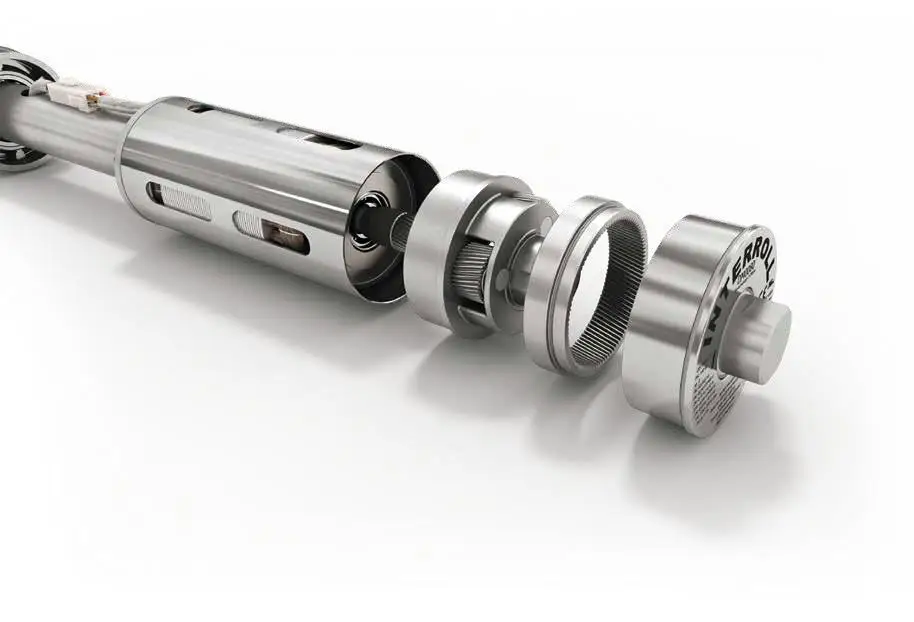

The gearbox can be made of steel or high-tech polymer.
technical parameter | ||||||||||||||||||
series | DM0080 | DM0080 | DM0080 | DM0080 | DM0080 | DM0113 | DM0113 | DM0113 | DM0138 | |||||||||
Motor technology | asynchronous | asynchronous | asynchronous | asynchronous | Sync* | asynchronous | asynchronous | Sync* | asynchronous | |||||||||
Phase | 3 phase | 3 phase | Single phase | Single phase | ----- | 3 phase | Single phase | ----- | 3 phase | |||||||||
Diameter (mm) | 81.5 | 81.5 | 81.5 | 81.5 | 81.5 | 81.5 | 81.5 | 81.5 | 81.5 | |||||||||
Gearbox material | steel | High-tech polymer | steel | High-tech polymer | steel | steel | steel | steel | steel | |||||||||
Rated power (W) | 40 - 140 | 40-75 | 25-110 | 25-110 | 145-425 | 160-550 | 250 | 300-1100 | 160-1000 | |||||||||
Rated torque (Nm) | 1.2 - 59.8 | 3.2 - 20.3 | 0.8 - 39.2 | 4.5 - 21.4 | 2.1 - 65 | 6.7 - 157 | 9.1 - 71.5 | 5.4 - 132.7 | 15.7 - 283.3 | |||||||||
Maximum belt tension (N) | 1467 | 498 | 961 | 525 | 1594 | 2779 | 1265 | 2349 | 3454 | |||||||||
Shell speed (m/s) | 0.03 - 2.5 | 0.07 - 0.87 | 0.05 - 2.49 | 0.05 - 0.9 | 0.08 - 2.72 | 0.05 - 1.85 | 0.18 - 0.67 | 0.16 - 2.96 | 0.04 - 2.29 | |||||||||
Roller width FW (mm) | 200 - 1200 | 239 - 1200 | 250 - 1200 | 287 - 1200 | 192 - 1200 | 257 - 1400 | 297 - 1400 | 207 - 1400 | 307 - 1600 | |||||||||
Friction drive belt | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||
With forced drive belt | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||
Without belt | √ | ----- | ------ | ------ | √ | √ | ------ | √ | √ | |||||||||
*All synchronous motors are also available in oil-free type.
Other advantages and options
series | 80S | 113S | 165i | 217i |
Motor technology | asynchronous | asynchronous | asynchronous | asynchronous |
Direct (mm) | 81.5 | 113.3 | 164 | 217.5 |
Gear material | High-tech polymer | High-tech polymer | steel | steel |
Rated power (W) | 0.025-0.110 | 0.040-0.330 | 0.306-2.2 | 0.306-3 |
Rated torque (Nm) | 3.4-21.4 | 5.5-43.8 | 28.1-365.2 | 28.1-533.6 |
Belt tension (N) | 84-525 | 96-772 | 347-4453 | 261-4907 |
Shell speed (m/s) | 0.049-0.913 | 0.068-1.107 | 0.084-2.527 | 0.126-3.344 |
Shell length SL | 260-952 | 240-1090 | 400-1750 | 400-1750 |
Friction drive belt | √ | √ | √ | √ |
With forced drive belt | ----- | ----- | √ | √ |
Without belt | ----- | ------ | √ | √ |
Cable routing

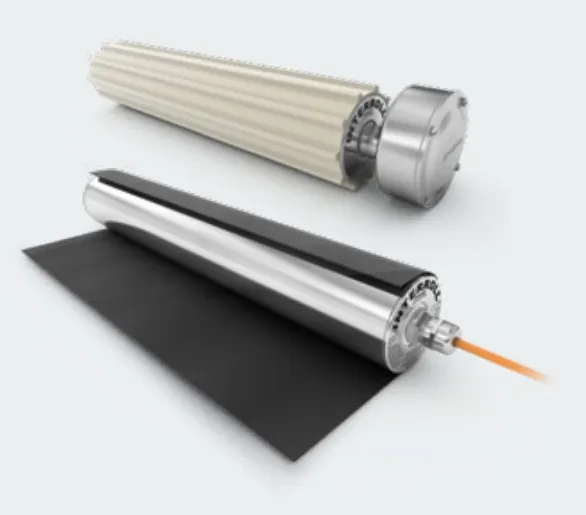

Rubber sleeve
For friction-driven belts, the rubber coating increases the friction between the electric drum and the conveyor belt to prevent slippage.For modular plastic belts
The lagging made of heat-vulcanized nitrile rubber is compatible with all MPBs.
For forced drive solid homogeneous belts
The encapsulation made of Interroll's high-quality hygienic polyurethane is suitable for high hygienic requirements
food processing.
