Aluminum Base Copper Clad Laminate PCB Raw Material Double Layer Copper Clad Laminate Sheet
Specification
Item
Unit
Test Condition
Insulation thickness 3mil（75um）
Insulation thickness 4.5mil(115um)
Copper thickness
OZ
1～2oz
Aluminum thickness
mm
0.8/ 1.0/1.2/ 1.6/ 2.0/3.0
Standard size
mm
500x1200 / 600x1000 / 500x600
Peeling strength
N/mm
IPC TM-650 2.4.9
1.8
1.8
Thermal Stress
288℃/60secX5
IPC TM-650 2.4.13
ok
ok
Thermal resistance
℃/W
ASTM 5470-D
0.65
0.65
Heat transfer
W/m.k
ASTM 5470-D
1.5
1.5
Chemical Resistance
--
IPC TM-650 2.3.2
ok
ok
Surface resistance
ohm
C-96/35/90
108
108
Volume resistance
Ohm.cm
C-96/35/90
108
108
Breakdown Voltage
kv
IPC TM-650 2.5.6
≥3
≥5
Dissipation Factor 1kHz Normal status 1MHz Normal status
C-96/35/90
4.8 4.6
4.8 4.6
Water absorption
%
D-24/23
≤0.05
≤0.05
Comparative tracking index
V
IEC60112
600
600
Flame resistance
--
UL94
V0
V0
More Different Types of Products Can Also be Customized!
Application range:
Lighting: LED exterior wall lighting, street LED lighting, LED stage lighting, household LED lighting.
Recommend Products
Company Profile
Guangzhou Guangyou Electronic Co., Ltd
Guangzhou Guangyou Electronics Co., Ltd. is a high-tech enterprise specializing in the R&D, lamination, production and sales of LED heat-dissipating metal substrates. It has modern professional workshops and introduced a full set of advanced production equipment. It has more than 100 employees and has a line of The professional team of board production and strong production technology, our company has complete inspection equipment and strict quality inspection department to monitor the product quality in the whole process.
Products are widely used in LED lighting, car lights, stage lighting, high-power power supplies, home appliances, indoor and outdoor consumer electronics lighting. High heat dissipation metal substrate, copper substrate, single and double-sided composite board mainly solve the problem of PCB heat dissipation. LED high heat dissipation, high quality, high efficiency and high stability have become the unremitting goal of every Guangyou people. Creating value for customers is our company's service tenet.

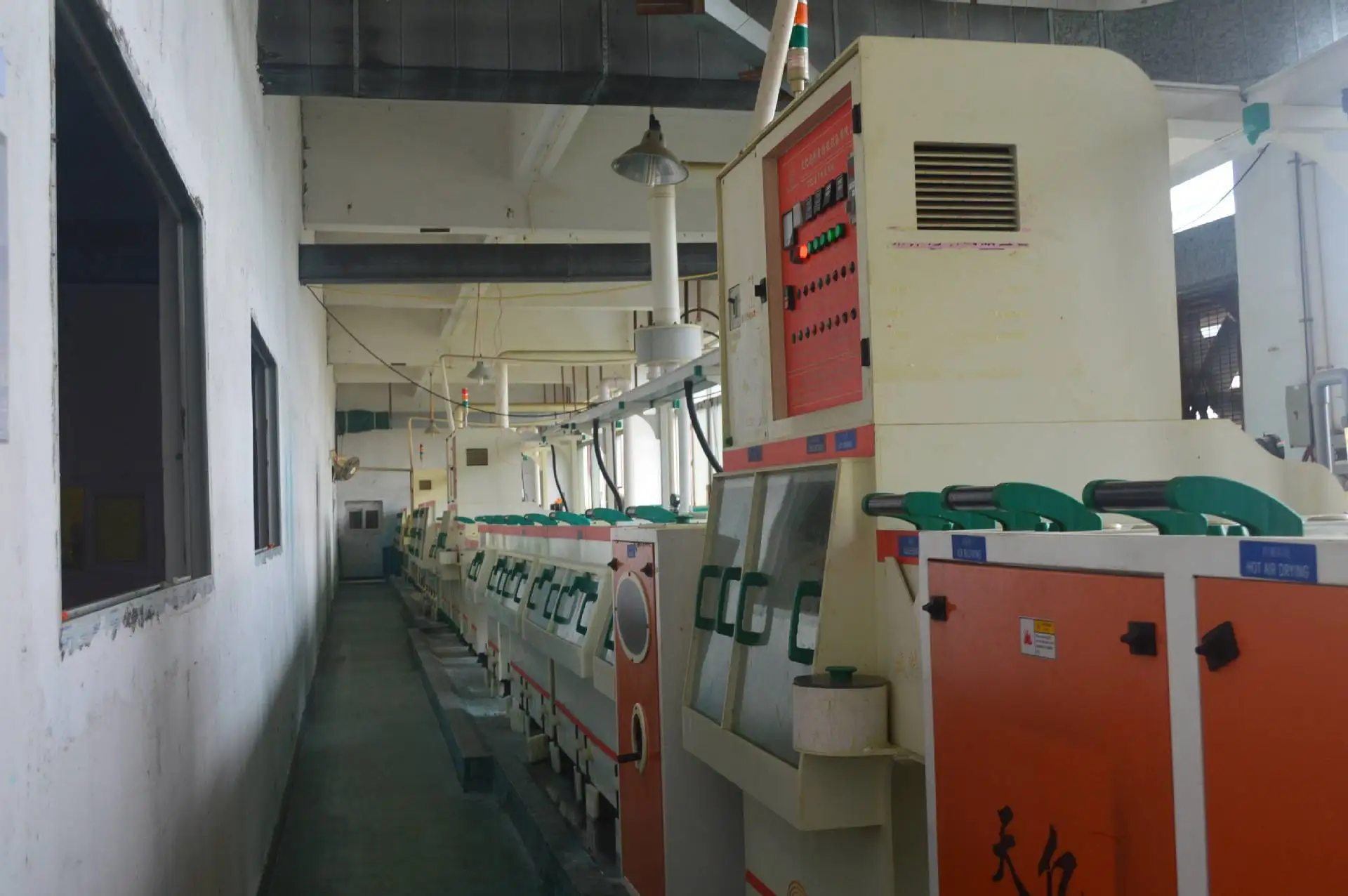

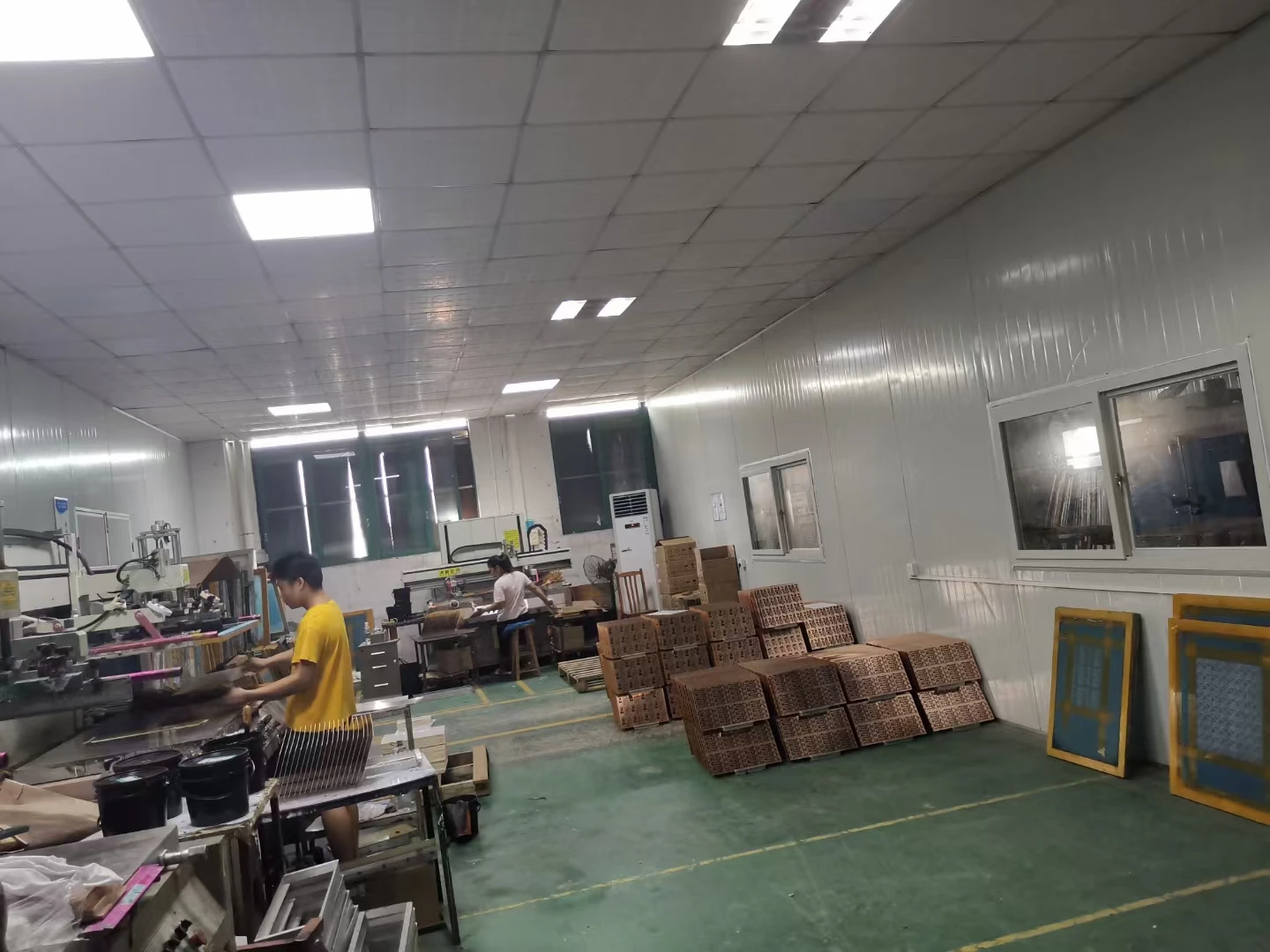

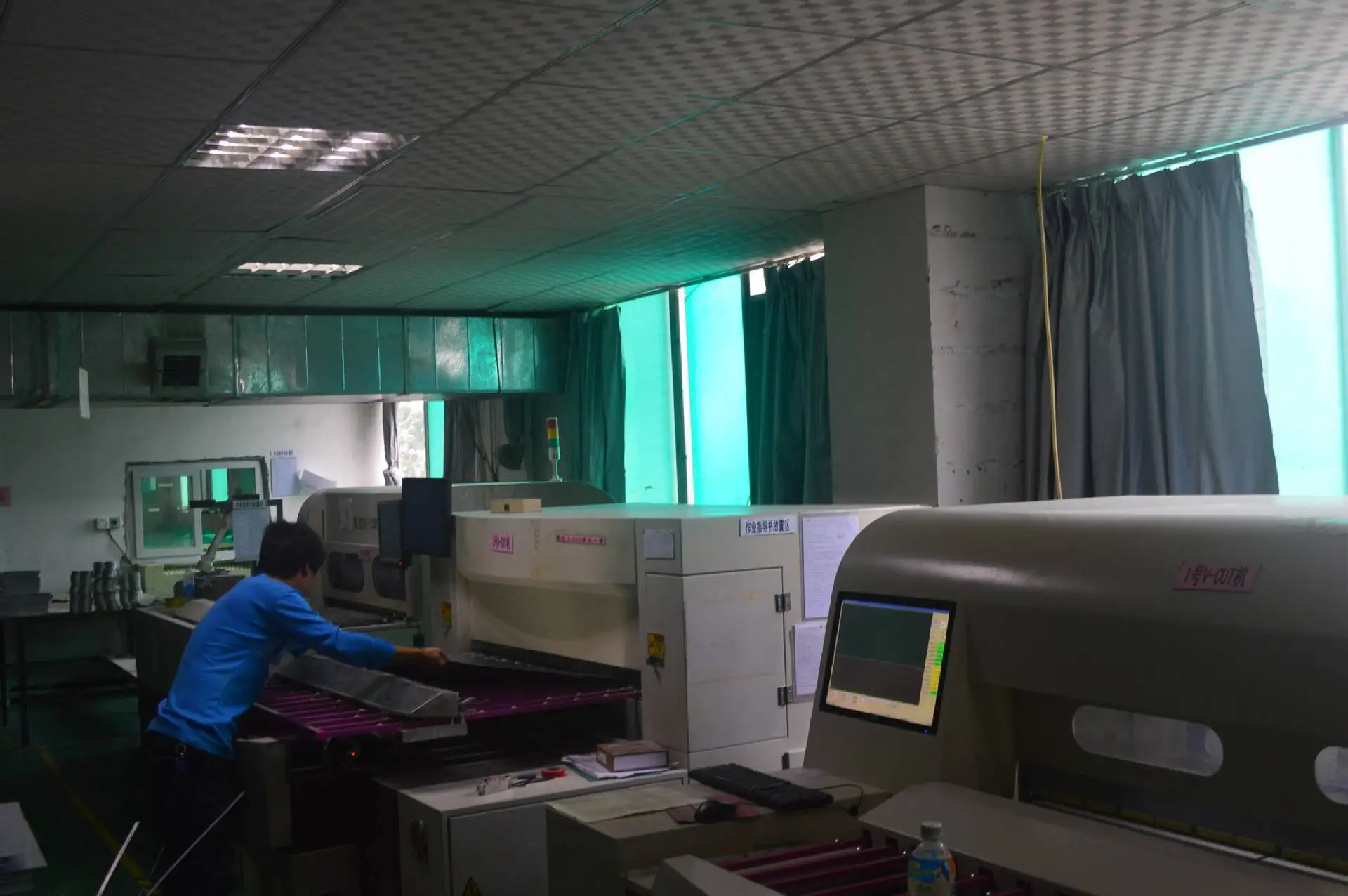

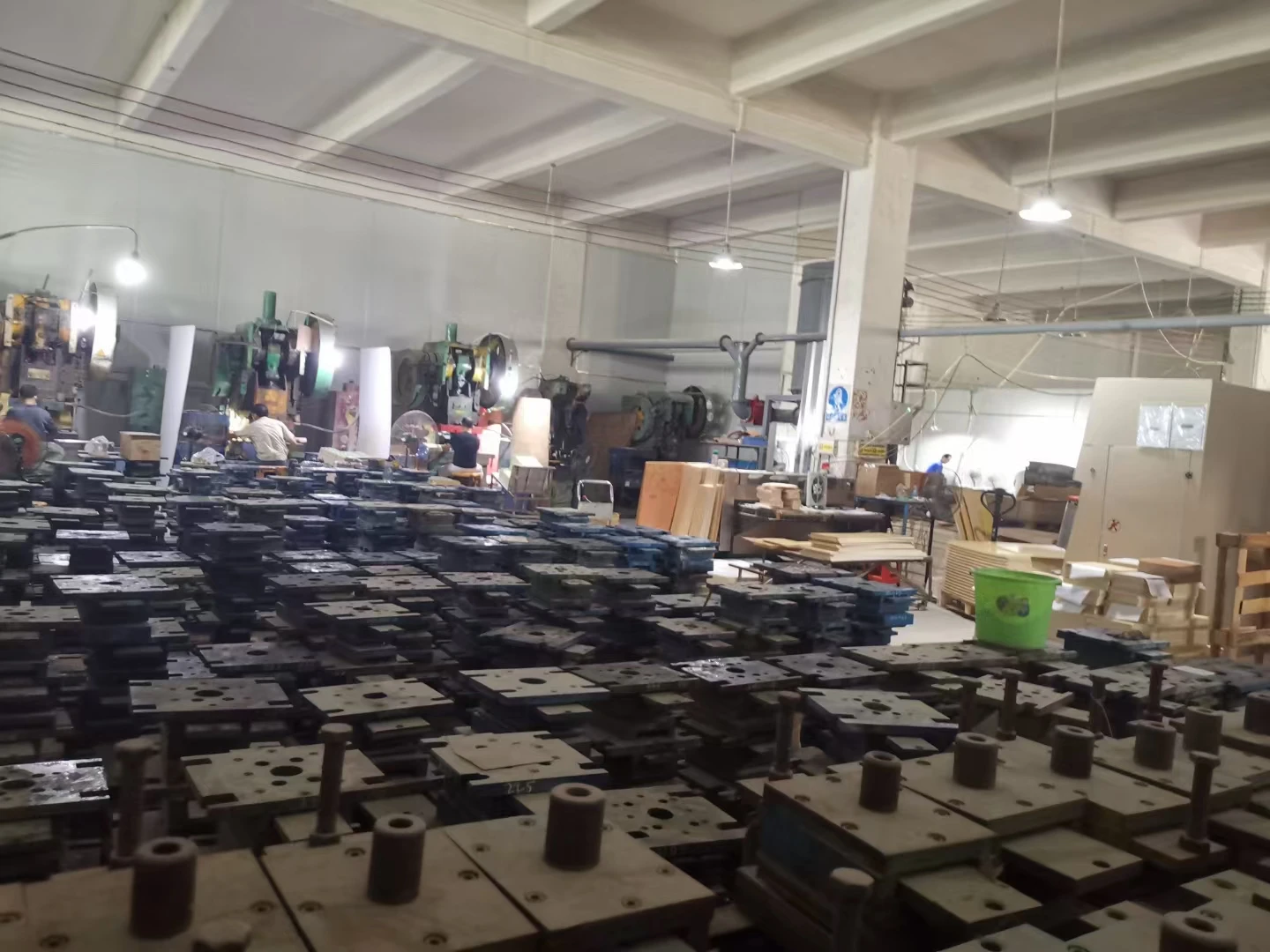

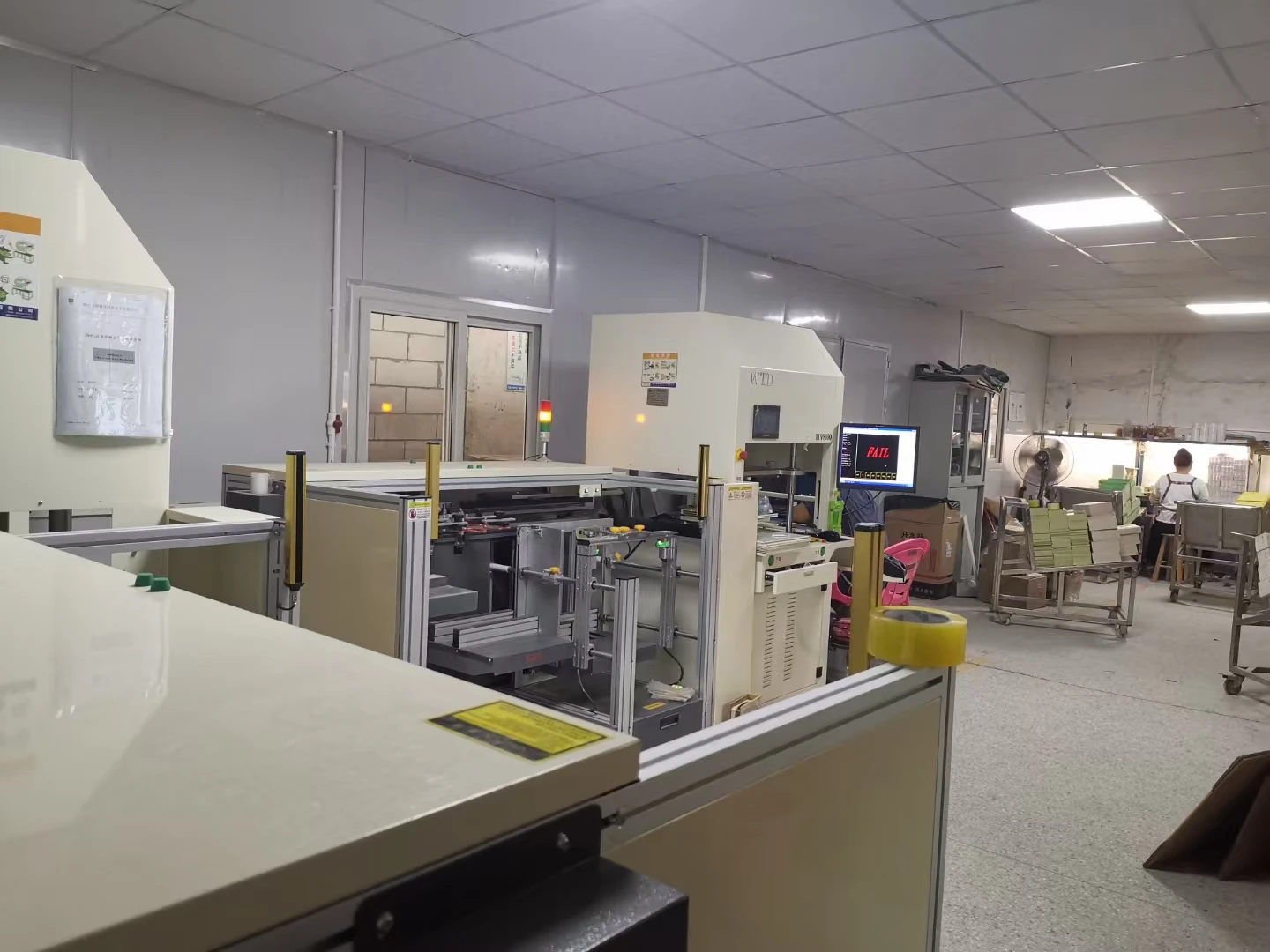

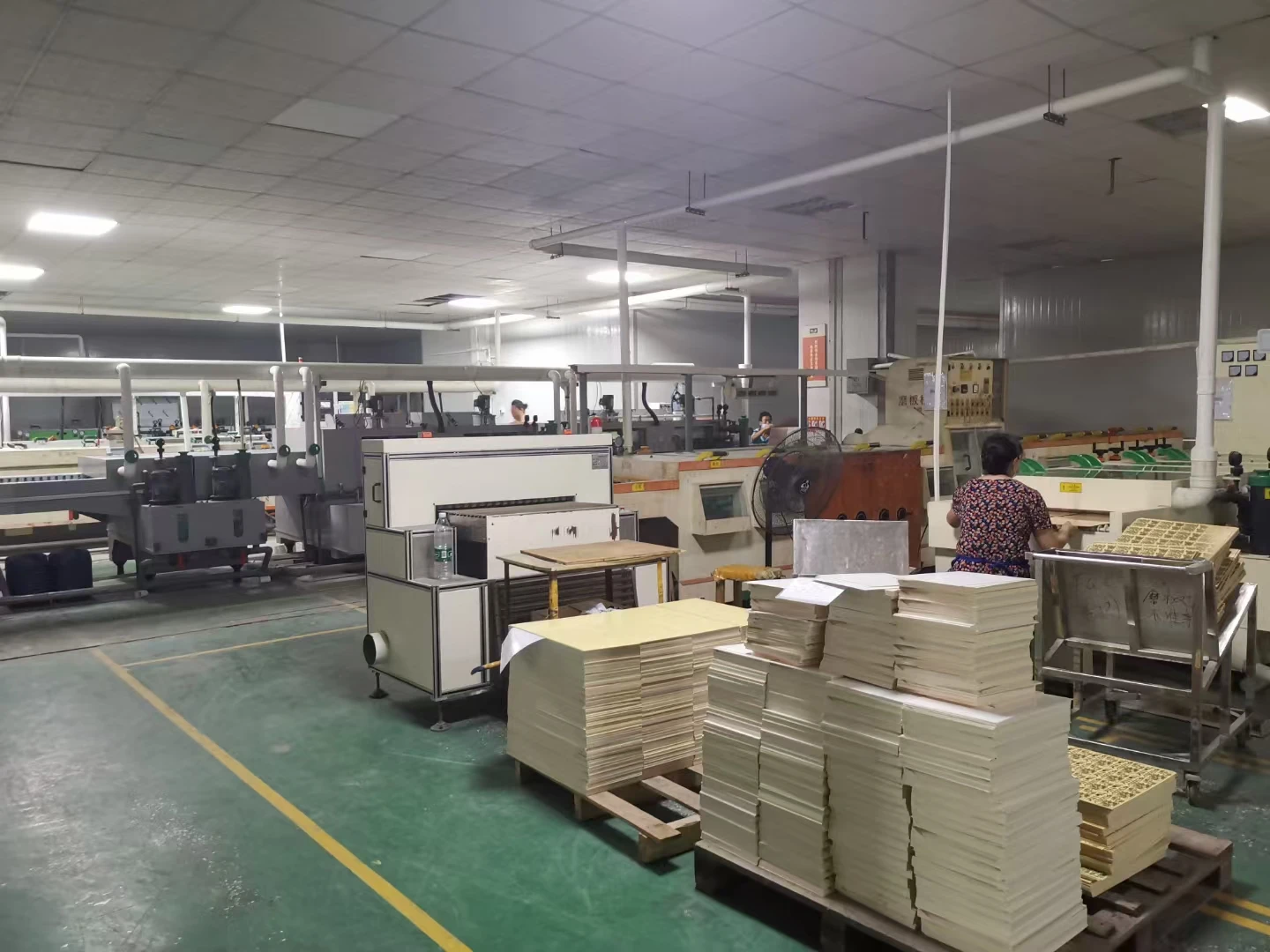

Our Factory

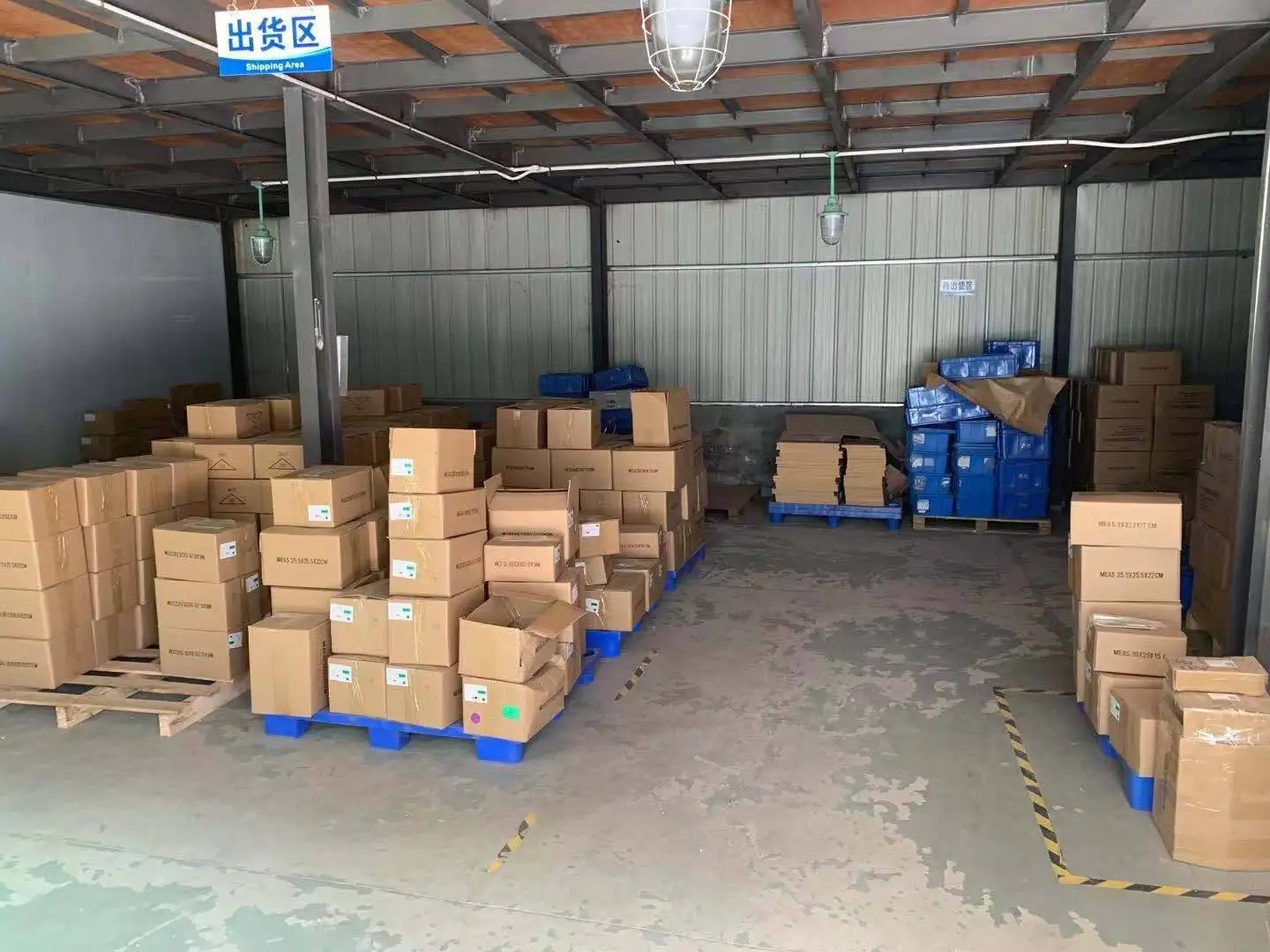

Packing & Delivery
