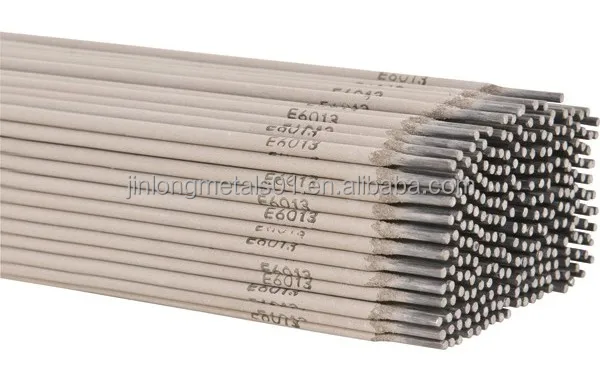

Factory direct sale Abs E6013 Welding Rod Price 2.5mm Aws E6013 Mild Steel Welding Electrode Manufacturer

Product Overview

Description

Copper Bridge Brand Best Arc 7018 Welding Electrode Rod For Carbons Steel Welding  Product Description

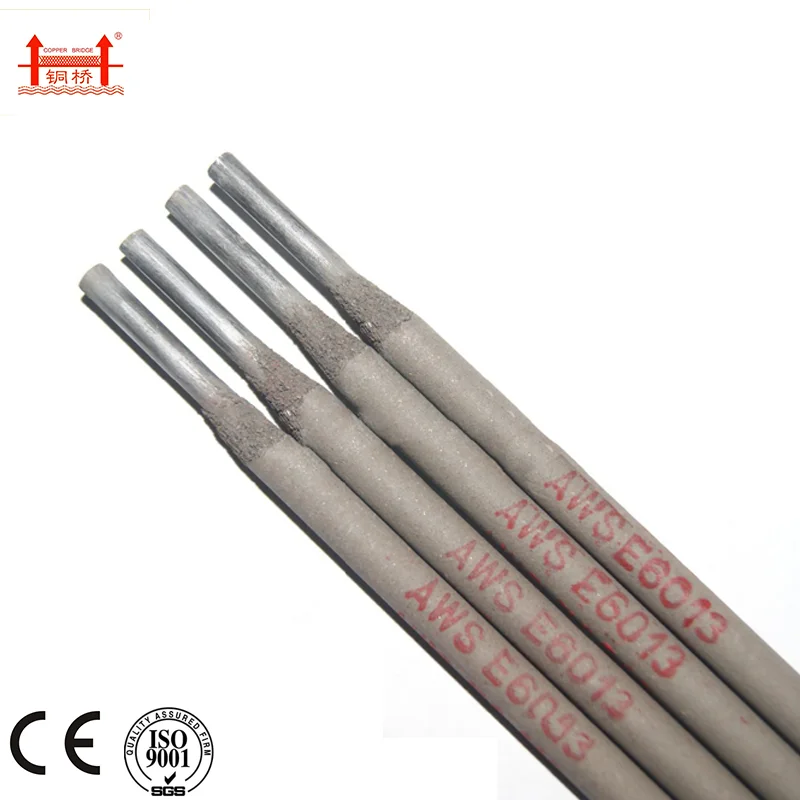

AWS E6013 is a rutile based, medium coated general purpose electrode suitable for welding mild steels. The superb and controlled flux formulation ensures excellent performance of the electrode in AC/DC in all welding positions. With its soft, forceful steady arc, easy slag detachability, fine rippled & shiny bead, and characteristics like easy maneuverability in all positions make COPPER BRIDGE a welder-friendly electrode.

Aws E7018 used for welding carbon steel and low-alloy steel strutures, such as 16Mn,etc.

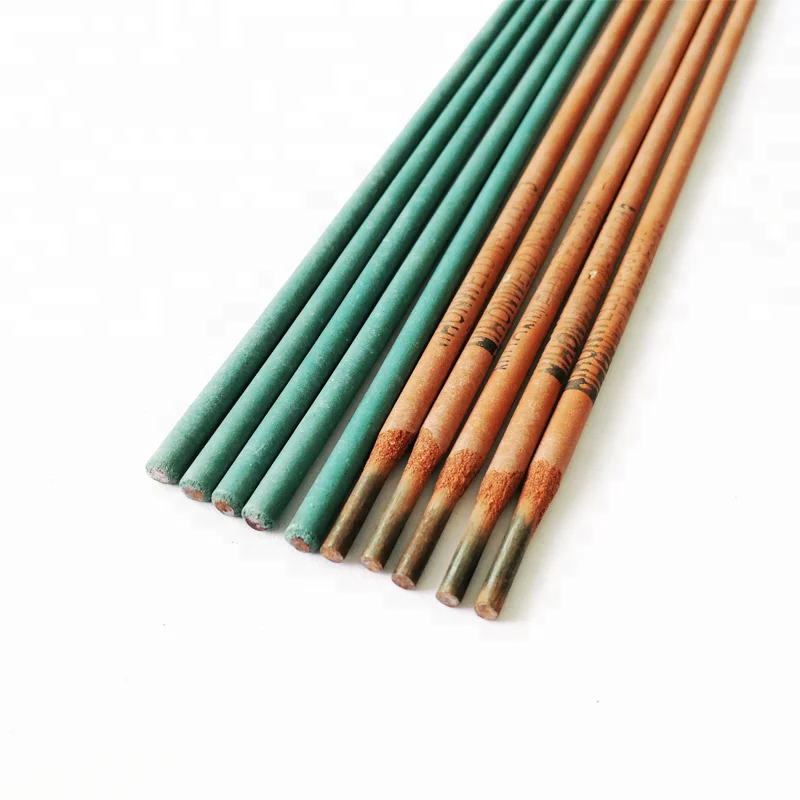

AWS E6011 suitable for butt welding ,fillet welding and lap welding on thin plates, such as low-carbon steel structures like flues of power stations, air ducts, transformer oil tanks, hulls, exterior panels of cars, etc.

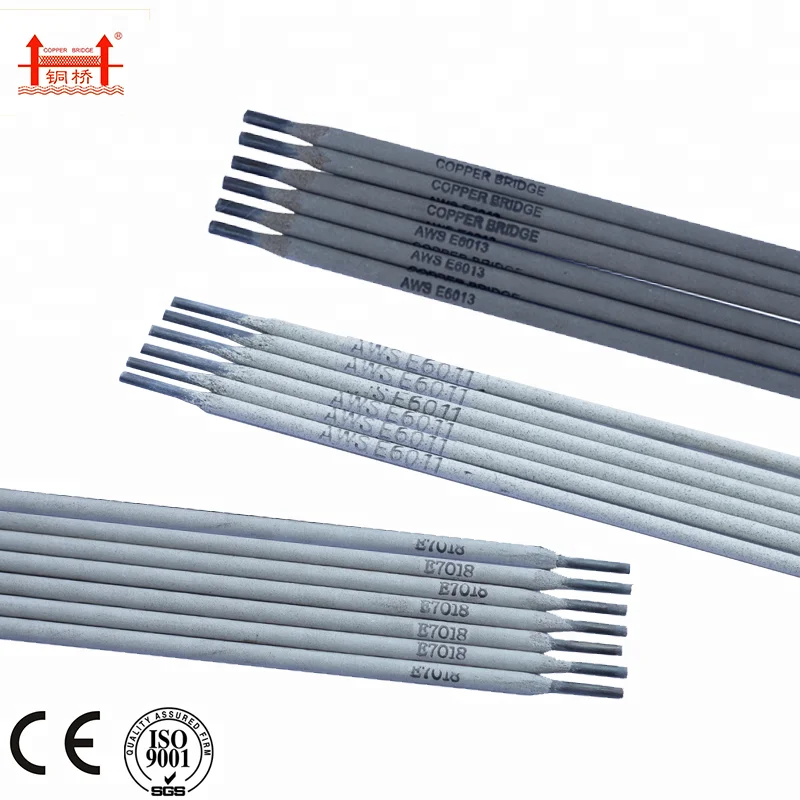

Product Name	E6011	E6013	E7018
Model	CB-J425	CB-J421	CB-J507
GB	E4311	E4313	E5018
Diameter(mm)	2.5-5.0	2.5-5.0	2.5-5.0
Type of Coating	Cellulose Type	Tiatania Type	Low-hydrogen Type
Current	AC DC	AC DC	AC DC



Chemical composition of welding electrode (%)

Model	Item	C	Mn	Si	S	P
E6011	Guarantee Value	≤0.20	0.30-0.60	≤0.30	≤0.035	≤0.040
E6013	Guarantee Value	≤0.12	0.30-0.60	≤0.35	≤0.035	≤0.040
E7018	Guarantee Value	≤0.12	≤1.60	≤0.75	≤0.035	≤0.040



Mechanical properties of deposited metal (%)

Model	Item	Tensile strength Rm (MPa)	Yield Strength ReL (MPa)	Elongation A (%)	AKV impact Value
					°C	J
E6013	Standard value	≥430	≥330	≥16	0	≥47
	Sample value	490	396	26	0	85
E6011	Guarantee Value	≥420	≥330	≥22	-30°	≥27
	General Result	440-500	≥340	22-30	-30°	50-90
E7018	Guarantee Value	≥490	≥400	≥22	-30°	≥27



Reference current (AC/DC)

Model	Rod diameter	2.5mm	3.2mm	4.0mm	5.0mm
E6013	Rod length	300mm	350mm	400mm	400mm
	welding current (A)	50-90	90-130	130-210	170-230
E6011	welding current (A)	30-50	80-100	110-130	150-200

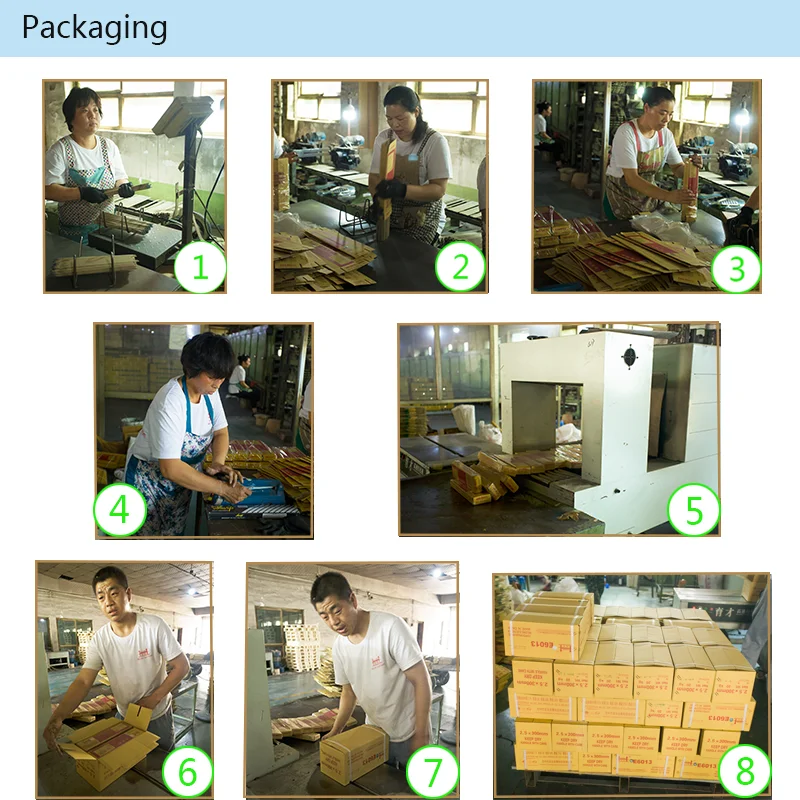

Packing

2.5*300mm 2.5kgs/inner box, 8inner box/carton=20kgs;  Ctn Size: 32*18*16cm

3.2*350mm 5.0kgs/inner box, 4inner box/carton=20kgs; Ctn Size: 37*18*13cm

4.0*400mm 5.0kgs/inner box, 4inner box/carton=20kgs, Ctn Size: 42*17*12cm

5.0*400mm 5.0kgs/inner box, 4inner box/carton=20kgs,Ctn Size: 42*17*12cm

inner boxes is a shrink-wrapped cardboard box ,

1MT/Pallet , or 2.5MT/Pallet

one 20' feet container can load 25-27MTS ,

1250- 1350 CARTONS ,one MTS is about 0.6 CBM .

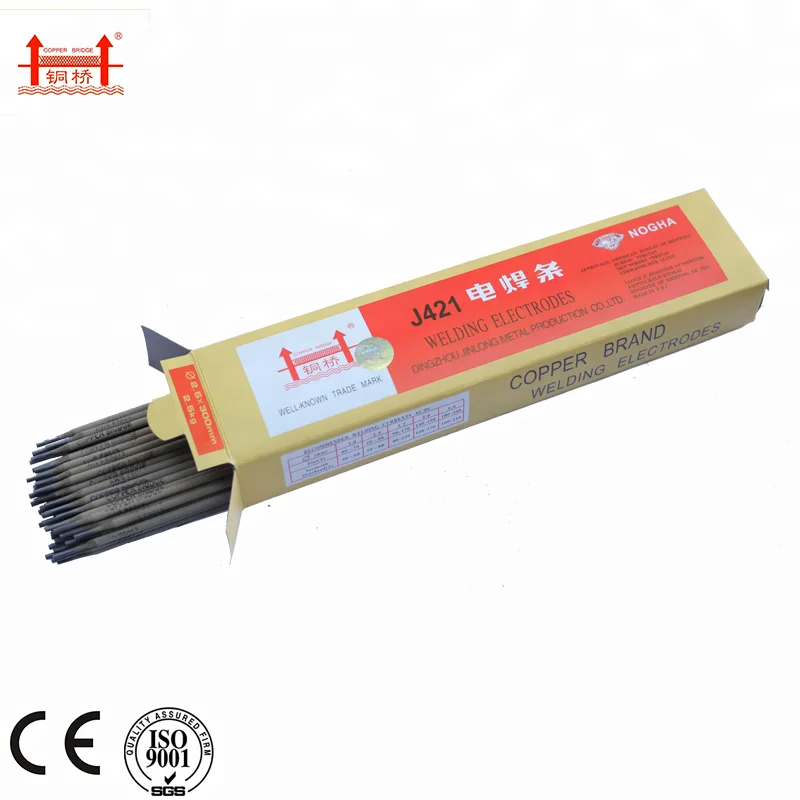

what is more, our own brand is Copper Bridge,

We can do OEM package according to the customers' request.
