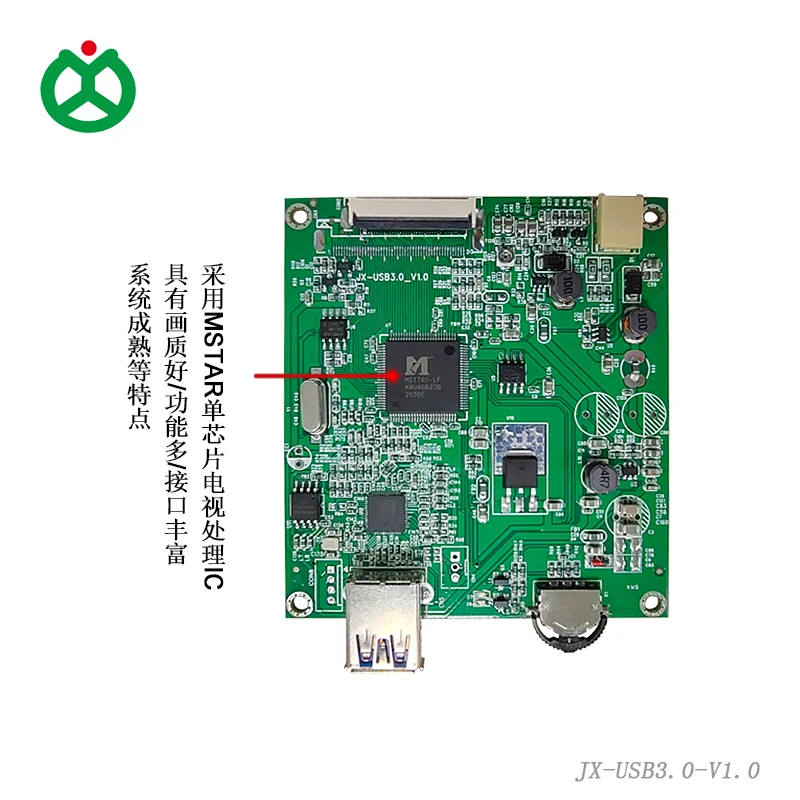

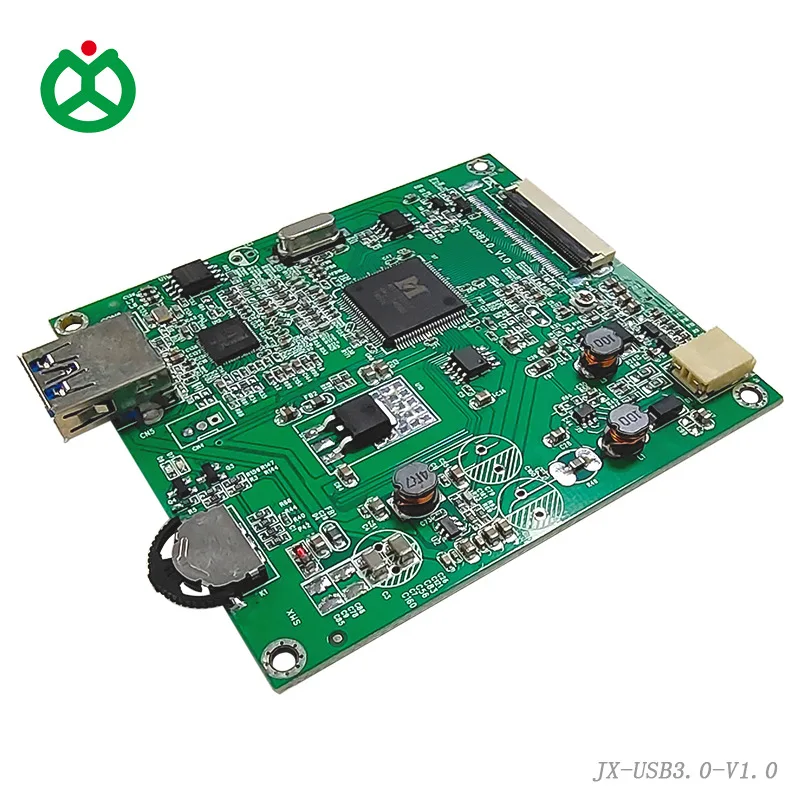

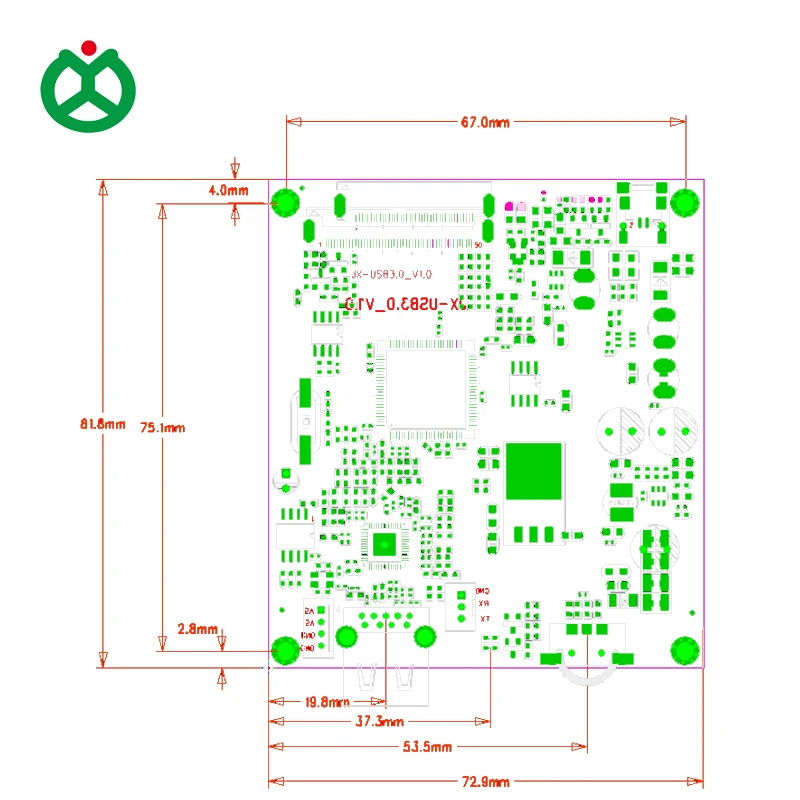

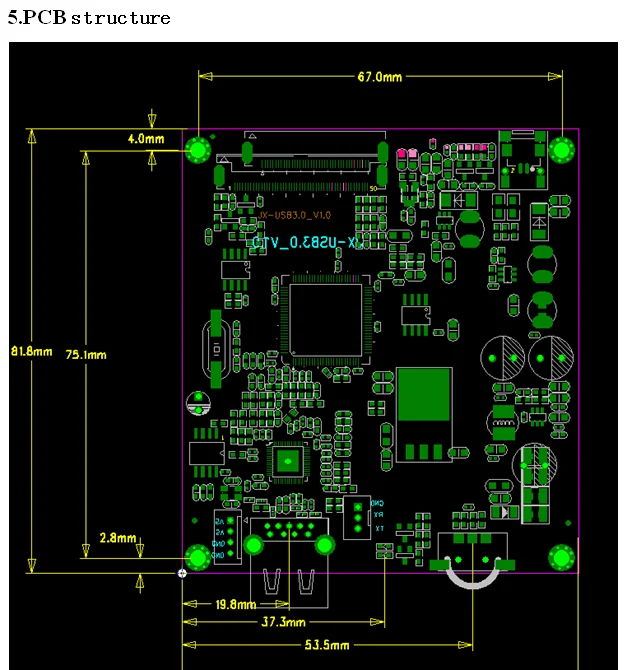

1. This controller board is designed for below 7-10 inch LCD screen monitor.

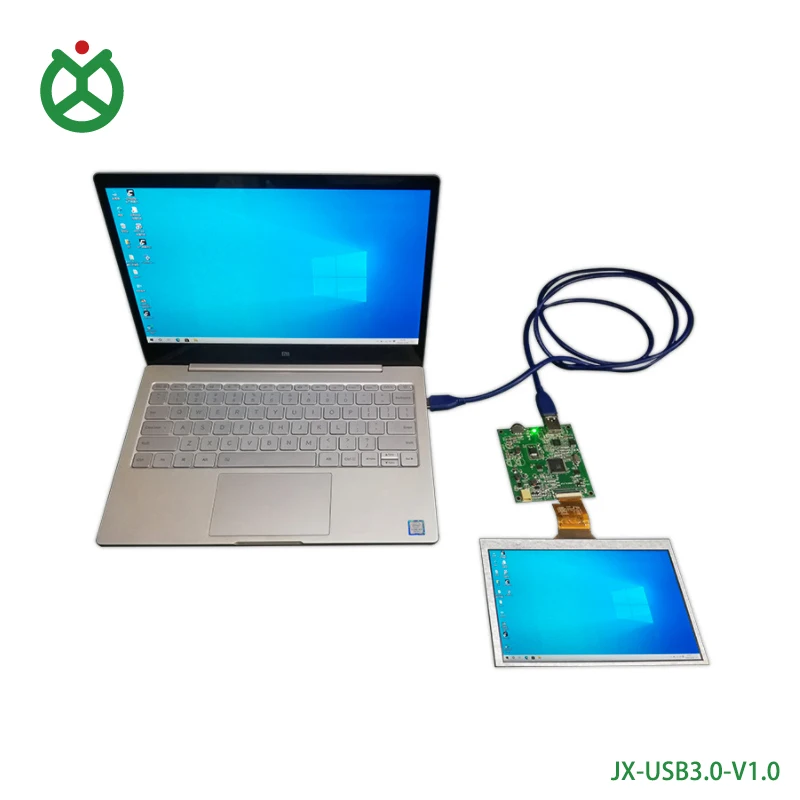

2. Only one wire can be supply power and video.
3. Contain 3 key in board.
4. Only thickness 6.0mm.
5. Support signal automatic identification .
6. Input signal:USB3.0.
7. Power supply:USB(+5V)
8. Support screen RGB and 6,8bit LVDS one chanel.
9. Signal automatic identification.
10. max resolution:1366*768.
11.

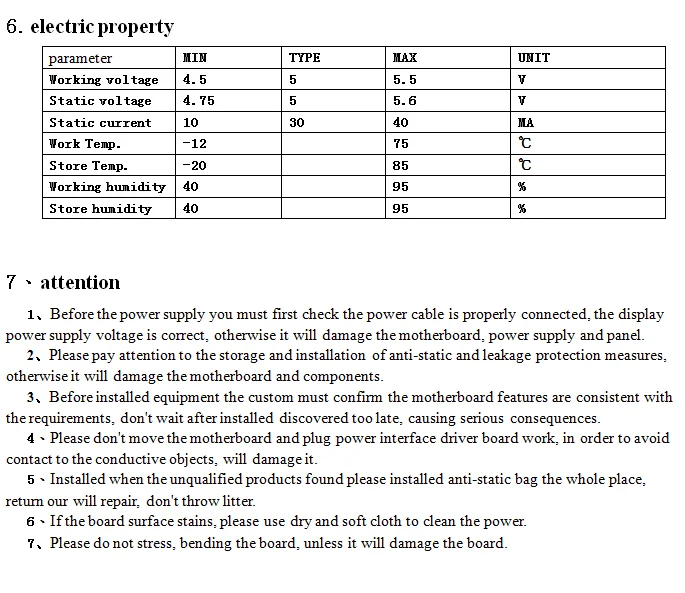

2.Main technical parameter
video
USB3.0
Max resolution
1366*768
Power supply
+5v
Consumption
<=10w

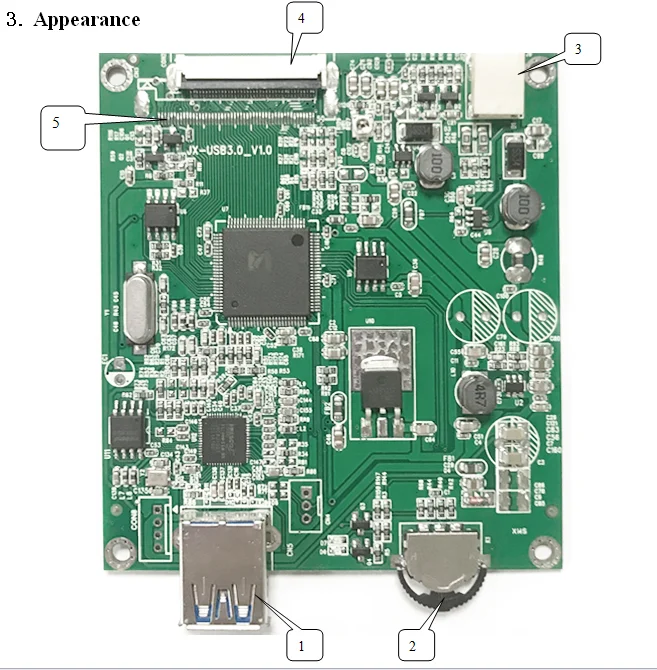

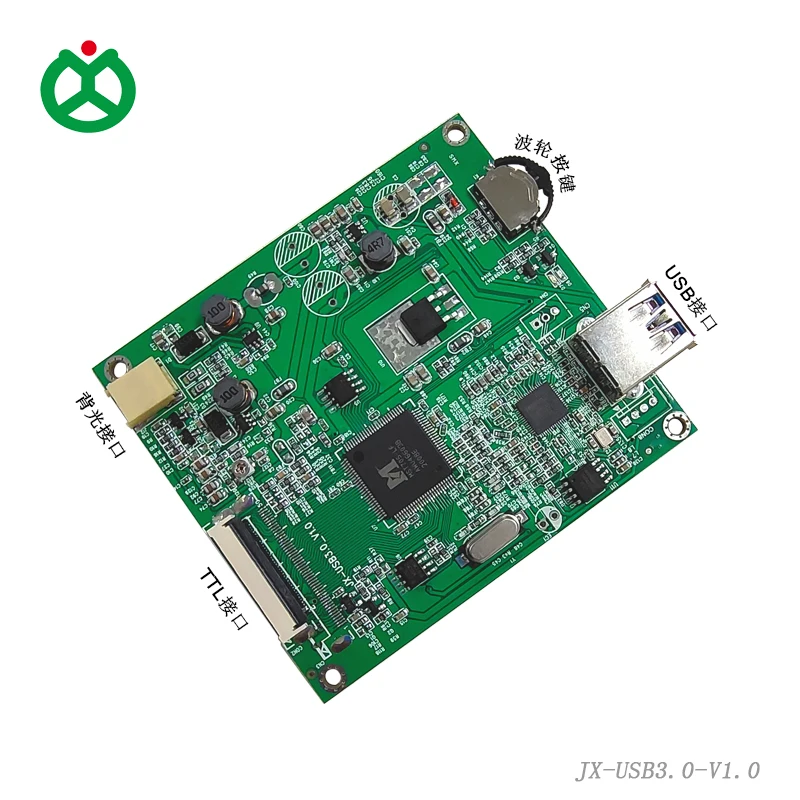

4. Main interface definitions
No.
Description
No.
Description
1
USB3.0 signal input
2
Key
3
Backlight LED control
4
40pin(LVDS) connector
5
50pin(RGB)connector
2.key
middl=menu; up=select; down=selector
4.40pin(LVDS):
No.
Name
No.
Name
No.
Name
1
Vcom
2, 3
Vcc
4,23,24,26,27,36,37
NC
5
Reset
6
Tcon
7,10,13,16,19,22,25,30
GND
8
LV0-
9
LV0+
11
LV1-
12
LV1+
14
LV2-
15
LV2+
17
LCK-
18
LCK+
20
LV3-
21
LV3+
28
SEBL
29
AVDD
31,32
LED-
33
L/R
34
U/D
35
VGL
38
VGH
39,40
LED+
5,50pin(RGB):
Pin no.
Pin no.
Pin no.
1,2
LED+
3,4
LED-
5,36,38, 48
GND
6,46
Vcom
7
Vcc
8
MOD
9
DE
10
VS
11
HS
12~19
B7~B0
20~27
G7~G0
28~35
R7~R0
37
DCLK
39
L/R
40
U/D
41
VGH
42
VGL
43
AVDD
44
RESET
45,49,50
NC
47
SEBL
