8 port poe 2 uplink poe switch 48v extender 250meter IEEE802.3af/at standard poe network switch
- Category: >>>
- Supplier: Liao Ning OPT Optical Communication Co. Ltd.
Share on (1600304795375):
Product Overview
Description
AOPUTAI Industrial Switch
8 100M POE Port Unmanaged Switch
2 100M Ethernet Uplink Port
Product Name | PoE Switch |
Product Model | OPT DT/R 2FE+8FE-P |

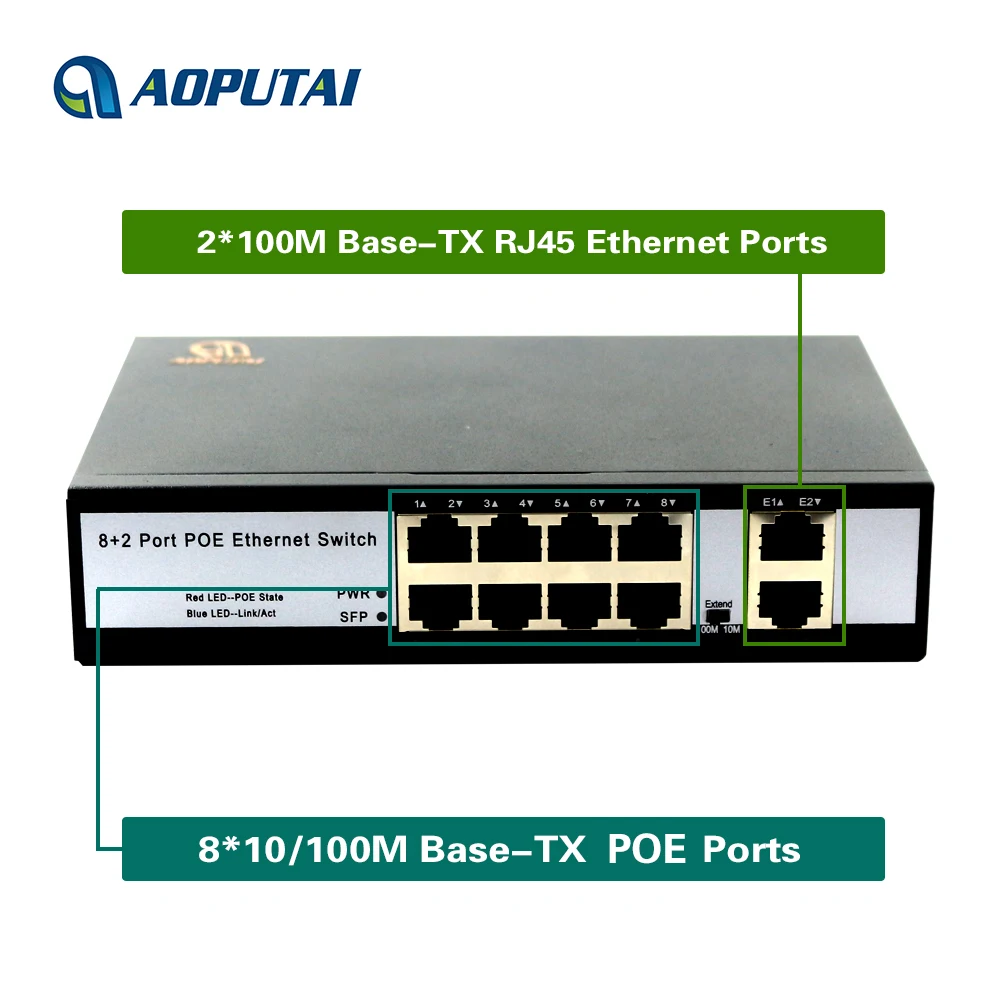

Port Definition | 8*10/100M POE ports + 2*100M Ethernet uplink port |
Network Protocols | IEEE802.3 |
IEEE802.3u | |
IEEE802.3z | |
IEEE802.3x | |
POE Parameters | POE Standard: IEEE 802.3af/IEEE 802.3at |
Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) | |
Max:96W | |
Exchange level | layer 2 |
Bandwidth | 2G |
Packet forwarding rate | 1Mpps |
MTBF | 100000 hours |
Working Environment | Operating temperature: -20~50℃ |
Humidity: 0%~90 % ( No condensation) | |

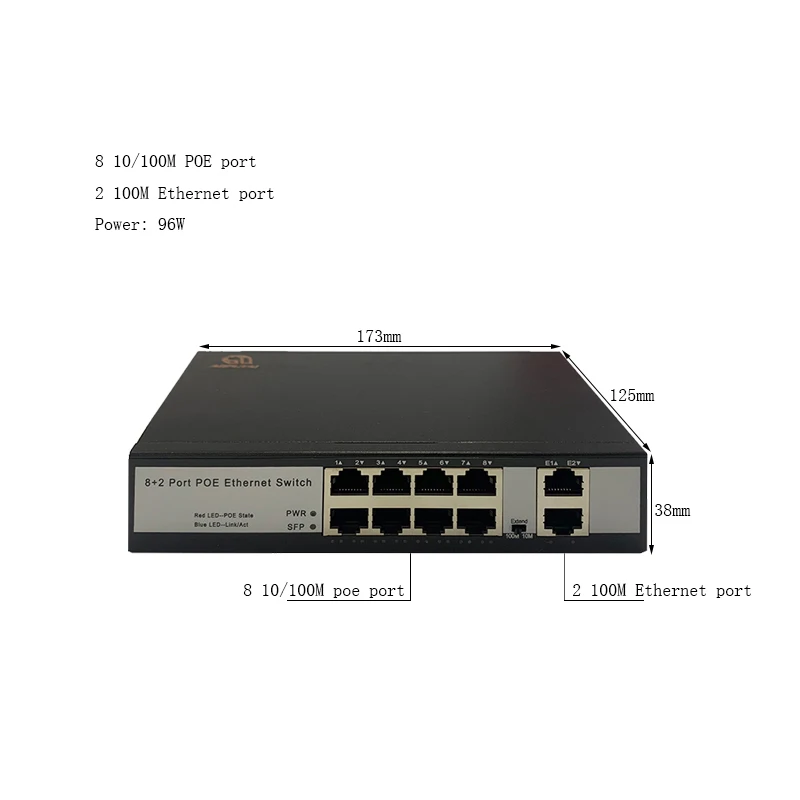

Product Dimensions (L×W×H) | 173mm×125mm×38mm |
Package Dimensions (L×W×H) | 205mmx185mmx50mm |
Certification | CE FCC ROHS ISO |
Products Description
1. Follow 802.3 at or 802.3 af protocol, single port maximum power supply 35W
2. The port has its own indicator light, and supports the port auto-flip function, every port could be the uplink port
3.All ports have full wire-speed forwarding capability to ensure non-blocking forwarding
4.Adopting SMT patch technology, the volume and weight of patch components are only one tenth of traditional plug-in components
3.All ports have full wire-speed forwarding capability to ensure non-blocking forwarding
4.Adopting SMT patch technology, the volume and weight of patch components are only one tenth of traditional plug-in components
While transmitting data signals, it can also provide DC power supply technology for such devices. The POE technology can ensure the normal operation of the existing network while ensuring the safety of the existing structured cabling, minimizing costs.
Customized
2.Packaging can be customized
3.Technical parameters can be customized
4.Interface can be customized
What is poe?
PoE (Power Over Ethernet) refers to the existing Ethernet Cat.5 cabling infrastructure without any changes, for some IP-based terminals (such as IP phones, wireless LAN access points AP, network cameras Etc.) While transmitting data signals, it can also provide DC powered technology for such devices.
Why Choose Poe Switch
1. Cost saving: The POE switch only needs to install a network cable to provide power and transmit data signals, which can save expensive power cables and sockets
2. Safe power supply: The power supply terminal equipment of the POE switch will only supply power to the equipment that needs power supply. Only when the equipment that needs power supply is connected, there will be current, thus eliminating the risk of leakage on the line
3. Stable performance: The POE switch has direct power supply, fewer wiring links, and more stable performance
4. Convenient management: When the remote device is connected to the network during use, it can be remotely controlled, reconfigured or reset; in a wireless local area network, POE can simplify the task of RF testing, and the access point can be easily moved and accessed
2. Safe power supply: The power supply terminal equipment of the POE switch will only supply power to the equipment that needs power supply. Only when the equipment that needs power supply is connected, there will be current, thus eliminating the risk of leakage on the line
3. Stable performance: The POE switch has direct power supply, fewer wiring links, and more stable performance
4. Convenient management: When the remote device is connected to the network during use, it can be remotely controlled, reconfigured or reset; in a wireless local area network, POE can simplify the task of RF testing, and the access point can be easily moved and accessed
Company Profile
Our Advantages
OPT Communications Co., Ltd. has been established for 14 years and has rich R&D experience in communications equipment products.
We have a mature R&D team. Our core value is to provide customers with the best products and services.
Our POE switches are ahead of the market for at least 5 years
We have a mature R&D team. Our core value is to provide customers with the best products and services.
OUR TEAM
Liaoning OPT Optical Communication Co., Ltd. is located in Shenyang, Liaoning Province, the old industrial base in Northeast China.
Founded in 2008, we are an enterprise that integrating R&D, production, sales and service, with high and new technology and independent intellectual property rights.
OPT never stopped to improve our technical ability and produce capacity, we are here and looking forward to your cooperation!
EXHIBITION
Certifications
Cooperative Partner & Customer
Recommend Products & Product packaging
FAQ
Q : What is your main products?
A : Industrial Ethernet Switch, Optical Switch, POE Switch, Bypass, ONU, and other Communication industry products.
Q : Is it safe on payment for me as we are the first cooperation?
A : We can do trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q : Do you test all your goods before delivery?
A : Yes, we have professional engineers to test all devices before shipping.
Q : Can I have my own customized product?
A : Yes. We have our own R&D team and production line.
Q : Can I have a sample order?
A : Yes. We welcome sample order to test and check quality.
A : Industrial Ethernet Switch, Optical Switch, POE Switch, Bypass, ONU, and other Communication industry products.
Q : Is it safe on payment for me as we are the first cooperation?
A : We can do trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q : Do you test all your goods before delivery?
A : Yes, we have professional engineers to test all devices before shipping.
Q : Can I have my own customized product?
A : Yes. We have our own R&D team and production line.
Q : Can I have a sample order?
A : Yes. We welcome sample order to test and check quality.
