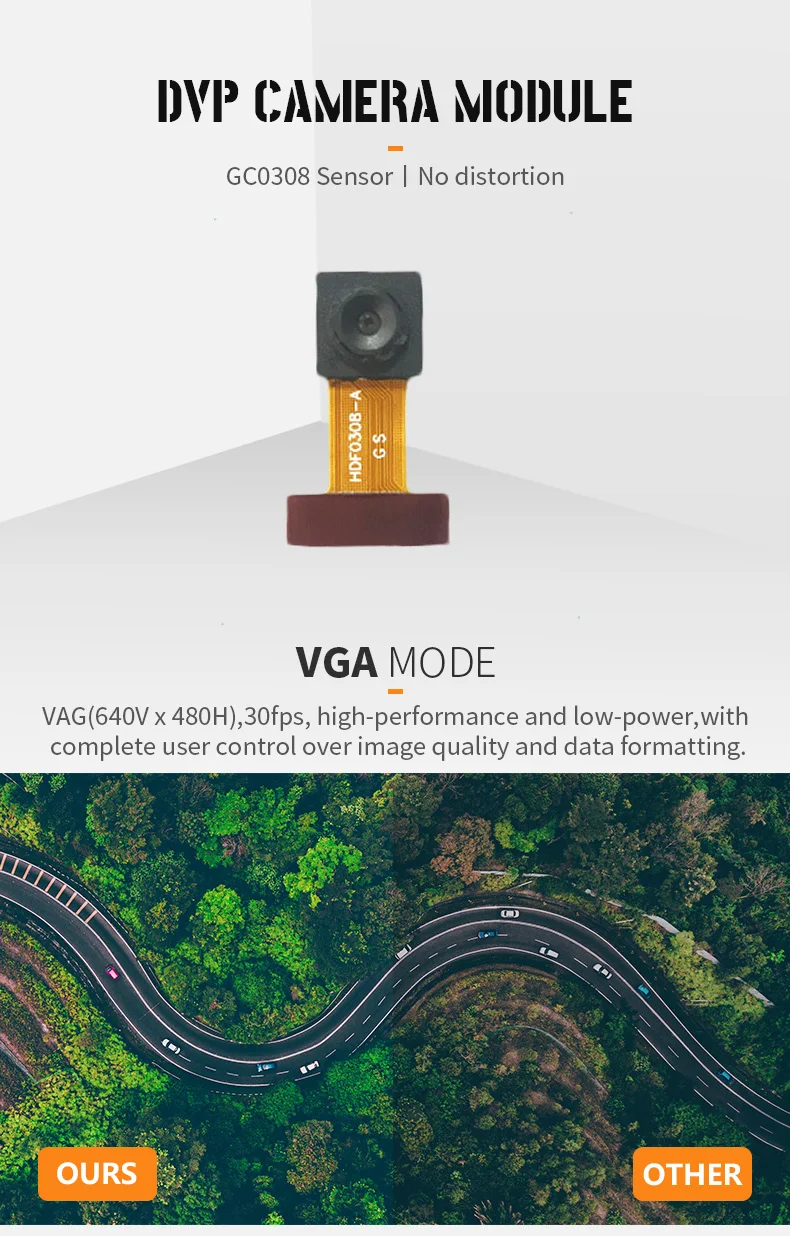

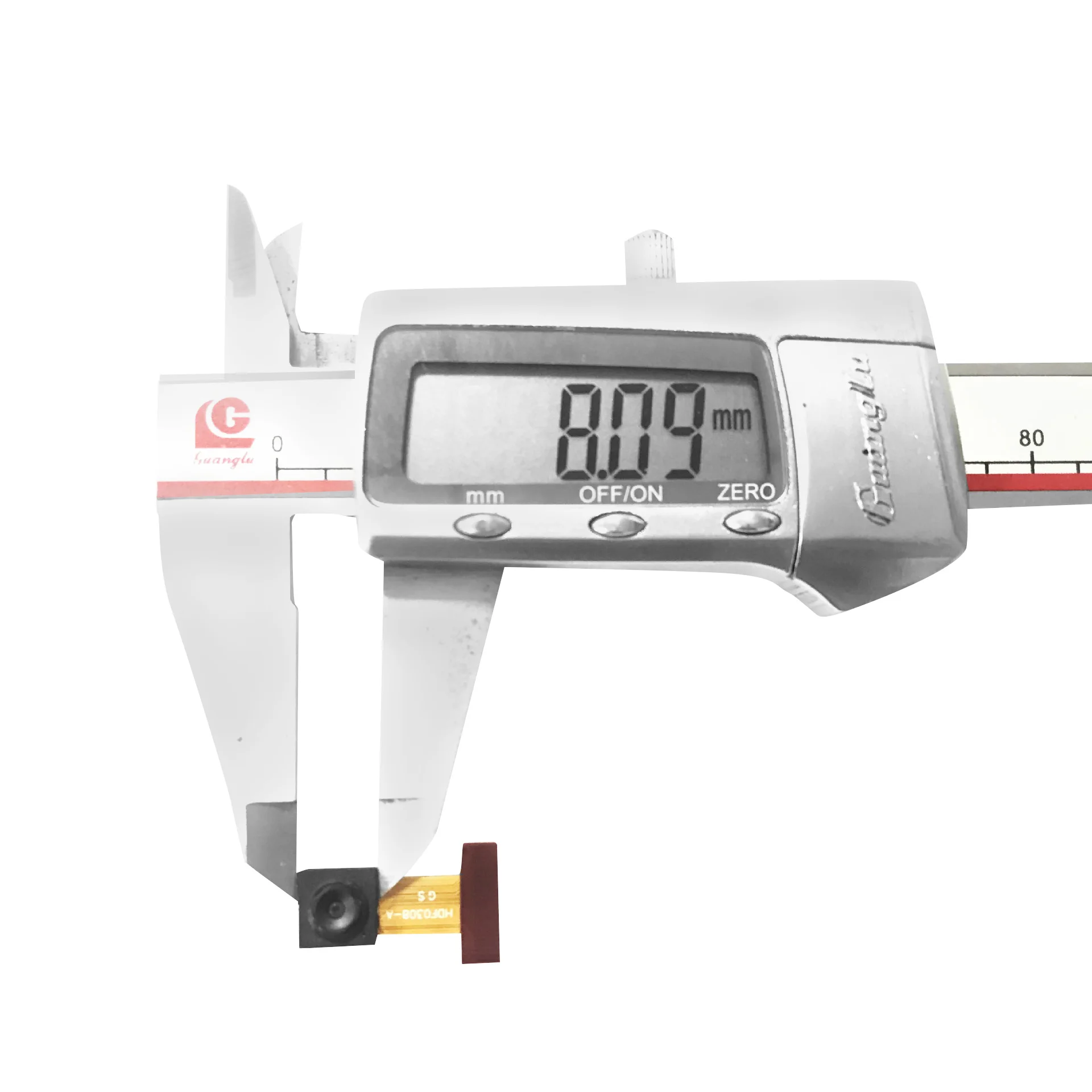

Manufacturer GC0308 30 megapixel DVP Camera Module HDF0308 A
- Category: >>>
- Supplier: Film Source Electronics(Guangdong) Co. Ltd.
Share on (1600304854498):
Product Overview
Description
Product Description
Place of Origin | China |
Sensor | GC0308 |
Brand name | HJ |

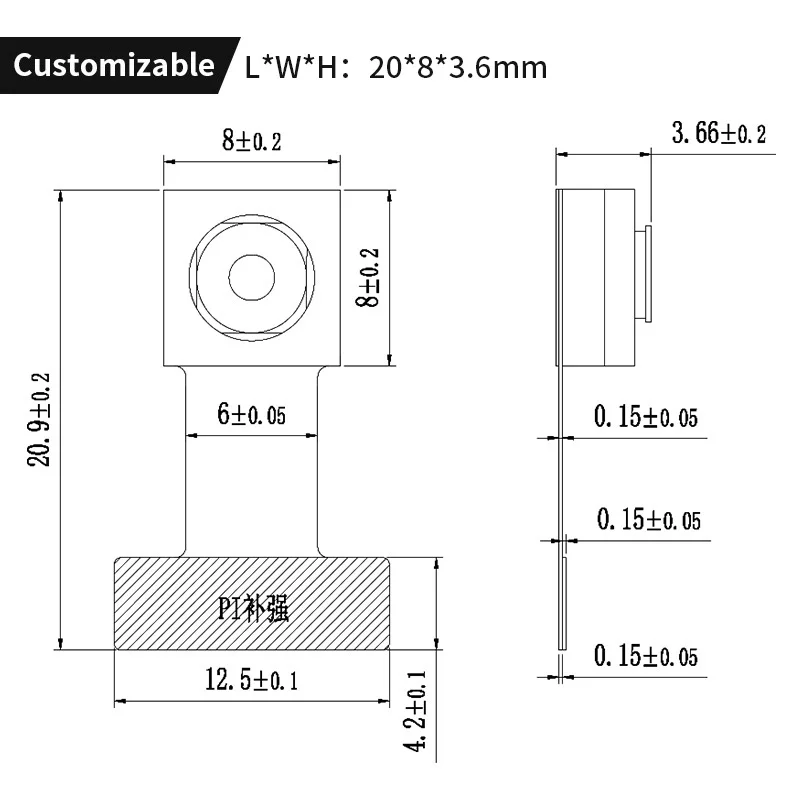

FPC Length | 20MM |

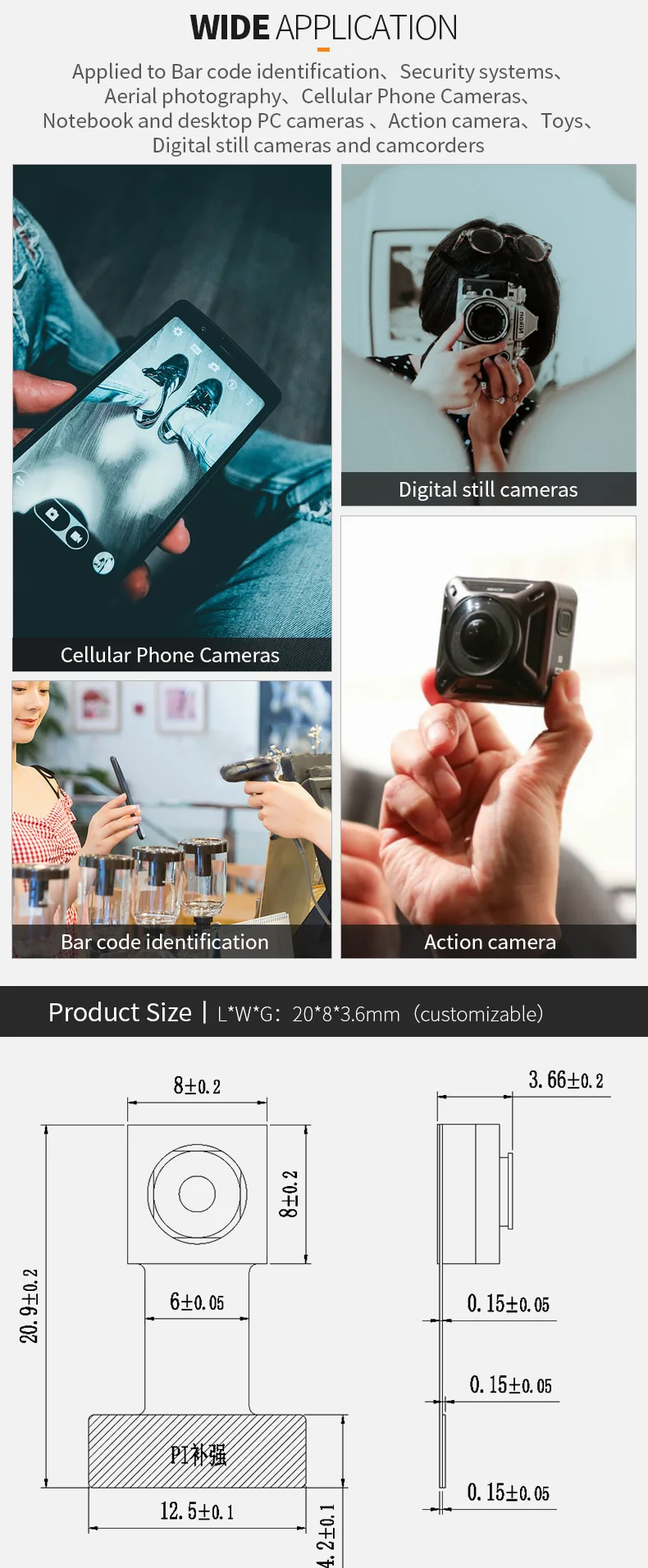

Size | 8*8MM |

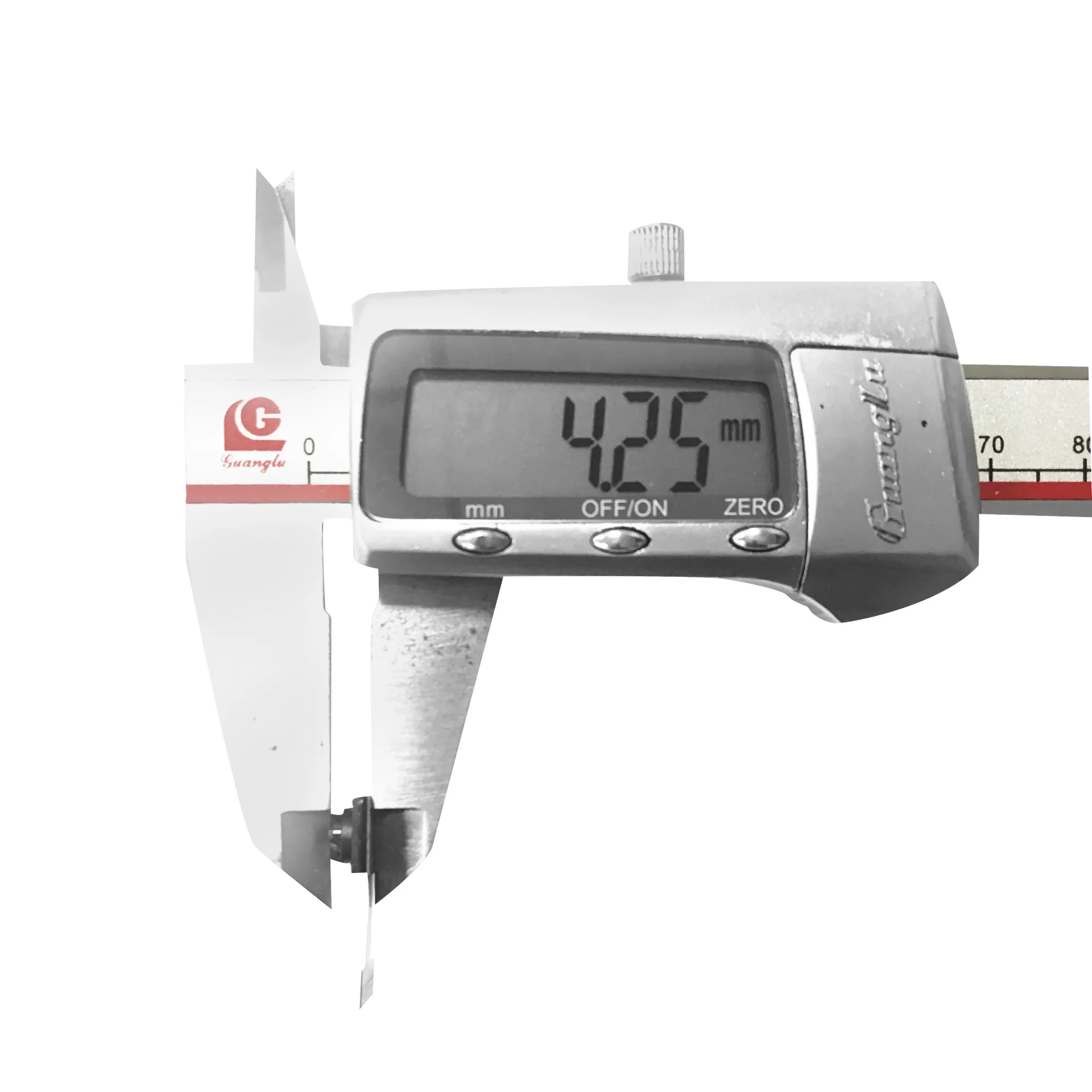

Height | 3.6MM |
Connecter | DVP |
Descriptin | DVP camera module |
Pixel Size | 3.4μm |
Lens size | 1/6.5" |
Temperature(Operation) | –30°C to + 80° C |
Array size | 648*488 |
Lens view | 90° |

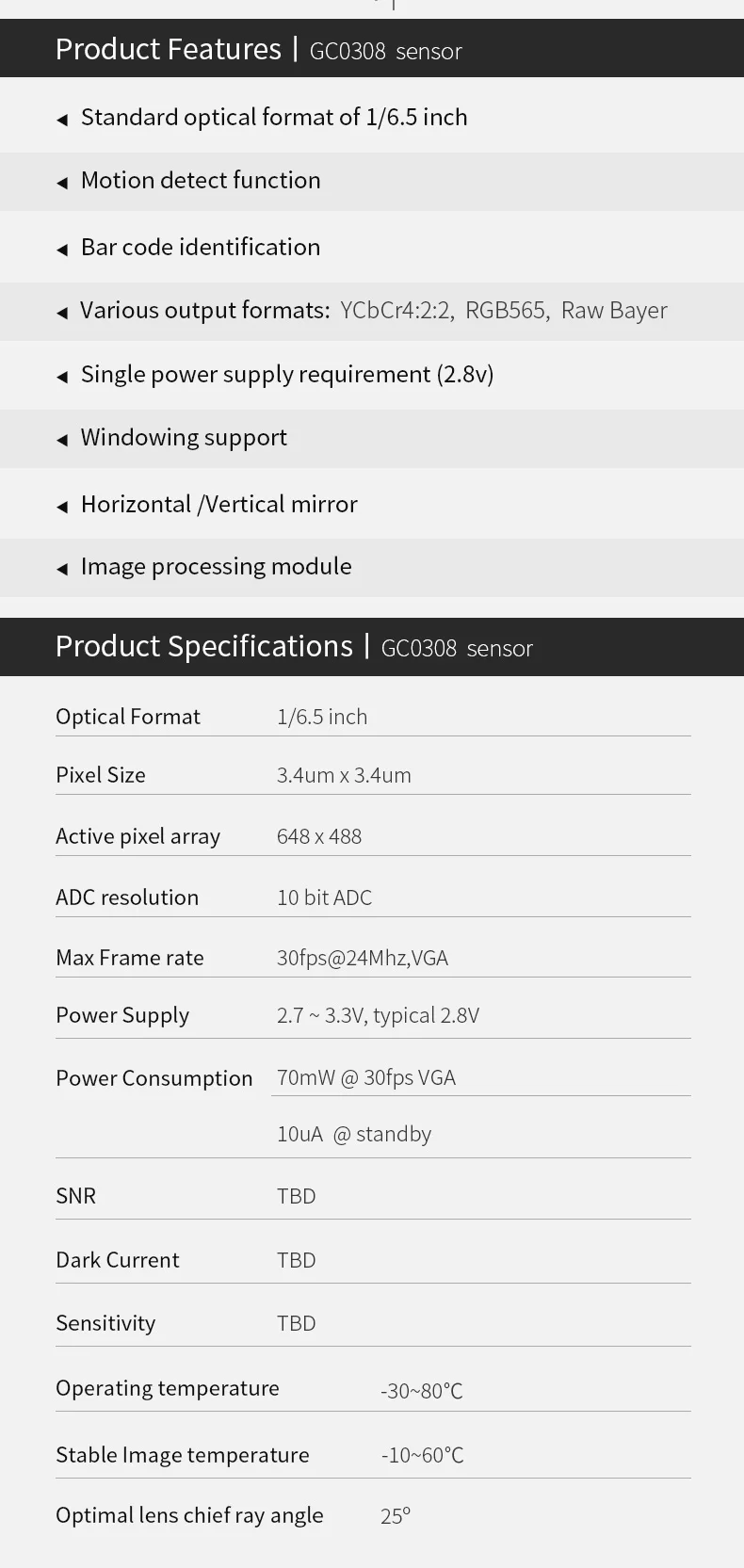

Features | \u008B GC0308 1 / 6.5 CMOS sensor. \u008BMotion detect function \u008B Bar code identification \u008B Various output formats: YCbCr4:2:2, RGB565, Raw Bayer \u008B Single power supply requirement (2.8v) \u008B Windowing support \u008B Horizontal /Vertical mirror \u008B Image processing module Motion detect function \u008B Bar code identification \u008B Various output formats: YCbCr4:2:2, RGB565, Raw Bayer \u008B Single power supply requirement (2.8v) \u008B Windowing support \u008B Horizontal /Vertical mirror \u008B Image processing module |
