20 cbm Liquid Organic Manure Spreading Slurry Tank Fertilizer Spreader with Farm Tractor Truck
- Category: >>>
- Supplier: Xinbaiqin Special Vehicle Co. Ltd.
Share on (1600304882950):
Product Overview
Description
Product Description
Specification
The whole vehicle is composed of a fertilizer tank with fertilizer device and a tractor.
It is suggest to purchase these two parts together if you have demand of fertilizing.
If you only need the tractor, welcome to contact us for price.

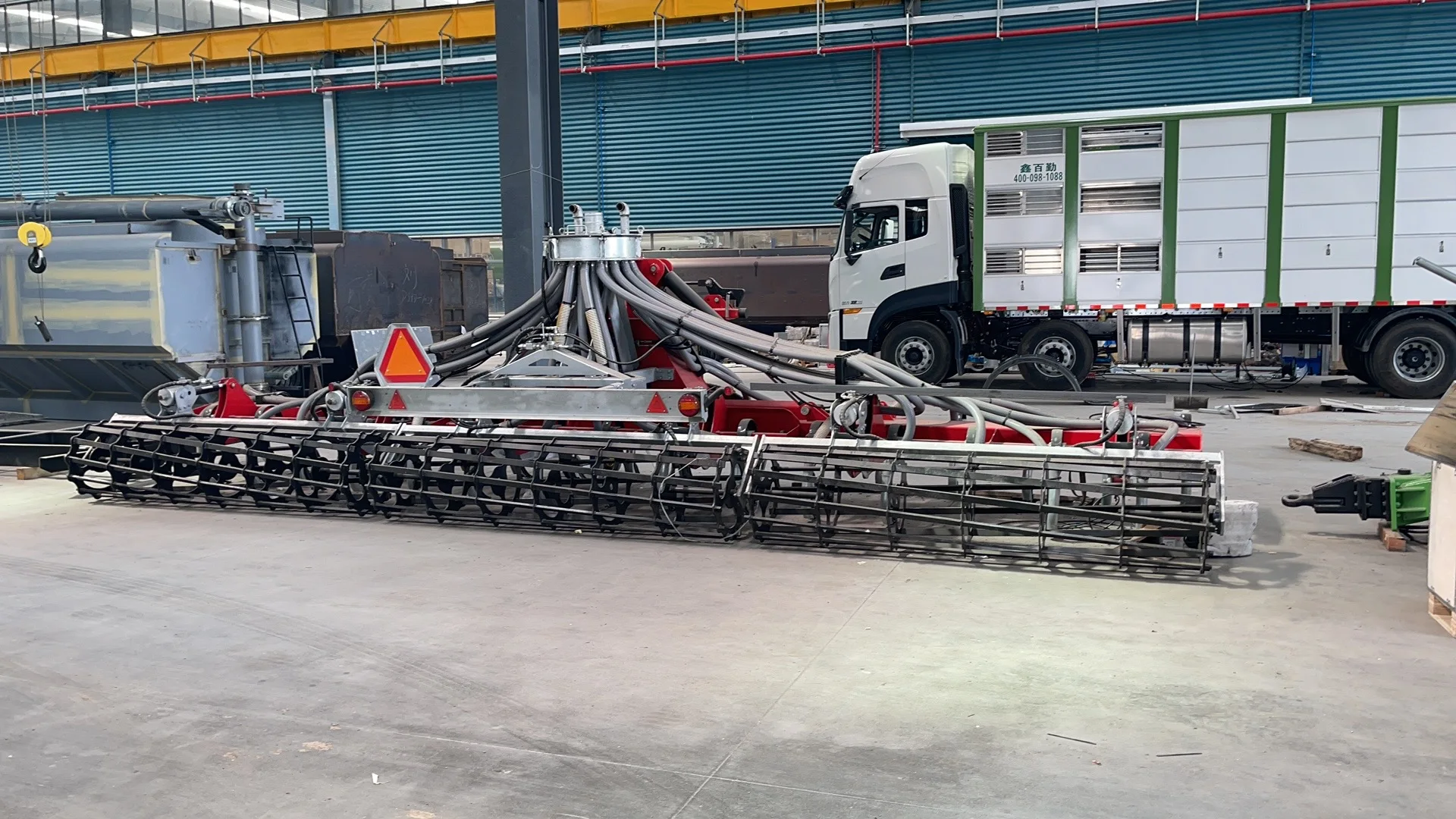

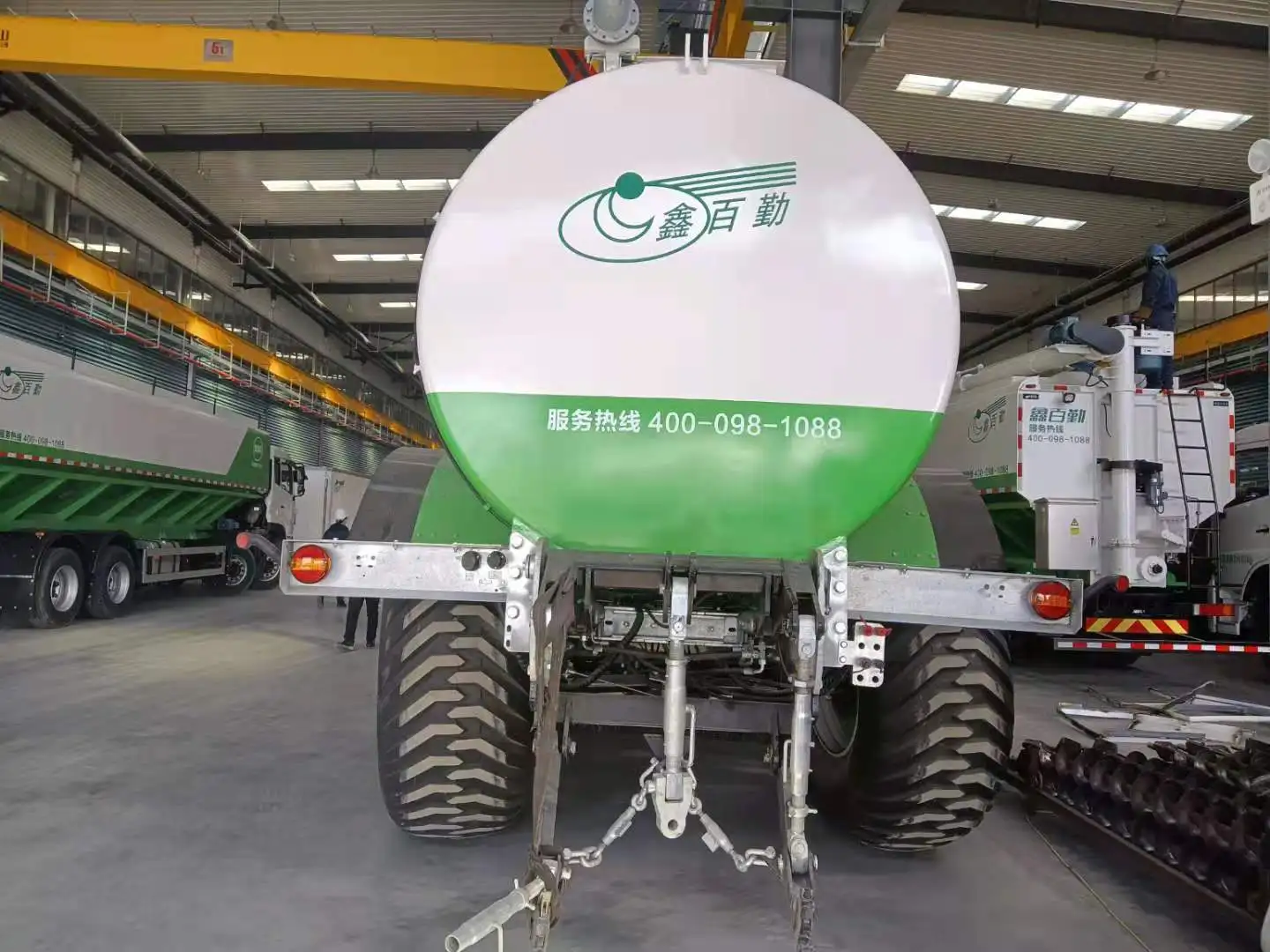

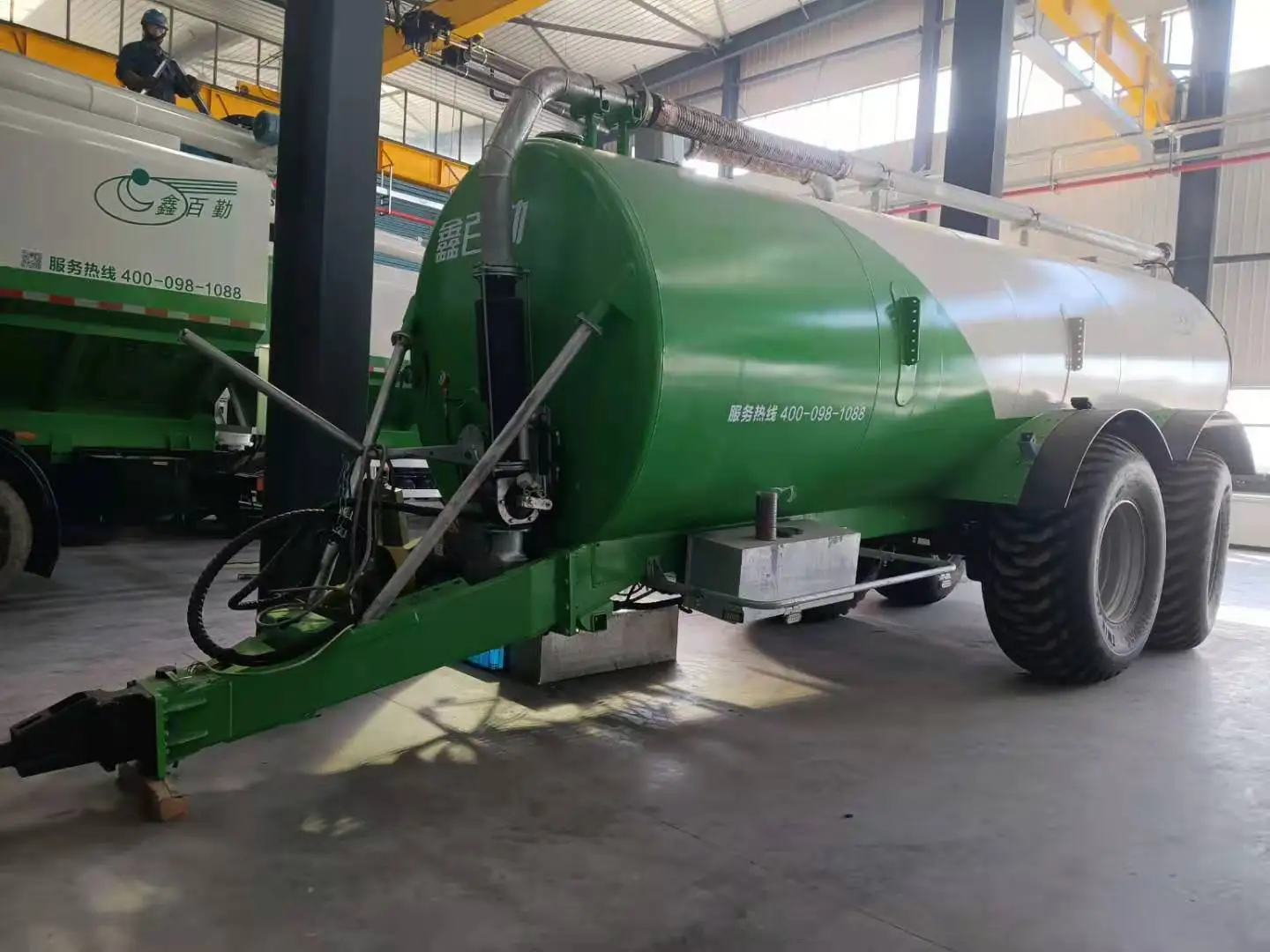

Part I: Fertilizer spreading tank with fertilizer device at tail
2FYS-20 liquid manure fertilizer spreader slurry spreading tank | ||||||||
Semi trailer parameter | Structure type | Tank | ||||||
Tank dimension (Length × dimension)(mm) | 7220×φ1980 | Operation mode | deep placement | |||||
Tank volume(m³) | 20 | Supporting power value(kw) | more than 190 | |||||
Fertilizing rows | 31 | Fertilizing width(m) | 8 | |||||
Loading axle qty（pcs） | 2 | Tyre specification | 650/60-30.5 or 650/65-30.5 | |||||
Tyre qty | 4 | Fertilizing depth(cm) | 5-15 | |||||
Overall dimension (Length x Width x height)(mm) | 12400×8200×3930（stretching） 12400×3180×3650（retract） | Productivity（h㎡/h/h） | 2.3~3.0 | |||||
Structure mass(kg) | 11180 | Work speed（km/h） | 2~4 | |||||
Tractor match | Brand | M2604-N | Configuration | Traction force≥75kn | ||||
Fiat generator, total hydraulic flow is up to 166L/min, 4 units hydraulic output valve | ||||||||

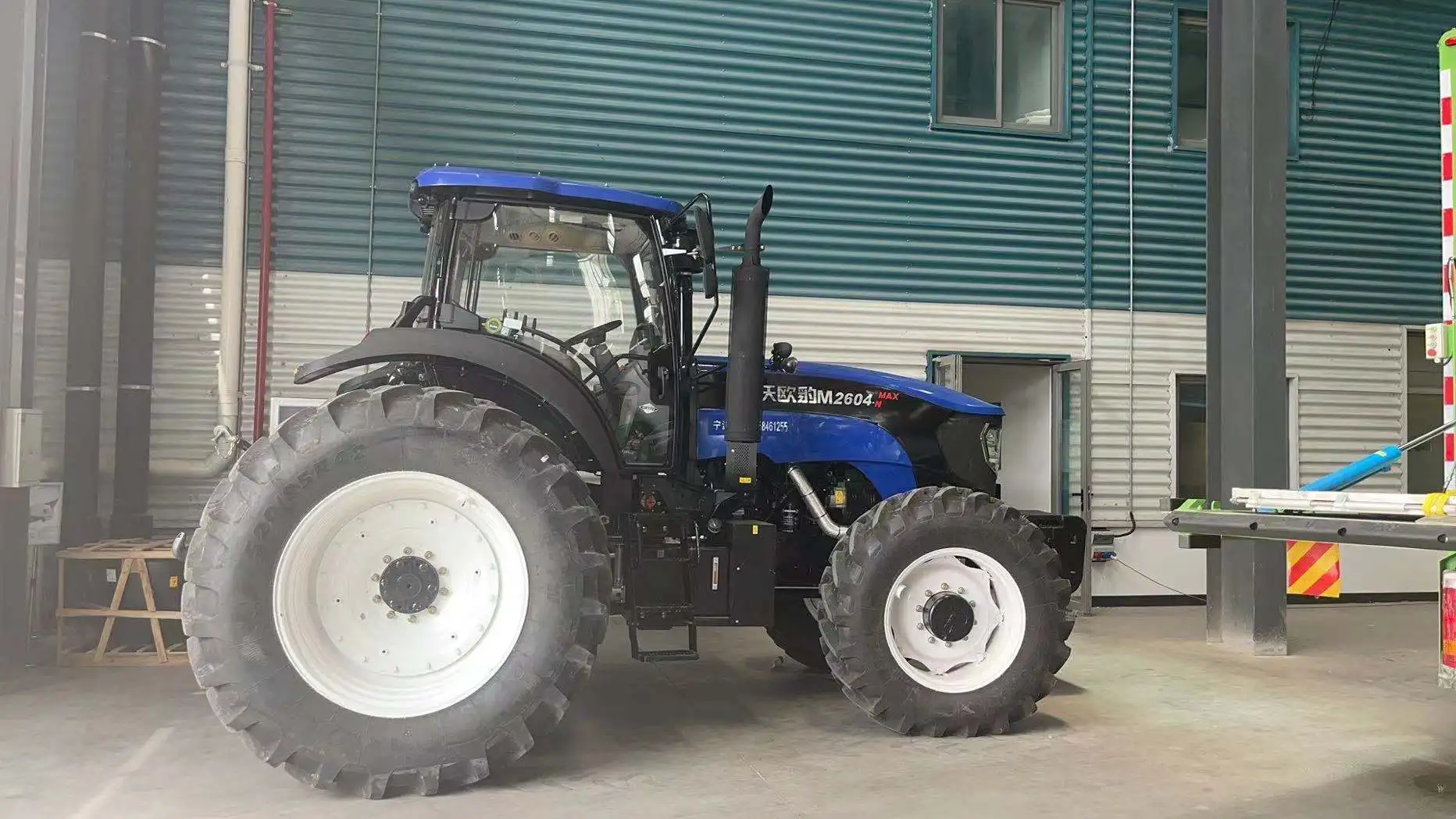

Part II: Tractor
LOVOL M2604-N configuration & parameter | ||||||
Engine | Shanghai Diesel Engine 6 cylinder | Engine mode | Turbocharged, in-line, water-cooled,four-stroke | |||
Engine spray type | High pressure common rail | Gear box | 18+6 Synchronizer shift | |||
Clutch | Single | Front axle | imported CARRARO | |||
Driver cab | Air-conditioned cab | Tyre | Front wheel 16.9-30 diagonal flat/Rear wheel 20.8R42 Non Trelleborg double rows radial tire | |||
Rear track | adjustable rear wheel | Hydraulic output | 4 units | |||
Pnuematic brake | Yes | Lifter | electrically controlled | |||
Front ballast | Yes | Rear ballast | 2 layers | |||
Power take-off | 540/1000 | PTO gear qty | 20 | |||
Tractor/Trailer | Tractor + Trailer | Intelligent terminal | high precision | |||
Overall dimension (Length x Width x height)(mm) | 5755×3000×3200 | Wheel base(mm) | 3010 | |||
Min. Ground Clearance(mm) | 485 | Min.use quality(kg) | 8595 | |||
Fuel Tank(L) | 480 | Drive clutch type | Hydraulic drive clutch | |||
Drive gear box system | Mechanical | Suspension device type | Three-point suspension | |||
Operation device adjust | Electric force adjust | Steering gear | Hydraulic | |||
Electronic throttle | Yes | Rear vehicle visual system | Yes | |||
Remark | Match with liquid manure fertilizer spreader tank | |||||
Packing & Delivery
Bulk

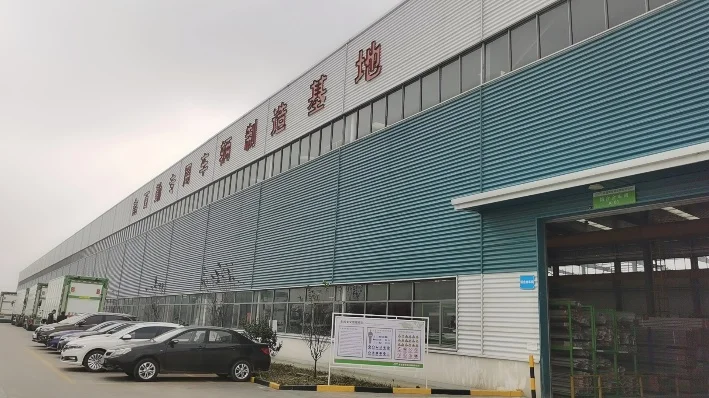

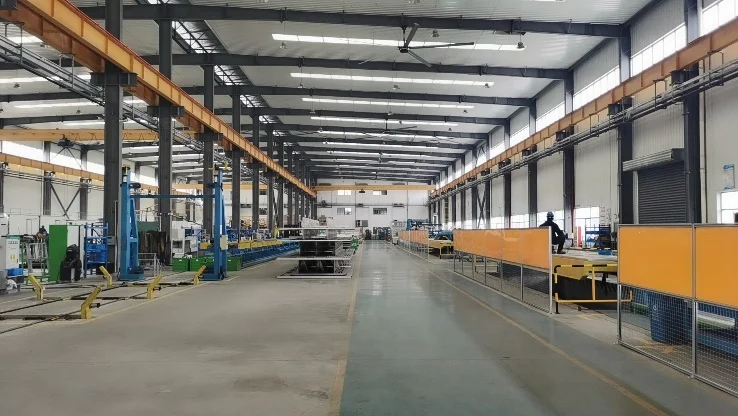

Company Profile
Xinbaiqin Special Vehicle Co.,Ltd. is a high-tech enterprise dedicated to the design, development and production of bulk feed trucks, bulk feed tanks and livestock and poultry transport vehicles. It is also a new enterprise integrating product research and development, engineering design, production, manufacture, sales and installation with a total investment of nearly 200 million yuan.
In 2008, the company obtained the qualification of modified vehicle production. Introduced European technology, the company developed and produced all kinds of bulk feed trucks and livestock poultry transporters. It has successively obtained various national patents and is a special manufacturer of special bulk feed and livestock poultry trucks in the industry. It is designated by CP Group, Shengnong Group, Muyuan Group, Gushi Group, Wenshi Group and other agricultural and animal husbandry giant groups to purchase products...
Since 2008, the company has entered the overseas market and established good cooperative relations with many well-known overseas companies. It enjoys a high reputation in Southeast Asia. Malaysia GSI and Vietnam Dabaco Group are our long-term customers. There are also many customers in other countries such as the Philippines, Indonesia and Bangladesh. Our products have been well received by customers.
In 2008, the company obtained the qualification of modified vehicle production. Introduced European technology, the company developed and produced all kinds of bulk feed trucks and livestock poultry transporters. It has successively obtained various national patents and is a special manufacturer of special bulk feed and livestock poultry trucks in the industry. It is designated by CP Group, Shengnong Group, Muyuan Group, Gushi Group, Wenshi Group and other agricultural and animal husbandry giant groups to purchase products...
Since 2008, the company has entered the overseas market and established good cooperative relations with many well-known overseas companies. It enjoys a high reputation in Southeast Asia. Malaysia GSI and Vietnam Dabaco Group are our long-term customers. There are also many customers in other countries such as the Philippines, Indonesia and Bangladesh. Our products have been well received by customers.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2008,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Poultry And Livestock Transport Trucks,Bulkfeed Trucks,Refrigerated Trucks,Semi Trailer
4. why should you buy from us not from other suppliers?
Design, manufacture and sale of bulk feed conveyor transporter, young poultry transporter, refrigerated truck, and related semi-trailer (with 3C qualifications) and relevant occupational health safety management activities of the sites involved.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW, FCA；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2008,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Poultry And Livestock Transport Trucks,Bulkfeed Trucks,Refrigerated Trucks,Semi Trailer
4. why should you buy from us not from other suppliers?
Design, manufacture and sale of bulk feed conveyor transporter, young poultry transporter, refrigerated truck, and related semi-trailer (with 3C qualifications) and relevant occupational health safety management activities of the sites involved.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW, FCA；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
