S70 Series 70mm Encoder for Automatic Control
- Category: >>>
- Supplier: Wuxi Lotus Import And Export Co. Ltd.
Share on (1600304923626):
Product Overview
Description
Product Description
70mm Cheaper Rotary Encoder Supplier
Features
- Internal use of ASIC devices, high reliability, long life, strong anti-interference.
- Stainless steel spindle has higher stability and protection.
- The metal shell is stronger and has impact resistance.
Common Applications
Be used in area of automatic control, measurement, robot, x-y labor, printing and packaging, etc.

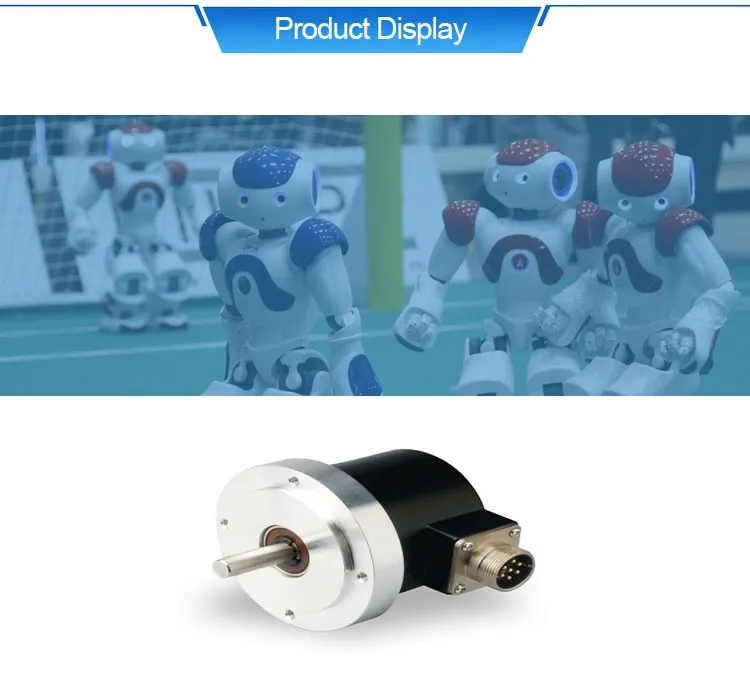

70mm Encoder for Automatic Control
70mm Encoder
Rotary Encoder
Ordering Information
Electrical | Open Collector | Voltage Output | Push-Pull | Line Drive |
Input Voltage | +5 ~ +26 V | +5 ~ +26 V | +5 ~ +26 V | +5 ~ +26 V |
Current Consumption | Max. 80 mA | Max. 80 mA | Max. 80 mA | Max. 150 mA |
Load Current | 40 mA | 40 mA | 40 mA | 60 mA |
Max Frequency | 300kHz | 300kHz | 300kHz | 300kHz |
Rise/Fall Time | Max 1us | Max 1us | Max 1us | Max 200ns |
Mechanical
Max Shaft Speed | 5000 rpm | Starting Torque | Max. 0.05Nm |
Max Shaft Loading | Radial: 80N, Axial: 340N | Shock | 50g @11ms |
Vibration | 10g @ 10~2000Hz | Rotor Inertia | 4x10-8 kg.m2 |
Operation Temperature | -30 ~85 ℃ | Storage Temperature | -35 ~95 ℃ |
Protection | IP51 | Weight | 275g |
Cable Length | 1 M |
|
|
Wiring Table
Signal | A | B | Z | - A | - B | - Z | Vcc | GND |
Color | Green | White | Yellow | Brown | Gray | Orange | Red | Black |

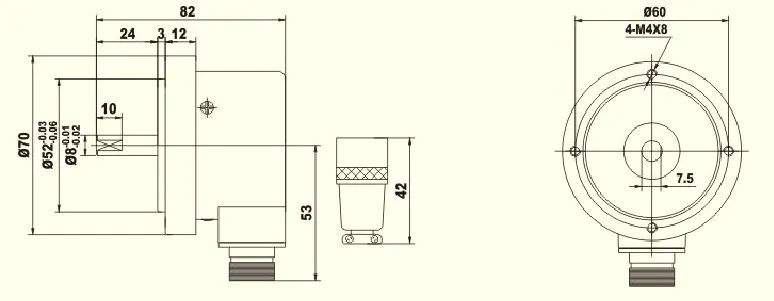

Dimension
Packaging & Shipping
Company Information
FAQ
Q1: Are you a factory or trading company
Al: We are a factory, we can guarantee our price is first-hand, competitve among all other peer companies.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of deiivey, prices varies.
