digital tv broadcast iptv 1080p Encoder 24 channels HD Cable TV Digital IP Stream ASI Audio Video Encoder COL5181HA

Product Overview

Description

digital tv broadcast iptv 1080p 24 channels HD Cable TV Video IP Video Encoder







Outline

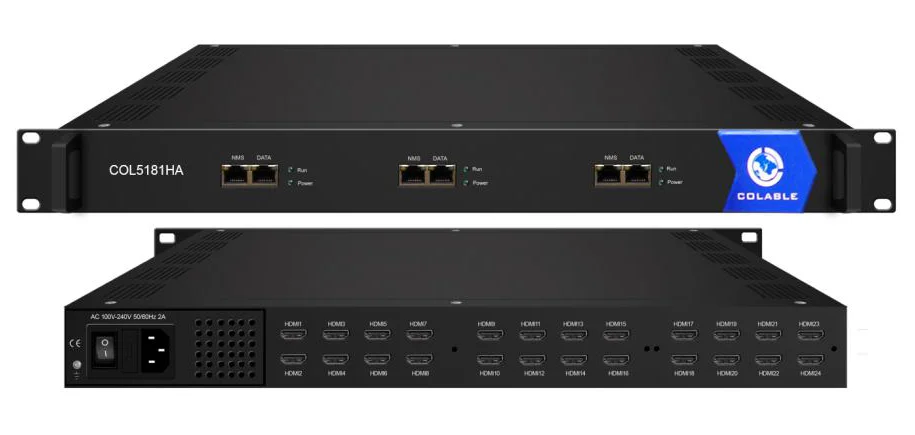

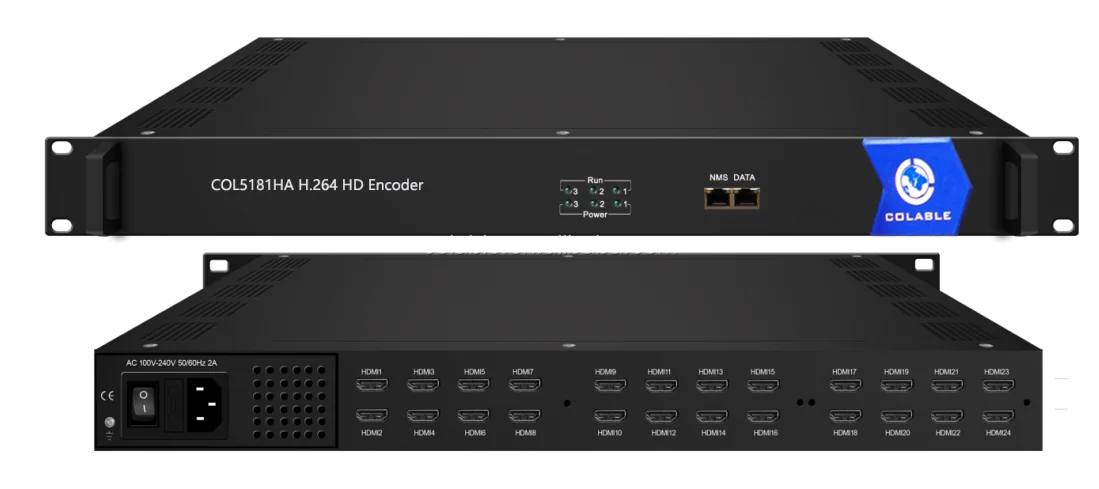

COL5181HA H.264 HD encoder is a professional HD encoding device. It has 8/16/24 HD inputs for option.

Every 8 HD ports share one encoder module with each module supporting 1MPTS and 8SPTS output.

Its high integration and cost effective design makes the device widely used in varieties of digital distribution

systems such as cable TV digital head-end, digital TV broadcasting etc.





Key features

• 8 HD inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HD inputs


• MPEG4 AVC/H.264 video encoding format·


• MPEG1 Layer II, LC-AAC,HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment


• IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)


• Support QR code, LOGO, caption insertion


• Support “Null PKT Filter” function


• Control via web management, and easy updates via web



Technical specification



Input	8/16/24 HD inputs
Video	Resolution	input		1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i
		Output		1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P
	Encoding			MPEG-4 AVC/H.264
	Bit-rate			1~13Mbps each channel
	Rate Control			CBR/VBR
	GOP Structure			IP…P (P Frame adjustment, without B Frame )
Audio	Encoding			MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
	Sampling rate			48KHz
	Resolution			24-bit
	Audio Gain			0-255 Adjustable
	MPEG-1 Layer 2 Bit-rate			48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	LC-AAC Bit-rate			48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
	HE-AAC Bit-rate			48/56/64/80/96/112/128 kbps
Stream output	IP output through DATA (GE) over UDP and RTP/RTSP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order)
System function	Network management(WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)		482mm×328mm×44mm
	Environment		0~45℃(work);-20~80℃(Storage)
	Power requirements		AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

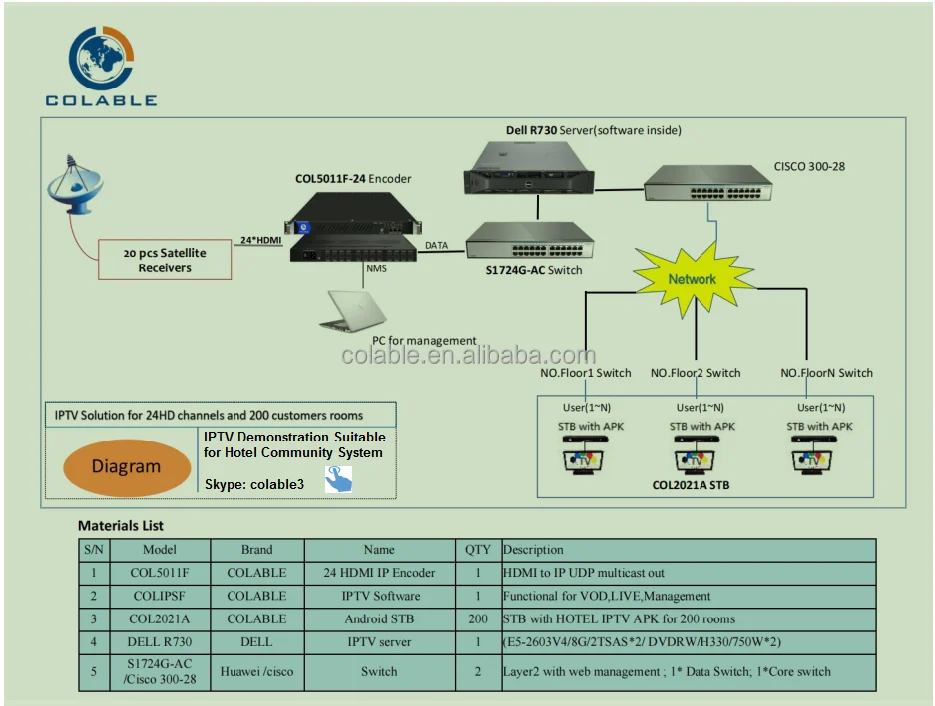

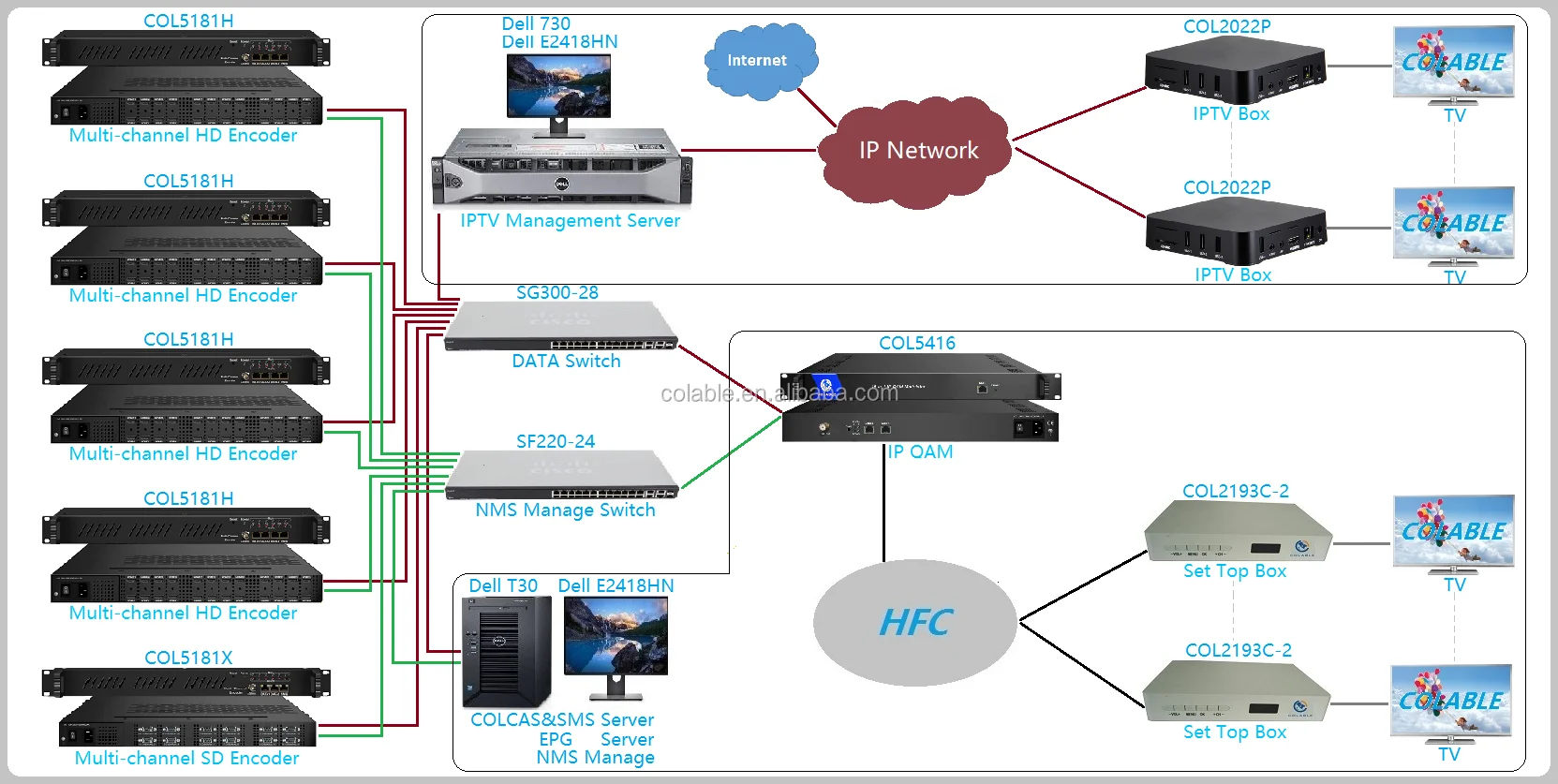

Digital cable tv and iptv system:













We Colable Electronics co.,ltd



specialize in Digital TV broadcasting equipment for more than 15 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

•


  Our experience: Continuous experienced and reliable Team ,  Standing in DVB and iptv Head-end system solution more than 15 years.





•


  Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler,  Modulator, Transmitter,Antenna,Set top box.






•


  Our service: Life-long Technical support.






•


  Warranty: 1 years.






•


  Lead time: 2-5 working days.







 Ms. Sophia Deng here  is able to reply your any questions and doubts with the strong engineering group backup.

Colable electronics co.,ltd in Chengdu---DTV(DVB-C/T/T, ATSC, ISDB-T) and IPTV solution provider
