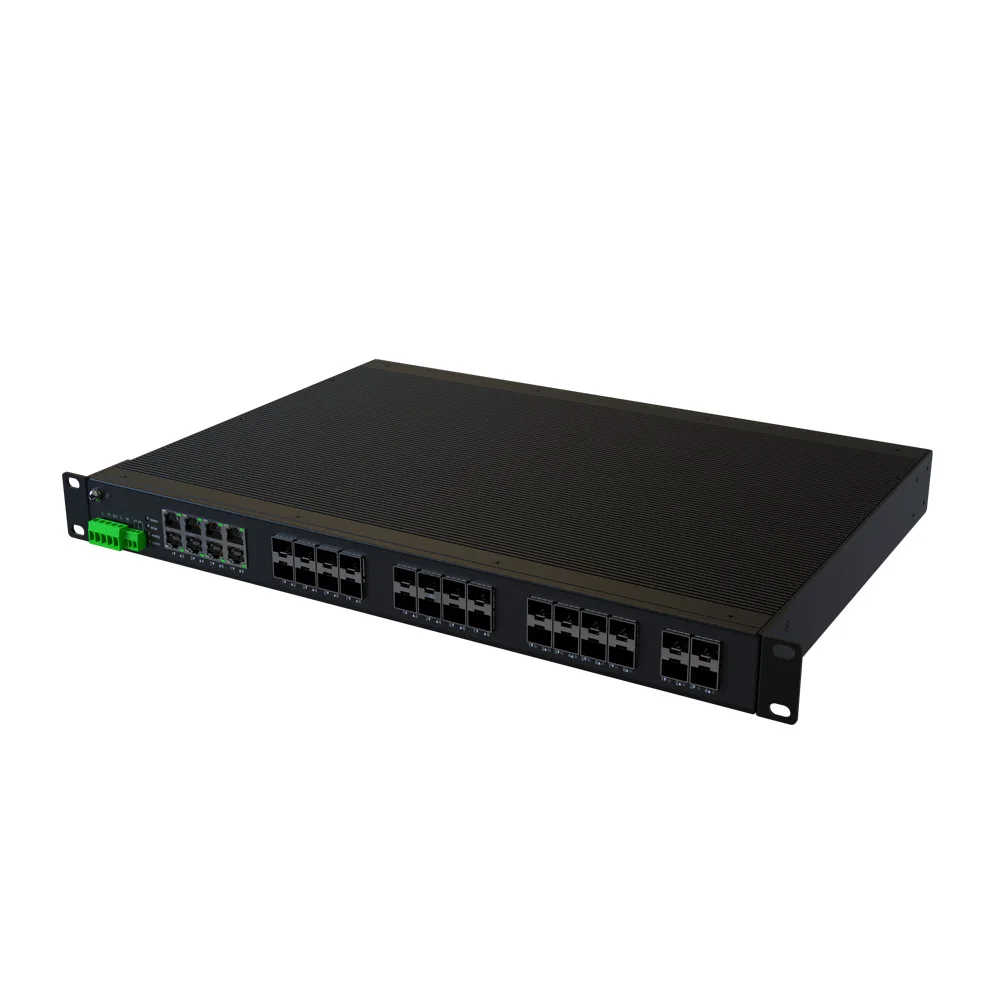

1U 36 Port 85 265VAC Redundant Dual Inputs 1000M 24 SFP 8 RJ45 4 SFP L3 Layer 10G Industrial Ethernet Network Switch
- Category: >>>
- Supplier: Hangzhou Lingke Internet Technology Co. Ltd.
Share on (1600305164768):
Product Overview
Description
Features & Benefits
♦ Up to 32 x 10/100/1000Base-TX
♦ Up to 32 x 100/1000Base-FX
♦ Up to 4 x SFP+ 10G Ports
♦ Redundant dual 12/24/48 VDC power inputs or dual 85~265VAC power inputs
♦ One relay output for remote alarm
♦ Optional time-board for GPS/COMPASS time sync.
♦ 19” 1U mounting
♦ Up to 32 x 100/1000Base-FX
♦ Up to 4 x SFP+ 10G Ports
♦ Redundant dual 12/24/48 VDC power inputs or dual 85~265VAC power inputs
♦ One relay output for remote alarm
♦ Optional time-board for GPS/COMPASS time sync.
♦ 19” 1U mounting
Introduction

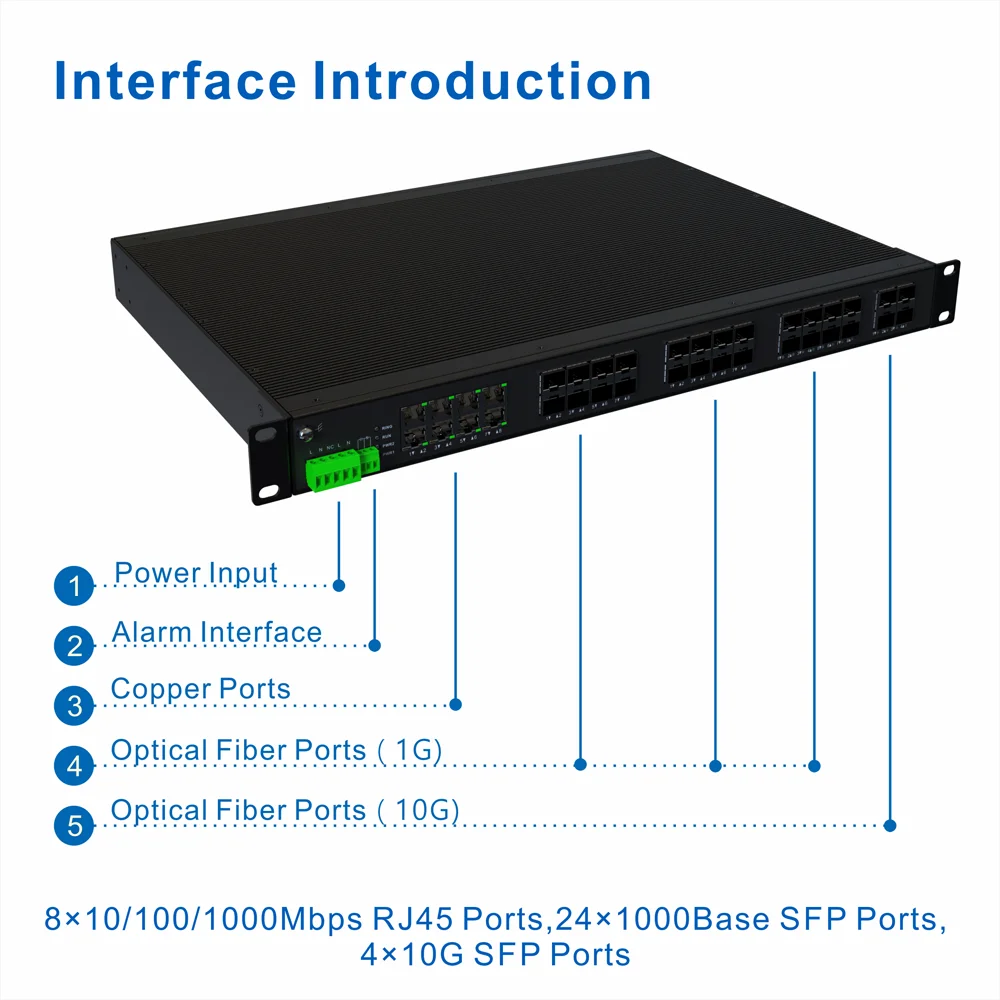

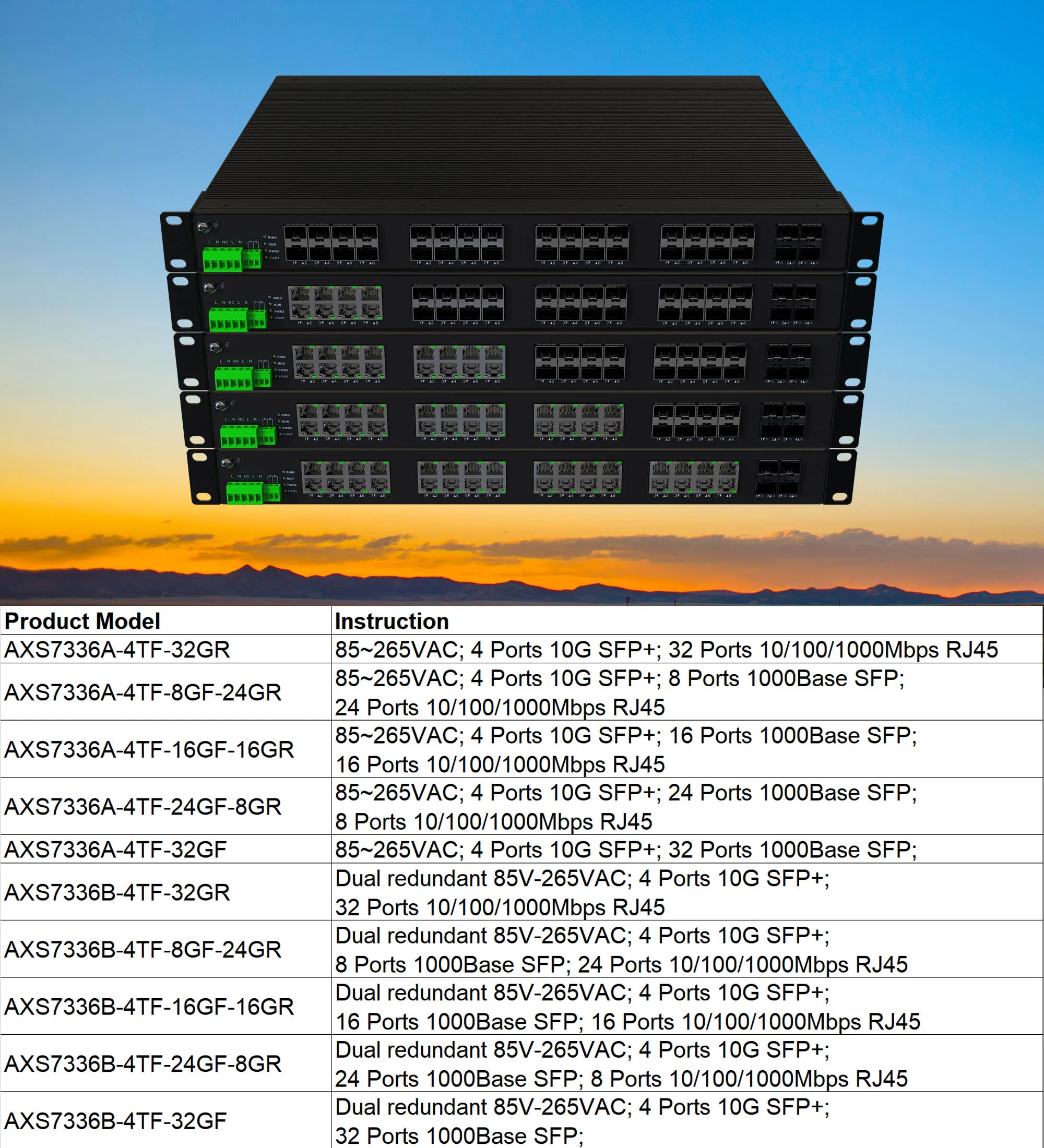

The AXS7336 series are flexible modulable switches composed with one base board and max five Interface cards.
The base board has 4 slots for 8GR/8GF/6GX interface cards and 1 slot for 4TX interface card. The supported 4 interface cards are as follows:
♦ 8GR: provides 8 x 10/100/1000Mbps Base-TX copper ports with 802.3af (POE) and 802.3at (POE+) power supply capability.
♦ 8GF: provides 8 x 100/1000Base-FX SFP ports.
♦ 6GX: provides 6 x 100/1000Base-FX 1*9 ports.
♦ 4TX: provides 4 x 10G SFP+ ports.
The AXS7336 series support 12~57VDC or 85~265VAC redundant dual power inputs. Its operating temperature range is -40 to 85℃ (-40 to 75℃ for 85~265VAC power supply).
It has 19” standard rack mounting, high-level EMI/EMC capabilities and provides an economical solution for tough industrial Ethernet network applications.
The base board has 4 slots for 8GR/8GF/6GX interface cards and 1 slot for 4TX interface card. The supported 4 interface cards are as follows:
♦ 8GR: provides 8 x 10/100/1000Mbps Base-TX copper ports with 802.3af (POE) and 802.3at (POE+) power supply capability.
♦ 8GF: provides 8 x 100/1000Base-FX SFP ports.
♦ 6GX: provides 6 x 100/1000Base-FX 1*9 ports.
♦ 4TX: provides 4 x 10G SFP+ ports.
The AXS7336 series support 12~57VDC or 85~265VAC redundant dual power inputs. Its operating temperature range is -40 to 85℃ (-40 to 75℃ for 85~265VAC power supply).
It has 19” standard rack mounting, high-level EMI/EMC capabilities and provides an economical solution for tough industrial Ethernet network applications.
Additional Features & Benefits
♦ Metal Shell, Dimensions (W×H×D)：440×44×315 mm (17.32×1.73×12.4 in)
♦ One relay output for remote alarm
♦ MAX 32 802.3af/at POE Ports
♦ Optional embedded timer board act as NTP server and has time synchronization capability to GPS/COMPASS
♦ XRING redundant cycle network topology: 5ms recover time. STP/MSTP, EPS, ERPS are also supported.
♦ Layer 3 switching functionality, and Static route, OSPF, VRRP are supported
♦ Command line interface (CLI) through ssh or telent for remote configuring managed functions
♦ IEEE 802.1Q VLAN with advanced VLAN capability such as SVL, private VLAN, MAC based VLAN, IP_SUB_NET based VLAN, GVRP, MVRP etc.
♦ DHCP server, DHCP relay and DHCP Snooping
♦ IGMP snooping and GMRP for filtering multicast traffic
♦ Port mirroring supports normal mirror and remote mirror
♦ QoS (IEEE 802.1p/1Q and TOS/DiffServ) with ingress/egress port schedulers, egress port shapers, ingress rate limits etc.
♦ Port Trunking supports static or LACP
♦ TACACS+, IEEE 802.1X, HTTPS, and SSH to enhance network security
♦ Flexible Access control lists (ACL) for L1-L4 secure accessing policy
♦ IP Source Guard, ARP Inspection, NAS, Device Access Control etc. for additional network security
♦ SNMPv1/v2c/v3 for different levels of network management
♦ Port based Storm Control, Active Loop Detection to prevent unpredictable network storm.
♦ Lock port function for blocking unauthorized access based on MAC address.
♦ SFLOW for accurate network monitor
♦ Redundant, dual AC/DC power inputs
♦ One relay output for remote alarm
♦ MAX 32 802.3af/at POE Ports
♦ Optional embedded timer board act as NTP server and has time synchronization capability to GPS/COMPASS
♦ XRING redundant cycle network topology: 5ms recover time. STP/MSTP, EPS, ERPS are also supported.
♦ Layer 3 switching functionality, and Static route, OSPF, VRRP are supported
♦ Command line interface (CLI) through ssh or telent for remote configuring managed functions
♦ IEEE 802.1Q VLAN with advanced VLAN capability such as SVL, private VLAN, MAC based VLAN, IP_SUB_NET based VLAN, GVRP, MVRP etc.
♦ DHCP server, DHCP relay and DHCP Snooping
♦ IGMP snooping and GMRP for filtering multicast traffic
♦ Port mirroring supports normal mirror and remote mirror
♦ QoS (IEEE 802.1p/1Q and TOS/DiffServ) with ingress/egress port schedulers, egress port shapers, ingress rate limits etc.
♦ Port Trunking supports static or LACP
♦ TACACS+, IEEE 802.1X, HTTPS, and SSH to enhance network security
♦ Flexible Access control lists (ACL) for L1-L4 secure accessing policy
♦ IP Source Guard, ARP Inspection, NAS, Device Access Control etc. for additional network security
♦ SNMPv1/v2c/v3 for different levels of network management
♦ Port based Storm Control, Active Loop Detection to prevent unpredictable network storm.
♦ Lock port function for blocking unauthorized access based on MAC address.
♦ SFLOW for accurate network monitor
♦ Redundant, dual AC/DC power inputs
Specification
Ethernet interfaces | ||
10/100/1000BaseTX Ports (RJ45) | Full/half duplex mode Auto MDI/MDI-X Auto negotiation speed | |
100/1000BaseFX Ports | Optional SFP or 1*9 Optional FC, SC, ST for 1*9 Optional distance up to 120km | |
10G SFP+ Ports | Optional distance up to 120km | |
Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/FX IEEE 802.3z 1000BASE-X Gbit/s Ethernet over Fiber-Optic IEEE 802.3ab 1000BASE-T Gbit/s Ethernet over twisted pair 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.3x Full Duplex and flow control IEEE802.3ad Link aggregation for parallel links IEEE 802.1Q VLAN IEEE 802.1p QoS IEEE 802.3az for Energy-Efficient Ethernet | |
Switch Properties | ||
MAC Table Size | 32K | |
Packet Buffer Size | 16Mbits | |
Host Table | 4K | |
ARP Table | 2K | |
Jumbo Frame Size | 10 KB | |
Switch Delay | < 10us | |
Processing Type | Store and Forward | |
Relay Interface | ||
Connector | 1 removable 3pin terminal (3.5mm) | |
Load capability | 0.5A@125VAC; 2A@30VDC | |

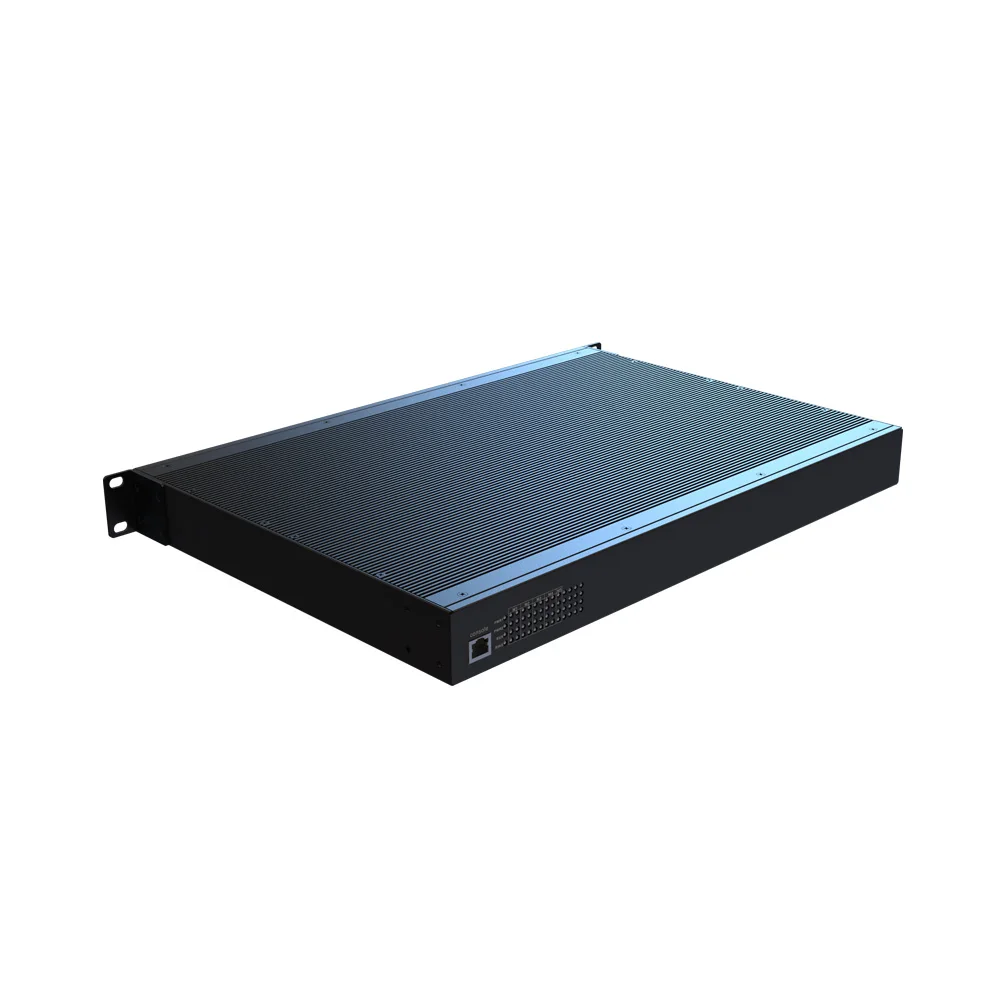

Console Interface | ||
Connector | RJ45 | |
Default setting | 115200, data bits-8, parity-non, stop-1bit, flow control-non | |
Power Parameters | ||
Connector | 1 removable 5pin terminal (5.08mm) | |
Input Voltage | 85-265VAC redundant dual inputs | |
Overvoltage Protection | Supported | |
Overcurrent Protection | Supported | |
MAX power consumption | 32GF-4TX: <40W 32GR-4TX: <32W | |
Grounding Terminal | M4 Screw | |
Physical Characteristics | ||
Dimensions | 440×44×315 mm (17.32×1.73×12.4 in) | |
Housing | Metal | |
Installation | 19” standard rack mounting | |
IP Rating | IP40 | |
Weight | <4.1Kg | |
Environmental Limits | ||
Operating Temperature | DC: -40 ~ 85℃ (-40 ~ 185℉) AC: -40 ~ 75℃ (-40 ~ 167℉) | |
Storage Temperature | -40 ~ 85℃ (-40 ~ 185℉) | |
Ambient Relative Humidity | 5 ~ 95% (non-condensing) | |
Standards and Certifications | ||
Safety | UL 508 | |
EMC | EN 55032/35 | |
EMI | CISPR 22, 32, FCC Part 15B Class A | |
EMS | IEC 61000-4-2 (ESD): Contact: 8kV; Air: 15kV IEC 61000-4-3 (RS): 80MHz ~ 1GHz: 20V/m IEC 61000-4-4 (EFT): Power: 4kV; Signal: 2kV IEC 61000-4-5 (Surge): Power: 4kV; Signal: 2kV IEC 61000-4-6 (CS): 10V | |
Shork | IEC 60068-2-27 | |
Vibration | IEC 60068-2-6 | |
Freefall | IEC 60068-2-32 | |
Warranty | ||
Warranty Period | 3 years | |
Dimensions
