Product Overview
Description
Product Overview

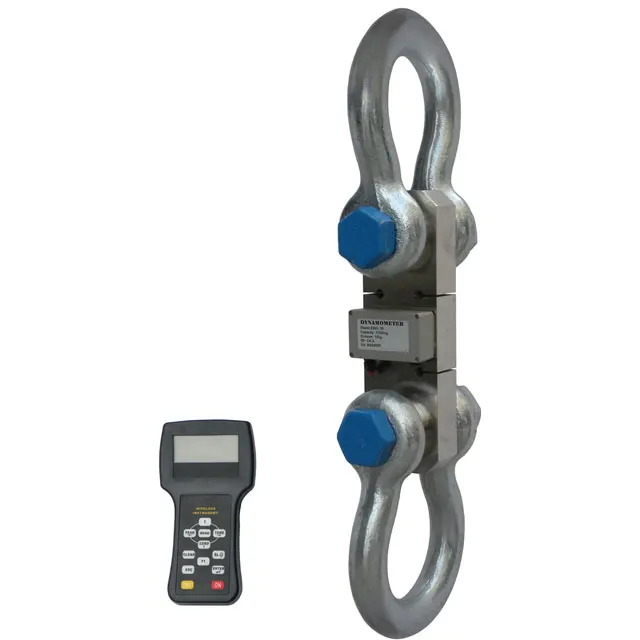

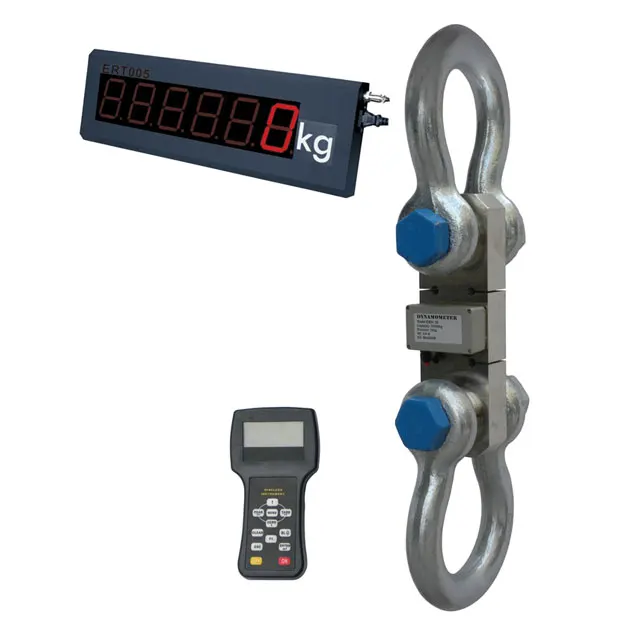

EBW-2D Wireless Tension Link
EBW-2D wireless tension link is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal
applications, Whether used as conventional crane weigher or to measure force, EBW-2D wireless tension link is microprocessor
controlled for high precision accuracy, calibration is easier with wireless handheld indicator 280D.
applications, Whether used as conventional crane weigher or to measure force, EBW-2D wireless tension link is microprocessor
controlled for high precision accuracy, calibration is easier with wireless handheld indicator 280D.
FEATURES AT A GLANCE
Material: Nickel plated high strength alloy steel.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places
value.
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User
calibration(with password).
Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
Package: Packed with carry case, easy to bring.
Communication: RS232 output
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places
value.
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User
calibration(with password).
Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
Package: Packed with carry case, easy to bring.
Communication: RS232 output
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Accuracy Standard | According to GB/T11883-2002 | ||||
2 | 280D Indicator Display | 25mm (1’’) 5digits LCD with backlight | ||||
3 | Power on zero range | 20% F.S. | ||||
4 | Manual Zero Range | 4% F.S. | ||||
5 | Tare Range | 20% F.S. | ||||
6 | Stable Time | ≤5 seconds | ||||
7 | Overload Indication | 100% F.S. + 9e | ||||
8 | Max. Safety Load | 125% F.S. | ||||
9 | Ultimate Load | 400% F.S. | ||||
10 | Battery Life | ≥50 hours | ||||
11 | Body Battery | Standard 18650 Lithium battery, 3.7V/3100mAh | ||||
12 | Indicator Battery | Standard 18650 Lithium battery, 3.7V/3100mAh | ||||
13 | Operating Temp. | - 20℃ ~ + 50℃ | ||||
14 | Operating Humidity | ≤85% RH under 20℃ | ||||
15 | Wireless Distance | Min. 100m | ||||
16 | Wireless Frequency | 433MHz | ||||
Successful Project
Project in Indonesia
Project in India
Project in Thailand
