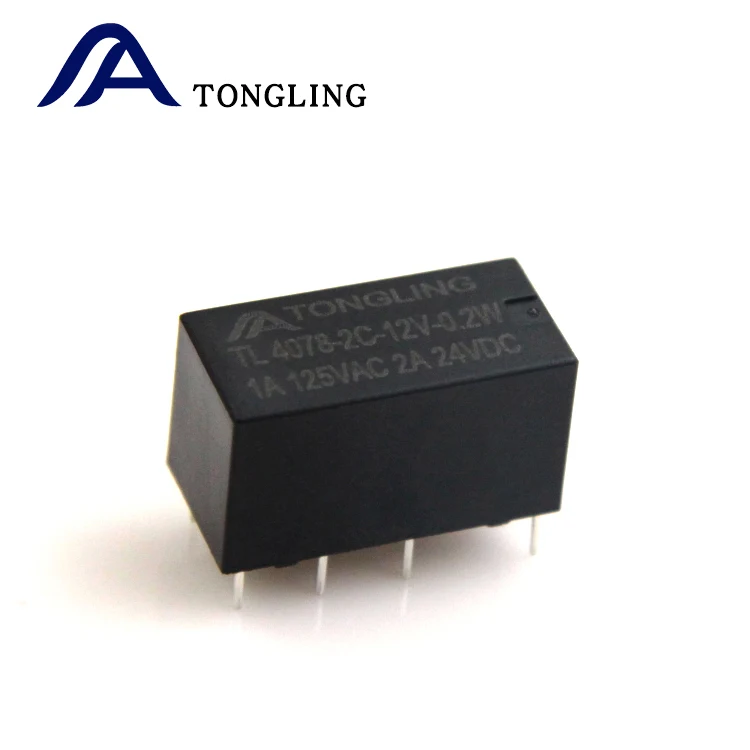

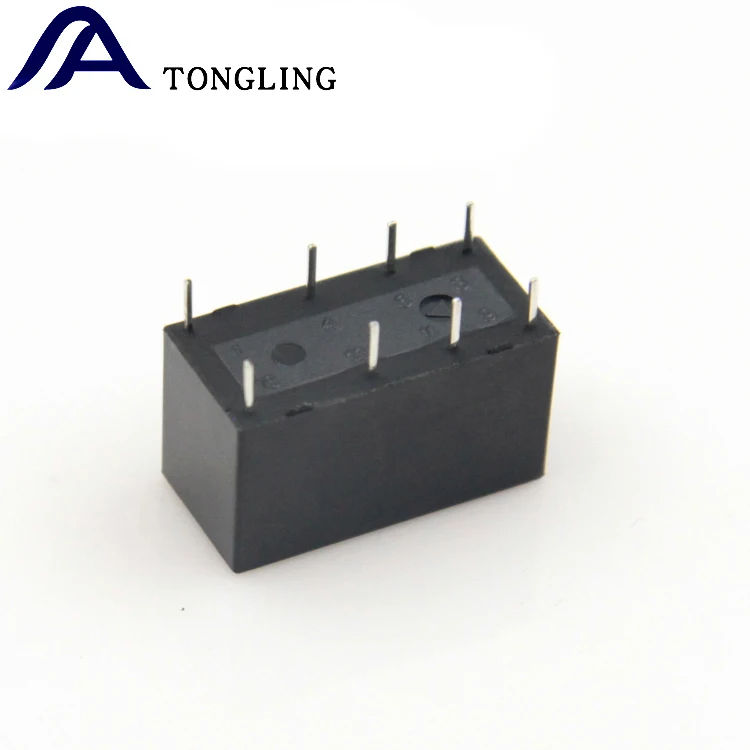

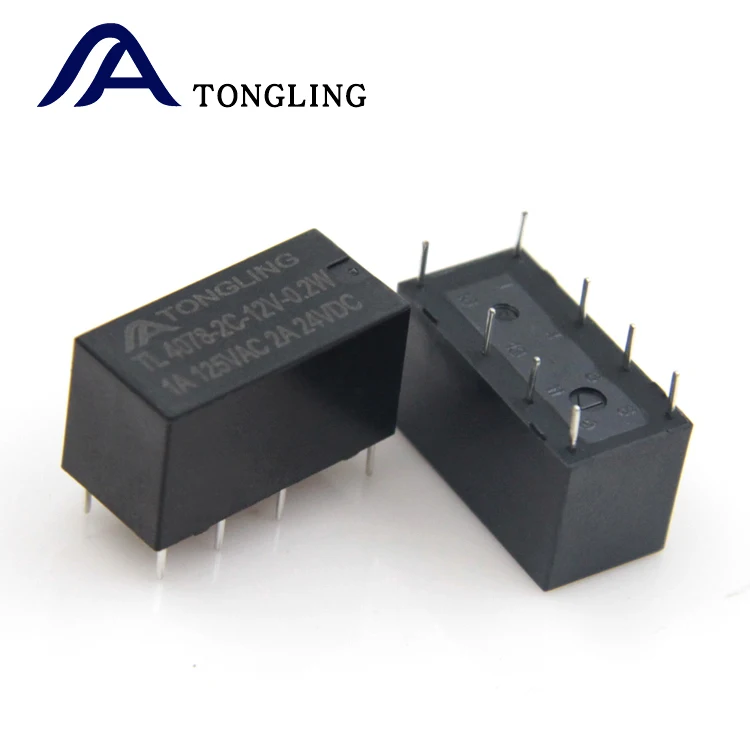

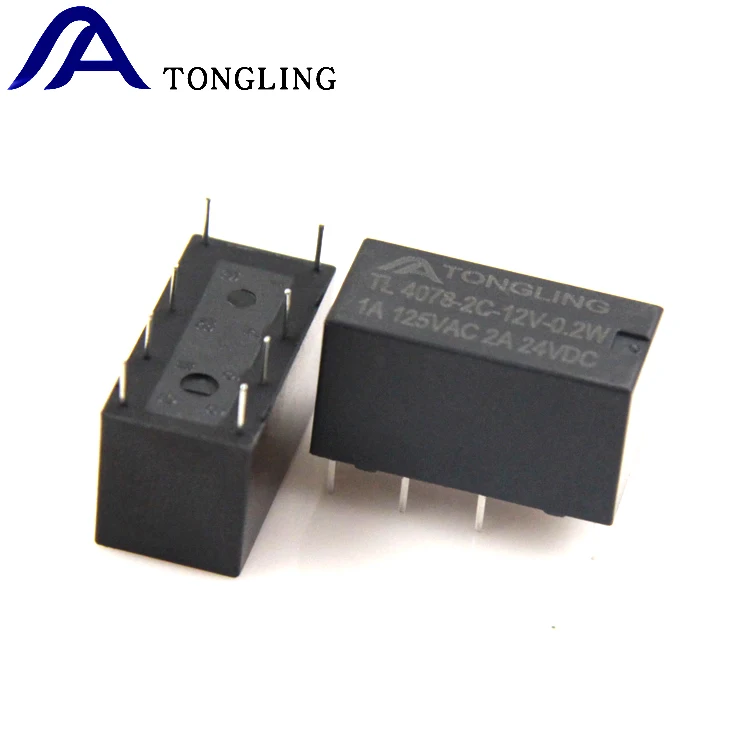

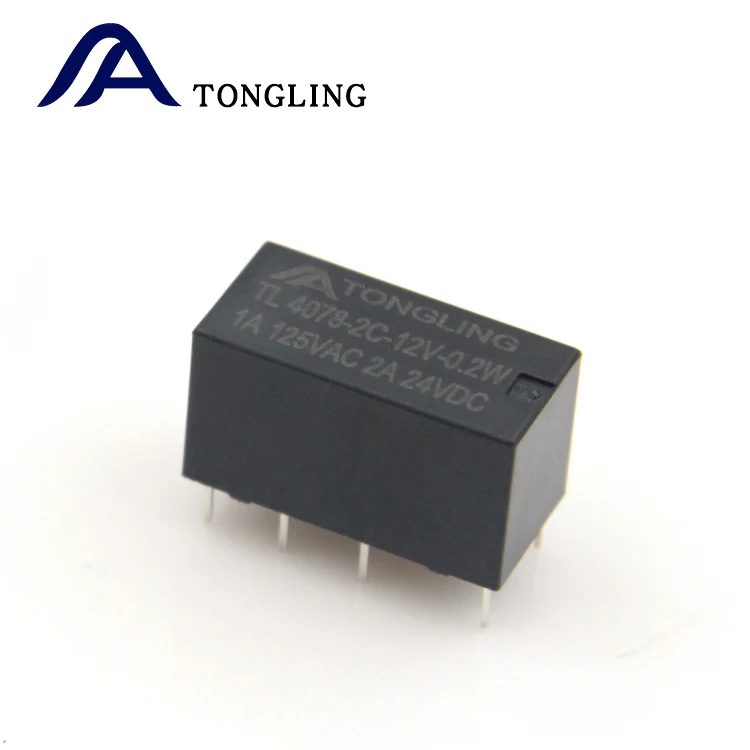

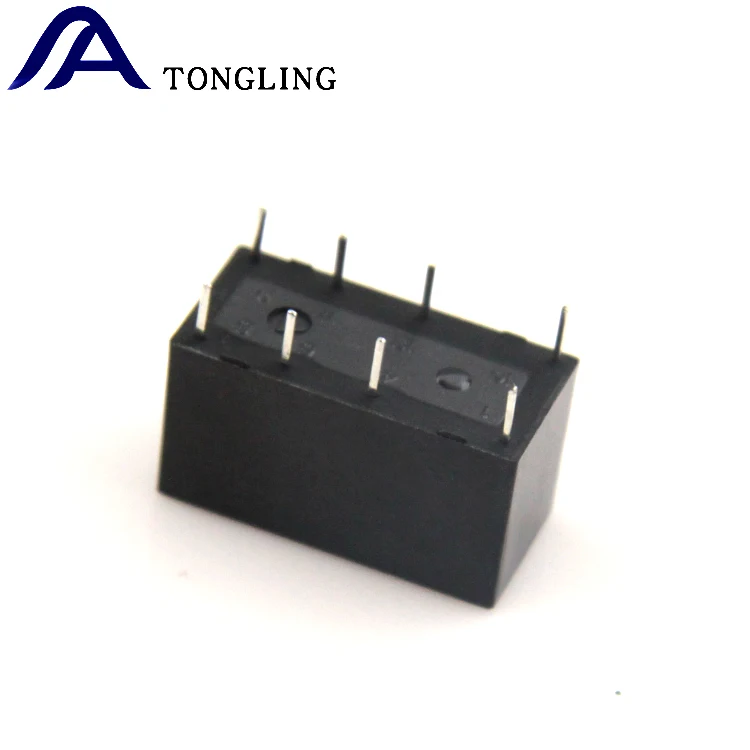

TONGLING TL4078 SPDT 2C 8 Pin 5V 6V 9V 12V 24V 1A 125VAC Signal Relay For PCB
- Category: >>>
- Supplier: Donghai Tongling Electric Appliance Co. Ltd.
Share on (1600305380609):
Product Overview
Description
Ordering Code
TL4078-2C-12V-0.2W
1 2 3 4
1.Relay module:TL4078 Relay
2.Contact Form:Form 2C(Form 2Z)
3.Coil Nominal Voltage:5V 6V 9V 12V 24V
The main specific sparameters | ||
Relay module | TL4078 Signal Relay | |
Coil voltage | DC: 5V 6V 9V 12V 18V 24V | |
Contact form | SPDT-CO ( Form 2C)-8 pins | |
Contact Material | Silver Alloy | |
Pin | 8 Pins | |
Contact rating | 1A 125VAC/2A 24VDC | |
Coil Power | 0.2W | |
Size | 20.5mm*10mm*11.8mm | |
Coil Data(at 20℃）
Nominal Voltage(VDC) | 5 | 6 | 9 | 12 | 24 | 0.2W | |||||||||||
Coil Resistance(Ω±10%） | 125 | 180 | 405 | 720 | 2880 | ||||||||||||
Rated Current(mA) | 40 | 33.3 | 22.2 | 16.7 | 8.3 | ||||||||||||
Max Release Voltage(VDC) | 3.75 | 4.5 | 6.75 | 9 | 18 | 0.36W | |||||||||||
Min Release Voltage(VDC) | 0.5 | 0.6 | 0.9 | 1.2 | 2.4 | ||||||||||||
Max Applicable Voltage | 130% of the rated voltage at 70℃ and 170% at 23℃ | ||||||||||||||||
Contact Data
Contact Ratings | 1A 125VAC/2A 24VDC |
Minimum Load | 1mA 5VDC |
Max Switching Voltage | 240VAC/60VDC |
Max Switching Current | 2A |
Max Switching Power | 125VA/48W |
Contact Resistance | 100mΩMax at 6VDC 1A |
Life Expectancy | Electrical:100,000 Operations(at 30 Operations/minute) |
Mechanical:10,000,000 Operations(at 30 Operations/minute) |
Characterinstics data
Insulation Resistance | 100MΩMin at 500VDC |
Dielectric Strength Between Open Contacts | 500VAC(50/60Hz for one minute) |
Between Contacts And Coil | 1000VAC(50/60Hz for one minute) |
Operate Time | 8ms |
Release Time | 4ms |
Temperature Range | -30℃ to +85℃ |
Shock Resistance | Operating Extremes:10G |
Damage Limits:50G | |
Vibration Resistance | 10-55Hz,1.5mm |
Max.switching frequency | Mechanical:18,000 operations/hr |
Electrical:1,800 operations/hr | |
Humidity | 40-85% |
Weight | Approx 5g |
Safety Standard | ROSH |
Engineering Data

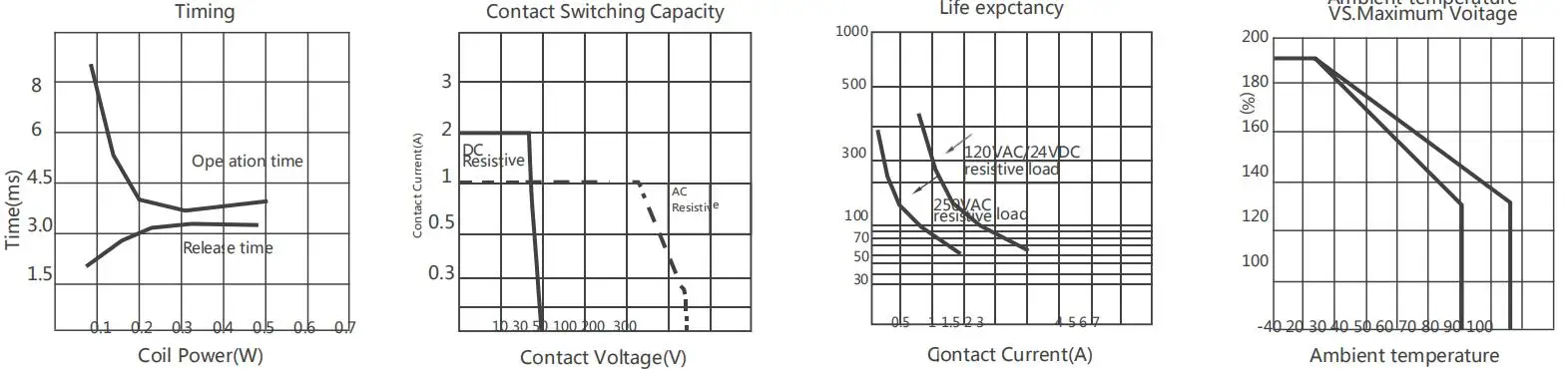

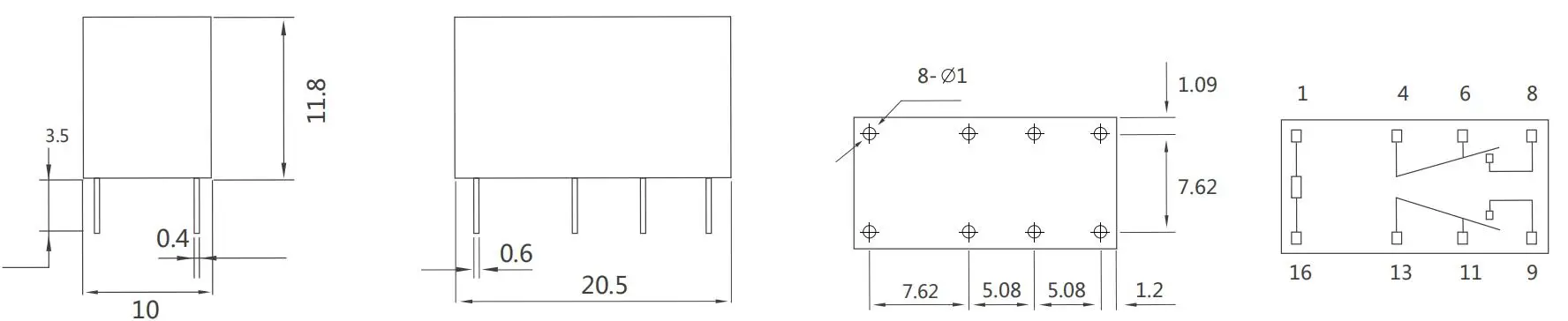

Overall And Mounting Dimensions
Size:20.5mm*10mm*11.8mm
Compact size, PCB in-line welding
Beautiful welding effect
