Gabion Mesh Making Machine
- Category: >>>
- Supplier: Hebei Secure-Net Fence Facility Co. ltd
Share on (1600305484237):
Product Overview
Description

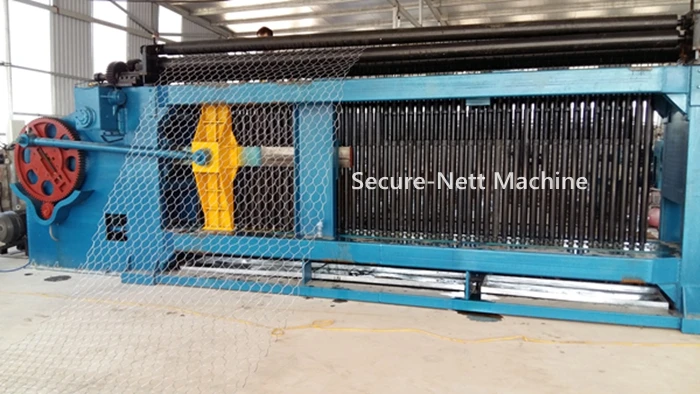

Gabion Mesh Making Machine
Gabion mesh making machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
4300mm Max Mesh Weaving Width Heavy Duty Hexagonal Gabion Machine for 3.2mm Wire, 22kw
Twist Gabion Hexagonal Wire Netting Machines With Automatic Oil System
1,It is electric cabinet button control.
2,It has the function of frequency control of motor speed according to different of wire diameter.
3,It has buffer function when speed increase or decrese in very short time.
4,It can count output every day or every year.
5,It can save about 30% energy.
Twist Gabion Hexagonal Wire Netting Machines With Automatic Oil System
1,It is electric cabinet button control.
2,It has the function of frequency control of motor speed according to different of wire diameter.
3,It has buffer function when speed increase or decrese in very short time.
4,It can count output every day or every year.
5,It can save about 30% energy.
Machine Parameters
Model | Mesh Size | Max width | Wire diameter | Twisted number | Drive shaft speed | Motor Capacity | Theoretical Speed |
mm | mm | mm | r/min | kw | m/h | ||
LNWL-23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
LNWL-23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
LNWL-23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
LNWL-23-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
LNWL-33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
LNWL-33-80-2 | 80*120 | 1.6-3.0 | 195 | ||||
LNWL-33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
LNWL-33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
LNWL-43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
LNWL-43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
LNWL-43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
LNWL-43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
LNWL-43-60-3 | 60*80 | 4300 | 1.6-2.8 | 2 | 25 | 22 | 165 |
LNWL-43-80-3 | 80*100 | 1.6-3.0 | 195 | ||||
LNWL-43-100-3 | 100*120 | 1.6-3.0 | 225 | ||||
LNWL-43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
Auxiliary Equipment

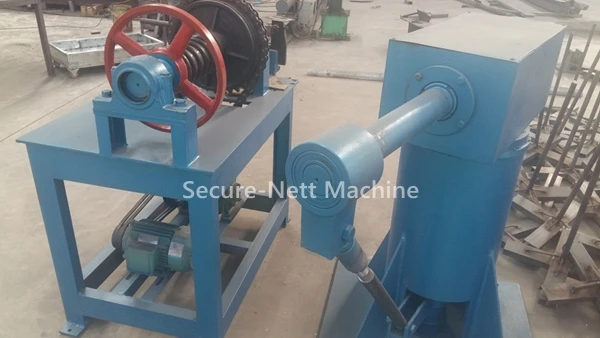

Wire Torsion Machine
Wire Rolling Machine

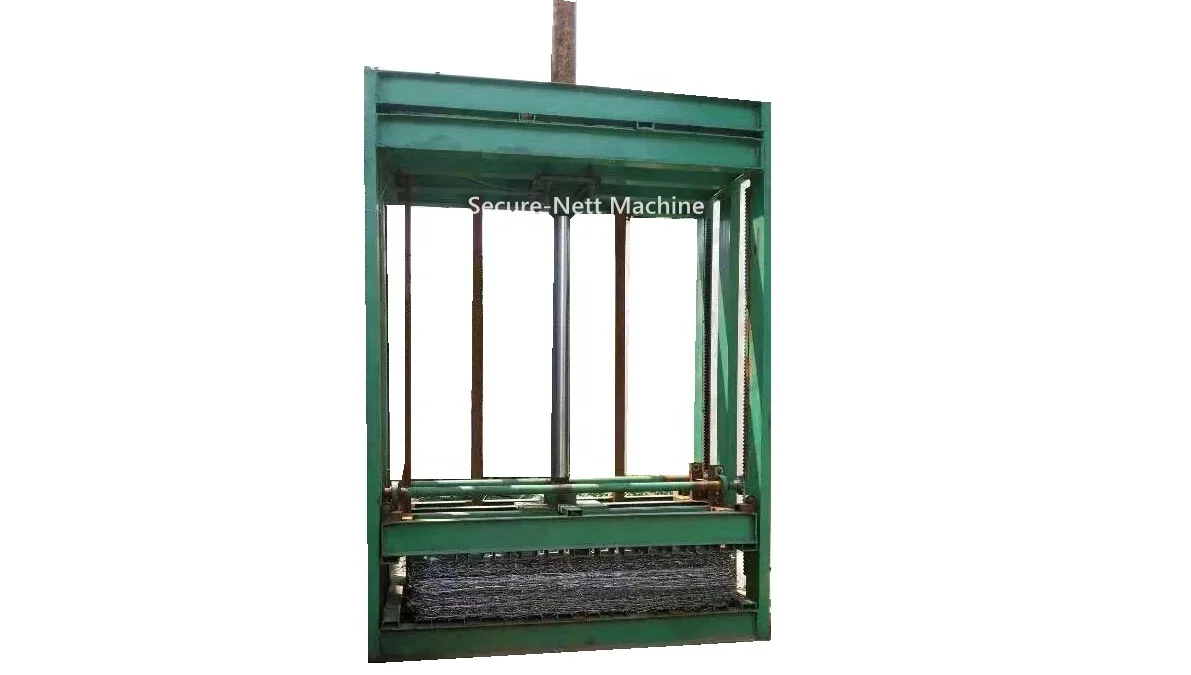

Gabion Mesh Pinching for Packing
Wire Cutter for edge wire
Why choose us:Secure-Net Machine
Secure-Net Company:
As one of the largest manufacturers of wire mesh machines in northern China, Secure-Net has existed for 20 years and will continue to exist for a long time. You don’t have to worry that we, like other small companies, will disappear one day in the future, so that we cannot continue to provide After-sales service, the guarantee and warranty cannot be continued.
Secure-Net’s R&D:
As the heart of the company,R&D of secure-net is full of Mechanical Engineer and Electrical Engineer which are professional and well-educated，We cannot guarantee that our machine will never have problems, but if we have problems, we will promptly and professionally help you solve them.
Secure-Net’s workers:
The workers in our company, unlike other companies that hire farmers, they are experienced and responsible, and work in our company for a long time, so as to ensure the quality of our machines keep improving.
Quality of machine:
As a component of the machine body ,the raw materials of the machine frame, we use thick and heavy steel plates and steel tubes.All of suppliers of electrical appliances and motors, We have been cooperating with for many years,so as to ensure reliable quality.
As one of the largest manufacturers of wire mesh machines in northern China, Secure-Net has existed for 20 years and will continue to exist for a long time. You don’t have to worry that we, like other small companies, will disappear one day in the future, so that we cannot continue to provide After-sales service, the guarantee and warranty cannot be continued.
Secure-Net’s R&D:
As the heart of the company,R&D of secure-net is full of Mechanical Engineer and Electrical Engineer which are professional and well-educated，We cannot guarantee that our machine will never have problems, but if we have problems, we will promptly and professionally help you solve them.
Secure-Net’s workers:
The workers in our company, unlike other companies that hire farmers, they are experienced and responsible, and work in our company for a long time, so as to ensure the quality of our machines keep improving.
Quality of machine:
As a component of the machine body ,the raw materials of the machine frame, we use thick and heavy steel plates and steel tubes.All of suppliers of electrical appliances and motors, We have been cooperating with for many years,so as to ensure reliable quality.
