Landto Miniature Smart Food Pharma Peristaltic Dosing Tube Pump

Product Overview

Description

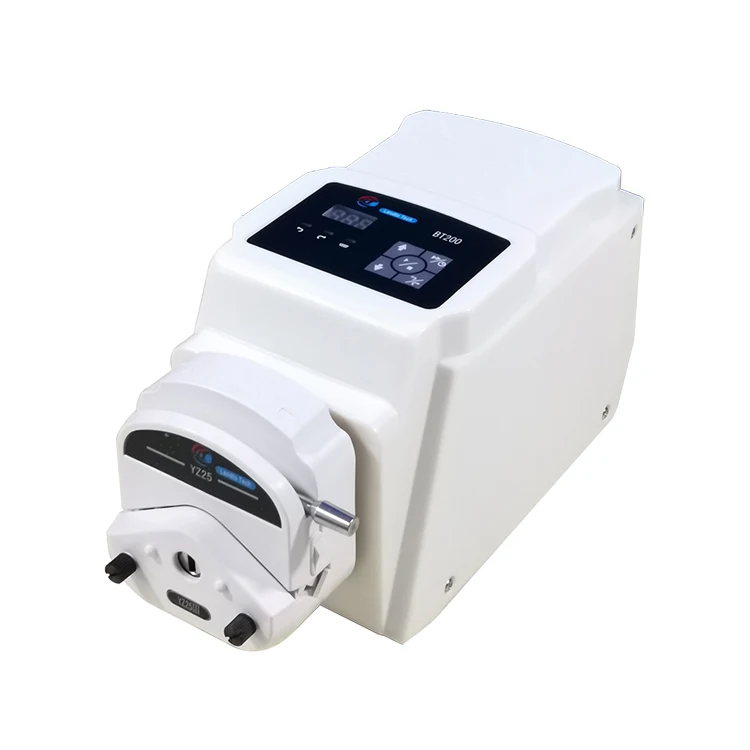

Landto Miniature Smart Food Pharma Peristaltic Dosing Tube Pump





[Product introduction]

Miniature Peristaltic Dosing Pump





[Product feature]

Miniature Peristaltic Dosing Pump



Model	BT200
CPU	ARM Cortex-0 Core,STM32 Chip
Motor drive chip	SANYO THB6128 drive chip
Speed adjustable range	0.1-200RPM
Speed resolution	0.1(<100RPM) , 1(100-200RPM)
Display function	3 digit LED display the speed
Direction control	Clock-wise/counter clock-wise direction, import toggle switch
Operation mode	Membrane keypad operate, convenient, quick and reliable
Full speed function	Full speed button to realize fast filling and drain
Power-down memory function	After power on, running as before
External control function	Different model external control module for Start/Stop, direction, flow rate; 0-5V,0-10V,4-20mA,0-10KHz  4 module for option
Communication function	Optional communication module, RS485 communication control (via Modbus protocol)
Intelligent temperature control	Cooling fun intelligent temperature control system, reduce noise
Foot switch control	Optional
Power Consumption	<35W
Power supply	Wide AC90-260V, 50Hz/60Hz
Operation condition	Temperature 0 to 40 °C, Relative humidity < 80%
dimension	225mm×143mm×148mm (doesn’t including pump head  )
Driver weight	3.5KG
IP rate	IP31

[Selection guide]

Remarks: Above data are tested actually by silicone tube, various import tube for option





[Accessory]

Pump body 1 set (including the driver, pump head)
Tube 2m
Power cable 1 PC



[Related product]



 [Company introduction]



Baoding Landto Electronic Technology Co., Ltd is a professional high-tech enterprise which headquarter is located in Hebei province, China. We are specialized in developing and producing various precision pump and related products, including Filling machine, Peristaltic Pump, syringe Pump and Piston Pumps. The products are exported to more than 50 Eurasia and American countries, Such as USA, Germany, Turkey, Brazil, South Korea, Singapore, Malaysia etc. We sincerely look forward to your cooperation.



[Certificate]



[Packing & Shipping]





[Cooperation partner]



[FAQ]



Q: What is your application with the pump?
A: For continously transfering, we have the basic pump for you. For dispensing, we have dispensing pump or other type filling machine for option.



Q: How long is your delivery time?
A: Generally it is 3-5 days; It is according to quantity.



Q: What is your term of payment?
A: Payment: T/T, western union, Paypal or credit card.



Q: How can I get the machine if I place an order.
A: We usually ship by express including DHL, FedEx, and also ship by air freight.
