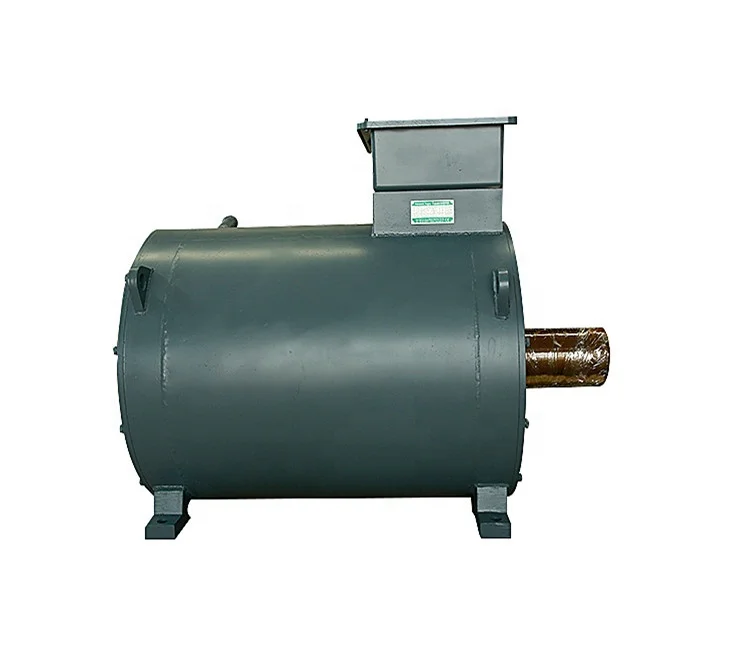

1000KW 500RPM Coreless Permanent Magnet AC Generator Design 50hz Wind Power Generator
- Category: >>>
- Supplier: Jiangsu Shenghuang New Energy Technology Co. Ltd.
Share on (1600305730899):
Product Overview
Description
Company brief
Products Description
1000kw PMG specifications | ||
Rated power (kW) | 1000kW | |
Rated speed (rpm) | 500rpm | |
Rated torque(Nm): | 19896Nm | |
Rated voltage(V): | 400VAC | |
Rated current(A): | 1443A | |
Startup torque (Nm) | 398Nm | |
Pairs of poles | 12 | |
Frequency (Hz) | 50Hz | |
Phase | 3-phase | |
Insulation Class: | H | |
Protection Class | IP54 | |
Efficiency(%) | 96% | |
Power factor | 1 | |
Cooling | Forced air cooling | |
Mechanical specifications | ||
Installation | Horizontal | |
Frame size | 400+ | |
Weight(Kg) | 3050kg | |
Materials | ||
Shaft material | Steel | |
Bearings | Steel | |
Housing material | Casting Iron | |
Winding material | Copper | |
Winding temperature level | 180/span> | |
Magnet | NdFeB | |
Magnet temperature level | 150/span> | |
Core | High quality cold rolled silicon steel sheet | |

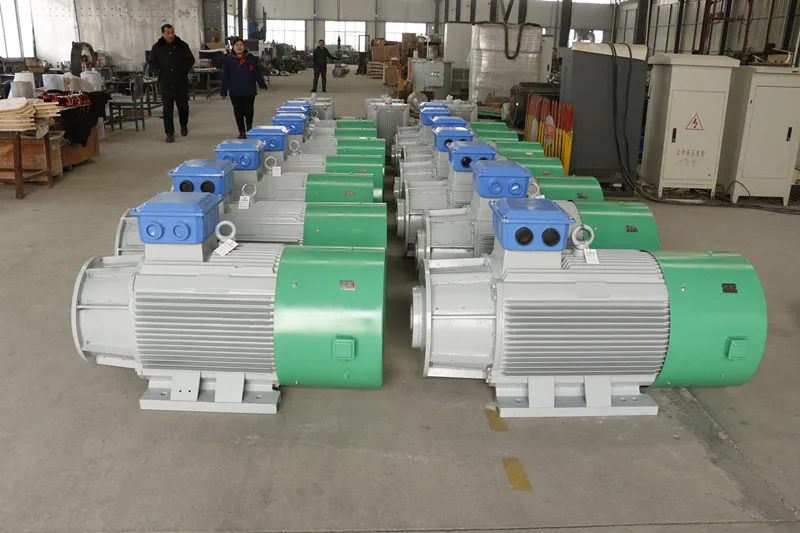

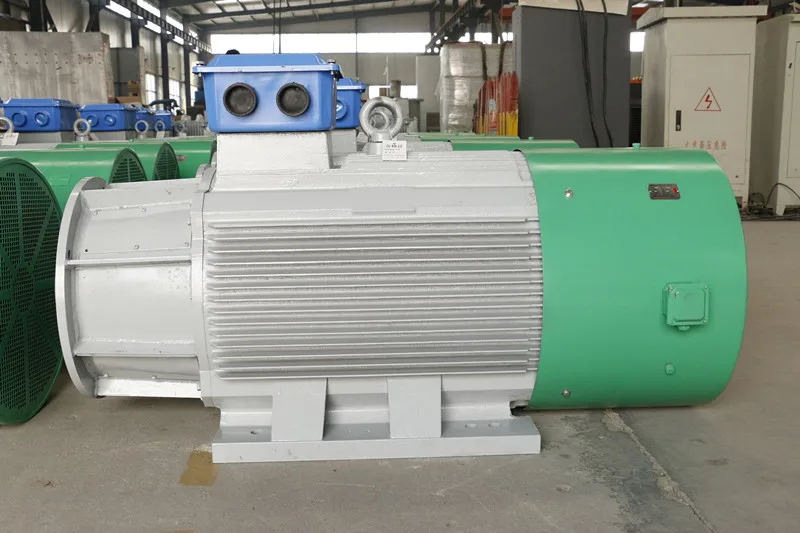

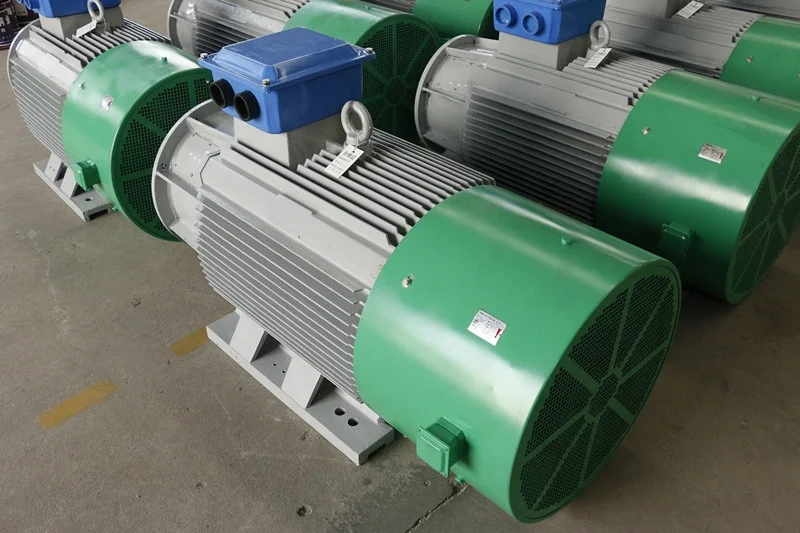

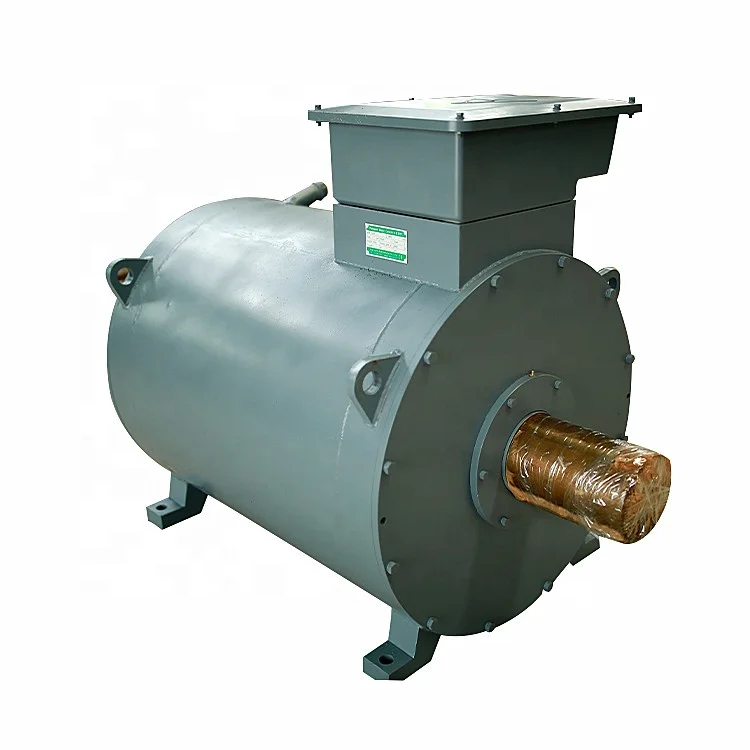

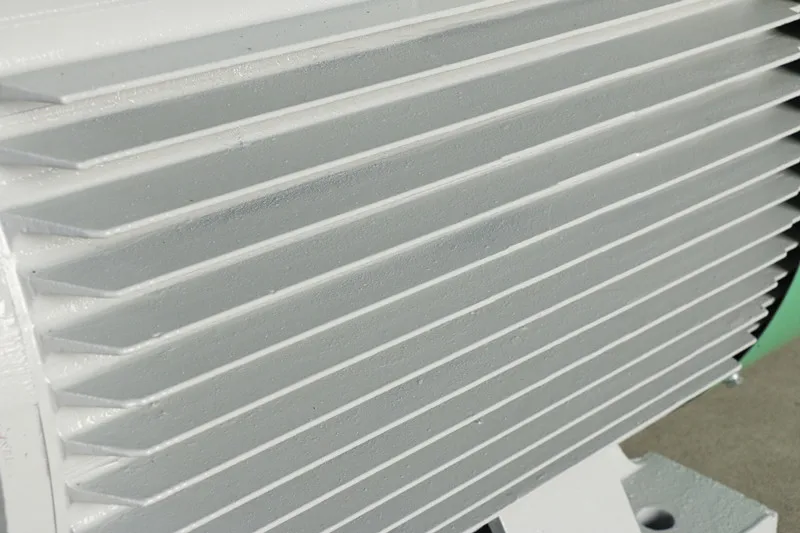

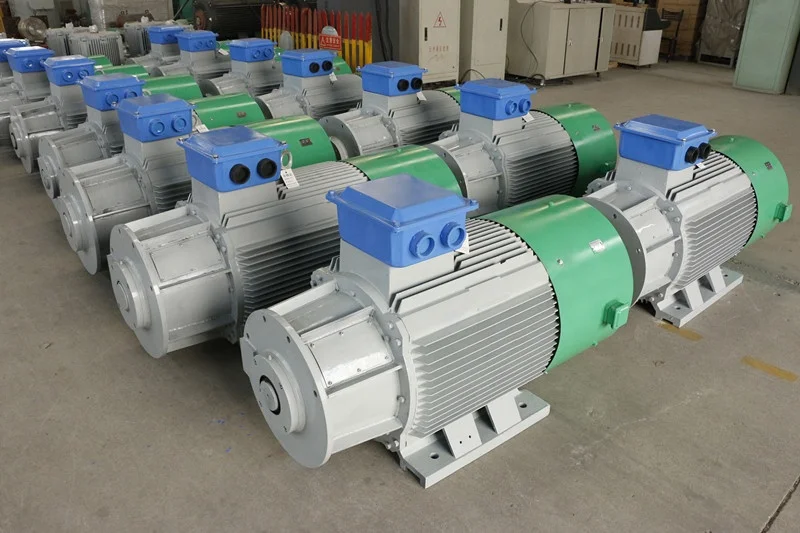

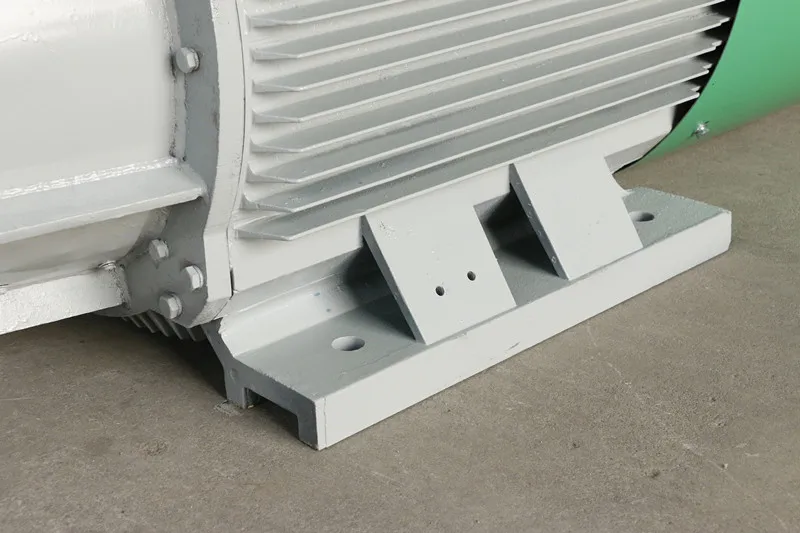

Details Images
