6 10T/H Automatic Polymer Modified Emulsion Bitumen Plant For Sale

Share on:

Price in USD:Details


Product Overview


Product Description

The bitumen emulsion plant with burner is mainly used for road surface sealing and maintenance. Such as sealing layer of stone chips, as well as a variety of unique, irreplaceable other bituminous materials applications, such as cold mix asphalt, slurry seal. Emulsified bitumen can be used for new road construction or the existed asphalt road maintenance.

Xinyu manufactured emulsion asphalt plant have good reputation for its reliable quality, stable performance and simple operation, can meet different kinds raod construction projects.

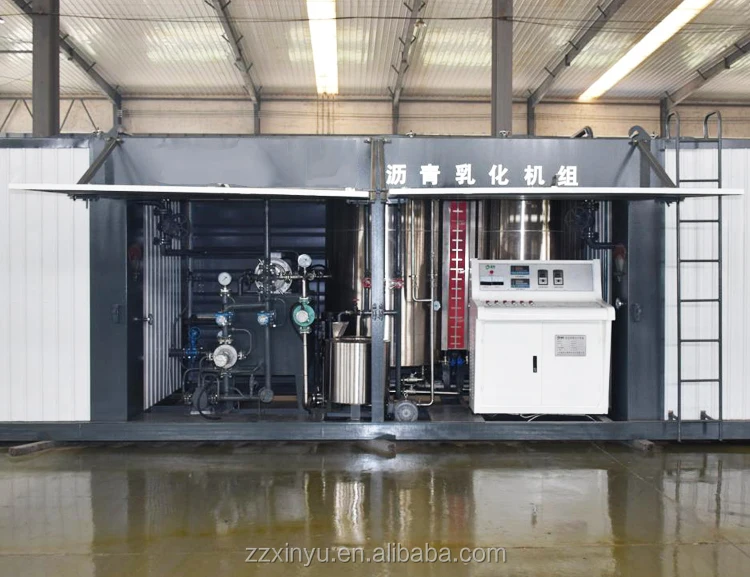

Bitumen emulsion plants

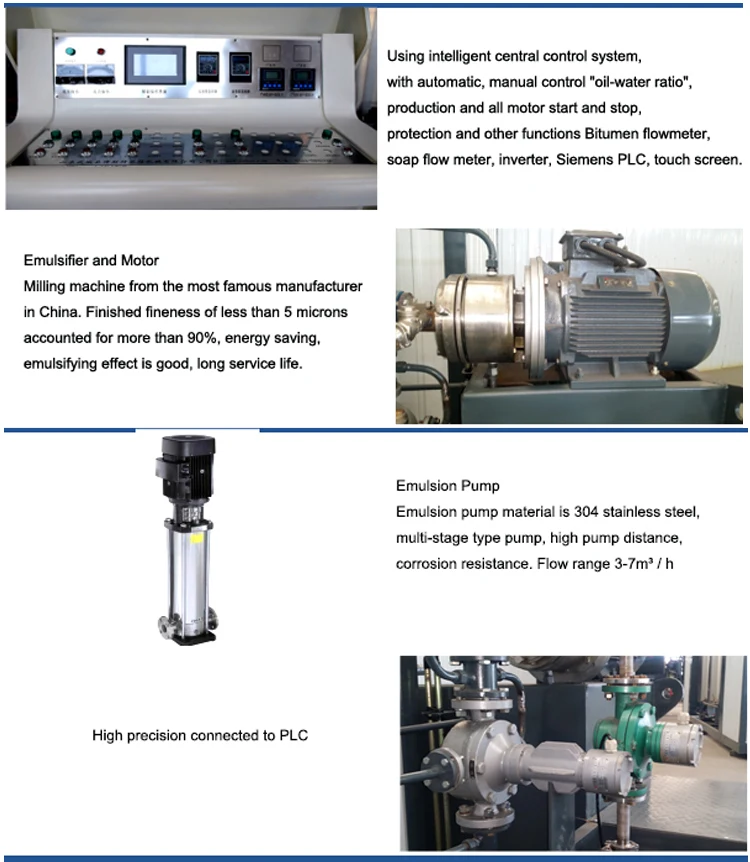

Components of RH bitumen emulsion plant with burner

The bitumen emulsion plant with burner consists of bitumen transmission tank, emulsion mixing tank, finished product  storage tank, bitumen pump, mill, emulsifying machine, finished pump, electrical control cabinets, pipes, valves and bas etc.









Rated capacity

Installation power



Theory power

Emulsified fineness

< 5μm

< 5μm


Water heating type

Thermal oil/electric heating

Thermal oil/electric heating


Blending tank volume




Bitumen tank volume

5 m3

6 m3


Finished product tank

5 m3

6 m3


Water tank volume

5 m3

6 m3

Emulsion Bitumen Plant


asphalt bitumen plant




1. Adopts automatic control system, automatic monitor and adjust the asphalt content. This equipment using automatic mixing tank breasts, you can alternate drainage, in order to achieve continuous production. Valve pneumatic (electric) control, thereby reducing the labor intensity and improving work efficiency;

2. High efficiency heat exchanger can cool the finished emulsion asphalt from high-temperature asphalt emulsion to room temperature, thereby improving the storage stability; The heated cooling water can be used in emulsified asphalt production, eliminating the need for water heating costs. The whole process is environmentally friendly;

3. Thermal oil heating electric heating system heated alone and can realize automatic temperature control. The thermal oil heating system is mainly used to provide heat of warm-up and production process for temperature. Replaced the traditional way of baking blowtorch, quick, easy and efficient;

4. The core part emulsifying machine during the asphalt emulsion process was reached and developed by our company, it adopts unique stator and rotor clearance adjustment structure, can maintain the stability of small gap. After special treatment of the stator and rotor has a strong resistance to abrasion and corrosion resistance, thus ensuring the effectiveness and stability of the emulsion;

5. Adopts PLC control system. Frequency control motor to adjust the asphalt pump speed to regulate the water flow through the electric milk regulating valves, can more precisely control the content of emulsified asphalt bitumen;

6. All materials in contact emulsions are made of stainless steel, has a strong resistance to corrosion, can be applied to different types of emulsified asphalt production.


asphalt bitumen plant


Zhengzhou Xinyu Machine Manufacture Co., Ltd is the specialized corporation which produces large and medium

construction equipment products. We specialize in the production of concrete mixing plant, asphalt mixing plant,

twin shaft concrete mixer and concrete pump.


With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers

an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have

abundant economic strength, strong technical force, huge sales network and perfect after-sales service.


 Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more

perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan,

Mongolia, and Viet Nam and other 20 countries.


asphalt bitumen plant

Related Products

--Installation and commissioning and acceptance

1). Our company will offer the buyer assistance of the equipment installation, commission ;

2). Each unit after installation will have returning visit by specialized departments;

--Technical material, warranty and free service

1). We will offer the buyer free training for their operator and maintenance worker, and also provide free technical advice services;

2). And company will organize technology training courses regularly, and give free training the buyer's operator.

--Spare parts supply services in time

Our company offers the original, authentic, quality spare parts for the machine maintenance accessories.


asphalt bitumen plant
