Automatic Nursery Tray Plastic Seedling Tray Vacuum Forming Machine
- Category: Plastic Vacuum Forming Machines >>>
- Supplier: Quanzhou Gester International Co. Ltd.
Share on (1600305936628):
Product Overview
Description
Products Description

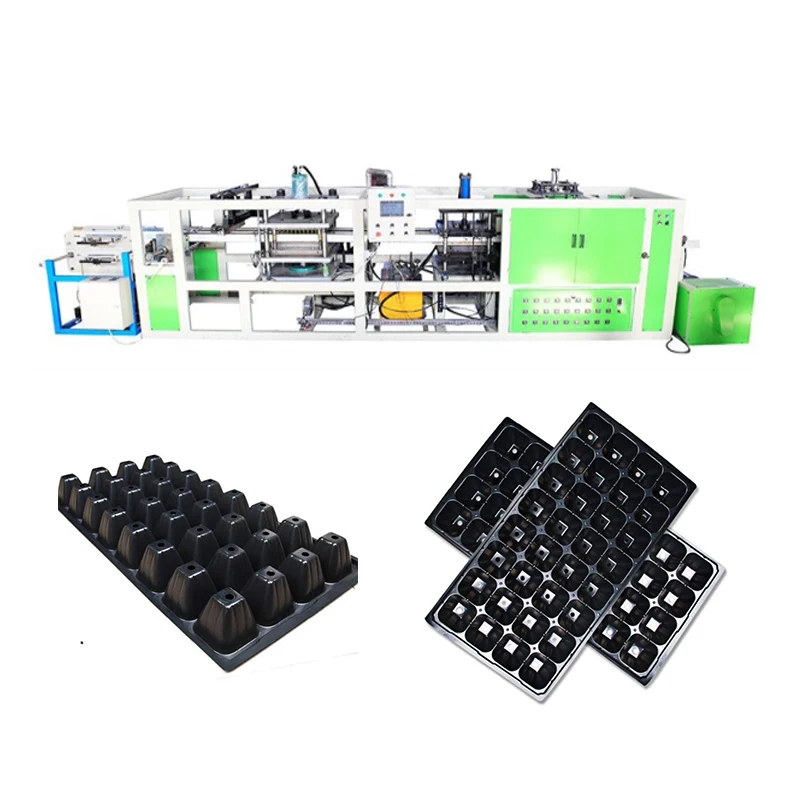

Automatic Nursery Tray Plastic Seedling Tray Vacuum Forming Machine
Product overviews
Feature
1. Fully automation: Feeding→Heating→Pressing→Forming→Cooling→Demould→Punching→Knife-Cut→Counter→Stacking2. It is most advanced technology, it adopts PLC Touch screen control, easy to operate.
3. It adopts servo motor feeding sheet design with high speed,uniform and stable, high accuracy,save sheet.
4. Special radiation tile design for seeding tray, every tile’s temperature can be adjusted solely,energy conservation.improving product quality.
5. Upper and lower die all adopt oil cylinder control, the two cylinders can be synchronous and independent, fast and stable pressing,improve work efficiency.
6. High-wearing resistance aluminum alloy guide rail, water cooling for whole guide rail, improve the quality of products.
We can change the function according to client’s requests.
Product Paramenters
Model | HEY15C | |
Applicable Material | PET, PS, PVC, PE, PP | |
Dimension(mm) | Available for 540x280 standard seeding tray Thickness: 0.1-1.2 | |
Feeding length(mm) | Infinite adjustment | |
Max. Forming depth(mm) | 70 | |
Work efficiency（molds/minute） | 20-30 | |
Total Power | 25kw | |
Outlook dimension(mm) | 8000×1000×2000 | |
Weight(kg) | 2500 | |
Brand of Main Components | ||
Computer Controller | Mitsubishi (Japan) | |
Touch Screen | WEINVIEW 7inch | |
Solenoid Valve | CKD(Japan) | |
Heating Tile | Qite (Taiwan) | |
Hydraulic Valve | Yuken(Japan) | |
Temperature Adjusting System | 27 sets Aoyi Electronic Temperature Control | |
Servo Motor | HAIDE | |
Motor | Yantai | |
Temperature-controlled Meter | RKC(Japan) | |
Contactor | CHINT | |

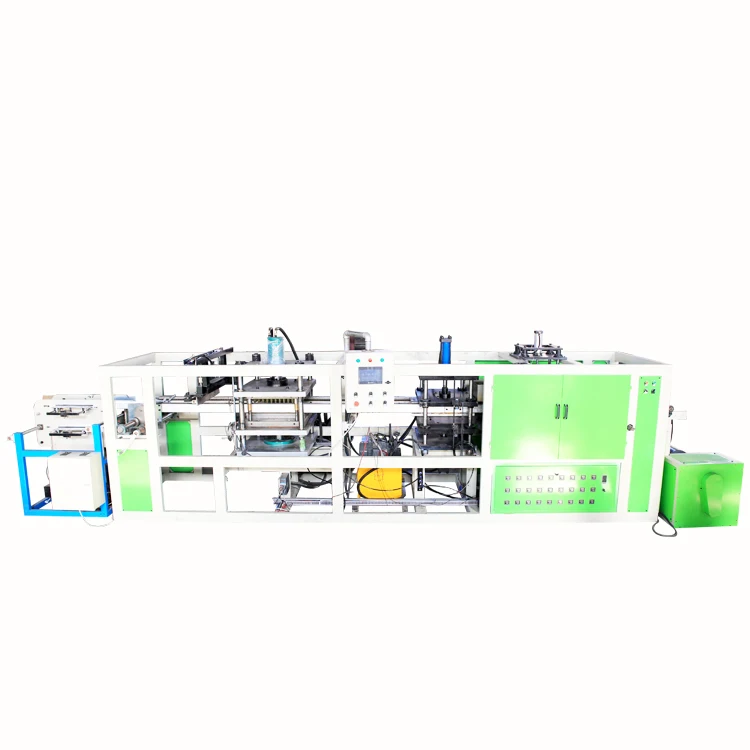

Product Image

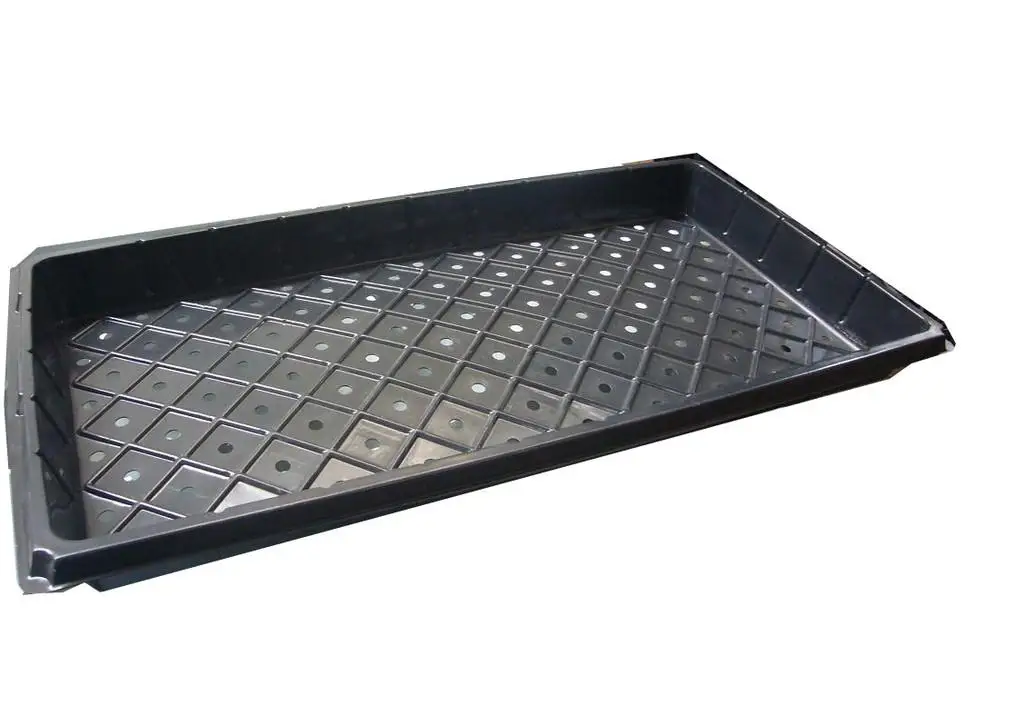

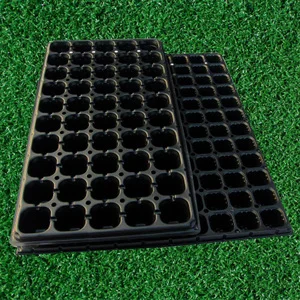

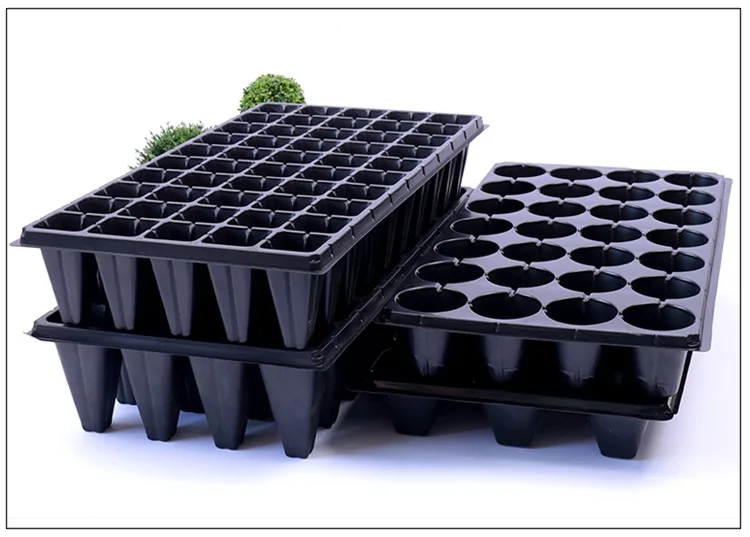

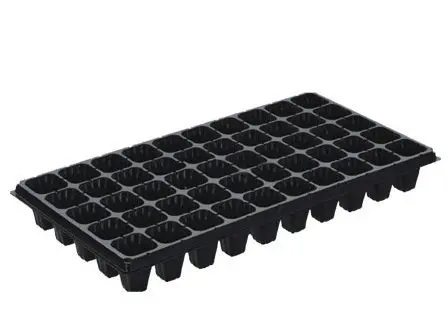

Application

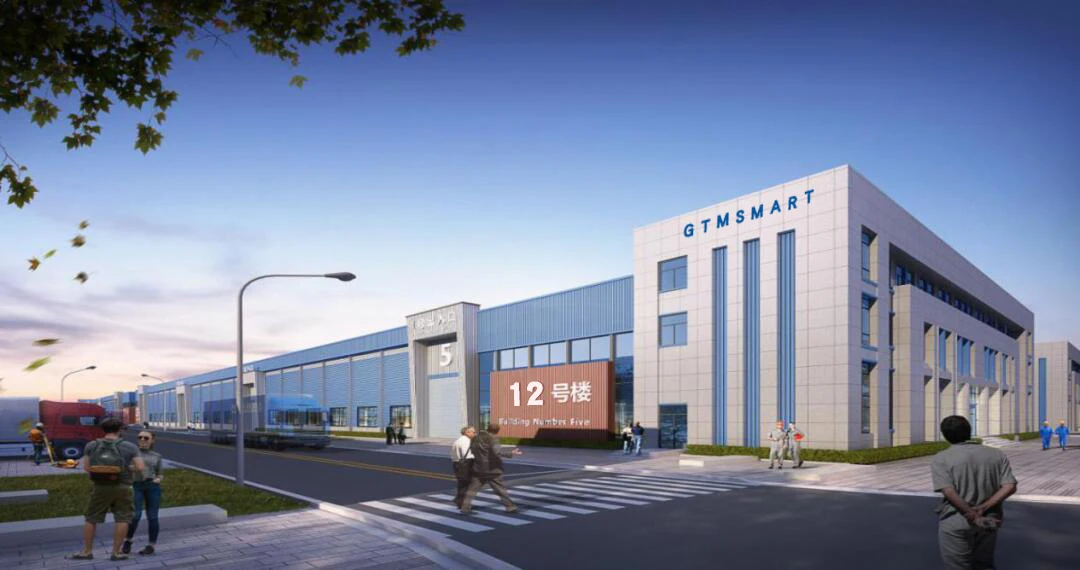

Why Choose Us
FAQ
