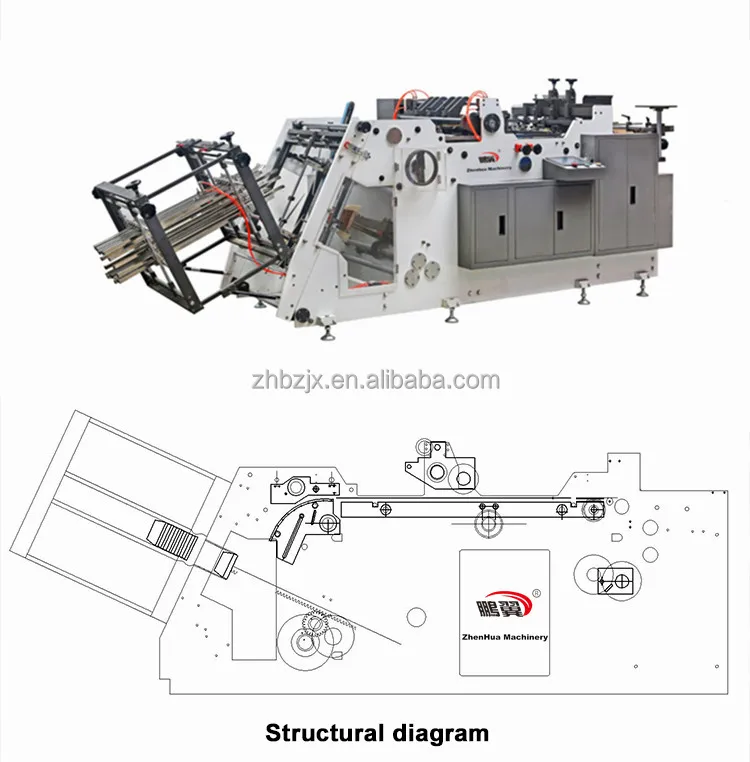

High precision three dimensional automatic molding box folding gluing machine
- Category: Packaging Forming Machines >>>
- Supplier: Cangzhou Zhenhua Packing Machinery Manufacturing Co. Ltd
Share on (1600306011302):
Product Overview
Description
Auto three-dimensional food molding
carton paper box forming machine for hamburger box
Model | ZH-800 | ZH-1200 |
Paper box size | 50*50-320*320mm | 50*50-320*320mm |
Production speed | 160pcs / minute | 160pcs / minute |
Machine size | 3500*1200*1600mm | 3500*1600*1600mm |
Total power | 5kw | 5kw |
Machine weight | 2000kg | 2500kg |
Power source | 220V 50Hz / 380V 50Hz | 220V 50Hz / 380V 50Hz |
Product Description

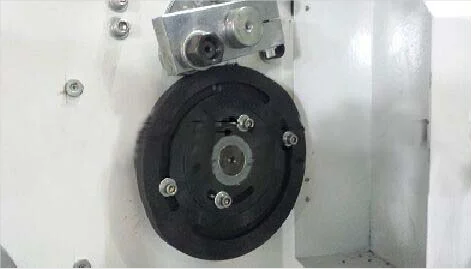

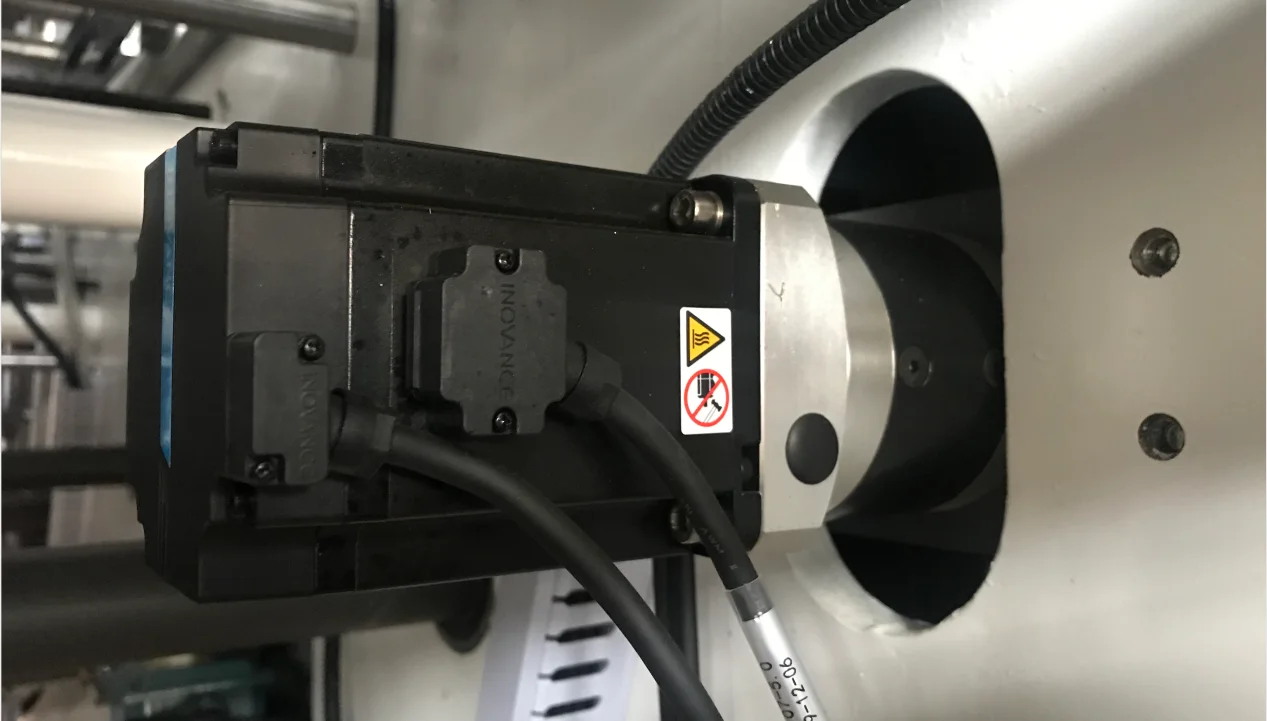

1. Servo drive
No need the adjust the distance or change different size cam to control feeding .It save the time and more precision when change the mold.
2. Photoelectric detection
Sensor detection to control start and stop feeding and will replace the up down part.Feeding will be much more steady.

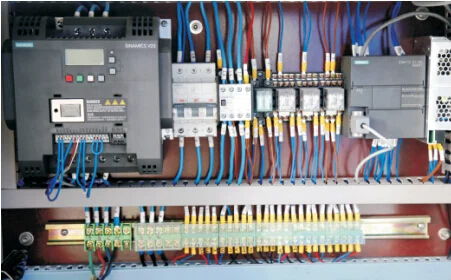

Standard electric box and marked clearly.

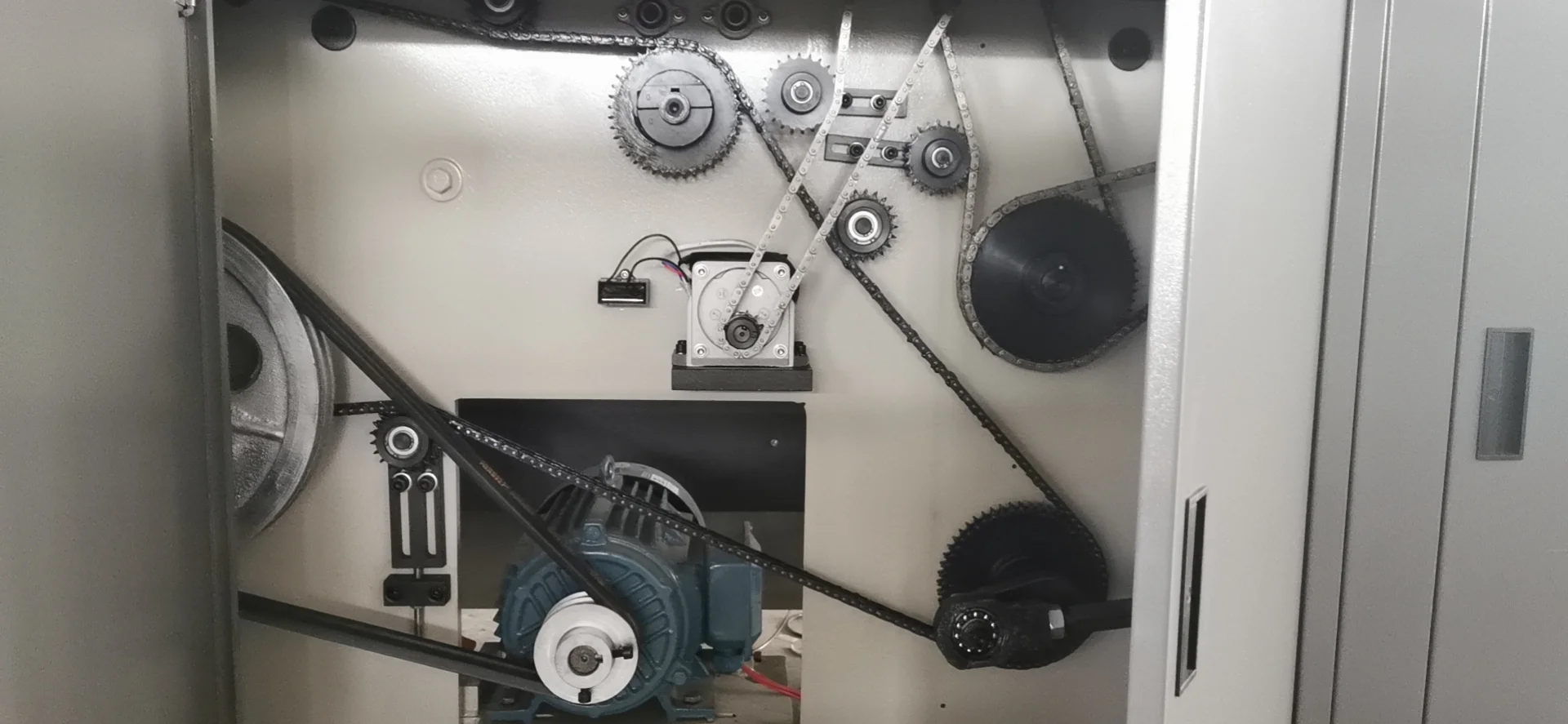

3.Chain drive system
Chain drive system,and reinforce with metal frame and board.

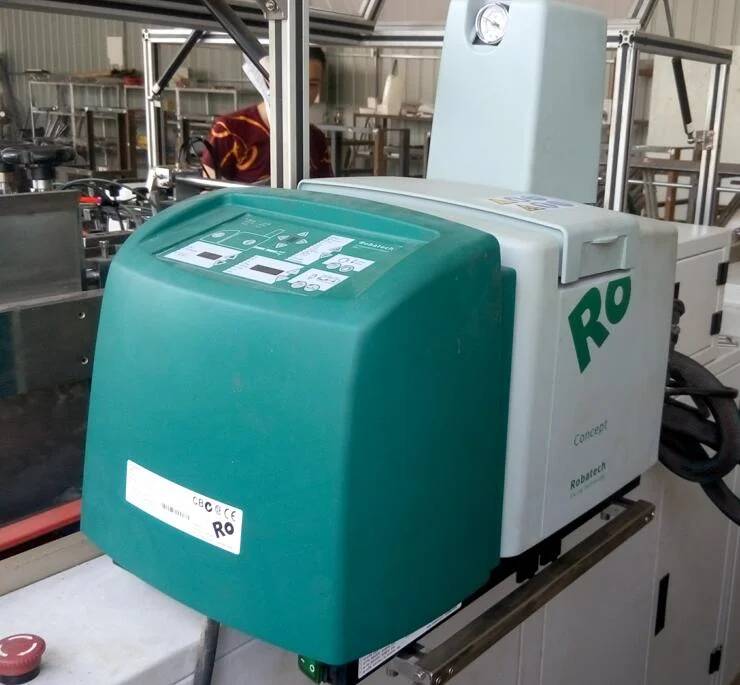

4. Motor controlled gluing system.
Inject glue and change the gluing sponge easily and quickly.

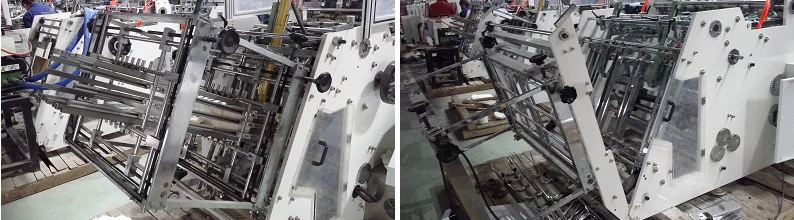

5.Collecting frame
The collecting frame can be opened in three parts.It is easier to install the forming spare part and commissioning.

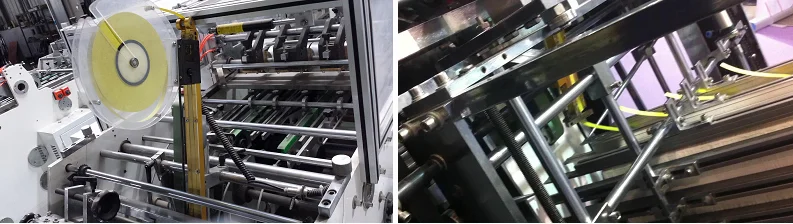

6.Paper tape counting device
Paper tape insertion label counting device, it adapts the paper tape inserter for counting.
Specification

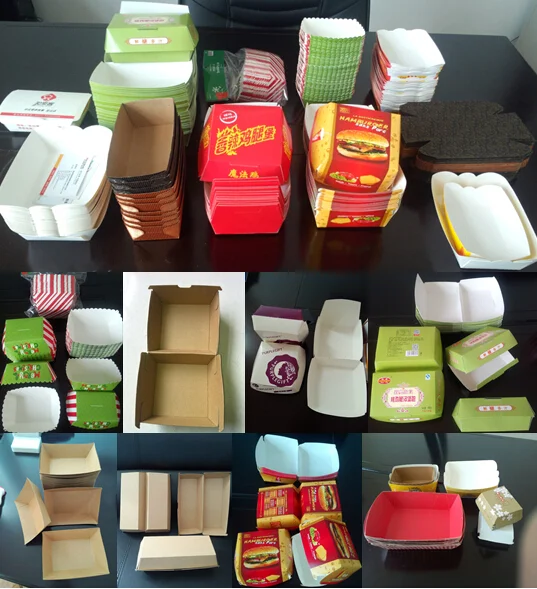

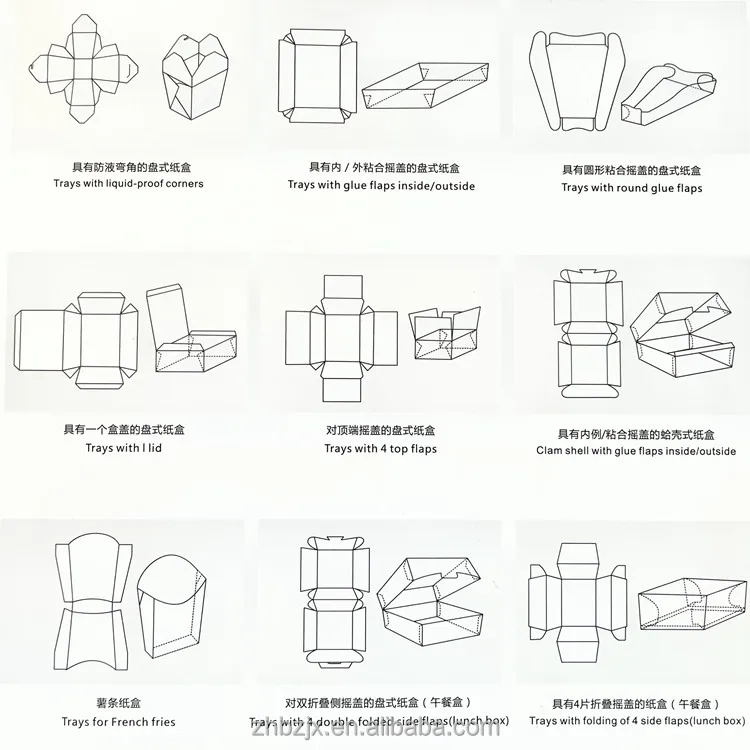

The three-dimensional carton machine is a special molding machine, which can produce hamburger boxes, square boxes, food boxes, fast food boxes, french fries boxes, etc. Boxes made of cardboard and corrugated paper are more environmentally friendly than plastic boxes.
Product advantages:
1 A machine can produce many different products, and the time for changing the mold is short.
2 The machine is controlled by a PLC intelligent system, which can produce complex boxes.
3 It can automatically collect, pile up and count products.
4 Low noise, low wear parts, high environmental protection.
1 A machine can produce many different products, and the time for changing the mold is short.
2 The machine is controlled by a PLC intelligent system, which can produce complex boxes.
3 It can automatically collect, pile up and count products.
4 Low noise, low wear parts, high environmental protection.
Product Show

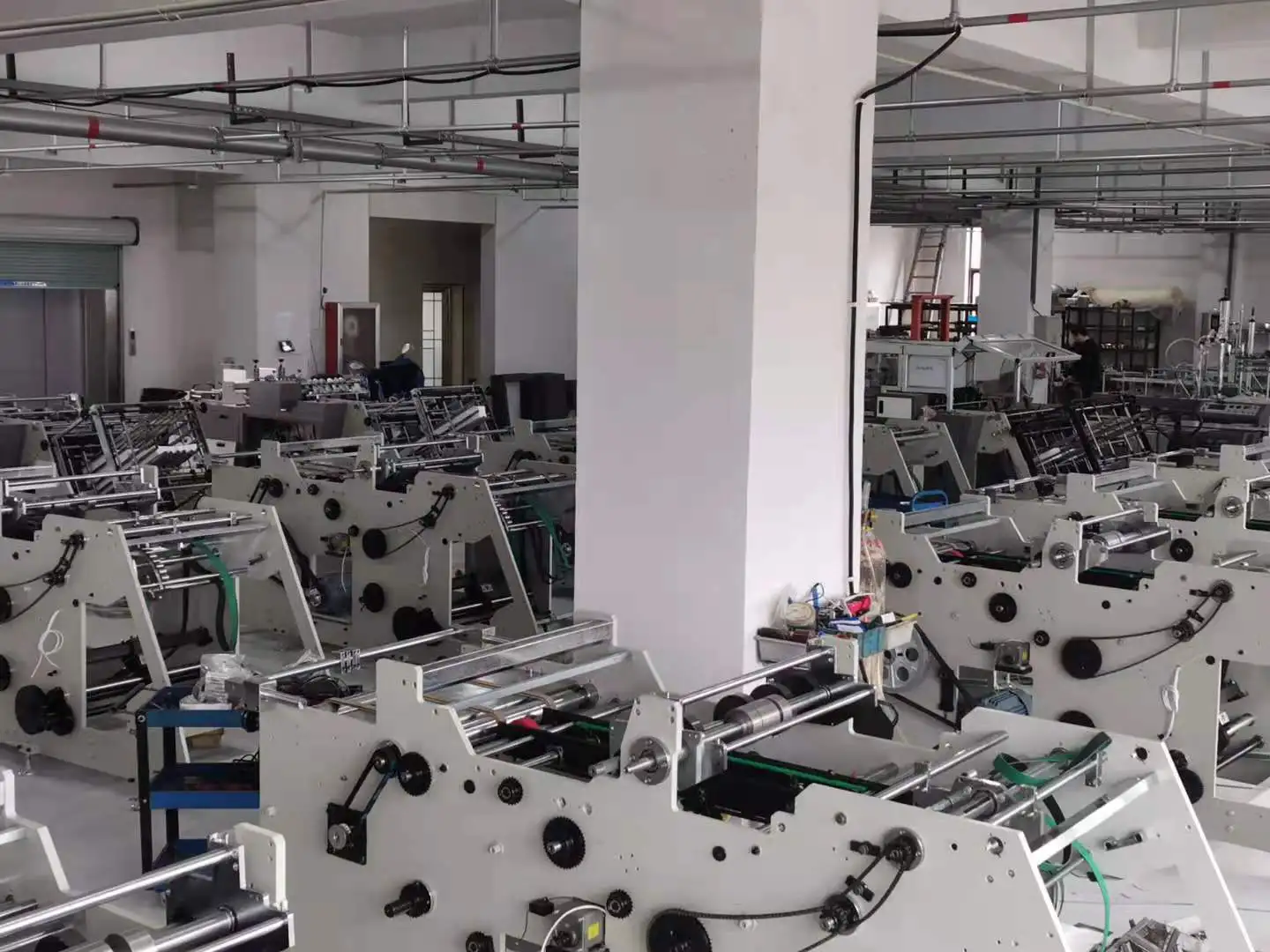

Company Profile
Packing & Delivery
More products

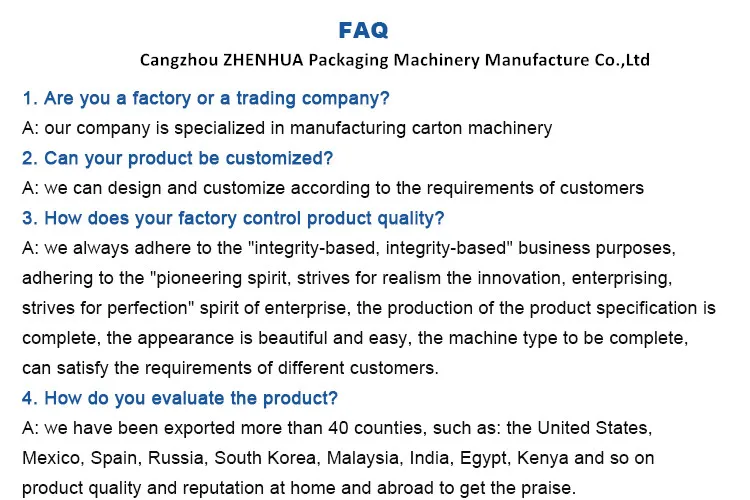

FAQ
