1500W 12V 40A 24V 40A 36V 30A 48V 25A 60V 20A 72V 15A 84V 12A lithium ion smart car waterproof golf cart buggy battery charger
- Category: >>>
- Supplier: Guangzhou Banli Electronic Technology Co. Ltd.
Share on (1600306105178):
Product Overview
Description
Notice:
please consult our customer service before placing an order, tell us the specifications and quantity you need, we will reply toyou
as soon as possible, arrange shipment as soon as possible.
please consult our customer service before placing an order, tell us the specifications and quantity you need, we will reply toyou
as soon as possible, arrange shipment as soon as possible.
* Please leave us a message. Thank you.
1 | Our Battery charger has CE FCC ROHS certification. Safety and quality | |||||||||||||||||
2 | Overcurrent, overvoltage, short circuit and reverse polarity protection | |||||||||||||||||
3 | Efficiency: ≥90% , environment-friendly. | |||||||||||||||||
4 | Double LED indicator, aluminum case, beautiful and reliable. | |||||||||||||||||
5 | The scooter charger has CE, FCC,ROHS certification. Safety and quality | |||||||||||||||||
6 | Full automatic Transition of CC.CV And Float/cut-off scooter charger | |||||||||||||||||
Note: the cut-off point of lithium battery is 5% of CC, which can be set between 5% and 10%. | ||||||||||||||||||

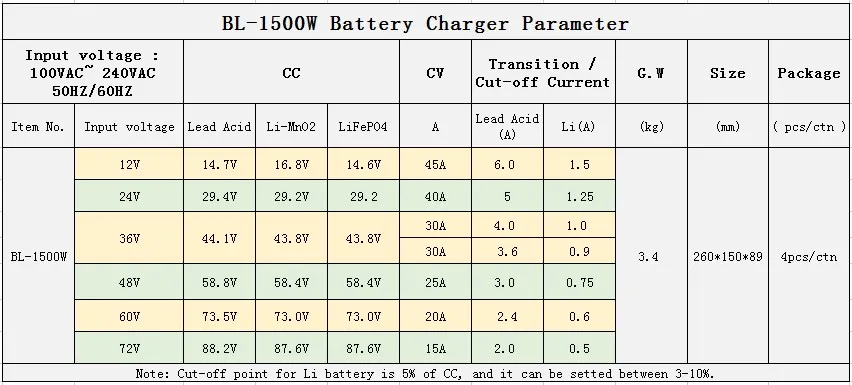

Product Paramenters
Product Description

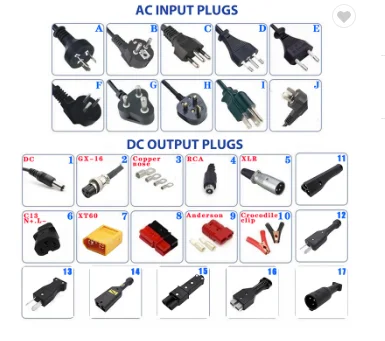

AC INPUT PLUGS
Our scooter battery charger products can support direct orders. When you choose to input the plug, please leave a message in the order note or contact us.
DC OUTPUT PLUGS
Our electric scooter charger products can support direct orders. When you are
selecting the output connector, please leave a message
in the order note or contact us.
Product performance description
Input: EU/US/UK/AU
Output: DC / 20 connectors are optional
Output: DC / 20 connectors are optional
1. Intelligent automatic refrigeration system.
2. Fully automatic intelligent power-off system.
3. Automatically change the dual LID display light.
4. Aluminum shell / high strength seismic and compression resistance
Details Images
In order to better serve our customers, we have prepared 8 input plugs. Here are three commonly used
Three input plugs: EU/US/AU。The following is a detailed introduction
EU
The manufacturing standards for the European standard plug (two circles) are implemented in accordance with CE standards.The battery charger of the European standard plug contain forklift battery charger scooter charger golf cart charger and cleaning cart charger. European standard plugs are used in most European countries such as the
Germany, Austria, the Netherlands, Sweden, Norway, Finland, and Russia.
Our scooter charger is hot sale product.
US
The ground wire of the American
standard socket has a cylindrical hole instead of a gap like the domestic one.
Suitable battery chargers include li ion lifepo4 lithium ion phosphate batteries charger and lithium ion battery charger. The live and neutral wires li charger are respectively composed of the two plugs
that are parallel to each other, instead of the two plugs having a 120 degree
angle with each other like the domestic three plugs lipo ion battery charger.
UK
British plugs are available in assembly and injection molding. The assembled British plugs are detachable and can be customized charger for electic scooter E-bike motorcyle and golf cart charger.
The injection molding is generally lipo integrated and cannot be removed. The li ion battery charger three-pin charger copper feet of the British plug have the same pitch and the pole and N-pole pins are encapsulated for safety Li and protection lead acid battery charger.
The injection molding is generally lipo integrated and cannot be removed. The li ion battery charger three-pin charger copper feet of the British plug have the same pitch and the pole and N-pole pins are encapsulated for safety Li and protection lead acid battery charger.
Product Usage
Description of product use effect
220V AC is suppressed by T0 bidirectional filter, D1 rectifier is pulsating DC, and then C11 filter is used to form stable 300V
DC. U1 is a TL3842 pulse width modulation integrated circuit. Its five legs are negative poles, seven legs are positive poles, six
legs are pulse output direct drive field effect transistor Q1 (K1358) and three legs are maximum current limit. Adjusting the
resistance of R25 (2.5 ohms) can adjust the maximum current of charger. Principle Diagram of Charger for Electric Vehicle Electric
vehicle charger schematic diagram (2) Two feet are voltage feedback, which can adjust the output voltage of the charger. Four pins
external oscillating resistance R1 and oscillating capacitor C1. T1 is a high frequency pulse transformer with three functions.
DC. U1 is a TL3842 pulse width modulation integrated circuit. Its five legs are negative poles, seven legs are positive poles, six
legs are pulse output direct drive field effect transistor Q1 (K1358) and three legs are maximum current limit. Adjusting the
resistance of R25 (2.5 ohms) can adjust the maximum current of charger. Principle Diagram of Charger for Electric Vehicle Electric
vehicle charger schematic diagram (2) Two feet are voltage feedback, which can adjust the output voltage of the charger. Four pins
external oscillating resistance R1 and oscillating capacitor C1. T1 is a high frequency pulse transformer with three functions.
Application field
