Self supported Round Drop Cable FTTH Aerial GJYC8H Singlemode LSZH Jacket Fiber Optic Cable
- Category: >>>
- Supplier: Ningbo Haishu Efon Communication Equipment Limited
Share on (1600306306376):
Product Overview
Description

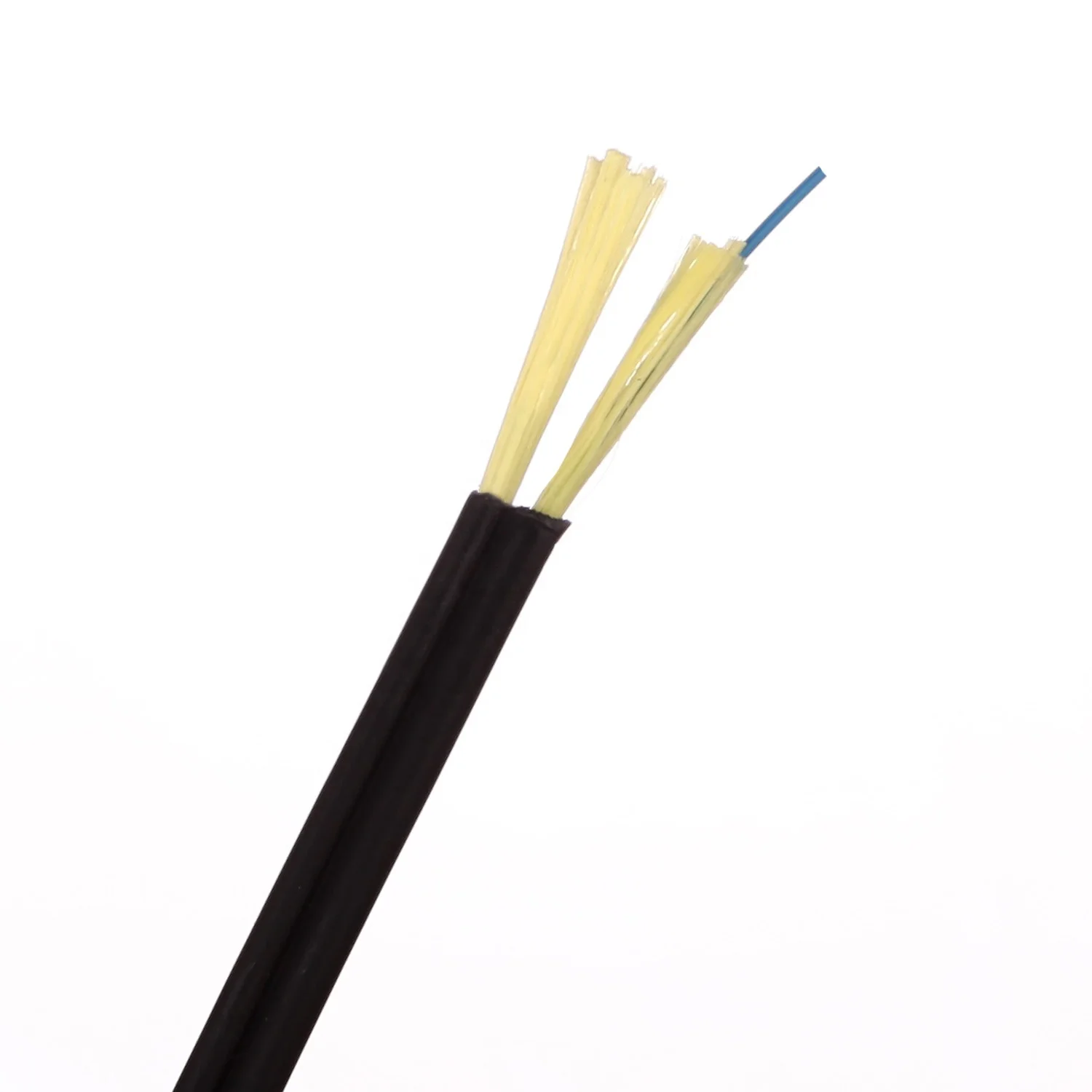

Self-supported Round Drop Cable FTTH Aerial GJYC8H Singlemode LSZH Jacket Fiber Optic Cable
Product Description

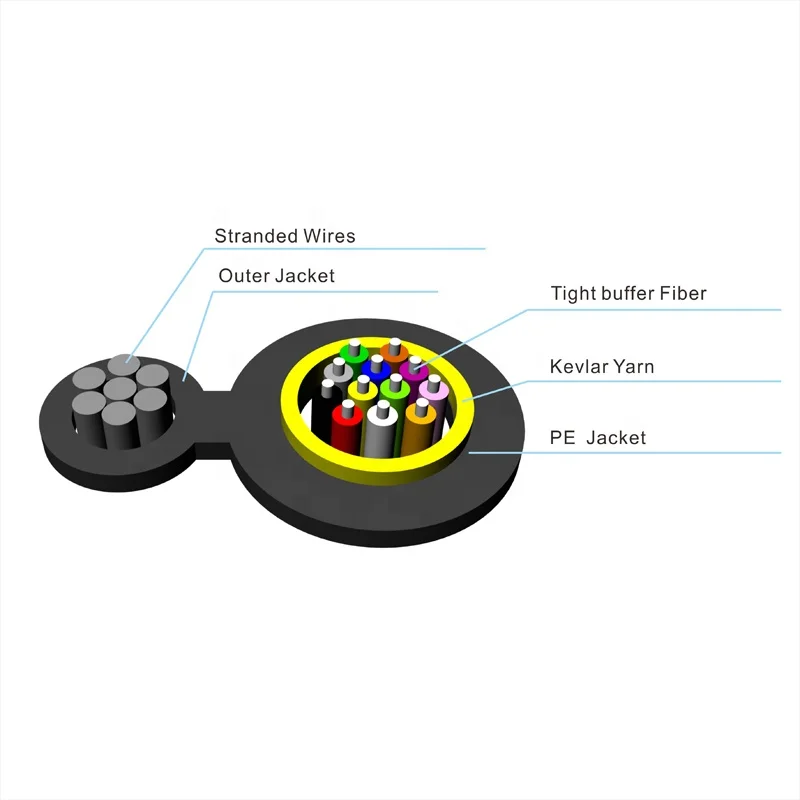

The cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is fig 8 made with a steel wire strength member.
Product Construction
Fiber:
1-12fibers
900µm tight buffer
Strength Member:
Aramid yarn
Messenger Member:
Steel wire or non-metallic member.
Outer Jacket:
UV and Flame resistant LSZH
FiberType: G.652D, G.657A1 or G.657A2 single mode fiber
Features
Good UV and flame resistant.
Compact, soft, flexible, easy to install.
Fig8 self-supporting design.
Applications
Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
Structure and Technical Specifications
| Fiber Count | Norminal Diameter (mm) | Norminal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||
| 1-4 | 6.0*3.0 | 27 | 600 | 300 | 1000 | 500 |
| >4 | Available upon customer's request | |||||
Note :This datasheet can only be a reference ,but not the supplement to the contract, Please contact our sales people
for more information
We produce and test cable comply with following standard
