2D Handheld Barcode Scanner Qr Code Scanner Supermarket Payment Scanner Shopping Mall E payment Wireless Scanning Data Matrix
- Category: >>>
- Supplier: Shenzhen Masung Intelligent Equipment Co. Ltd.
Share on (1600306347340):
Product Overview
Description
Product Description

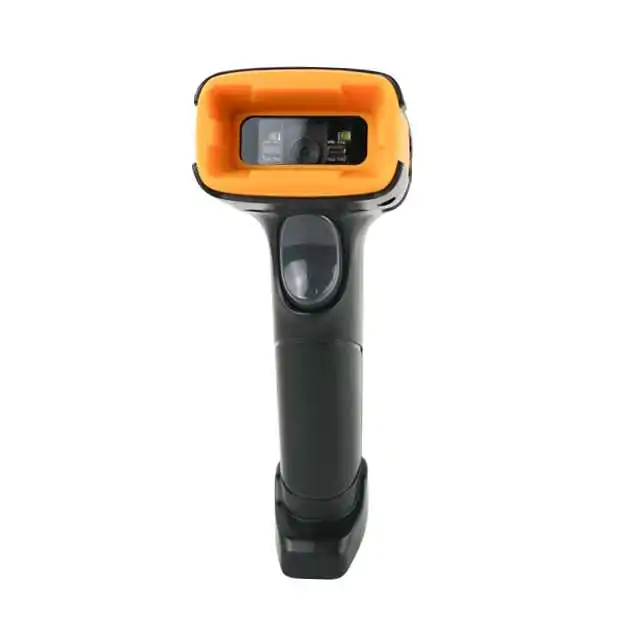

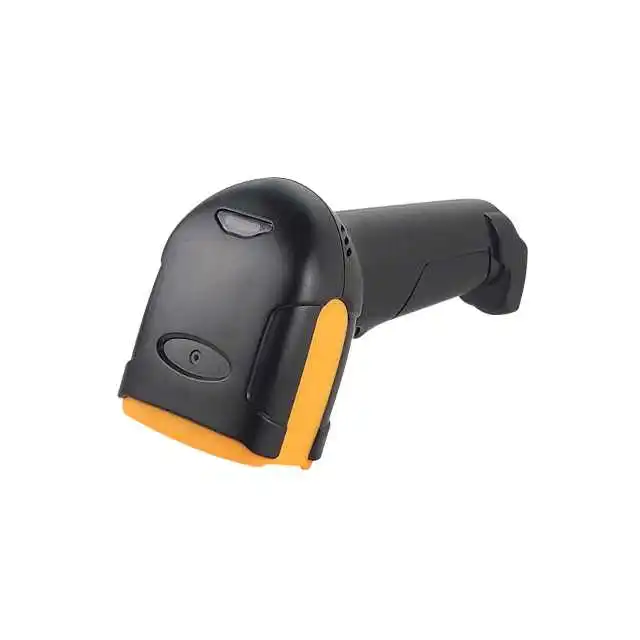

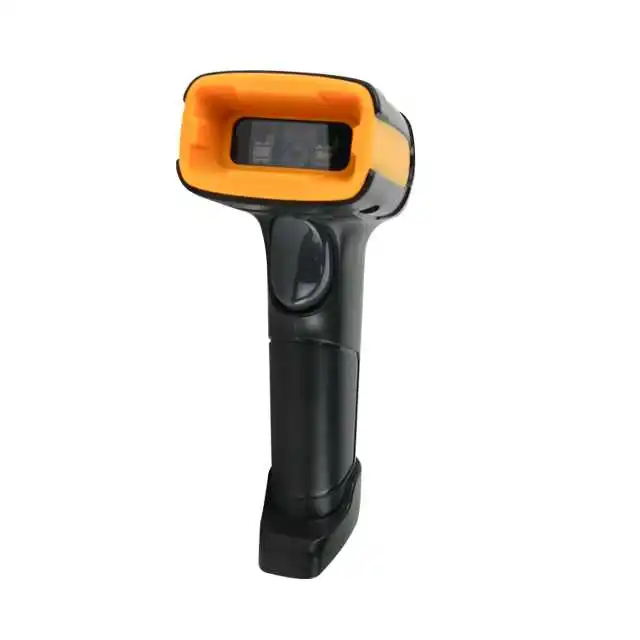

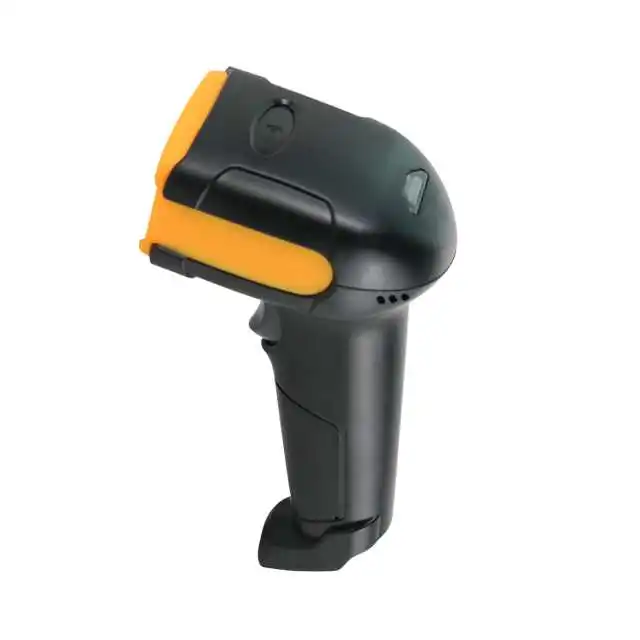

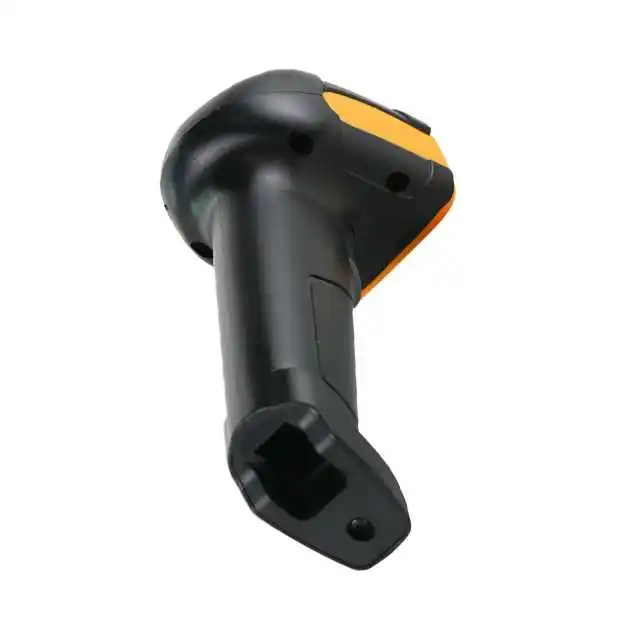

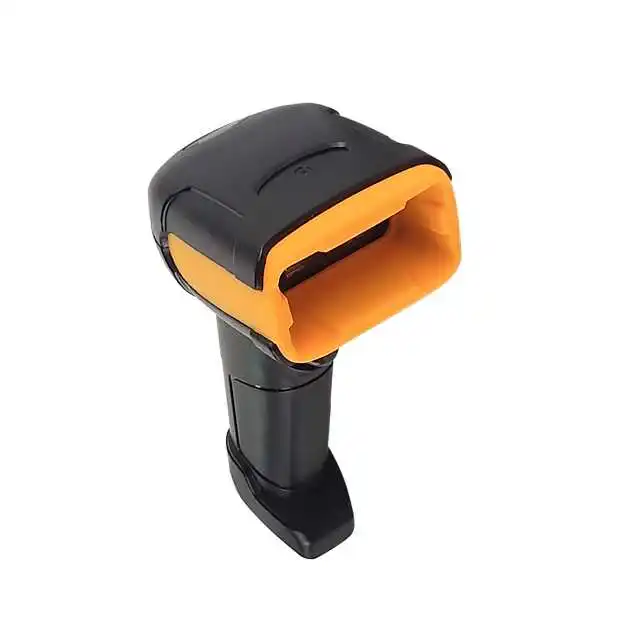

MS-6100S Handheld Barcode Scanner
2D Handheld Barcode Scanner Qr Code Scanner Supermarket Payment Scanner
Features:
* Protection grade IP54 industrial design, solid, reliable performance.
* It can quickly and accurately interpret 1d,2d bar code, and has the good correction ability.
* Bar codes on mobile phones and
computer screens can be read directly.
Applications:
Store cashier, store and supermarket, store, warehouse and other warehouse management, customer service desk,ticket inspection window, O2O application sites, etc
Specification
Physical Parameters | ||

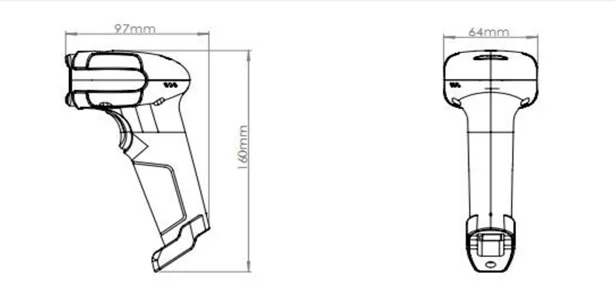

Dimensions: | 160mm * 64mm * 97mm | |
Weight: | 140.5g | |
Voltage: | 5±5%V | |
Starting Current: | 160mA | |
Stand-by Current: | 120mA | |
Work Current: | 330mA | |
Performance Parameter | ||
Image (Pixels): | 640 pixels (H)x480 pixels (V) | |
Light Source: | (Aimer) Red color LED; (Illumination) White color LED | |
Roll / Pitch / Yaw: | 360°(Roll), ±65°(Skew) , ±65°(Pitch) | |
Print Contrast: | 20% minimum reflective difference | |
Interfaces Supported: | USB | |
Motion Tolerances: | >0.4m/s | |
Environmental Parameters | ||
Operating Temperature: | -20°C to 60°C | |
Storage Temperature: | -30°C to 70°C | |
Humidity: | 5% to 95% relative hum idity,non-condensing | |
Shock Specifications: | Designed to withstand 1.2m(5’) drops | |
Ambient Light Immunity: | 0-100,000 Lux. | |
Symbology Decode Capability | ||
1-D: | Codabar,Code 39,Code 32 Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industial,Straight 2 of 5 IATA，Matrix 2 of 5，Code 11,Code 128,GS1-128,UPC-A,UPC-E, EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional, GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post | |
2-D: | Codeblock A,Codeblock F,PDF417,Micro PDF417,GS1 Composite Codes, QR Code,Data Matrix,MaxiCode,Aztec,HANXIN | |
Minimum Resolution: | ≥4mil | |
Decode Ranges | ||
5 mil (code39) | 20mm-120mm | |
13 mil (code39) | 30mm-270mm | |
Performance may be impacted by bar code quality and environmental conditions | ||
Production Details
Company Profile
Shenzhen Masung Technology Co., Ltd.
MASUNG is one hi-tech innovative enterprise engaged in receipt printers of design,production, marketing and service, our main products cover with kiosk printer, mobile printer, POS printer, wireless printer, panel printer and special type printer. And those printers are widely used for variety of industries, including commercial, finance, catering, postal, telecom, transportation, medical, vehicle and more.
MASUNG originally founded in 2002 and registered in 2006. its brand same with name “MASUNG”. Company headquarter locates in Shenzhen city, in here we also built design and producton base, ran our own circuit board processing and machinery plants. MASUNG first branch company had been set up in 2008 in Hong Kong. Over years of development, MASUNG ran up representative offices in china domestic cities including Beijing, shanghai, Guangzhou, Wu Han and so on. Meanwhile, our products also worked in international markets.
MASUNG is deep insight into customer’s printer demands and keep on launching new products every month.
Office
Our office
Factory
Our Workshop
FAQ
1.Q:Are you a manufacturer or trading reseller?
Masung: We are real manufacturer which factory locates in Li Jin Cheng industrial park,Shenzhen city, PR China. We own experienced engineers team, complete quality control system, efficient production equipments and highly skilled staffs.
2.Q:Can you offer OEM/ODM service for our order?
Masung: We can support different aspects customization service including hardware/mechanical design. But there is a MOQ request.
3.Q:What is your MOQ?
Masung: There is no MOQ limit, Sample is availale.
4.Q:What is your payment way?
Masung: We accept TT, Western Union and LC.
5.Q:Can I pay on alibaba?
Yes, it would increase our credit points if more customers pay through alibaba platform.
To customer
100% Product quality protection
100% On-time shipment protection
100% Payment protection
6.Q:How long is your delivery time?
Masung: Generally it is 2-3 weeks, sample is 2-3 days. It depends on order quantity.
7.Q: Which way to deliver the goods?
DHL, Fedex, EMS, China Post, Express and so on. We also support the goods to ur ship agent. We take the most convenient one for u.
8.Q:What the after sale service?
Each products will be tested strictly before delivery and our failure rate be limited to the range of 0.01%.
Our all products will provide 24 months warranty.
Enough stock spare parts for guarantee.
Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field.
